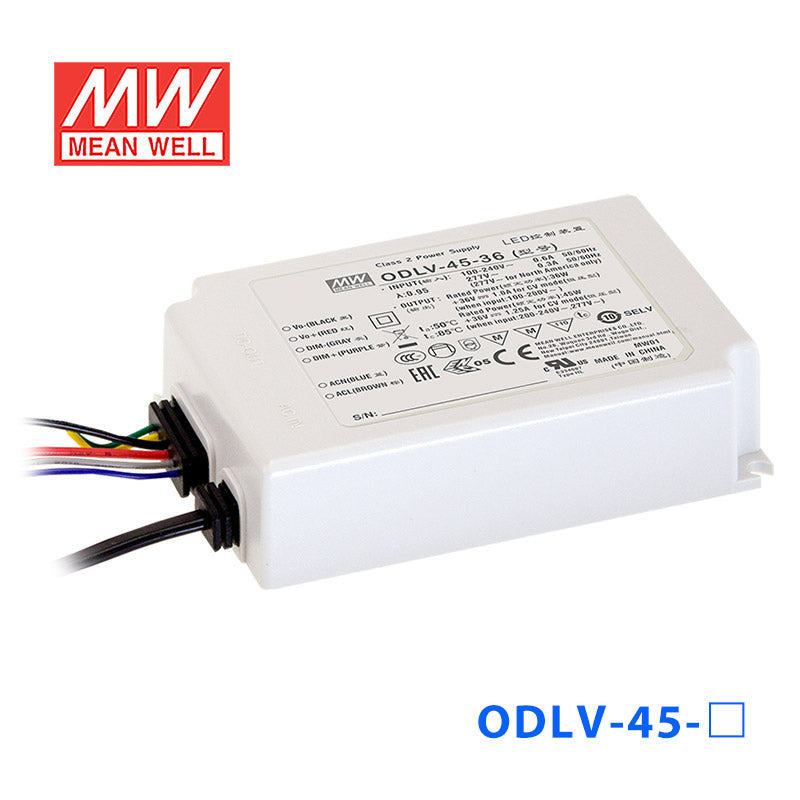

Mean Well ODLV-45A-12 Power Supply 45W 12V (Auxiliary DC output) 3A

SKU ODLV-45A-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ODLV-45A-12 is the 12V output model of this series: rated current 3.0A, rated power 36W, typical efficiency 84%.

ODLV-45 series is a 45W AC/DC LED driver featuring the constant voltage mode PWM style output design. ODLV-45 operates from 90~295VAC and offers models with different rated voltage ranging between 12V and 60V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLV-45 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for LED lighting system.

Features

Constant Voltage PWM style output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
3 years warranty

Specifications

ODLV-45A-12Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 3.0A
RATED POWER: 36W
DIMMING RANGE: 0~100%
VOLTAGE TOLERANCE: ±10%
PWM FREQUENCY (Typ.): 1KHz(±20%)
SETUP TIME^Note.3: 500ms / 230VAC 1200ms/115VAC
AUXILIARY DC OUTPUT^Note.4: Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 0.6A / 115VAC 0.4A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W for Blank-Type, <1.2W for A-Type

PROTECTION

SHORT CIRCUIT: Shut down O/P voltage, re-power on to recovery
OVER CURRENT: 105 ~ 115% Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"),CSA C22.2 NO.250.13-12;ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; BIS IS15885( for ODLV-45-12,24,48 only), EAC TP TC 004,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4229.8K hrs min. Telcordia SR-332 (Bellcore) 434.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 111*77*28.5mm (L*W*H)
PACKING: 0.42Kg;24pcs/11Kg/ 0.72CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Aux. 12V will be damaged with short circuit; It will not be available with dimming off or output no load condition.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

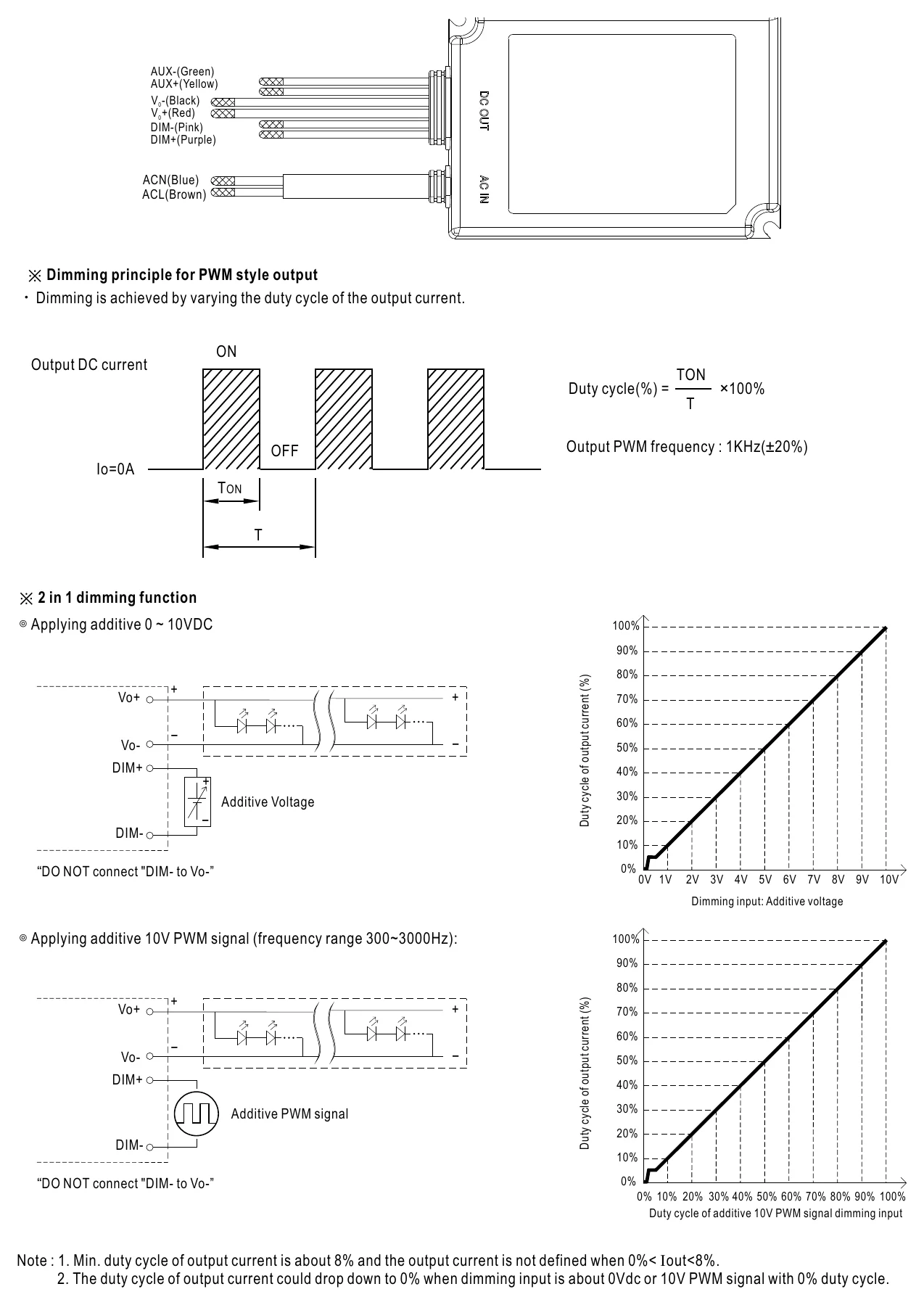

ODLV-45A-12 DIMMING OPERATION — DIMMING OPERATION

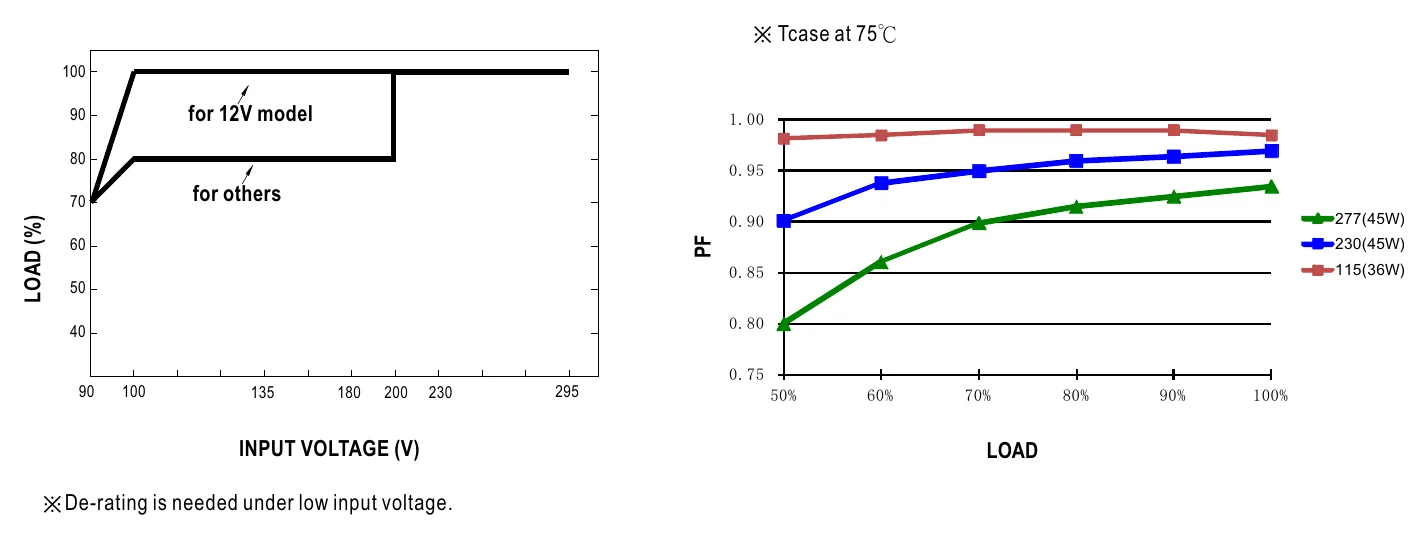

ODLV-45A-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

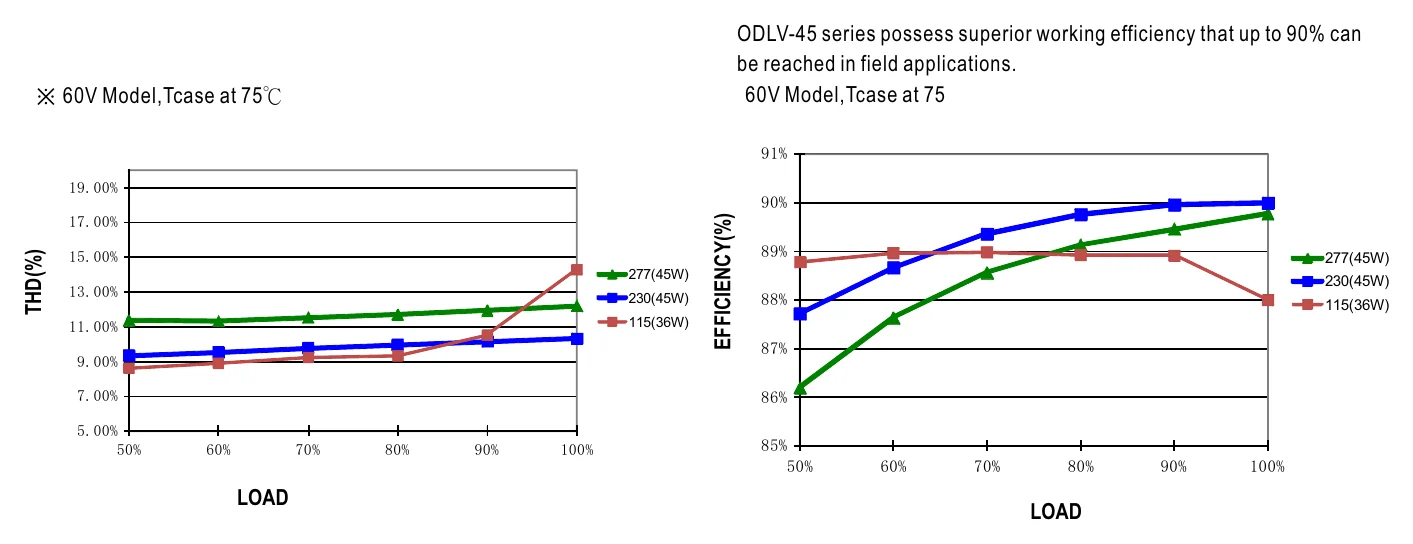

ODLV-45A-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

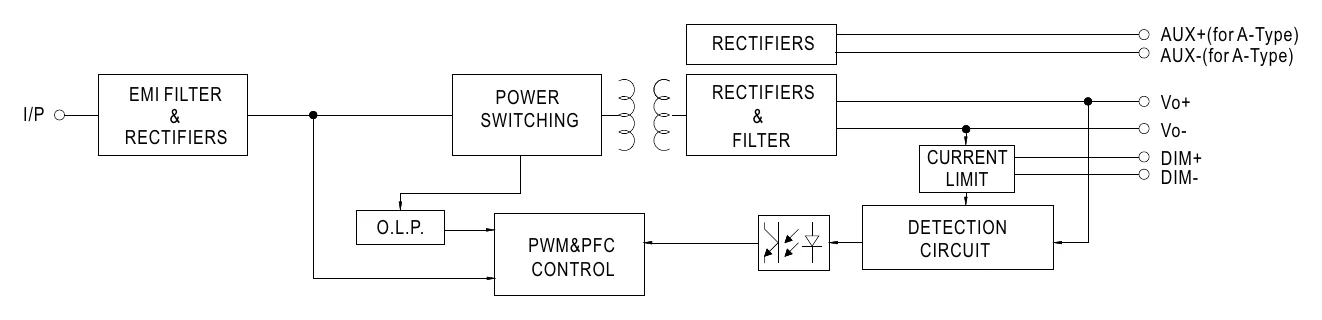

ODLV-45A-12 AUX+(for A-Type) — AUX+(for A-Type)

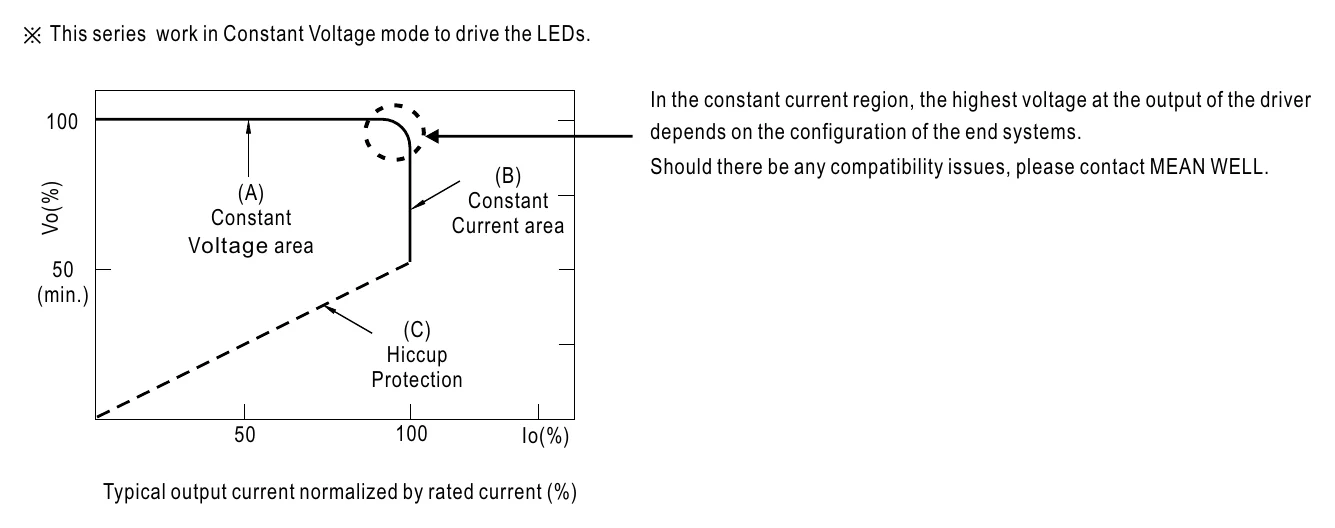

ODLV-45A-12 ※ This series work in Constant Voltage mode to drive the… — ※ This series work in Constant Voltage mode to drive the…

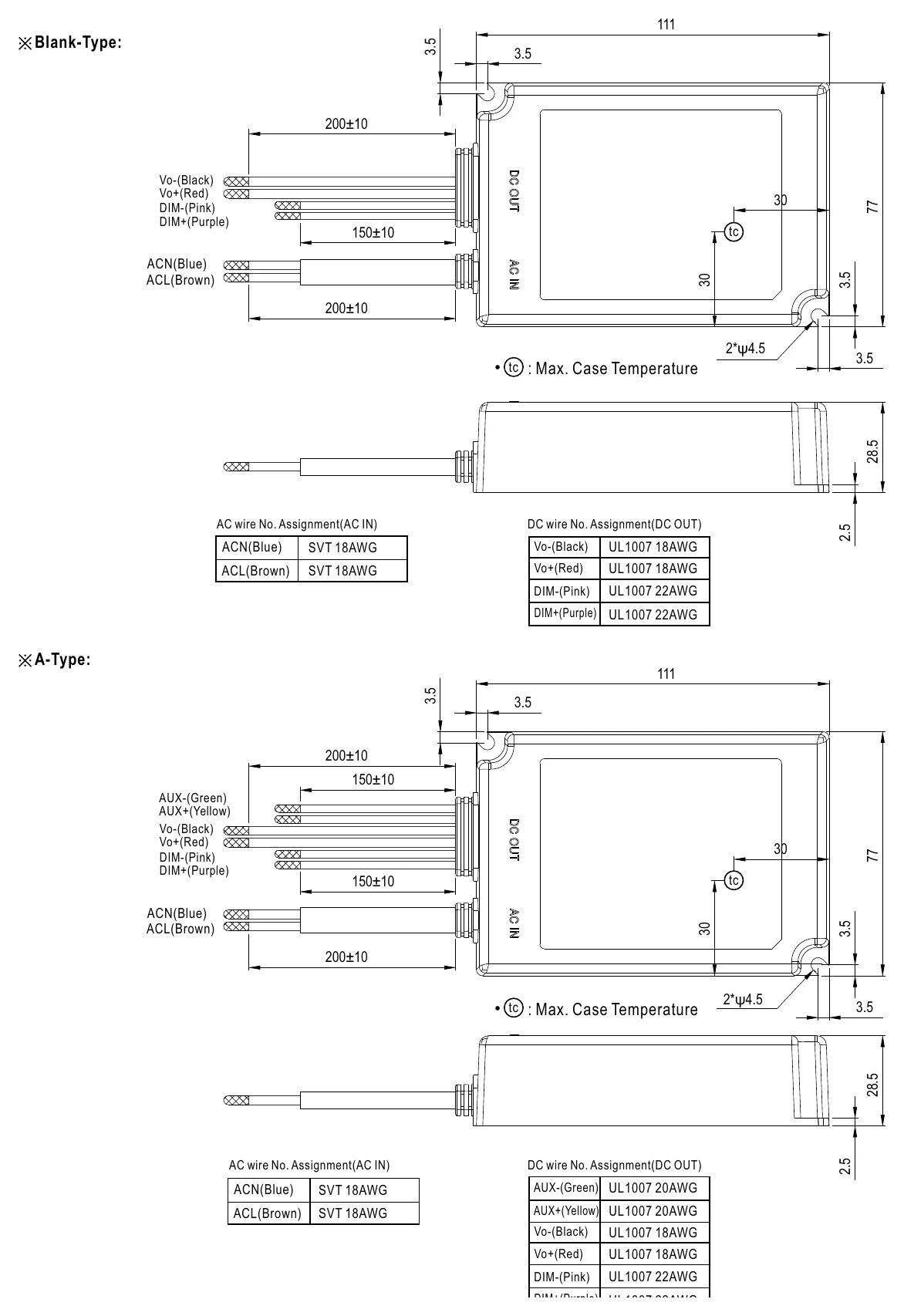

ODLV-45A-12 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Industrial lighting

Downloads

Certificates4

Mean Well IDLV-ODLV-45-65-A-CB CE Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB EMC Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB IEC Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB UL Certificate EN PDF Download

Test reports1

Mean Well ODLV-45-12 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ODLV-45A-12 for 12V LED strip lights?

Yes, if the strip is a 12V constant-voltage type and the total connected load stays within 36W. This model outputs 12V DC at up to 3A, so it fits 12V strip lighting within that power limit.

Is the ODLV-45A-12 suitable for 12V sign lighting?

It can be used for 12V constant-voltage signage and light box loads up to 36W. The IP67 rating also supports use where the driver needs protection from rain or wet conditions.

Can this model power outdoor 12V accent or landscape lighting?

Yes, for 12V constant-voltage outdoor lighting applications that stay within the 36W rating. Its IP67 enclosure and -20°C to +85°C case temperature (Tcase) rating, with load derating at higher temperatures, suit exposed and temperature-variable locations.

How do I size LED strip length for the ODLV-45A-12?

The calculation is maximum length = 36W divided by the strip's watts per meter. Since this driver is rated for 36W total at 12V, check your strip rated power per meter before estimating the usable run length.

How does the ODLV-45A-12 compare with other ODLV 12V and higher-voltage models?

The listed siblings include 12V 36W 3A, 24V 45.12W 1.88A, 36V 45W 1.25A, 48V 45.12W 0.94A, and 60V 45W 0.75A in both standard ODLV-45 and ODLV-45A variants. The ODLV-45A versions, like this one, add a 12V auxiliary DC output rated at 50mA that the standard versions do not have.
