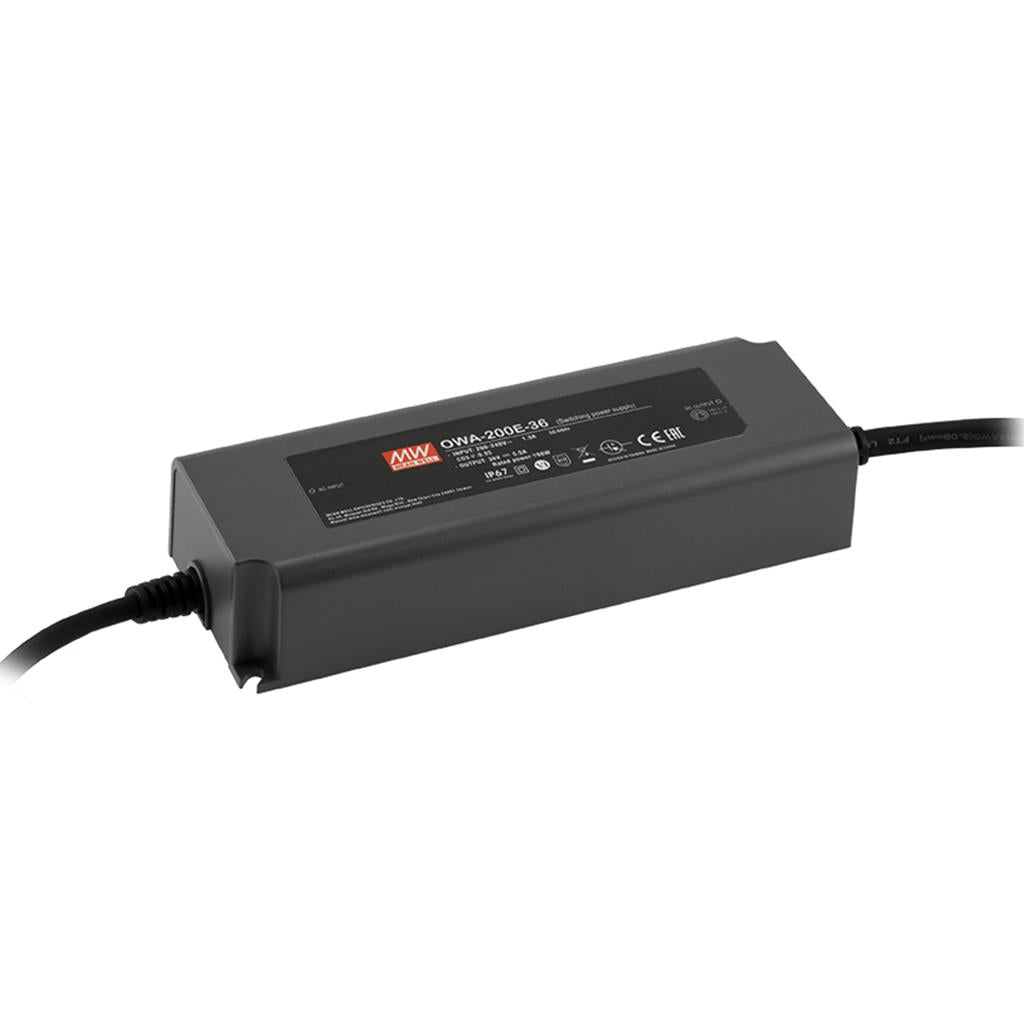

Mean Well OWA-200E-36 Power Supply Moistureproof 200W 36V 5.55A

200W36VBox Type

SKU OWA-200E-36

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

OWA-200E-36 is the 36V output model of this series: rated current 5.55A, rated power 199W, typical efficiency 94%.

OWA-200E is a 200W AC/DC, class Ⅱ (no FG) external power supply series pinpointing the moistureproof feature. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation; it also benefits that the power body of OWA-200E achieves IP67 level so that this series specializes the application in which the damp, humidity or dust resistance is needed for the external power supply. OWA-200E follows the latest energy efficiency demand with the no load power consumption less than 0.15W. It is certified with EN61558-2-16; moreover, the compliance to EN60335-1 for selected models can greatly simplify the system design such as household or charging application. OWA-200E adopts the input range from 180VAC to 264VAC and incorporates a built-in PFC function. With the working efficiency up to 94%, OWA-200E is cooled by free air convection; the working temperature range from -40℃ to +70℃.

Features

Input range 180~264VAC
Class Ⅱ power unit, no FG
Built-in active PFC function
High efficiency up to 94%
No load power consumption <0.15W
Energy efficiency Level Ⅵ
Comply with EU ErP and CoC Version 5
Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-200E-48,54) for household application
Fanless design, cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
5 years warranty
Various DC plug quick adapter accessory available (Plug kit sold seperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)

Specifications

OWA-200E-36Specifications from the official datasheet (2024-10-16 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 5.55A
RATED POWER: 199W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME^Note.4: 500ms, 80ms 230VAC
HOLD UP TIME (Typ.): 10ms at full load 230VAC

INPUT

VOLTAGE RANGE: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.96/230VAC at full load
EFFICIENCY(Typ.): 94%
AC CURRENT (Typ.): 1.1A / 230VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.25mA / 240VAC
NO LOAD CONSUMPTION: <0.15W

PROTECTION

OVER CURRENT: 105% ~ 150% Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved
WITHSTAND VOLTAGE: I/P-O/P:4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032(CISPR32)ClassB, EN55035, EN55014-1, EN61000-3-2/3; EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024, light industry level (surge L-N: 2KV), EAC TP TC 020

OTHERS

MTBF: 2677.8K hrs min. Telcordia SR-332 (Bellcore) 267.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*68*39.5mm
PACKING: 1.32Kg; 9pcs/ 12.88Kg/ 0.79CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. For battery charging purpose had better operation with a BMS controller.

Technical drawings

OWA-200E-36 Block Diagram — Block Diagram

OWA-200E-36 Derating Curve — Derating Curve

OWA-200E-36 Power Factor Characteristic — Power Factor Characteristic

OWA-200E-36 Mechanical Specification — Mechanical Specification

OWA-200E-36 DC output plug — DC output plug

OWA-200E-36 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Industrial field PC adaptor
POS or KIOSK system
Portable Battery charger
Electric Lown mowe charger
General electronic products in dusty or humid environment
Household Device

Downloads

Datasheet1

OWA-200E-36 datasheetOWA_200E_spec.pdf · 2024-10-16 edition PDF Download

Certificates5

Mean Well OWA-200E Series Certificates PDF Download

Test reports1

Mean Well OWA-200E-36 Test Report PDF Download

FAQ

Can I use the OWA-200E-36 for 36V industrial or embedded equipment?

Yes, if the equipment is designed for constant 36V DC and the total load stays within 5.55A and 199W. This model is intended for higher-voltage DC applications that need a regulated 36V output rather than 12V, 20V, or 24V.

Is the OWA-200E-36 suitable for 36V machine lighting or inspection lighting systems?

It can be suitable when the lighting system requires constant voltage 36V DC and does not exceed 199W or 5.55A. The IP67-rated power body also helps in industrial areas where lighting power supplies may be exposed to dust or moisture.

Can this power supply support 36V automation accessories or control subsystems?

Yes, for 36V DC automation loads that are compatible with constant voltage operation and remain within the 5.55A current limit. It is most relevant where a compact box-type supply is needed for a regulated 36V bus.

Is the OWA-200E-36 appropriate for outdoor or harsh-environment use?

This model is designed for harsher environments: its power body is rated IP67 and it operates from -40°C to +70°C, with load derating at higher ambient temperatures per the derating curve. Those specs support use in outdoor or moisture-prone locations where a sealed 36V supply is required.

How does the OWA-200E-36 compare with other OWA-200E output options?

The OWA-200E-36 provides 36V at 5.55A for 199W rated output. Other listed OWA-200E versions are 12V 15A 180W, 20V 10A 200W, 24V 8.3A 199W, 42V 4.75A 199W, 48V 4.17A 200W, and 54V 3.71A 200W, so the choice comes down to the DC output voltage your system requires.
