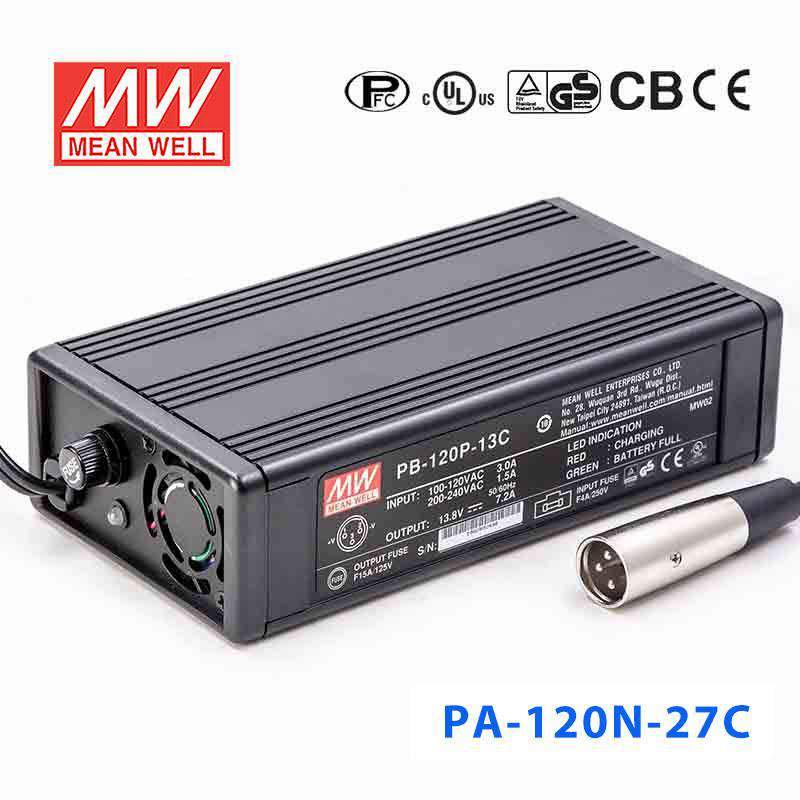

Mean Well PA-120N-27C Portable Battery Chargers 118.68W 27.6V 4.3A ...
Log in to see priceOverview
PA-120N-27C is the 27.6V output model of this series: rated current 4.3A, rated power 118.68W, typical efficiency 79%.
Features
- AC input range selected by switch
- Built-in passive PFC function compliance to BS EN/EN61000-3-2
- With AC ON-OFF switch
- 3 poles AC inlet with fuse holder
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Charger type can be selected (Optional)
- Charger for lead-acid batteries
- 2 color LED loading indicator
- Open frame models available (Without safety approval)
- Low cost, High reliability
- 2 years warranty
Specifications
PA-120N-27CSpecifications from the official datasheet (2024-10-30 edition)
OUTPUT
- DC VOLTAGE
- 27.6V
- RATED CURRENT
- 4.3A
- CURRENT RANGE
- 0 ~ 4.3A
- RATED POWER
- 118.68W
- LED INDICATED
- PA series voltage 105%±1%↓: RED / 105%±1%↑:GREEN PB series load 46%±10%↓: GREEN / 46%±10%↑:RED
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- >0.65 (with PFC series)
- EFFICIENCY (Typ.)
- 79%
- AC CURRENT (Typ.)
- 3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 50A/230VAC
- LEAKAGE CURRENT
- <1.5mA / 240VAC
PROTECTION
- OVERLOAD
- 90 ~ 110% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 30 ~ 35V Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- RTH2≧70℃±10℃ detect on RTH2 thermistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +45℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 45℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, LVD BS EN/EN62368-1 , EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCENote 4
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- PA-120: 1628.2K hrs min. Telcordia SR-332 (Bellcore) ; 246.9K hrs min. MIL-HDBK-217F (25℃) PB-120: 1754.9K hrs min. Telcordia SR-332 (Bellcore) ; 266.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB Type:144*90*33mm External case type:180*96*49mm (L*W*H)
- PACKING
- External case type: 1.1Kg; 16pcs / 17.9Kg / 1.56CUFT(without PFC) 1.24Kg; 16pcs / 20.1Kg / 1.56CUFT(with PFC) PCB Type : 0.36Kg; 36pcs / 14Kg / 0.99CUFT(without PFC) 0.5Kg; 36pcs / 19Kg / 0.99CUFT(with PFC)
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. With PFC I/P range: 95~132VAC/190~264VAC.
- 6. For open P.C.B. WITH 17.8CFM min. Forced air.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
