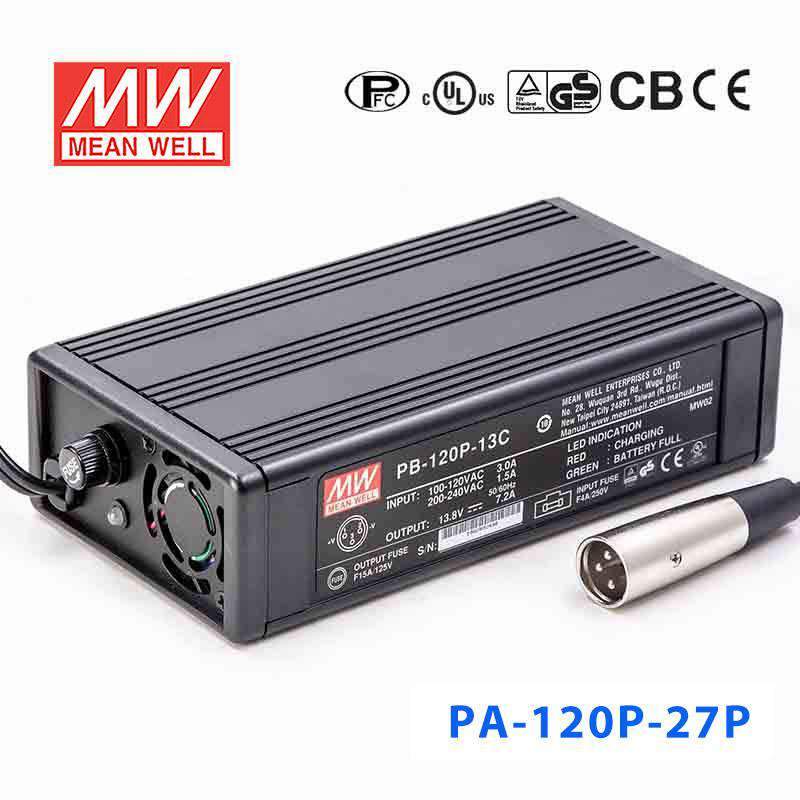

Mean Well PA-120P-27P Portable Battery Chargers 118.68W 27.6V 4.3A - Single Output Power Supply


|

Description

Features

AC input range selected by switch
Built-in passive PFC function compliance to EN61000-3-2
With AC ON-OFF switch
3 poles AC inlet with fuse holder
Protections: Short circuit / Overload / Over voltage / Over temperature
Charger type can be selected (Optional)
Charger for lead-acid batteries
2 color LED loading indicator
Open frame models available (Without safety approval)
Low cost, High reliability
2 years warranty

General Specification

AC input voltage range 88~132VAC / 176~264VAC(selectable by switch); 248~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
Overload protection 90%~110% Constant current limiting, auto-recovery
Over voltage protection 108%~127% hiccup mode,auto-recovery
Setup, rise, hold up time 1000ms,50ms,16ms at full load
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -10~+45ºC(refer to output derating curve)
Safety standards UL60950-1,TUV EN60950-1,EN60335,EN60335-1,EN60335-2-29 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024

Dimension (LxWxH) (mm) Case Type:180x96x 49mm;PCB:144x90x 33mm
Packing 16pcs / 17.9kg(without PFC); 16pcs / 20.1kg(with PFC)

Specifications

  • Brand
    Mean Well
  • Series
    PA Series
  • Power Rating
    118.68 Watt
  • Output Voltage
    27.6 Volt
  • Rated Current
    4.3 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,cUL,EAC,TUV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~45°C
  • Warranty
    2 Year
  • Length
    14.4 cm
  • Width
    9 cm
  • Height
    3.3 cm
  • Weight
    1.24 kg
