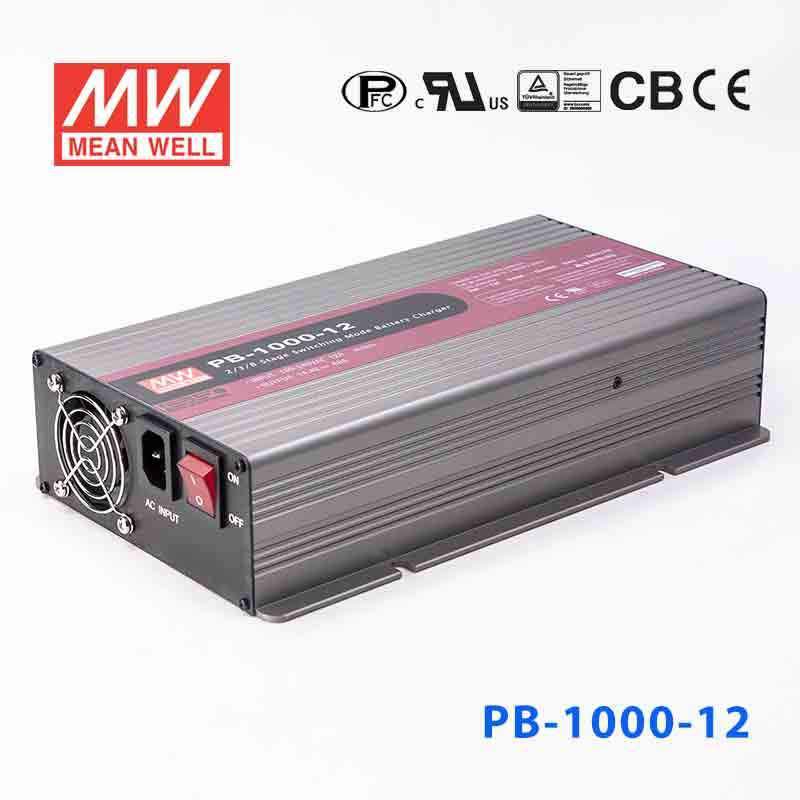

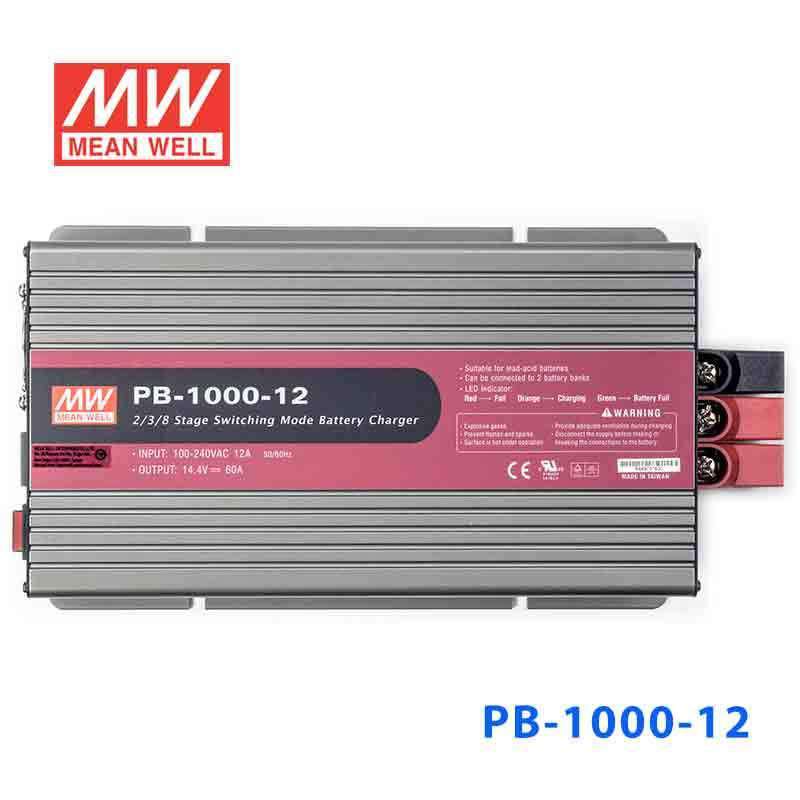

Mean Well PB-1000-12 Battery Chargers 1000W 14.4V 60A - 2/3/8 Stage...
Log in to see priceOverview
PB-1000-12 is the model of this series: typical efficiency 85%.
Features
- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
- 2/3/8 stage charging selectable on output panel (Note 5)
- Built-in battery rescue function
- Universal AC input / Full range
- Controlled by microprocessor
- Built-in active PFC function PF>0.95
- Protection: Reverse Polarity / Short circuit / Over voltage / Over temperature
- 3 color LED loading indicator
- Built-in remote ON-OFF control
- 2-Bank charger
- Temperature compensation function
- FAN on/off control (depends on charging current)
- 3 years warranty
Specifications
PB-1000-12Specifications from the official datasheet (2022-08-08 edition)
OUTPUT
- BOOST CHARGE VOLTAGE Vboost
- 14.4V
- FLOAT CHARGE VOLTAGE Vfloat
- 13.8V
- OUTPUT CURRENT
- 60A
- RECOMMENDED BATTERY CAPACITY(AMP HOURS)Note 4
- 200 ~ 600Ah
- BATTERY TYPE
- Open & Sealed Lead Acid
- LEAKAGE CURRENT FROM BATTERY (Typ.)
- <1mA
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.95/230VAC 0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 85%
- AC CURRENT (Typ.)
- 12A/115VAC 5.2A/230VAC
- INRUSH CURRENT (Typ.)
- 25A/115VAC 50A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 16 ~ 18V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
- SHORT CIRCUIT
- YES, protected by internal circuit
- REVERSE POLARITY
- YES, protected by internal circuit

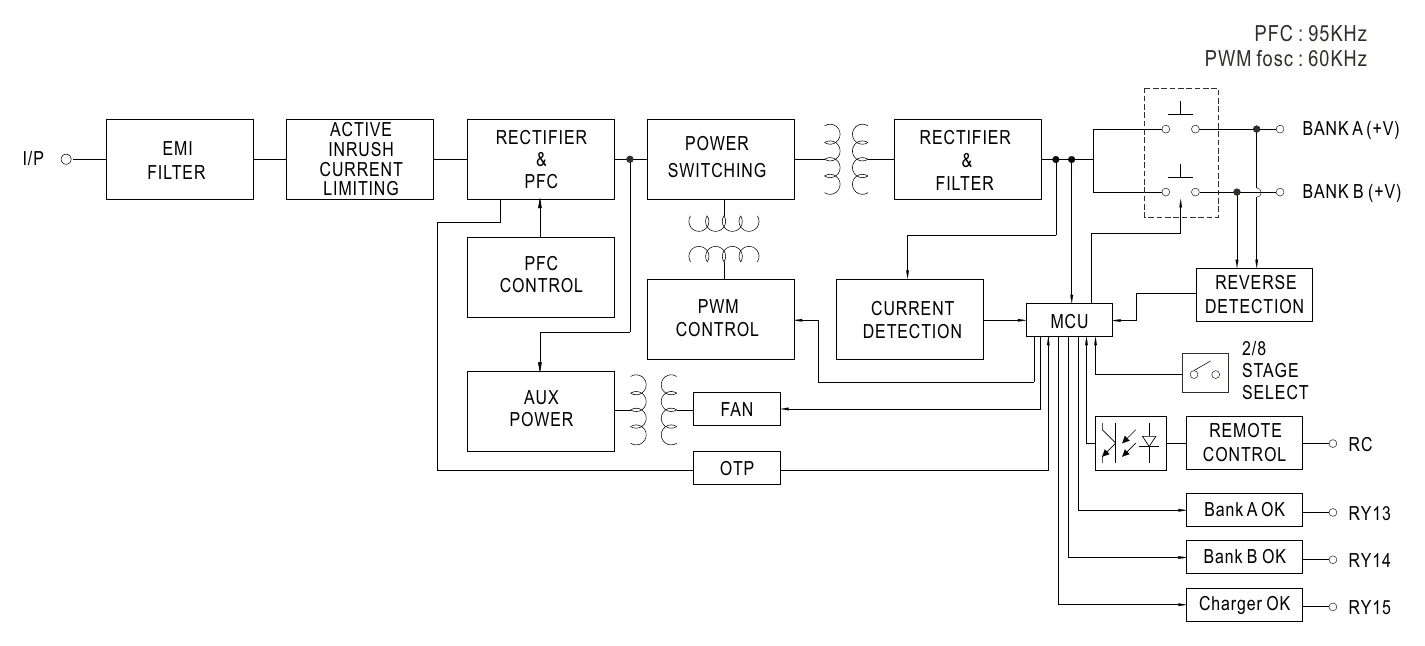

FUNCTION

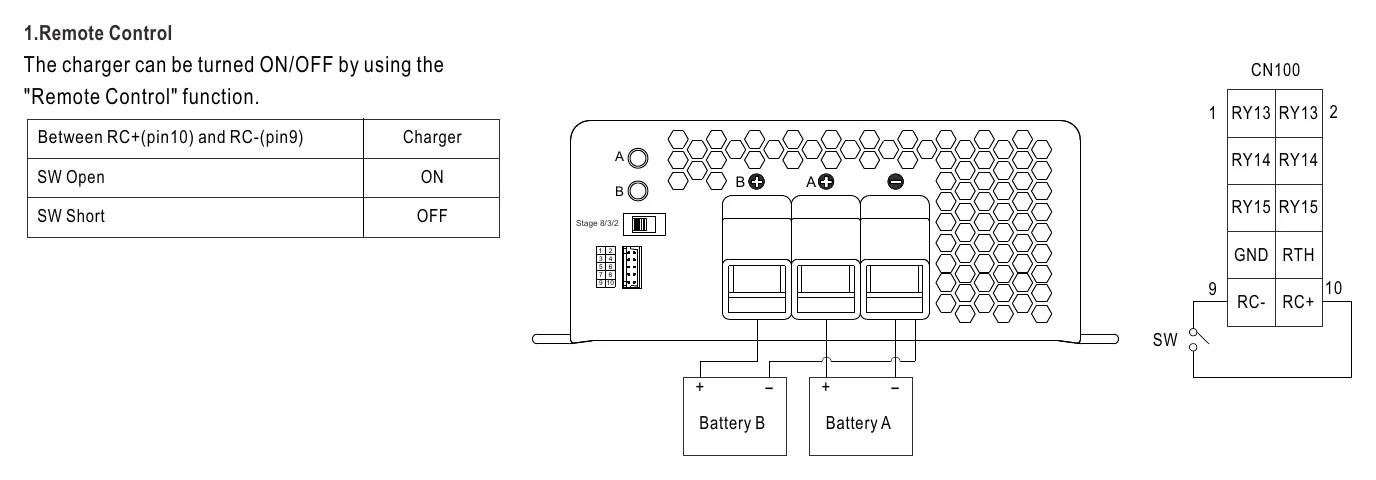

- REMOTE CONTROL
- Open: Normal work Short: Stop Charging

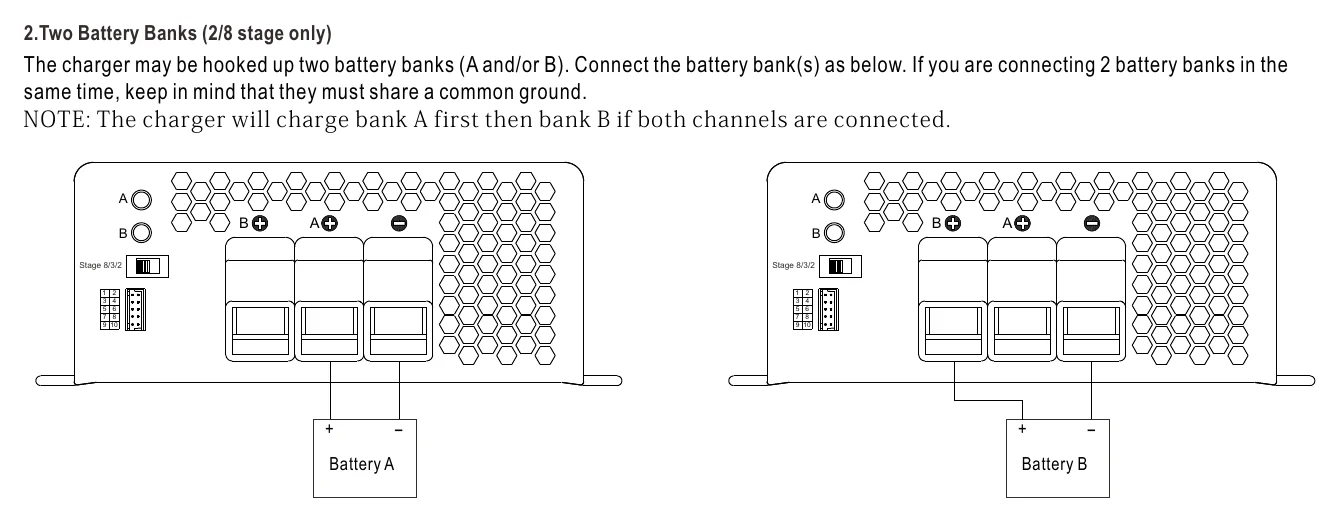

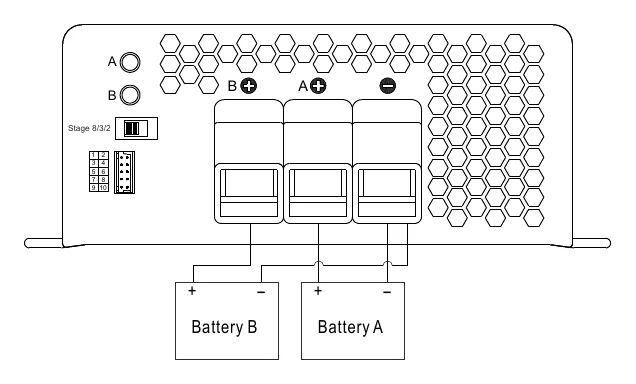

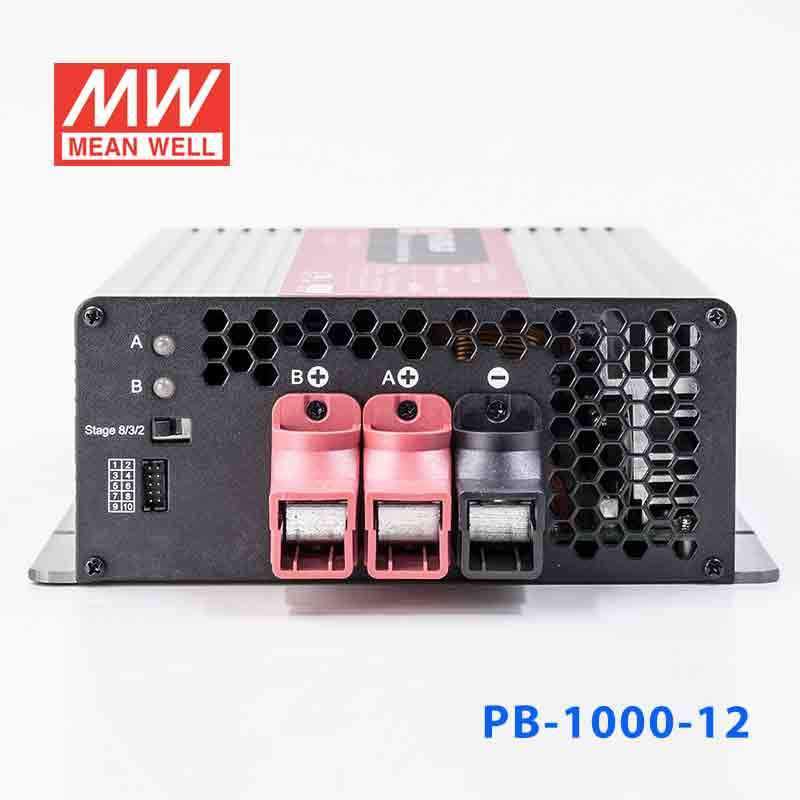

- BATTER BANKS
- 2 banks (A & B)

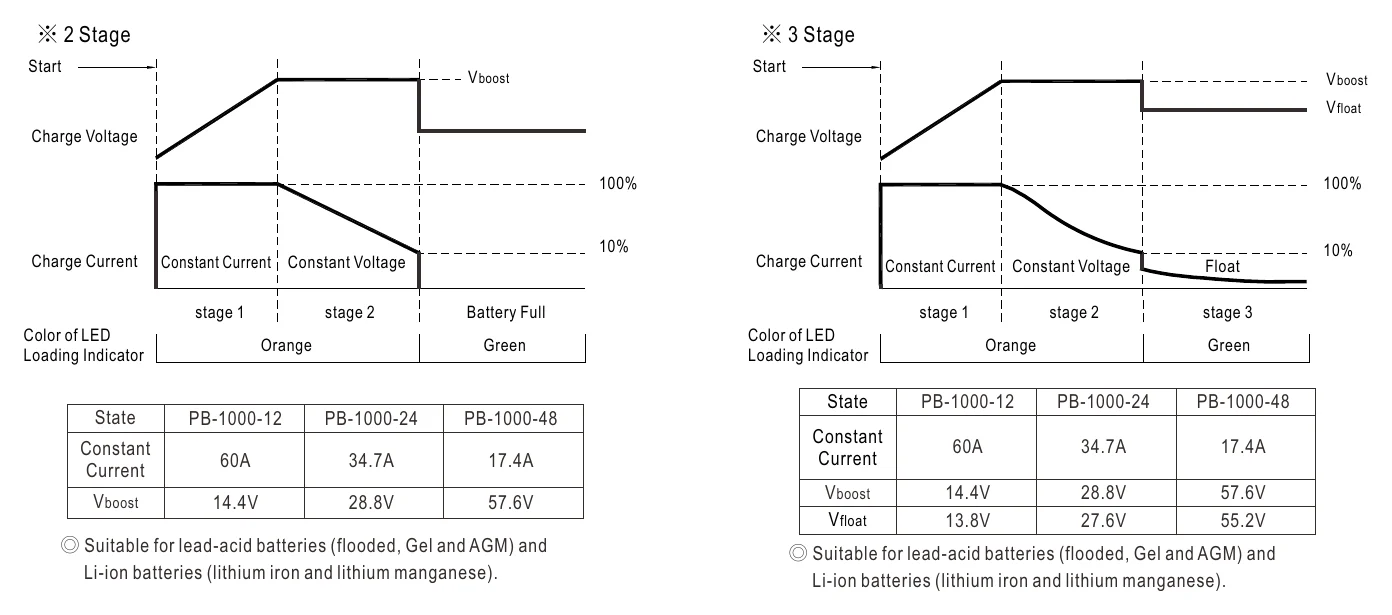

- FAST CHARGE
- 2 / 3 / 8 stage selectable

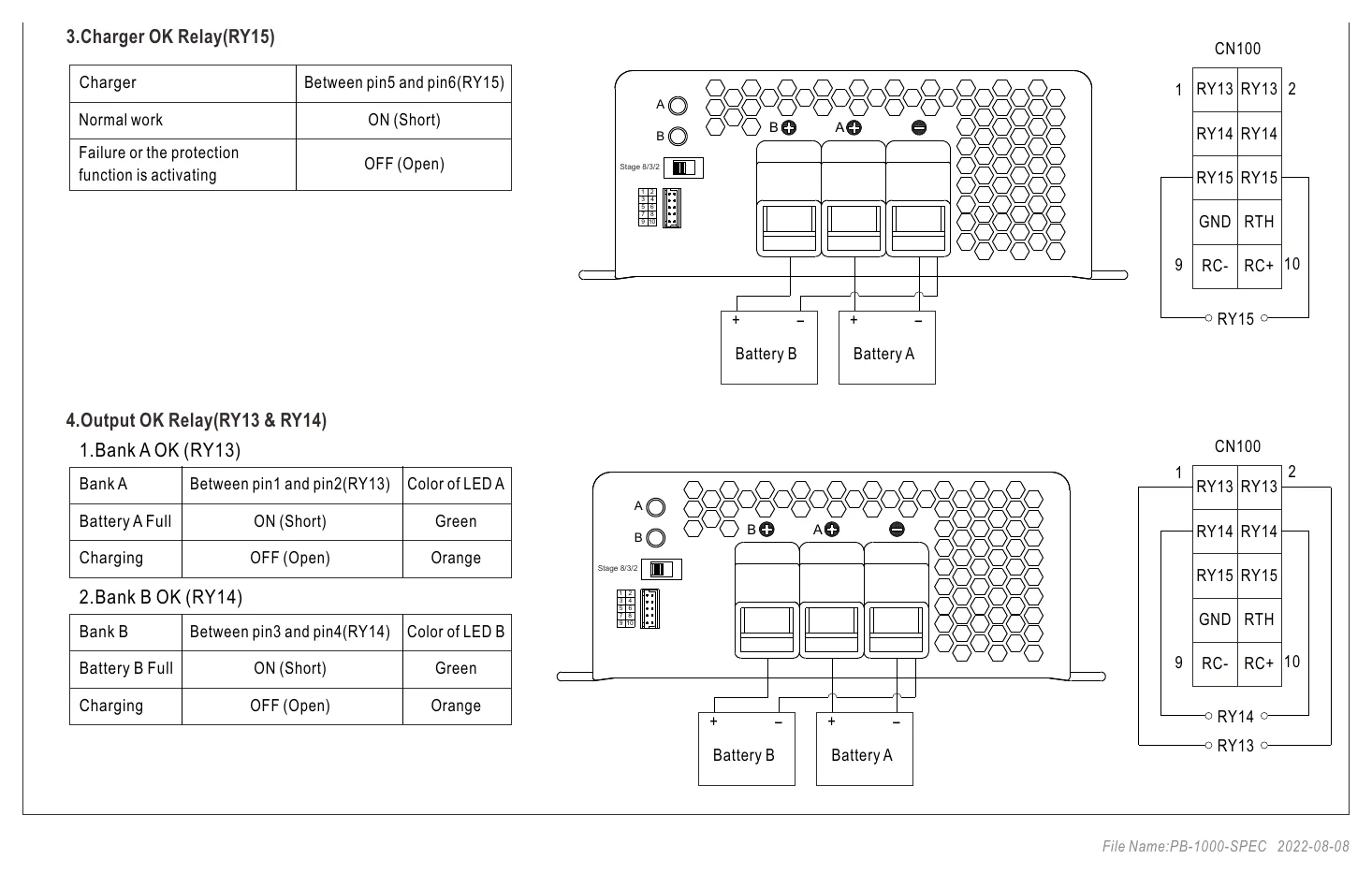

- CHARGER OK
- Relay contact rating(max.): 30V/1A resistive ; "Short" when the unit is working properly, "Open"when the unit is failure or the protection function is activating
- OUTPUT OK
- Relay contact rating(max.): 30V/1A resistive ; "Short" when the battery is full, "Open" when the battery is still charging

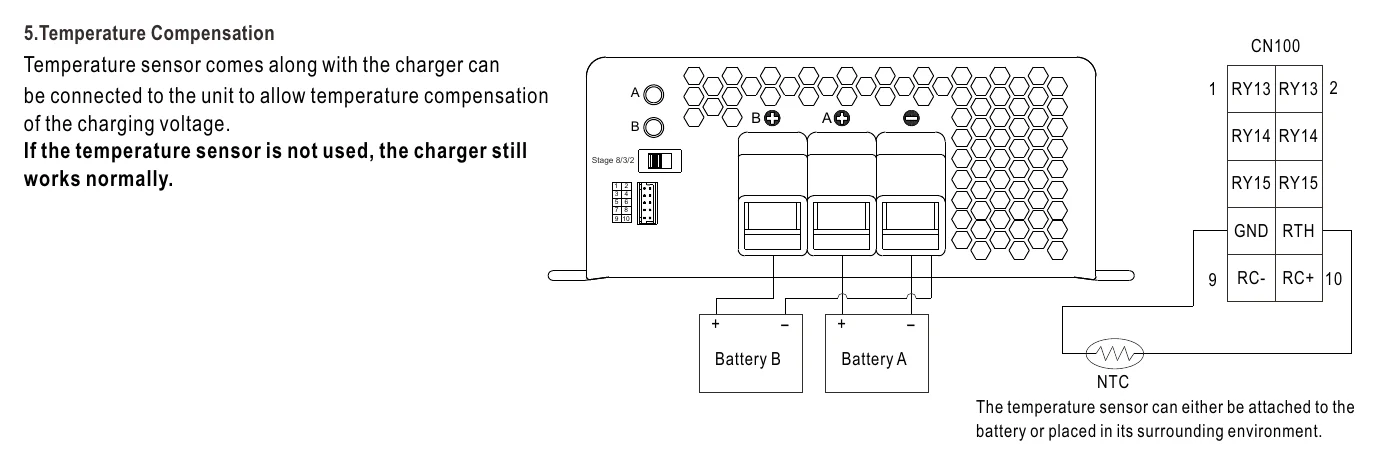

- TEMPERATURE COMPENSATION
- By NTC, compensate both banks at the same time
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/ EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/ EN55032 (CISPR32), BS EN/ EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 630.9K hrs min. Telcordia SR-332 (Bellcore) ; 127.4K hrs min. MIL-HDBK-217F (25℃)

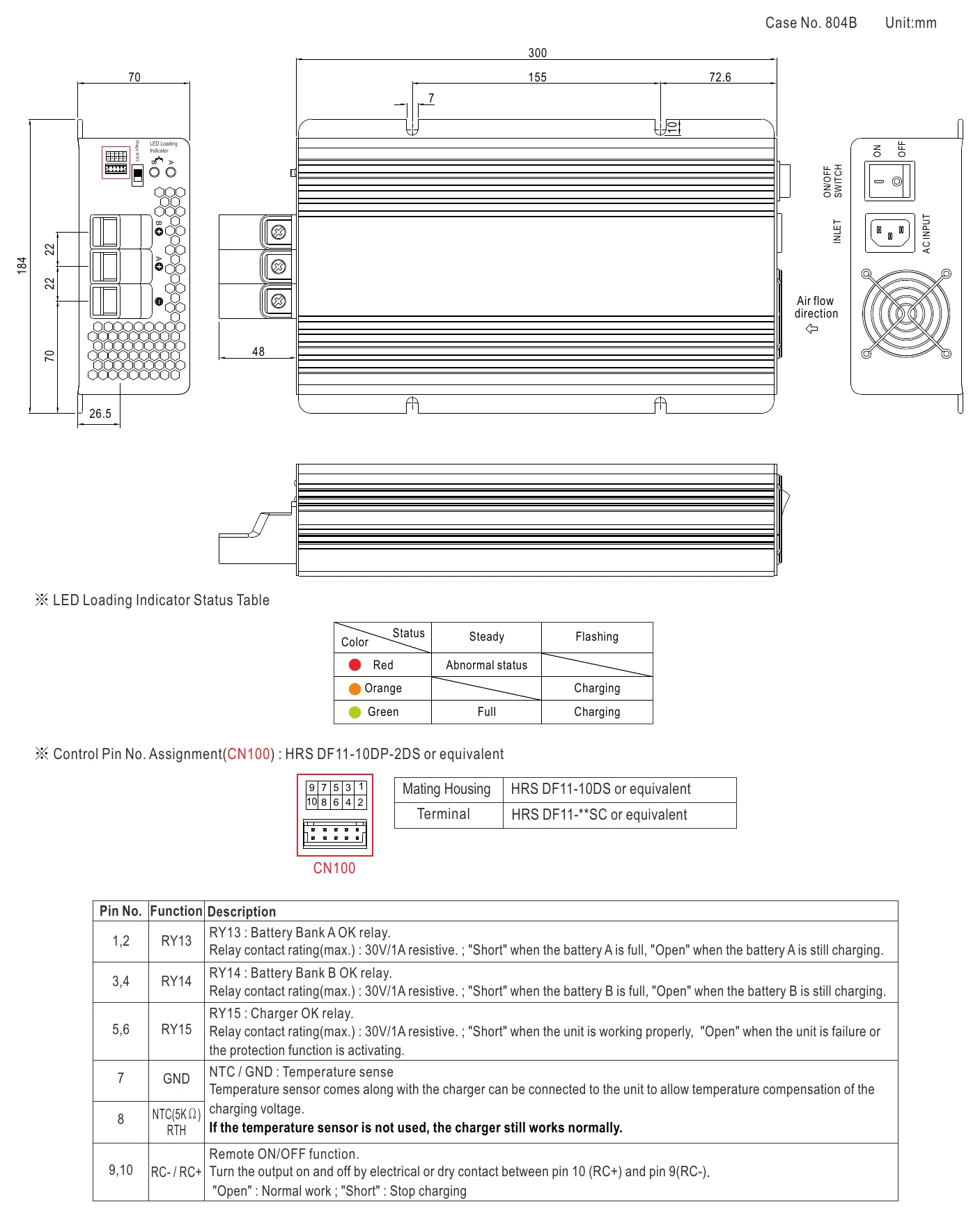

- DIMENSION
- 300*184*70mm(L*W*H)
- PACKING
- 3.5Kg; 4pcs/15Kg/1.83CUFT
Test conditions and notes6
- 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
- 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 3. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 4. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
- 5. Please choose the "3 stage" selection when the charger is used to charge the batteries and power the loads in the same time.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
