Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

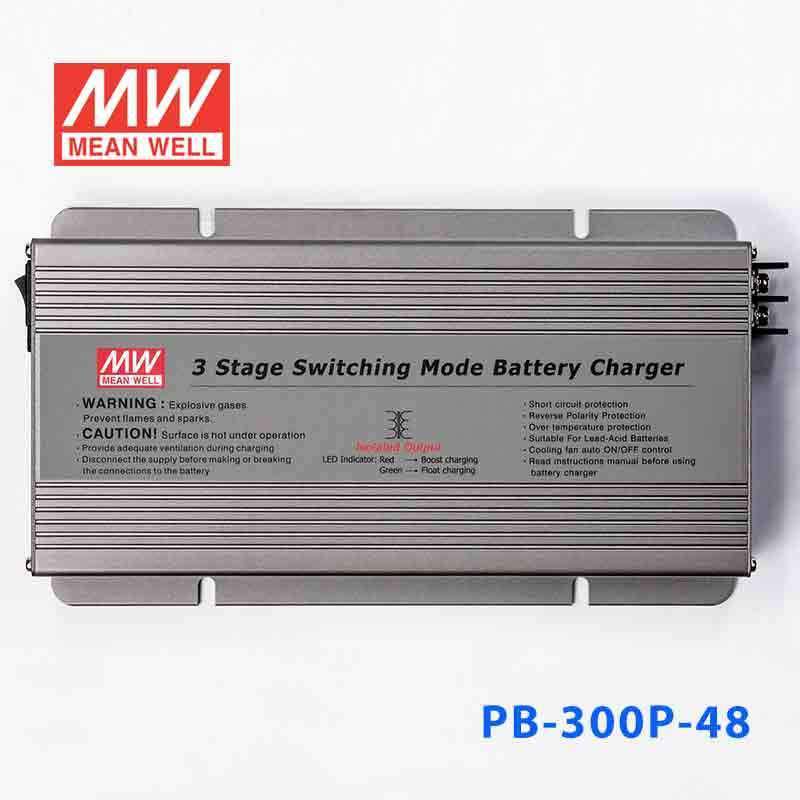

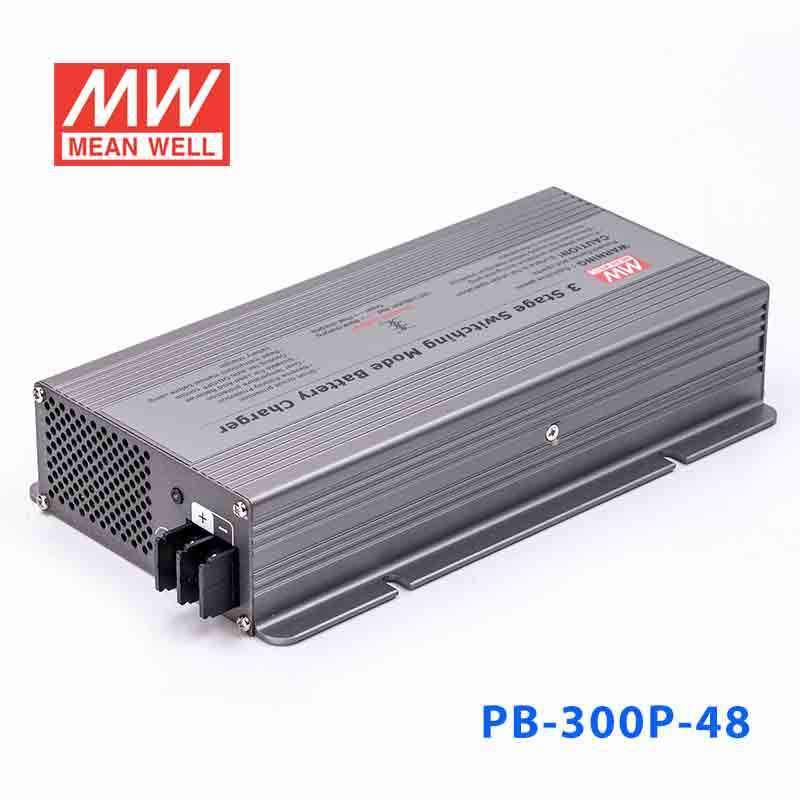

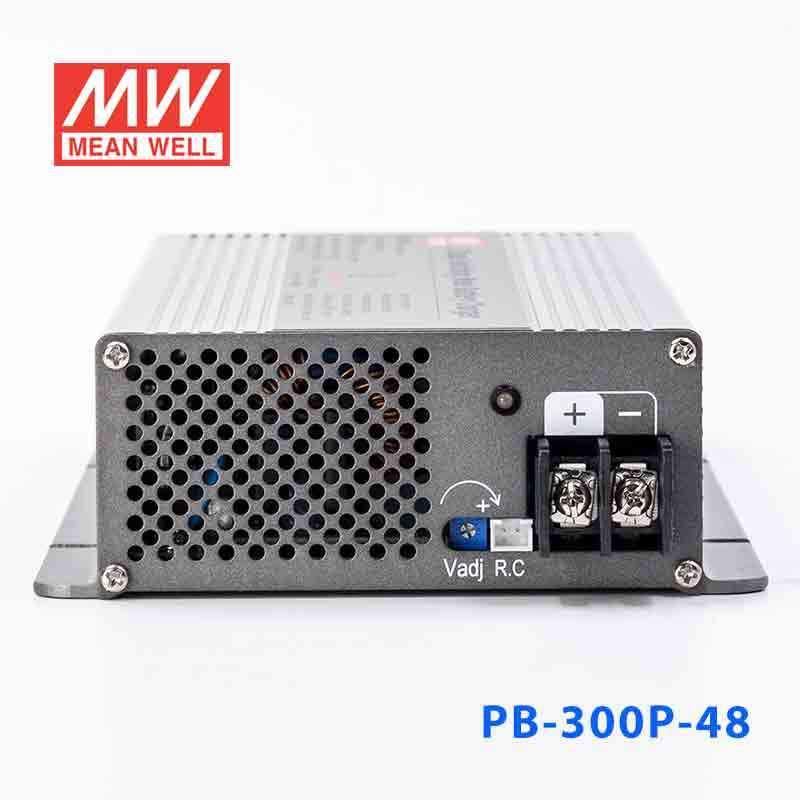

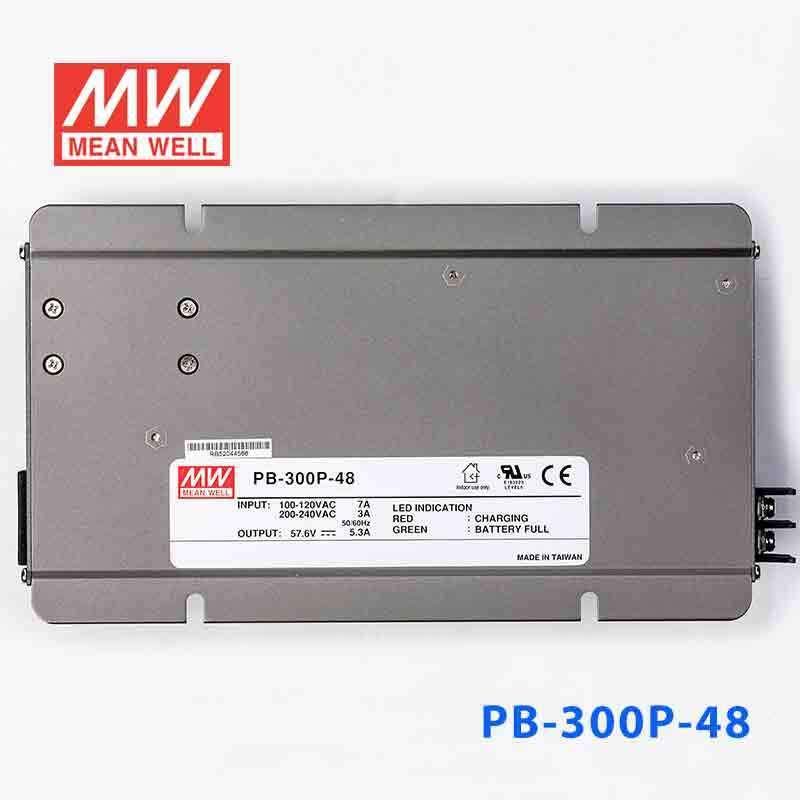

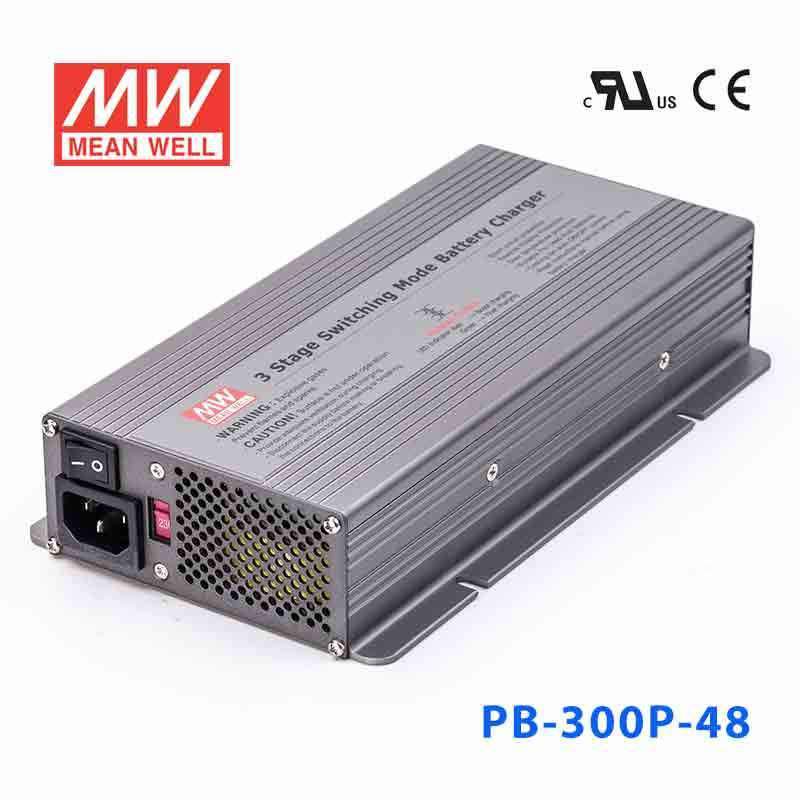

Mean Well PB-300P-48 Battery Chargers 300W 57.6V 3.2A - 3 Stage W/PFC
Log in to see priceOverview
PB-300P-48 is the model of this series: typical efficiency 88%.
Features
- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
- 3 stage charging
- AC 115/230VAC selected by switch
- Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option)
- Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
- Cooling by free air convection
- 2 color LED loading indicator
- Low cost, High reliability
- 3 years warranty (except for 48V)
Specifications
PB-300P-48Specifications from the official datasheet (2024-10-30 edition)
OUTPUT
- BOOST CHARGE VOLTAGE Vboost
- 57.6V
- FLOAT CHARGE VOLTAGE Vfloat
- 54.4V
- VOLTAGE ADJUSTABLE RANGE
- 52 ~ 58.6V
- RECOMMENDED BATTERY CAPACITY(AMP HOURS)Note 6
- 15 ~ 50Ah
- BATTERY TYPE
- Open & Sealed Lead Acid
- MAX. OUTPUT CURRENT(Typ.)Note 8
- 5.3A
- CONTINUOUS OUTPUT CURRENT (Typ.)Note 7
- 3.2A
INPUT
- VOLTAGE RANGE
- 90 ~ 132VAC / 180 ~ 264VAC selected by switch 127 ~ 187VDC / 254 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- >0.65 (with P type) at 230VAC
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT (Typ.)
- 6A/115VAC 3A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- SHORT CIRCUIT
- O/P Built in fuse (FS100) to protect short circuit condition, shut down o/p voltage and can not re-power on
- REVERSE POLARITY
- By internal fuse
- OVER VOLTAGE
- 59 ~ 64V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Protection type : Automatically derate charge current until zero
FUNCTION
- REMOTE CONTROL (CN5)
- Open: Normal work Short: Stop Charging
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +50 ℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85 ℃ , 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ± 0.05%/ ℃ (0 ~ 45 ℃ )
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote 5
- IEC60335-2-29 CB approved by TUV(except for 48V), UL62368-1, CSA C22.2 No. 62368-1 , EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 for P type only
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3 (only P type), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2826.8K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 253*135*48.5mm(L*W*H)
- PACKING
- 1.45Kg; 6pcs/9.7Kg/1.03CUFT
Test conditions and notes9
- 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
- 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
- 7. Test condition is at 25℃, charging current will change under different temperature.
- 8. Maximum charging current will be in the range of 90~110% rated output current.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
