Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

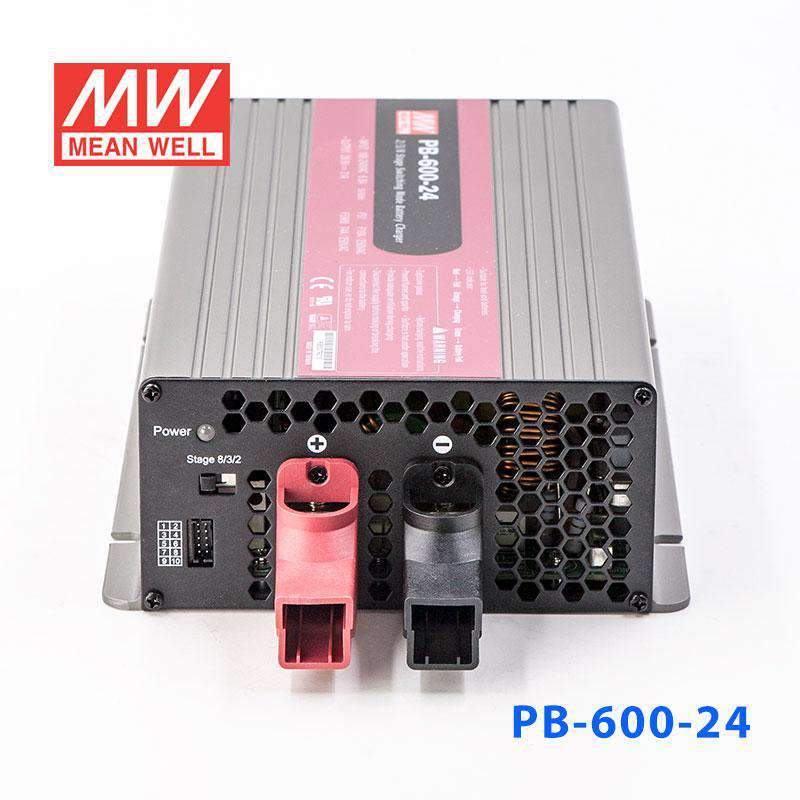

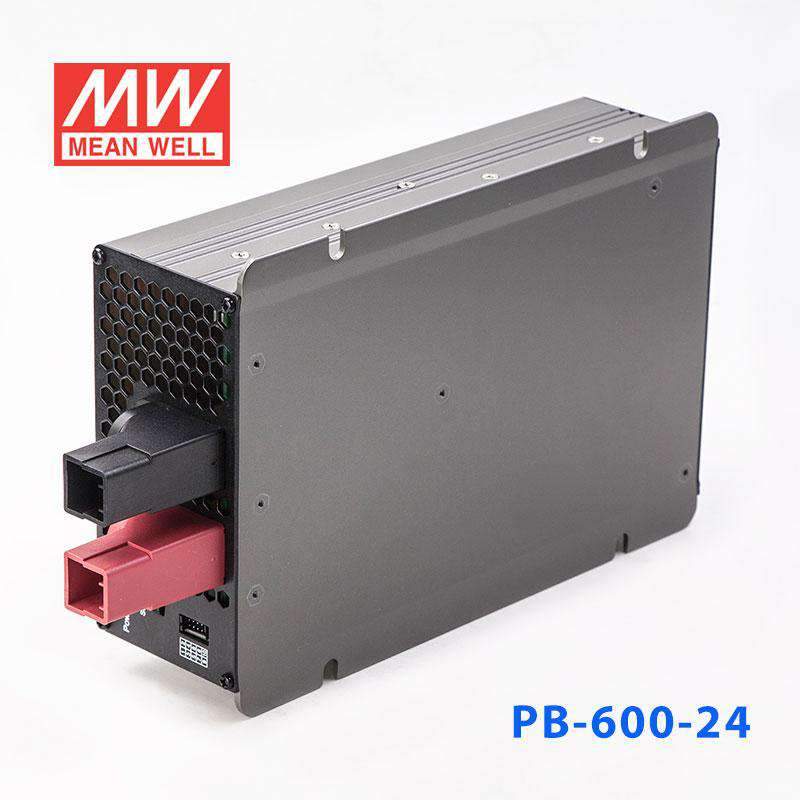

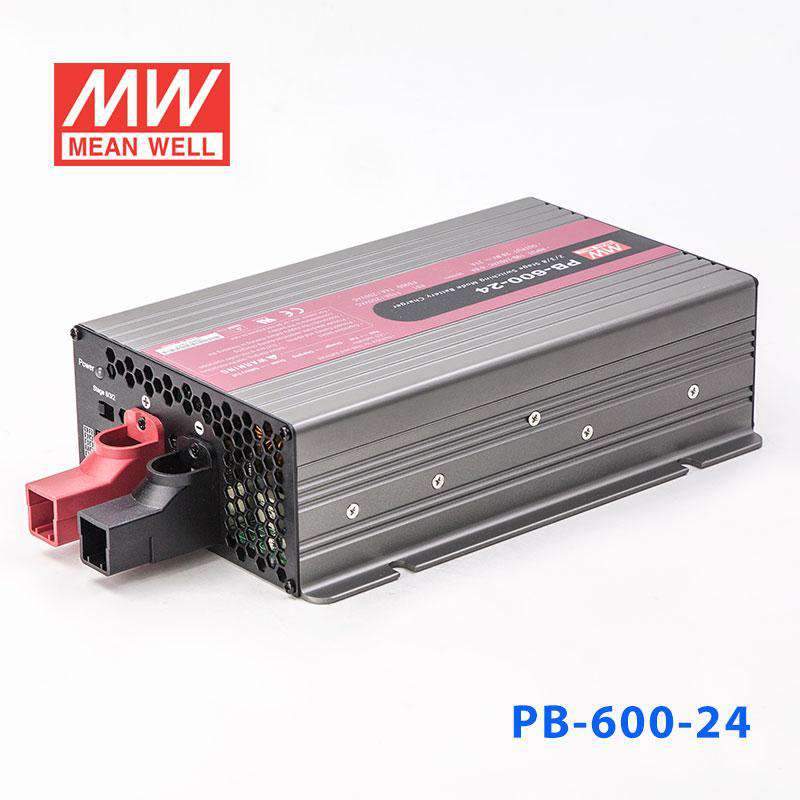

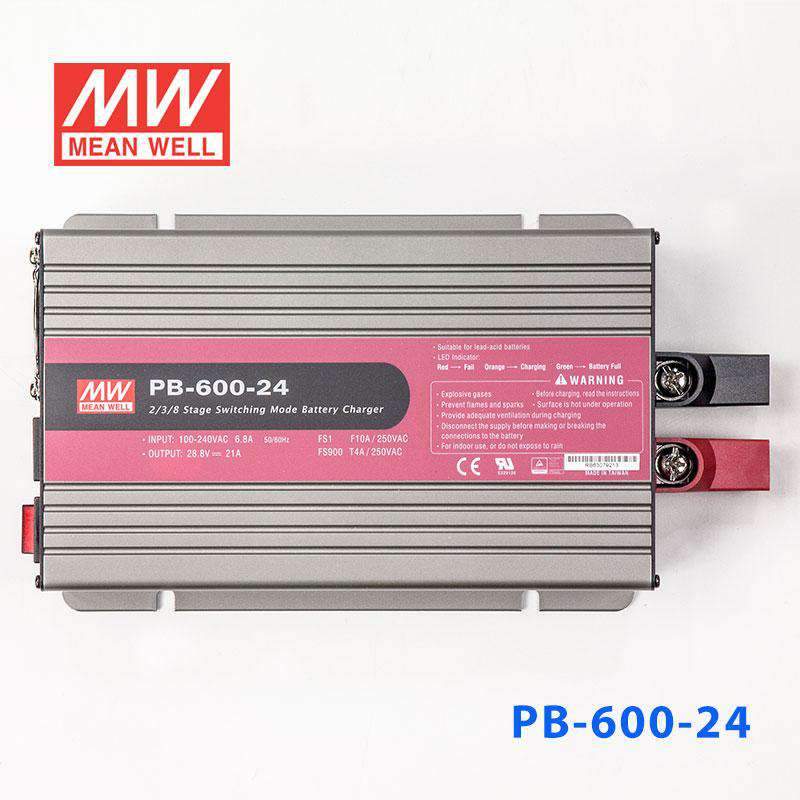

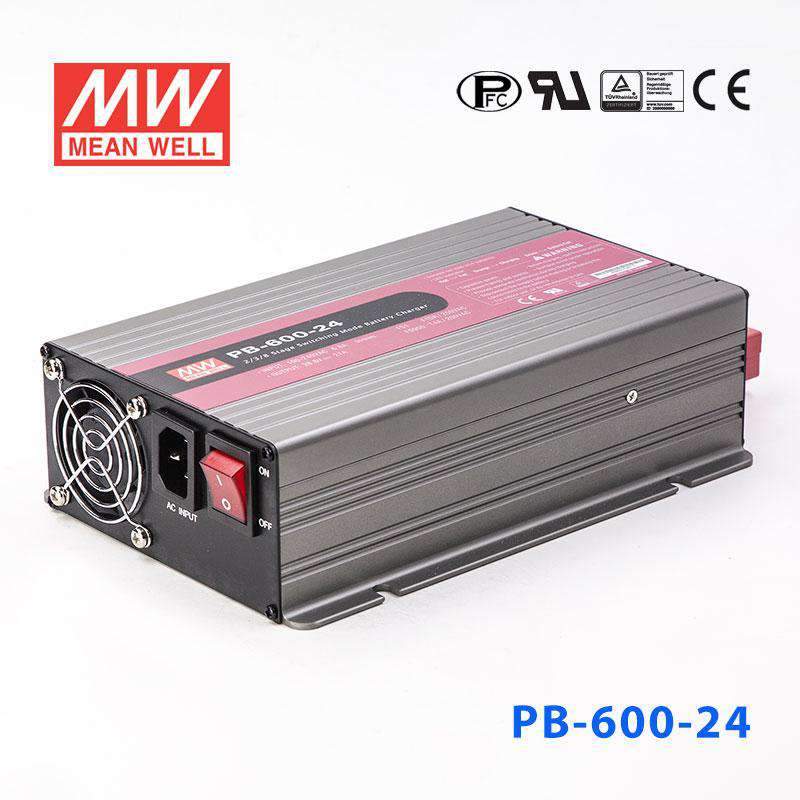

Mean Well PB-600-24 Battery Chargers 600W 28.8V 21A - 2/3/8 Stage W...
Log in to see priceOverview
PB-600-24 is the model of this series: typical efficiency 87%.
Features
- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
- 2/3/8 stage charging (Note 5)
- Built-in battery rescue function
- Controlled by microprocessor
- Universal AC input / Full range
- Built-in active PFC function PF>0.95
- Protection: Reverse polarity / Short circuit / Over voltage / Over temperature
- 3 color LED loading indicator
- Built-in remote ON-OFF control
- Built-in temperature compensation function
- Built-in fan speed control (depends on charging current)
- 3 years warranty
Specifications
PB-600-24Specifications from the official datasheet (2022-08-08 edition)
OUTPUT
- BOOST CHARGE VOLTAGE Vboost
- 28.8V
- FLOAT CHARGE VOLTAGE Vfloat
- 27.6V
- RECOMMENDED BATTERY CAPACITY(AMP HOURS)Note 4
- 70 ~ 210AH
- BATTERY TYPE
- Open & Sealed Lead Acid
- OUTPUT CURRENT
- 21A
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.95/230VAC 0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT (Typ.)
- 6.8A/115VAC 3.4A/230VAC
- INRUSH CURRENT (Typ.)
- 25A/115VAC 50A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 32 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- REMOTE CONTROL
- Open: Normal work Short: Stop Charging
- LEAKAGE CURRENT FROM BATTERY (Typ.)
- 1mA
- FAST CHARGE
- 2 / 3 / 8 stage selectable
- CHARGER OK
- Relay contact (RY15)
- OUTPUT OK
- Relay contact (RY13)
- TEMPERATURE SENSE
- By NTC
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL1012, TUV BS EN/EN60335-1, BS EN/EN60335-2-29 (except for 48V), BS EN/EN62368-1(48V only), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/ EN55032 class B (CISPR32), BS EN/ EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035; light industry level, EAC TP TC 020
OTHERS
- MTBF
- 650.6K hrs min. Telcordia SR-332 (Bellcore) ; 135.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 230*158*67mm(L*W*H)
- PACKING
- 2.2Kg; 6pcs/14.2Kg/1.76CUFT
Test conditions and notes6
- 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
- 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 3. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 4. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
- 5. Please choose the "3 stage" selection when the charger is used to charge the batteries and power the loads in the same time.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
