Can I use the PLM-25-350 for a 350mA LED downlight?

Yes, if the fixture is built for constant current operation at 350mA and the LED load falls within the 42-72V constant-current range. This model is a constant current driver, not a constant voltage power supply.

Is the PLM-25-350 a good fit for long-series small LED arrays?

It is intended for constant current LED arrays that need 350mA and a higher forward-voltage span. The usable CC output range is 42-72V, with a 25.2W rating.

Can this driver power constant current signage modules with a higher total forward voltage?

Yes, if the signage module string is designed for 350mA constant current and its total forward voltage stays within 42-72V. It should not be used in place of a constant voltage supply for fixed-voltage signage products.

What makes the PLM-25-350 compatible or incompatible with my LED load?

The LED load must require 350mA constant current, and its combined forward voltage must remain inside the 42-72V CC range. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by current and total voltage rather than a specific LED quantity.

Can the PLM-25-350 handle cold or warm operating conditions?

Its specified operating temperature range is -30°C to +45°C. That gives it a defined working range for temperature-sensitive LED driver applications, but the product data does not list an IP rating for wet or dust-heavy environments.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

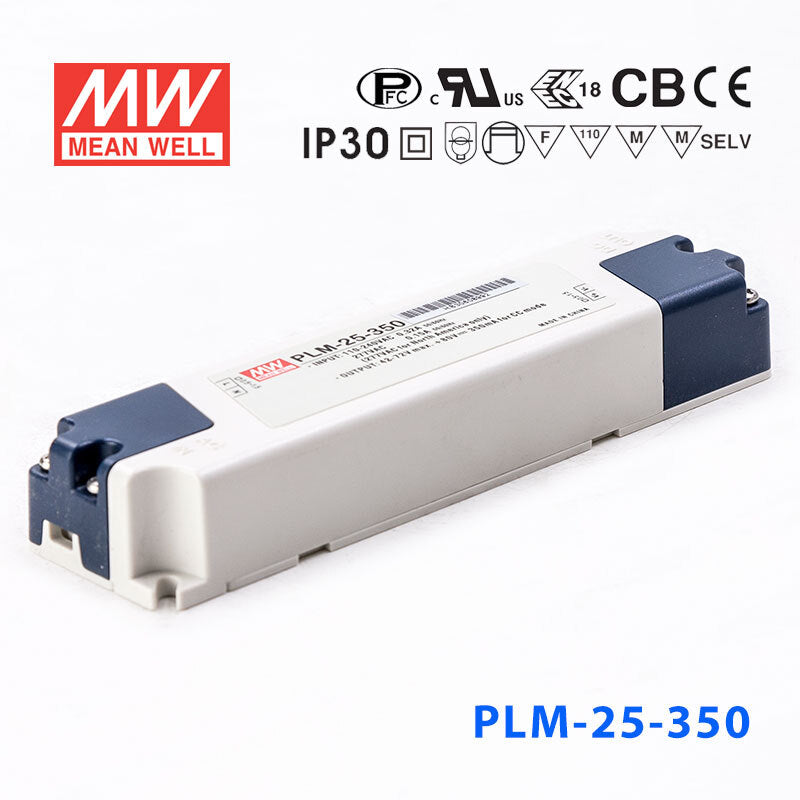

Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU:

PLM-25-350

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLM-25 is a 25W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+45℃).

Key Features

✓ 145mm width — DIN rail TS-35 compatible
✓ Input voltage range: 110~295VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+45℃
✓ Protections: Short circuit
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLM-25-700, 700mA Constant Current with PFC - Terminal Block	25.2W	42V	0.7A	Indoor	View
Mean Well PLM-25-500, 500mA Constant Current with PFC - Terminal Block	25W	56V	0.5A	Indoor	View
Mean Well PLM-25-1050, 1050mA Constant Current with PFC - Terminal Block	25.2W	28V	1.05A	Indoor	View
