Can I use the PLN-30-24 for 24V LED strip lighting in signage?

It can be used for a 24V lighting load up to 30W, which fits smaller sign or display lighting applications that match the driver's output. The load also needs to operate within the 16-24V constant current range and stay at or below 1.25A.

Is the PLN-30-24 suitable for 24V light boxes or display lighting?

Yes, it can suit 24V light box or display lighting loads within its 30W capacity. This series is described as suitable for signage applications, and this version provides up to 1.25A output.

Can this model power a compact 24V architectural lighting run?

It can power a compact 24V lighting run when the connected fixture matches the driver's electrical range and stays within 30W. Confirm the load works across 16-24V in constant current mode and does not exceed 1.25A.

How do I calculate the maximum 24V LED strip length for the PLN-30-24?

Use the maximum output power of 30W and divide by the strip's rated watts per meter. The math is 30W / strip W per meter = maximum meters, but check your strip rated power per meter and make sure the strip is compatible with 24V and the 1.25A constant current output.

Is the PLN-30-24 suitable for outdoor or wet-area use?

Its IP64 enclosure is designed to resist dust and splashing water, so it is suitable for many outdoor and damp-area lighting applications. It is not intended for submersion, and its operating temperature range is -30°C to +50°C.

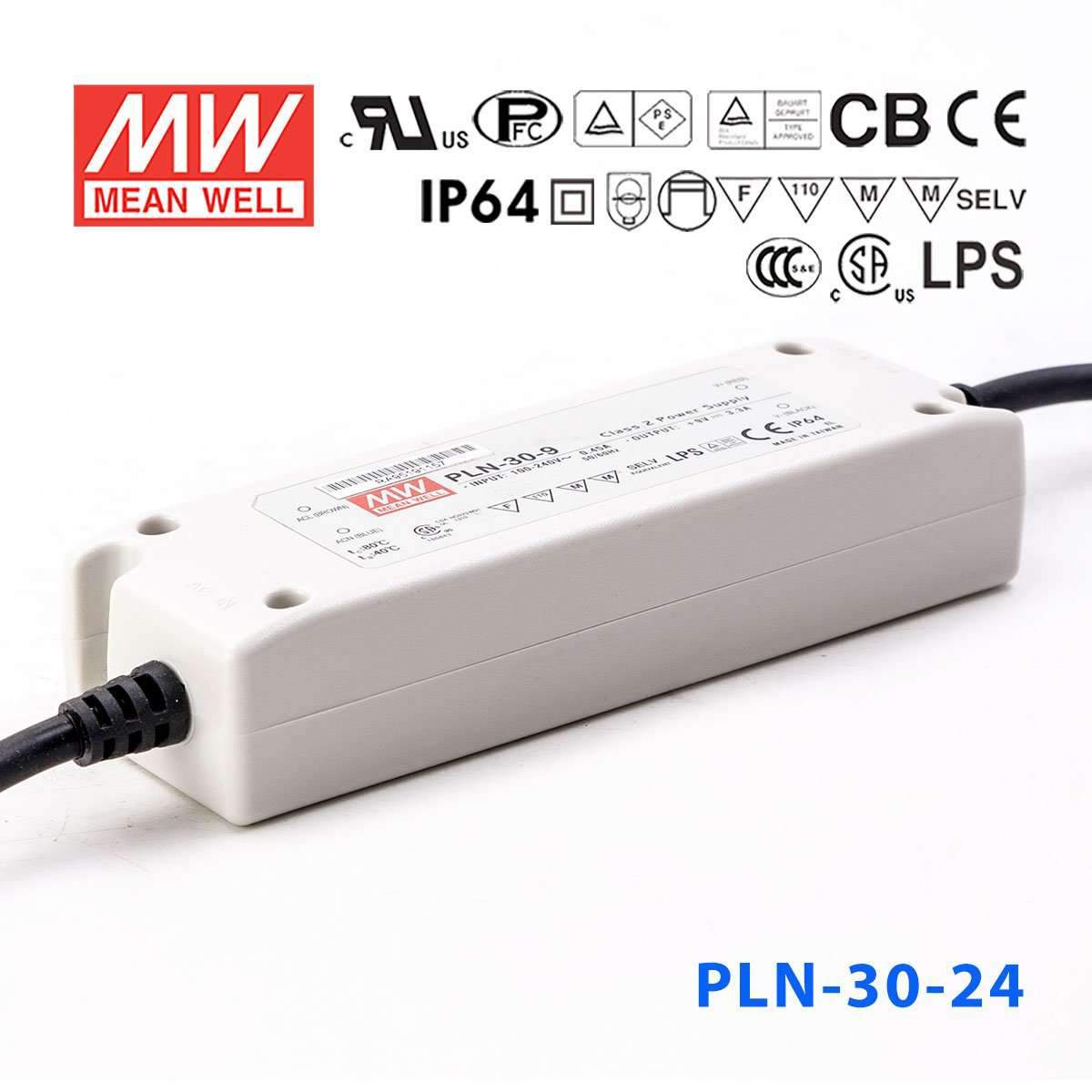

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

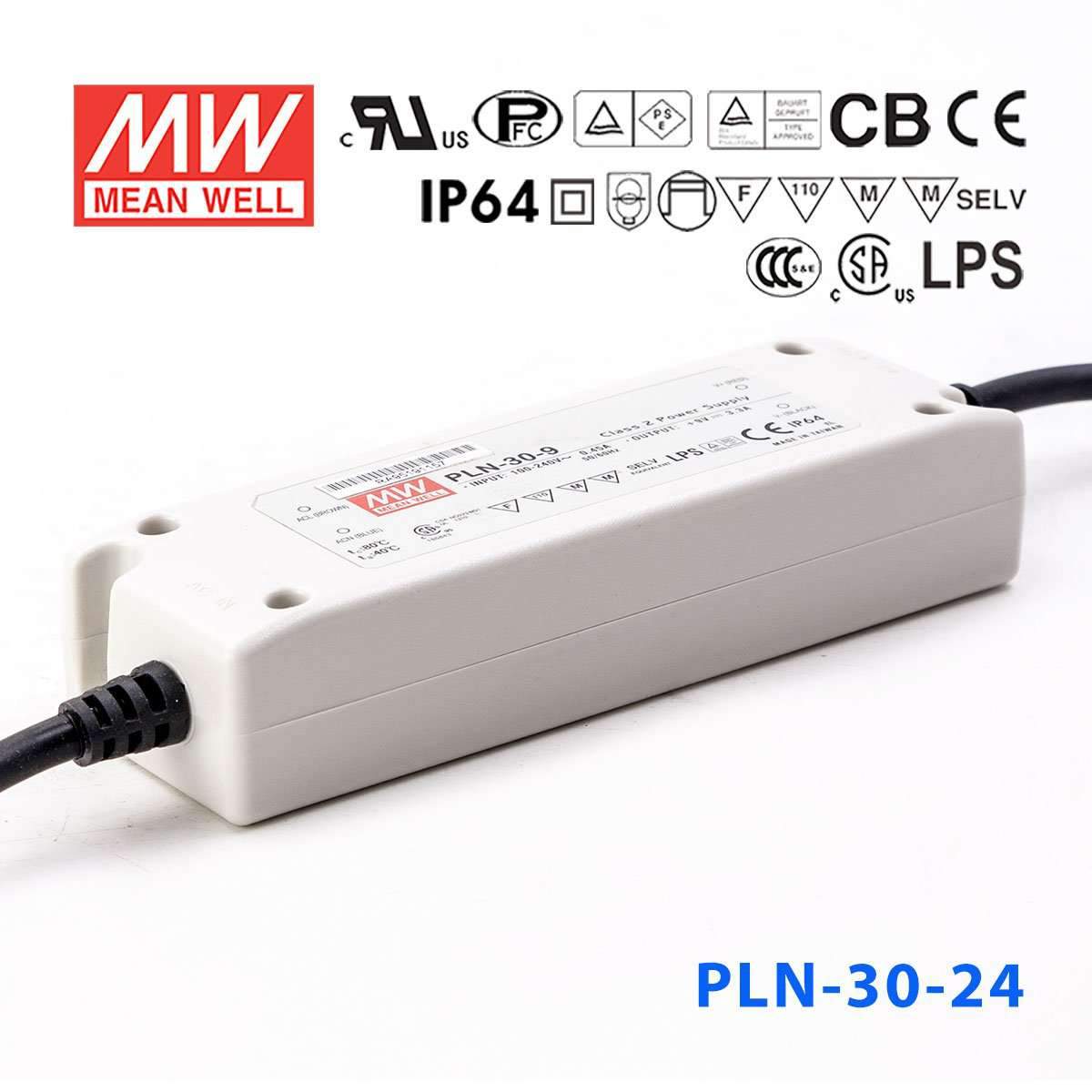

Mean Well PLN-30-24 Power Supply 30W 24V - IP64 1.25A

fully isolated plastic caseIP64suitable for signage applications

SKU:

PLN-30-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LCM-25

Notify me when it's back in stock

The PLN-30 is a 30W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).

Key Features

✓ Input voltage range: 90~295VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+50℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423880261931, "variants" :[{ "context":"default", "variant_id": 45636355195179, "sku":"PLN-30-24", "inventory_qty" : 34, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 90~295VAC

✓ DC output voltage adjustable ±10%

✓ 3.75KVAC reinforced I/O isolation

✓ Wide operating temperature: -30~+50℃

✓ Protections: Short circuit / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13

✓ 3 years warranty
