Mean Well PM-15-15 Power Supply 15W 15V 1A

SKU PM-15-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MPM-15-15
Available to order
|

Overview

PM-15-15 is the 15V output model of this series: rated current 1A, rated power 15W, typical efficiency 79%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

PM-15-15Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
1A
CURRENT RANGE
0 ~ 1A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
79%
AC CURRENT (Typ.)
0.35A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 50A/230VAC
LEAKAGE CURRENTNote.5
Touch current < 80μ A/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, UL60950-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
499.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
75*53*22.7mm (L*W*H)
PACKING
0.14Kg; 120pcs/17.8Kg/0.94CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

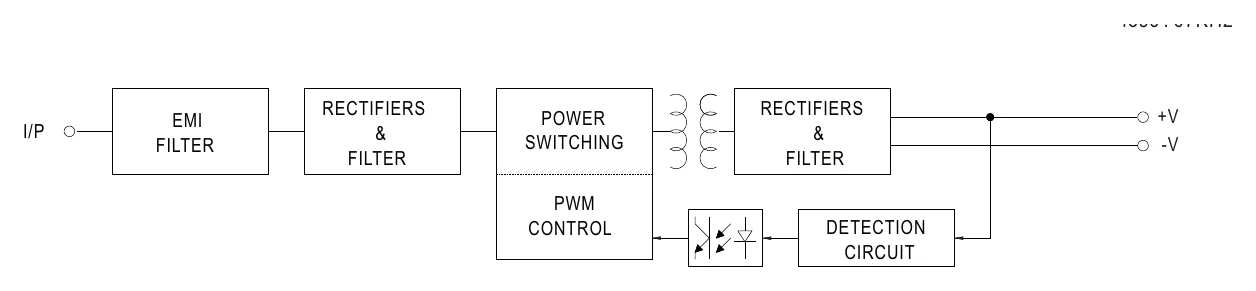

PM-15-15 Block Diagram
Block Diagram

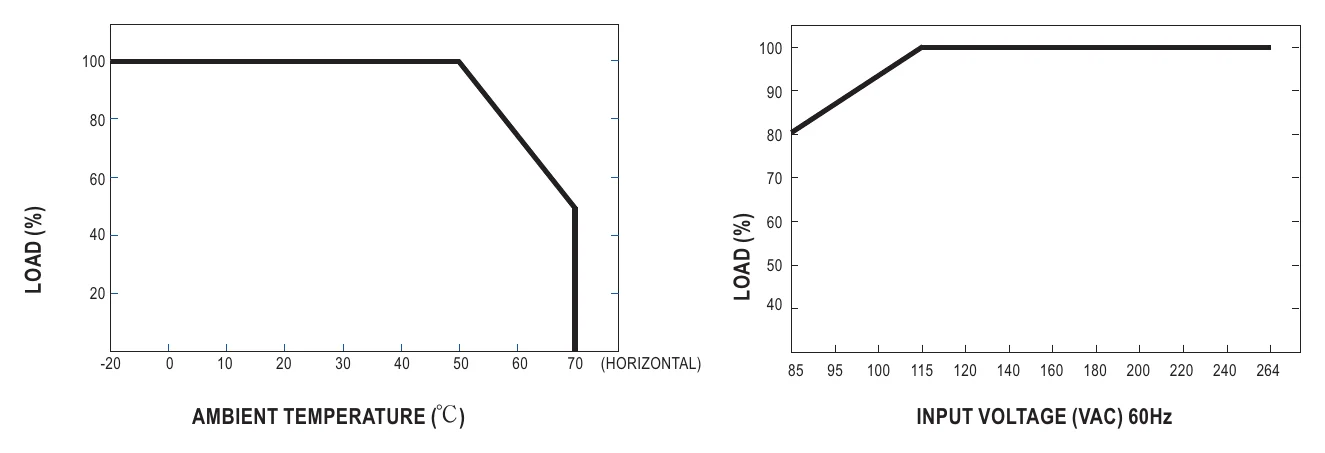

PM-15-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the PM-15-15 for a 15V industrial sensor, interface, or control board?

Yes, it is suitable for low-power 15V DC electronics such as sensors, interface boards, and control circuits that require constant voltage. The output is rated at 15W and 1A, so the load must stay within those limits.

Is the PM-15-15 a good fit for embedded 15V electronics in OEM equipment?

It can be used in embedded OEM equipment that needs a regulated 15V DC rail from an 85-264VAC input source. Its body size is 75.0 x 53.0 x 22.7 mm, which supports use in compact internal assemblies.

Can this power supply support a small 15V automation or instrumentation load?

Yes, for small automation or instrumentation loads that specifically require 15V DC, this unit can work if the total demand is no more than 15W and 1A. It is a constant-voltage supply, so it is intended for equipment designed around a fixed 15V input.

Is the PM-15-15 better for protected indoor use or exposed outdoor use?

The operating temperature range is -20C to +70C, but the product specs do not include an IP rating. That makes it a safer fit for protected indoor systems or enclosed equipment rather than direct outdoor exposure.
