Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

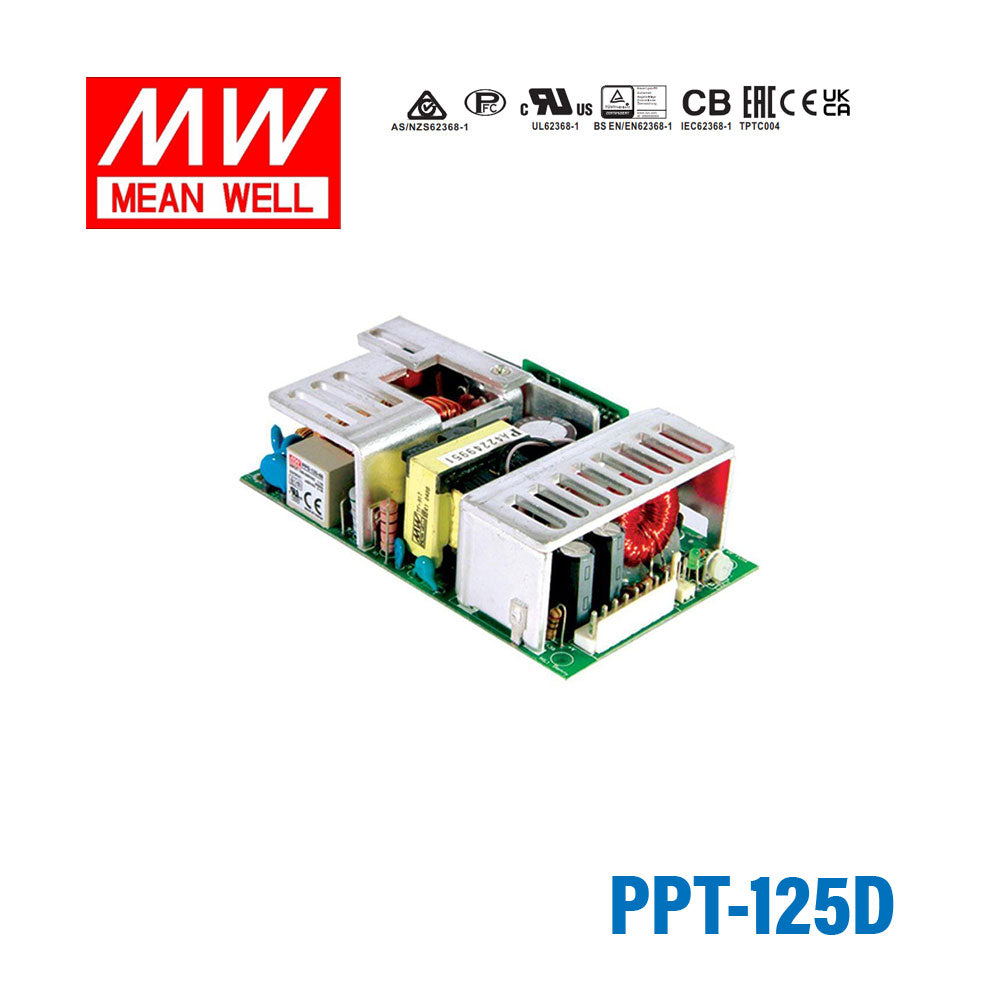

Mean Well PPT-125D Triple Output with PFC Function 125W

5" x 3" compact size, built-in active PFC function, PWM control and regulated, high power density 6.117W/inch³



  • Miniature size 3x5 inch, high power density

  • High efficiency, long life, and high reliability

  • Universal input voltage 90-264Vac, 127-370Vdc

  • Adjustable output voltage (±5%)

  • Power factor correction to EN 61000-3-2

  • EMC meets EN 55022 Class B

  • Remote sense

  • Power on LED indicator

  • Short circuit, overload, and overvoltage protection

  • Extra peak load rating with 18CFM forced air cooling


  • Brand
    Mean Well
  • Series
    PPT Series
  • Power Rating
    125 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    7 Ampere
  • Standards Met
  • Operation Mode
    Constant Voltage
  • Operating Temperature
  • Warranty
    3 Year
  • Length
    12.7 cm
  • Width
    7.62 cm
  • Height
    3.46 cm
  • Weight
    0.37 kg
