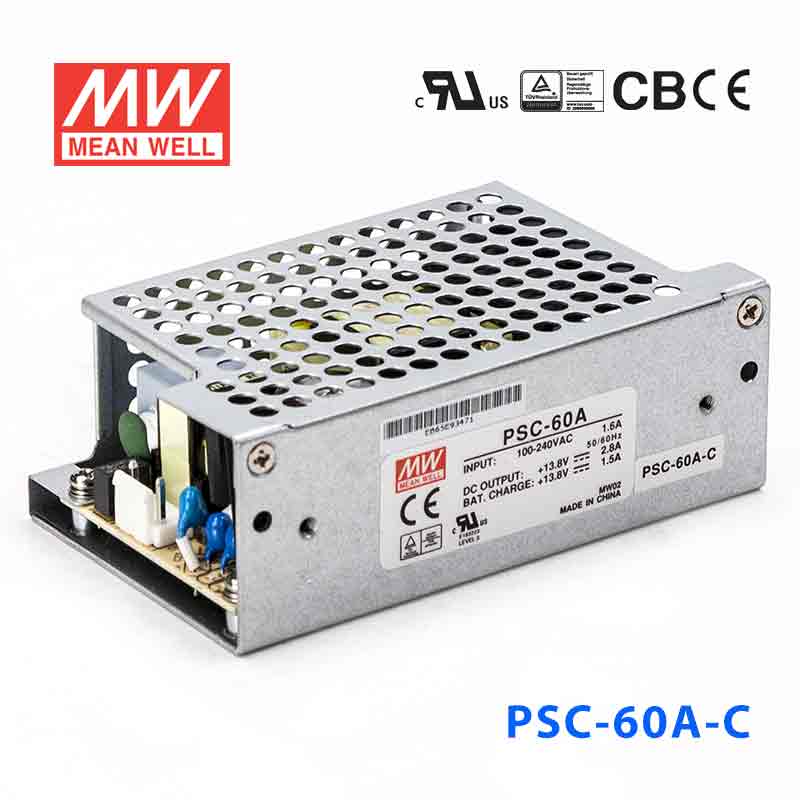

Mean Well PSC-60A-C Battery Chargers 59.34W 13.8V 2.8A - PFC

with UPS function, models with L-bracket and cover available(-C type)

|

Description

Features

Universal AC input / Full range
Models with L-Bracket and cover available(PSC-60x-C, x=A,B)
Protections: Short circuit/Overload/Over voltage
Battery low protection/Battery reverse polarity protection by fuse
Alarm signal for AC OK and Battery reverse low
Cooling by free convection
100% full load burn-in test
2 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current COLD START 30A/115VAC; 60A/230VAC
Leakage current

<1mA / 240VAC

Overload protection 105%~150% rated output power
Over-voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 800ms, 50ms/230VAC; 1600ms, 50ms/115VAC at full load; 50ms/230VAC; 10ms/115VAC at full load
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20 ~ +70℃ (Refer to "Derating Curve")
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 101.6x50.8x29 mm
Packing 96pcs / 13.5kg

Specifications

  • Brand
    Mean Well
  • Series
    PSC Series
  • Power Rating
    59.34 Watt
  • Output Voltage
    13.8 Volt
  • Rated Current
    2.8 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    2 Year
  • Length
    10.34 cm
  • Width
    6.2 cm
  • Height
    3.7 cm
  • Weight
    0.29 kg
