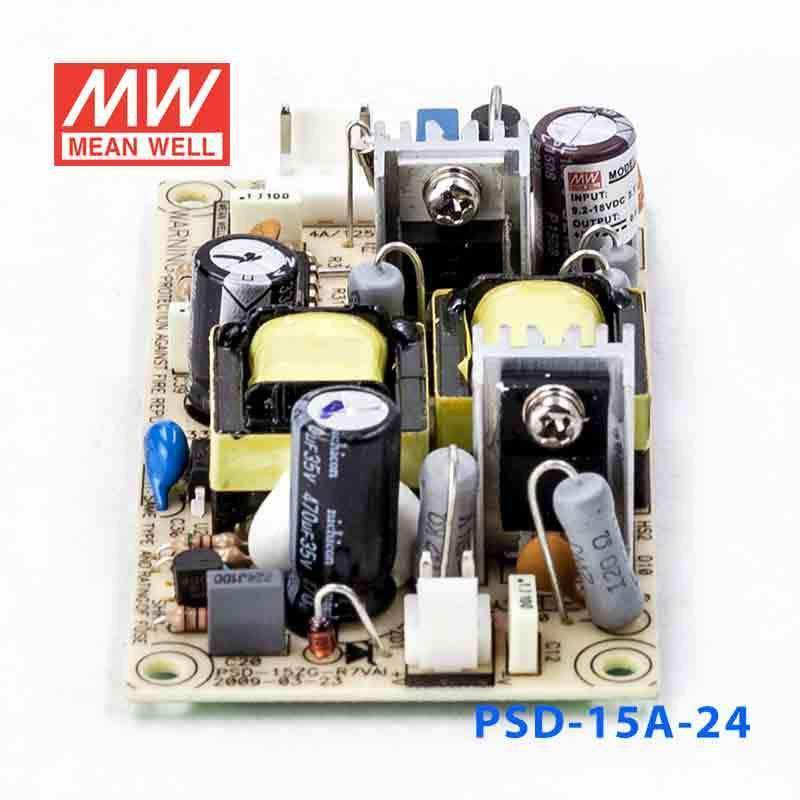

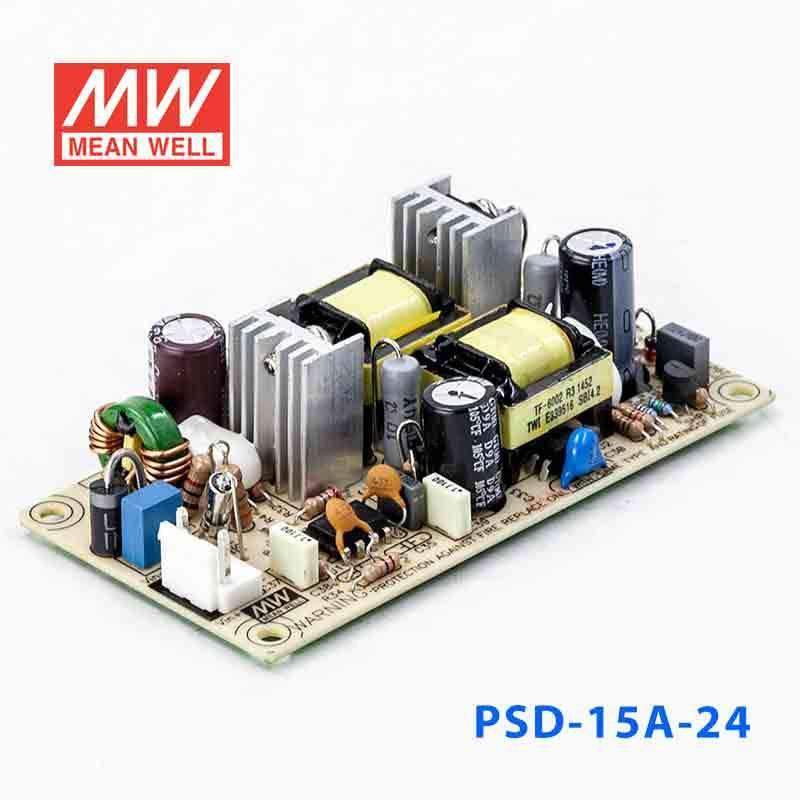

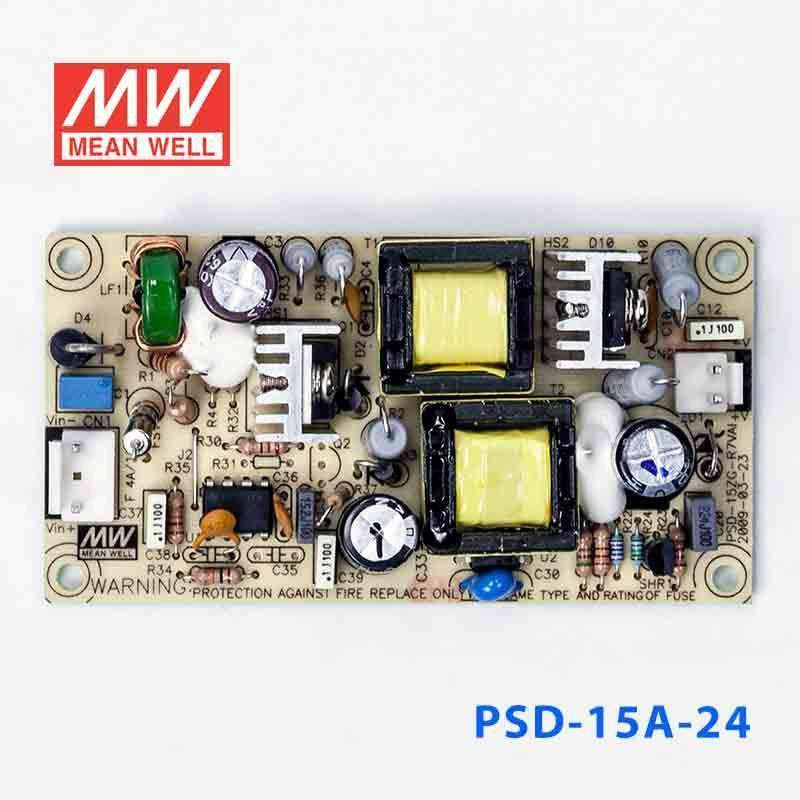

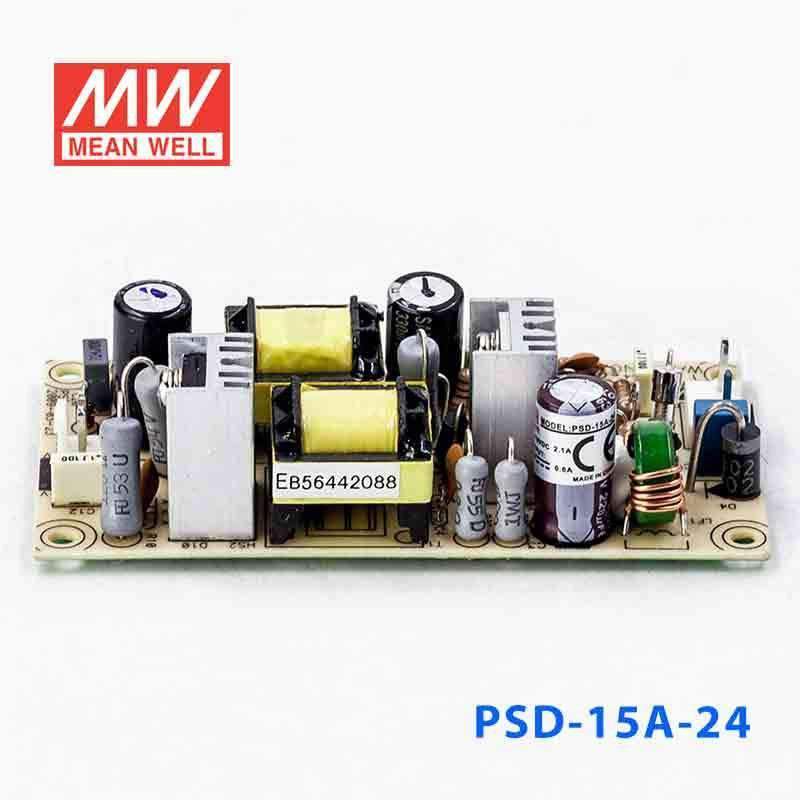

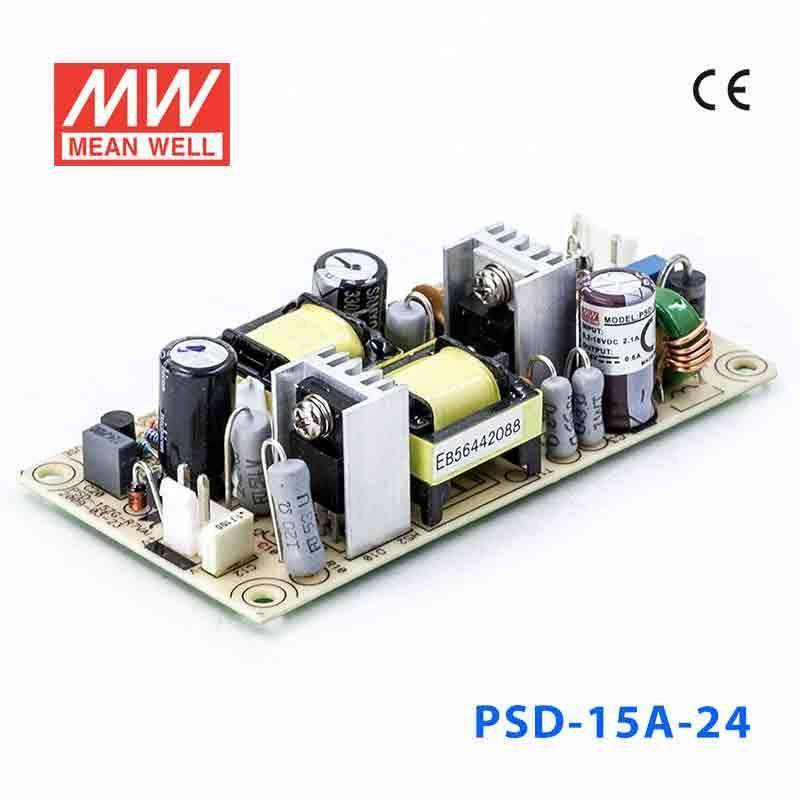

Mean Well PSD-15A-24 DC-DC Converter - 14.4W - 9.2~18V in 24V out 6...
Log in to see priceOverview
PSD-15A-24 is the 24V output model of this series: rated current 0.6A, rated power 14.4W, typical efficiency 72%.
Features
- Protections:Short circuit/Over load /Over voltage/ Polarity
- Cooling by free air convection
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.6A
- CURRENT RANGE
- 0 ~ 0.6A
- RATED POWER
- 14.4W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE, HOLD UP TIME
- 2.5s, 25ms, ----/12VDC/24VDC/48VDC at full load
INPUT
- VOLTAGE RANGE
- A: 9.2 ~18VDC (12VDC)
- EFFICIENCY(Typ.)
- 72%
- DC CURRENT(Typ.)
- 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC
PROTECTION
- OVER LOAD
- 105% ~150% rated output power Protection type : hiccup mode ,recovery automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:2.0KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH
- EMI CONDUCTION&RADIATION
- Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035, BS EN/EN61000-6-1,light industry level,EAC TP TC 020
OTHERS
- MTBF
- 7598.3K hrs min. Telcordia SR-332 (Bellcore) ; 740.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 94*49*25mm (L*W*H)
- PACKING
- 81g;120pcs/10.72Kg/0.9CUFT
Test conditions and notes5
- 1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
- 2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1μF & 47μF capacitor.
- 3.Tolerance:includes set up tolerance,line regulation and load regulation.
- 4.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-15A-24 for a 24V sensor, relay, or control circuit?
Yes, it is a constant-voltage 24V converter rated for 14.4W. It fits 24V control and signaling loads that stay within the unit's rated 14.4W output.
Is the PSD-15A-24 appropriate for embedded 24V electronics in industrial equipment?
It is intended for compact 24V power conversion where a regulated 24V output is needed from a 9.2-18VDC input. Its 94.0 x 49.0 x 25.0 mm body and 0.081 kg weight make it practical for enclosed industrial assemblies.
Can this model support a small 24V automation load from a low-voltage source?
Yes, the PSD-15A-24 accepts 9.2-18VDC input and delivers a constant 24V output. It is suited to smaller 24V automation loads as long as the total demand stays within 14.4W.
Can the PSD-15A-24 be used outdoors or in exposed locations?
The specs provide an operating range of -10°C to +60°C, but they do not list an IP rating. That supports temperature planning, but it does not establish outdoor exposure resistance on its own.
What are the main PSD family alternatives to the PSD-15A-24?
Within the PSD-15 series, the alternatives are the 5V 3A (15W) and 12V 1.25A (15W) versions, and each output is offered with A (9.2-18VDC), B (18-36VDC) or C (36-72VDC) input. This unit is the 24V, 0.6A option for 9.2-18VDC input and is rated at 14.4W.
