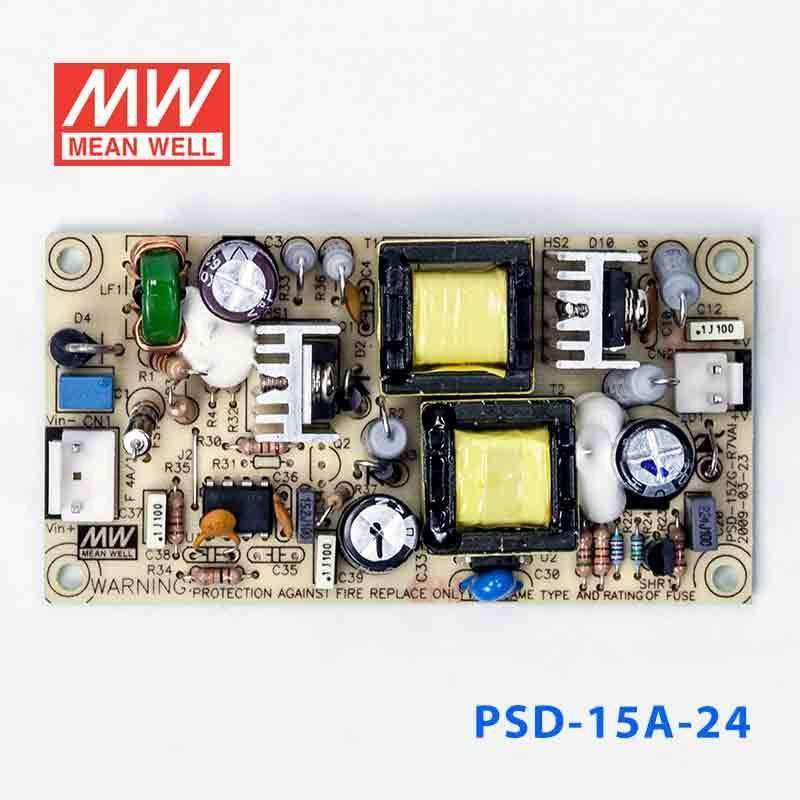

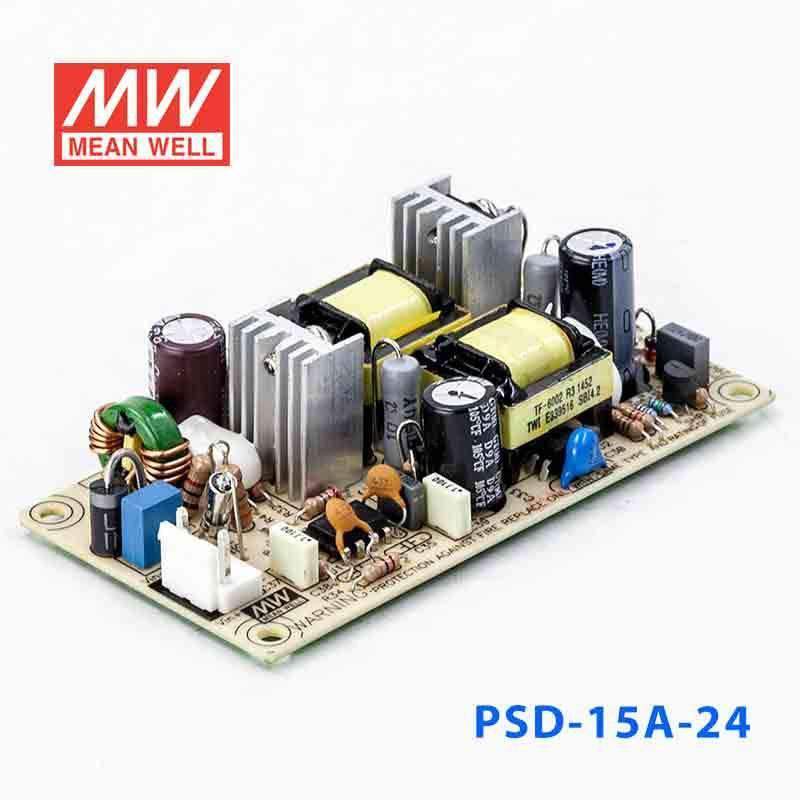

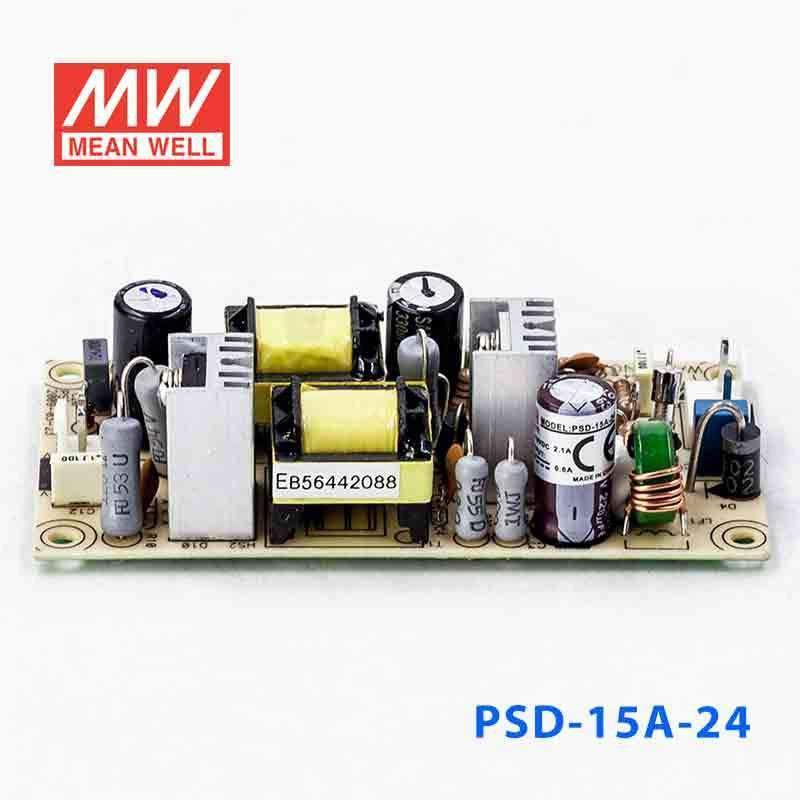

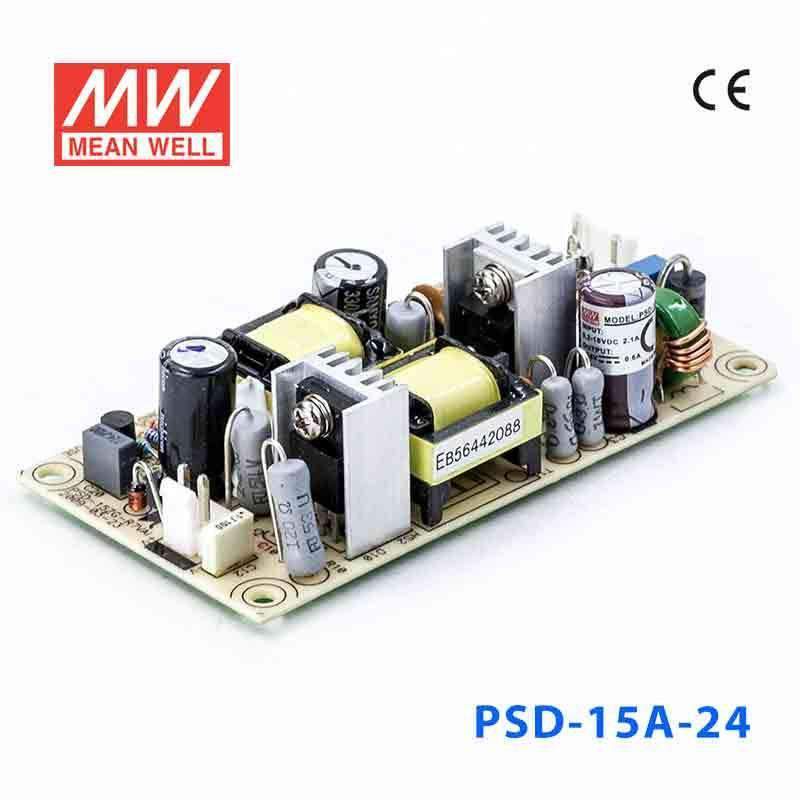

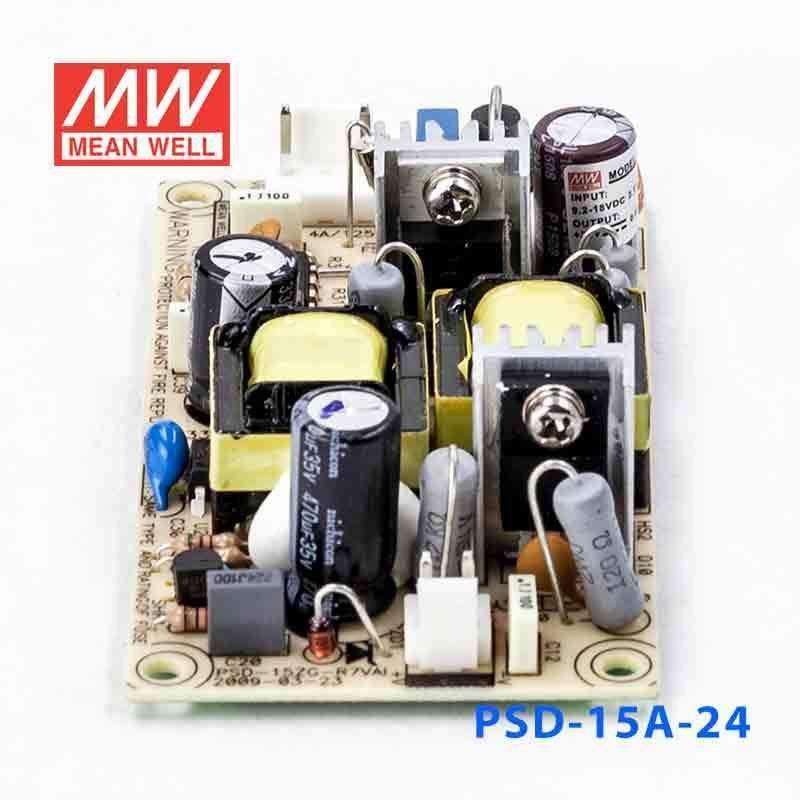

Mean Well PSD-15A-24 DC-DC Converter - 14.4W - 9.2~18V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

PSD-15A-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

2000VAC I / O isolation

Built-in EMI filter, low ripple noise

Protections: Short circuit / Overload / Over voltage / Polarity

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 1.0% (max.)
Overload protection	105% ~ 150% hiccup mode, auto-recovery
Over voltage protection	115% ~ 135% rated output voltage
Withstand voltage	I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Isolation resistance	100MQ(min.) @500VDC
Working temperature	-10 ~ + 60°C
Safety standards	Meet LVD
SEMC standards	EN55022 class B, EN61000-4-2, 3, 4, 6, 8
Connection	3P, 2P / 3.96mm pitch, JST B3P / B2P-VH
Packing	0.081 kg; 120 pcs / 10.72 kg
Dimension (LxWxH) (mm)	94x 49x 25 mm

Specifications

Brand

Mean Well
Series

PSD Series
Power Rating

14.4 Watt
Output Voltage

24 Volt
Rated Current

0.66 Ampere
Input Voltage

9.2V~18V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.4 cm
Width

4.9 cm
Height

2.5 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSD-15A-24 for a 24V sensor, relay, or control circuit?

Yes, it is a constant-voltage 24V converter rated for 14.4W. It fits 24V control and signaling loads that stay within the unit's rated 14.4W output.

Is the PSD-15A-24 appropriate for embedded 24V electronics in industrial equipment?

It is intended for compact 24V power conversion where a regulated 24V output is needed from a 9-18VAC input. Its 94.0 x 49.0 x 25.0 mm body and 0.081 kg weight make it practical for enclosed industrial assemblies.

Can this model support a small 24V automation load from a low-voltage source?

Yes, the PSD-15A-24 accepts 9-18VAC input and delivers a constant 24V output. It is suited to smaller 24V automation loads as long as the total demand stays within 14.4W.

Can the PSD-15A-24 be used outdoors or in exposed locations?

The specs provide an operating range of -10°C to +60°C, but they do not list an IP rating. That supports temperature planning, but it does not establish outdoor exposure resistance on its own.

What are the main PSD family alternatives to the PSD-15A-24?

The listed PSD range includes 5W 5V 1A models, 15W 5V 3A models, 15W 12V 1.25A models, 14.4W 24V 666A models, 25W 5V 5A models, 30W 12V 2.5A models, 30W 24V 1.25A models, 30W 5V 6A models, 45W 12V 3.75A models, 45W 24V 1.88A models, and 45W 5V 9A models. This unit is one of the 24V options and is rated at 14.4W.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-15A-5 Switching Power Supply 15W 5V	15W	5V	3A	Indoor	View
Mean Well PSD-15A-12 DC-DC Converter - 15W - 9.2~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well PSD-15A-05 DC-DC Converter - 15W - 9.2~18V in 5V out	15W	5V	3A	Indoor	View

{ "id":8442642006315, "variants" :[{ "context":"default", "variant_id": 45711783657771, "sku":"PSD-15A-24", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

General Specification

Voltage set point accuracy

± 1.0% (max.)

Overload protection

105% ~ 150% hiccup mode, auto-recovery

Over voltage protection

115% ~ 135% rated output voltage

Withstand voltage

I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute

Isolation resistance

100MQ(min.) @500VDC

Working temperature

-10 ~ + 60°C

Safety standards

Meet LVD

SEMC standards

EN55022 class B, EN61000-4-2, 3, 4, 6, 8

Connection

3P, 2P / 3.96mm pitch, JST B3P / B2P-VH

Packing

0.081 kg; 120 pcs / 10.72 kg

Dimension (LxWxH) (mm)

94x 49x 25 mm
