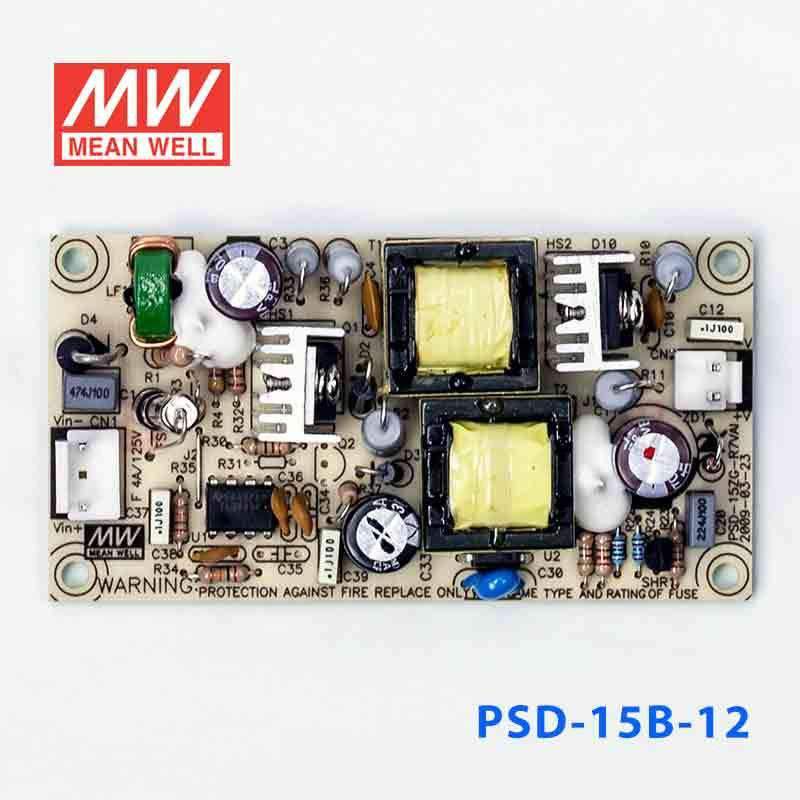

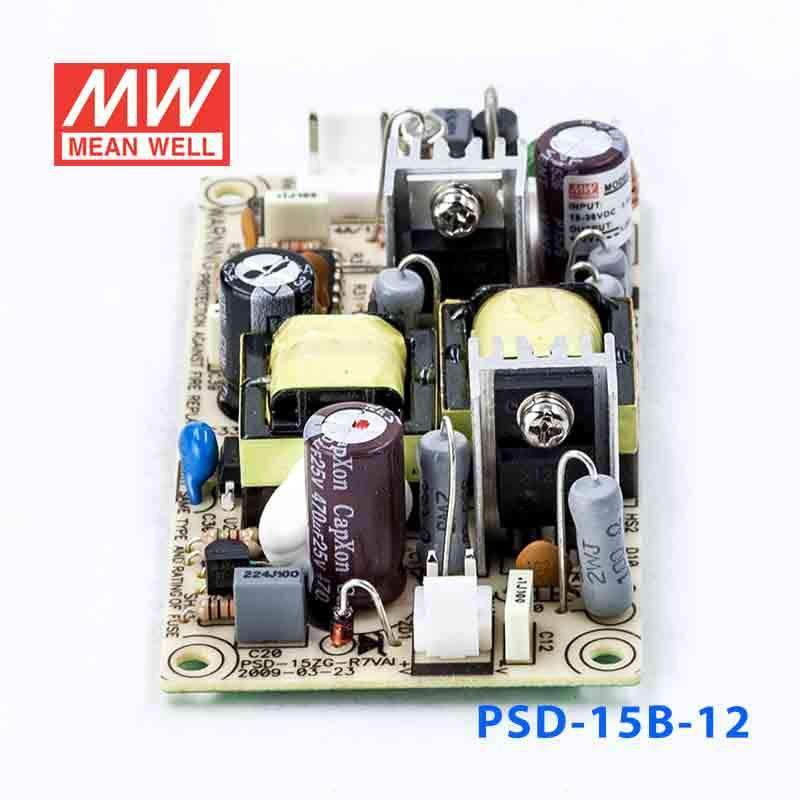

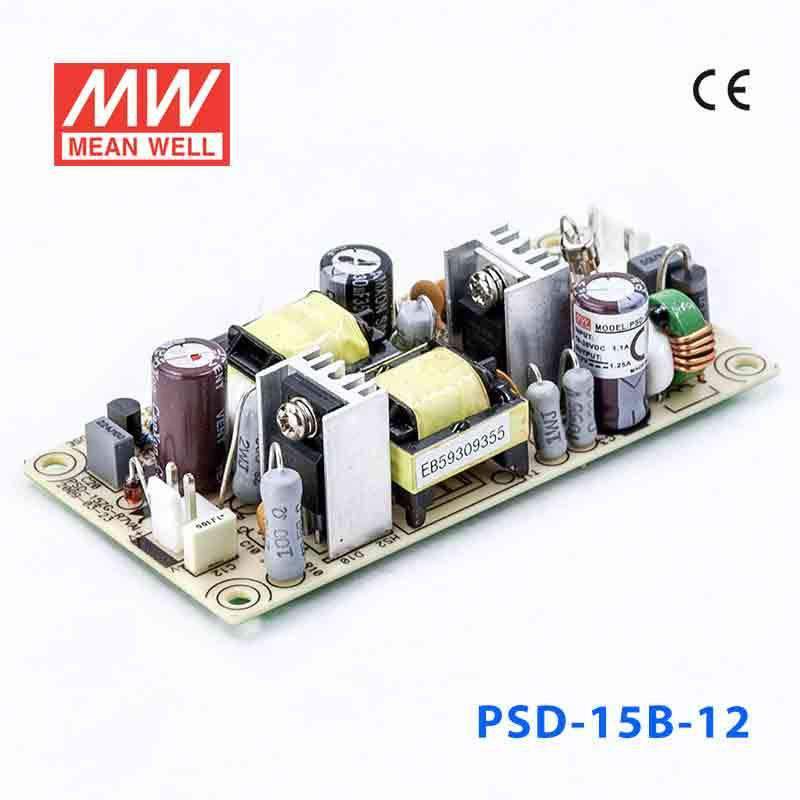

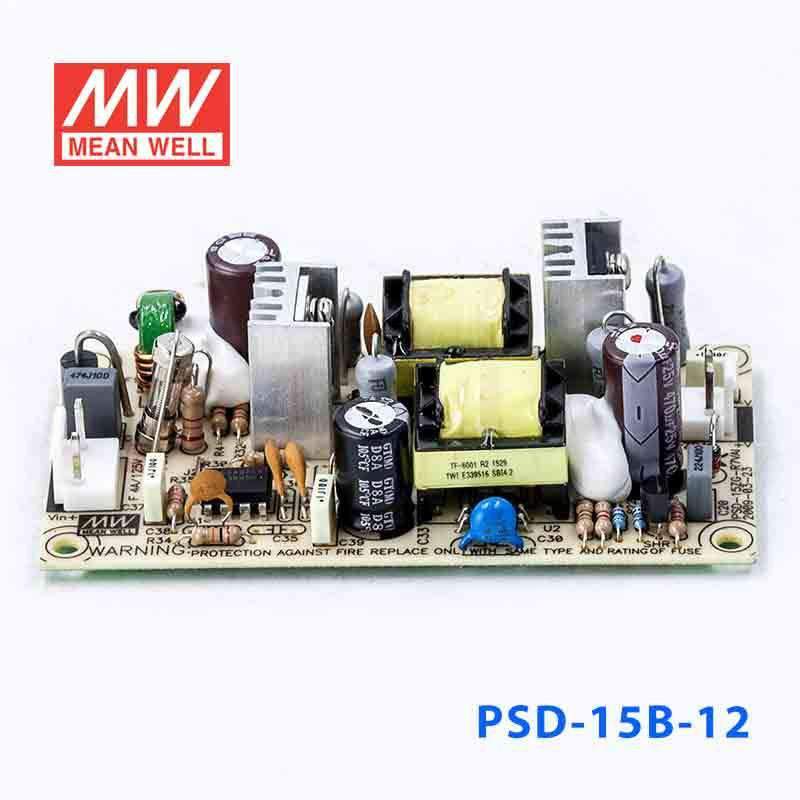

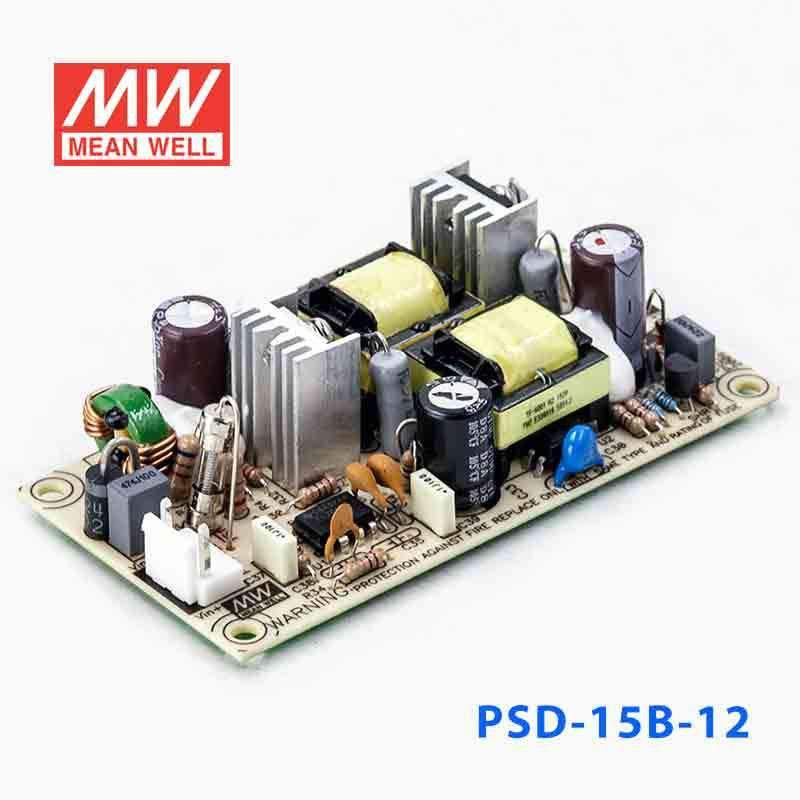

Mean Well PSD-15B-12 DC-DC Converter - 15W - 18~36V in 12V out 1.25A
Log in to see priceOverview
PSD-15B-12 is the 12V output model of this series: rated current 1.25A, rated power 15W, typical efficiency 78%.
Features
- Protections:Short circuit/Over load /Over voltage/ Polarity
- Cooling by free air convection
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 1.25A
- CURRENT RANGE
- 0 ~ 1.25A
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE, HOLD UP TIME
- 2.5s, 25ms, ----/12VDC/24VDC/48VDC at full load
INPUT
- VOLTAGE RANGE
- B:18 ~ 36VDC (24VDC)
- EFFICIENCY(Typ.)
- 78%
- DC CURRENT(Typ.)
- 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC
PROTECTION
- OVER LOAD
- 105% ~150% rated output power Protection type : hiccup mode ,recovery automatically after fault condition is removed
- OVER VOLTAGE
- 13.8~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:2.0KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH
- EMI CONDUCTION&RADIATION
- Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035, BS EN/EN61000-6-1,light industry level,EAC TP TC 020
OTHERS
- MTBF
- 7598.3K hrs min. Telcordia SR-332 (Bellcore) ; 740.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 94*49*25mm (L*W*H)
- PACKING
- 81g;120pcs/10.72Kg/0.9CUFT
Test conditions and notes5
- 1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
- 2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1μF & 47μF capacitor.
- 3.Tolerance:includes set up tolerance,line regulation and load regulation.
- 4.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-15B-12 for 12V industrial instrumentation or panel devices?
Yes, it provides constant 12V output with a 15W rating and up to 1.25A output current. That makes it suitable for 12V instrumentation, panel devices, and control accessories that stay within those limits.
Is the PSD-15B-12 suitable for a control cabinet with an 18-36VDC source?
Yes, this model is specified for 18-36VDC input and converts that to regulated 12V output. It is appropriate for cabinet-based automation loads that need 12V constant-voltage power up to 15W.
Can this converter support small 12V embedded or monitoring electronics?
It can support 12V embedded and monitoring electronics when the total load remains within 1.25A and 15W. The 94.0 x 49.0 x 25.0 mm dimensions and 0.081 kg weight are also helpful where space is limited.
Can the PSD-15B-12 be used in outdoor or unprotected locations?
The stated operating temperature is -10°C to +60°C, but no IP rating is listed on the datasheet. That means the temperature window is defined, while environmental sealing for outdoor exposure is not.
How does the PSD-15B-12 fit within the broader PSD converter lineup?
The PSD-15 series offers 5V 3A (15W), 12V 1.25A (15W) and 24V 0.6A (14.4W) outputs, each with A (9.2-18VDC), B (18-36VDC) or C (36-72VDC) input. The PSD-15B-12 is the 12V, 1.25A, 15W version for 18-36VDC input.
