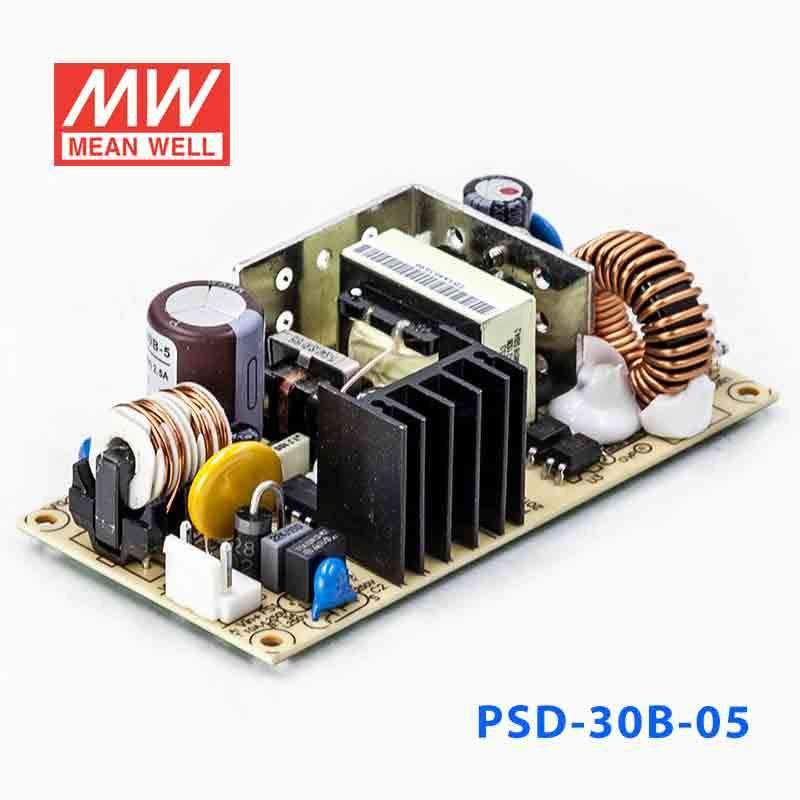

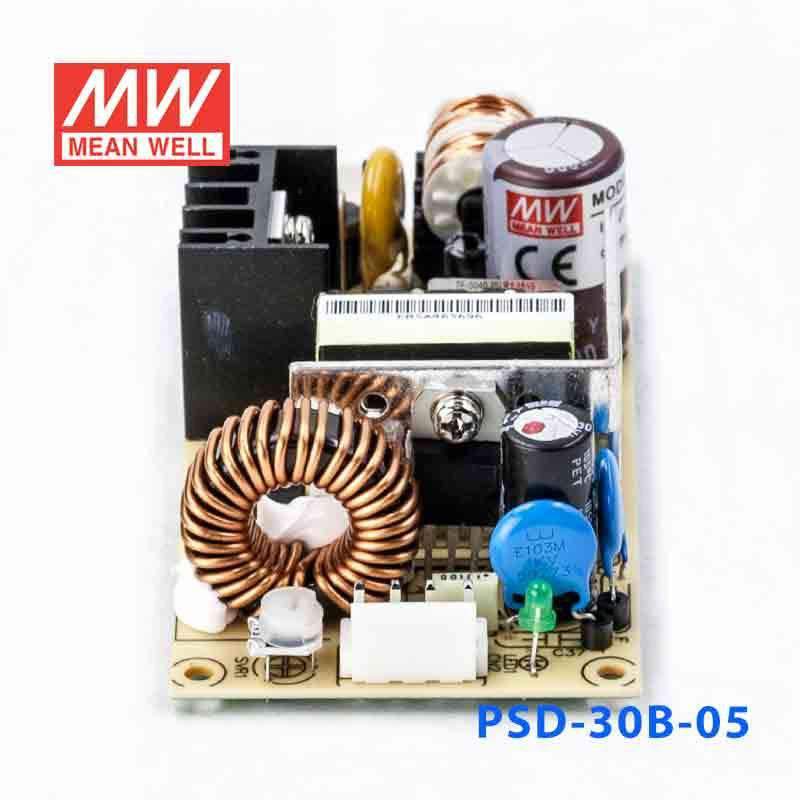

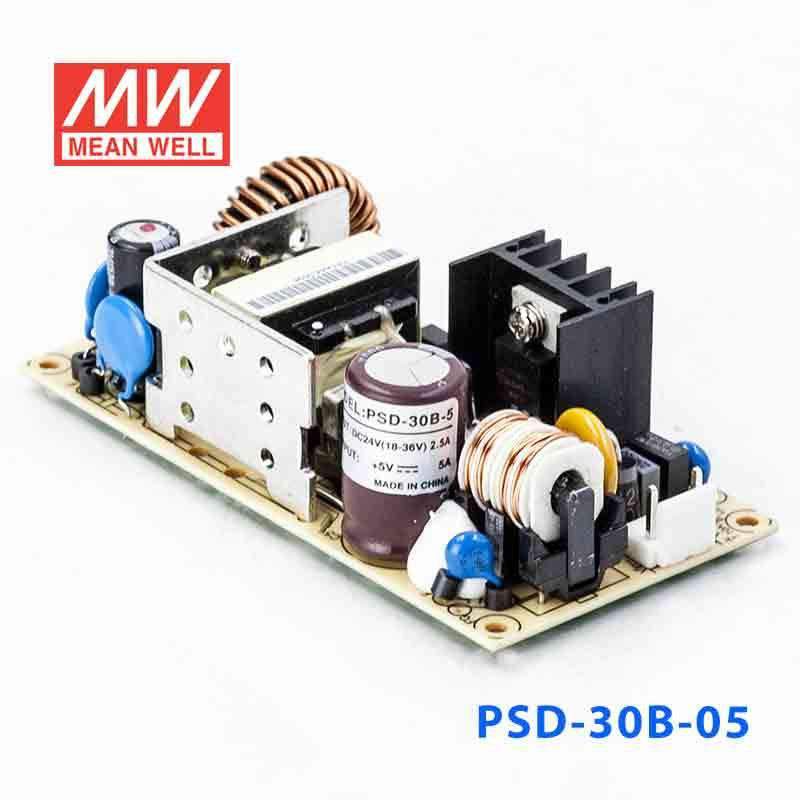

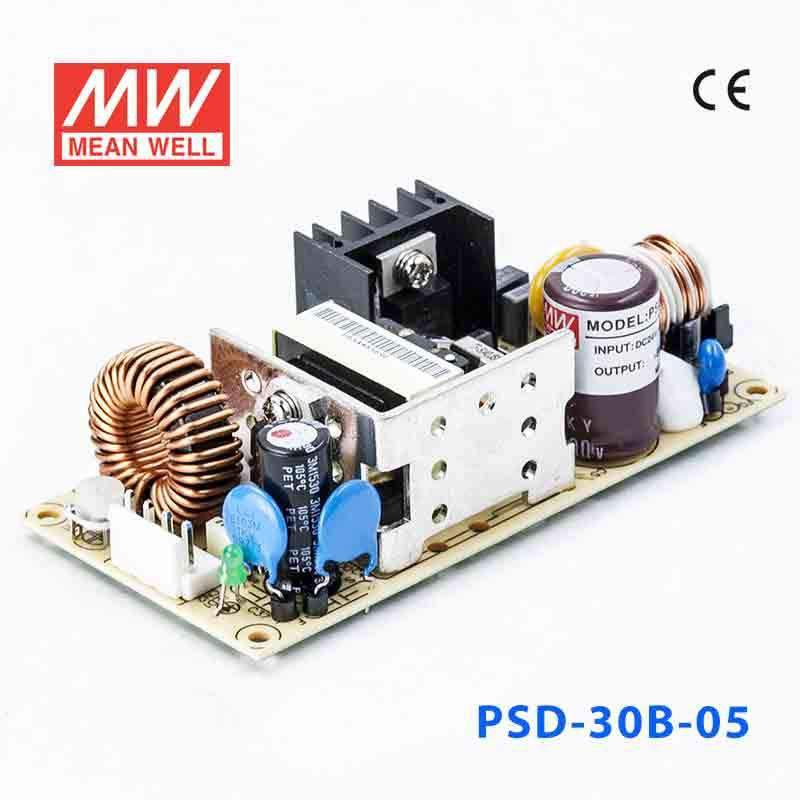

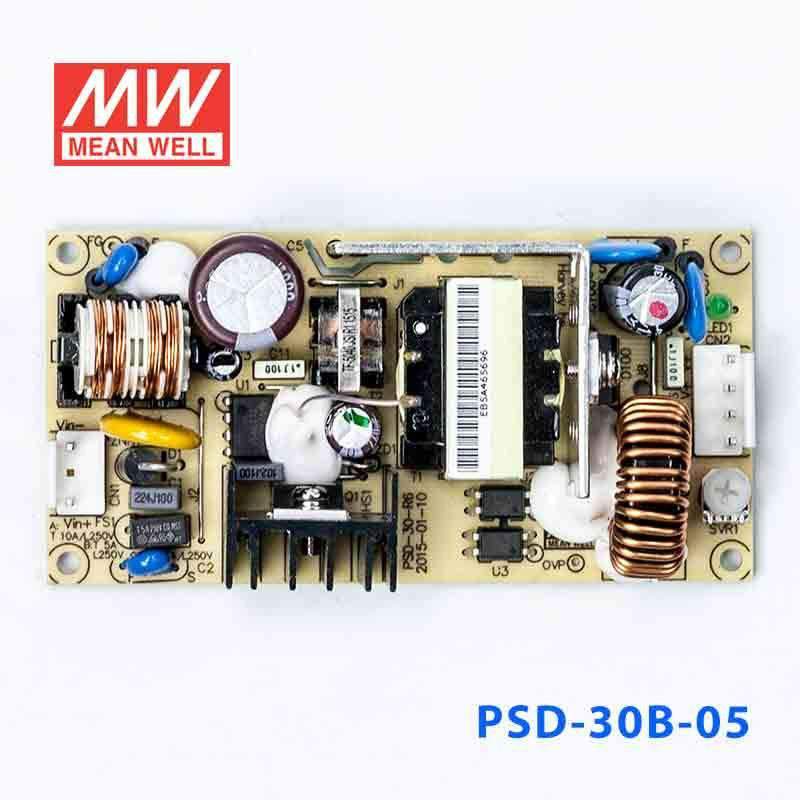

Mean Well PSD-30B-5 DC-DC Converter - 25W - 18~36V in 5V out 5A
Log in to see priceOverview
PSD-30B-5 is the 5V output model of this series: rated current 5A, rated power 25W, typical efficiency 79%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage/ Reverse polarity
- 1500VAC I/O isolation
- Cooling by free air convection
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5A
- RATED POWER
- 25W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 4.5 ~ 5.5VDC
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE, HOLD UP TIME
- 2s, 50ms, ------ at full load
INPUT
- VOLTAGE RANGE
- B:18 ~ 36VDC
- EFFICIENCY (Typ.)
- 79%
- DC CURRENT
- 4.5A/12V
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 6 ~ 7.5V Protection type : Hiccup mode, recovers automatically after fault condition is removed
- REVERSE POLARITY
- By internal fuse open
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- EAC TP TC 004 approved, IEC 62368-1 CB approved by Dekra, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
- EMI CONDUCTION & RADIATION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/ENV50204, BS EN/EN 55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3871.7K hrs min. Telcordia SR-332 (Bellcore) ; 639.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 101.6*50.8*30mm (L*W*H)
- PACKING
- 0.15kg；72pcs/10.8kg/0.82CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-30B-5 for a 5V embedded controller or SBC in industrial equipment?
Yes, if the board requires a regulated 5V output and the total load stays within 5A. This model delivers constant-voltage 5V output, is rated for 25W, and accepts an 18-36 input range.
Is the PSD-30B-5 a fit for 5V logic, sensors, and communication modules on a 24V-class system?
It is suitable for 5V electronics as long as the load does not exceed 25W or 5A. The 18-36 input range is intended for systems that present that input window while the output remains fixed at 5V.
Can this converter power a compact HMI, gateway, or industrial interface that runs on 5V?
Yes, if the device expects constant 5V and its demand is at or below 5A. The PSD-30B-5 is sized for lower-power 5V embedded and interface loads rather than larger 5V systems.
What are the main PSD family alternatives to the PSD-30B-5?
In the PSD-30 series, alternatives are the 12V 2.5A (30W) and 24V 1.25A (30W) models, plus the same 25W, 5V, 5A output for 9-18VDC (PSD-30A-5) or 36-72VDC (PSD-30C-5) inputs. The PSD-30B-5 is the 25W, 5V, 5A version with an 18-36VDC input range.
Is the PSD-30B-5 appropriate for outdoor or unsealed enclosures?
Its operating temperature is specified as -20°C to +60°C. The provided specifications do not show an IP rating, so the product data does not establish exposed outdoor suitability.
