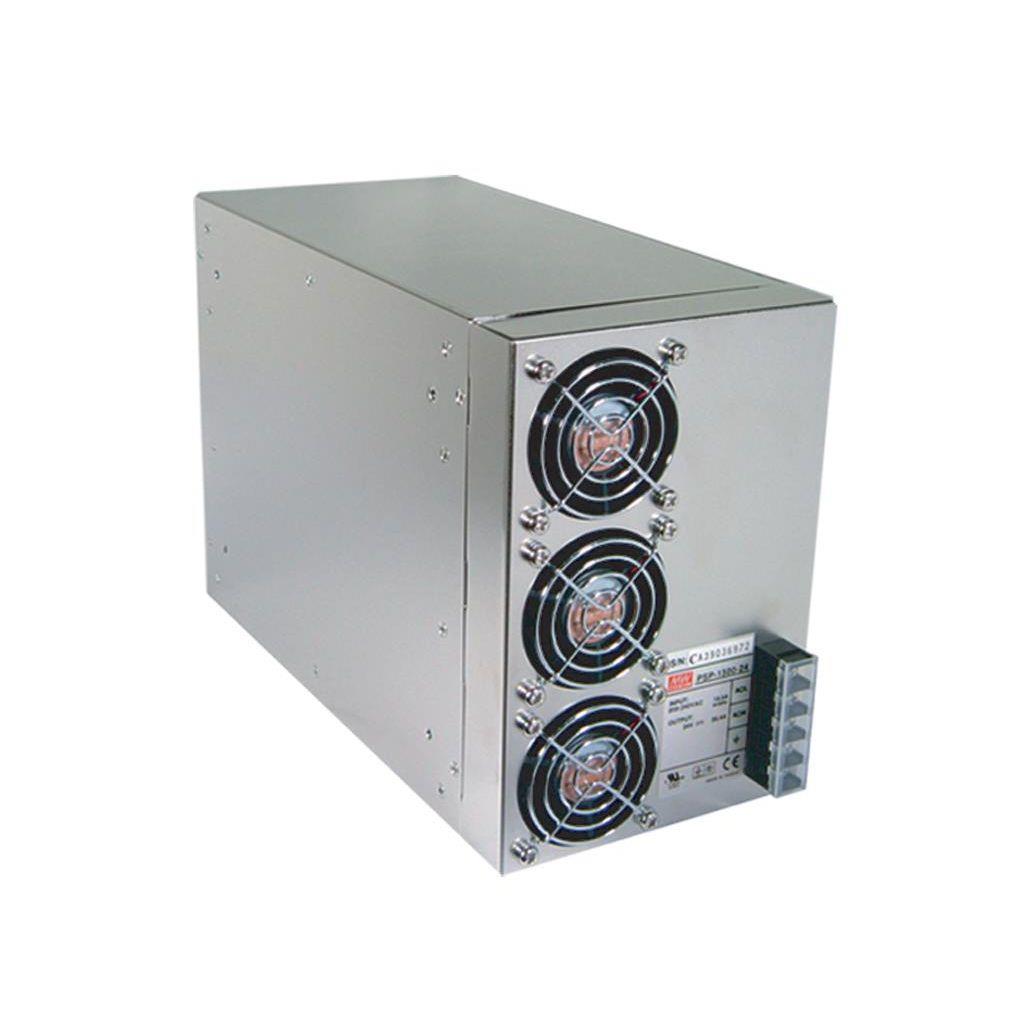

Mean Well PSP-1500-24 Power Supply 1500W 24V 56.4A
Log in to see priceOverview
PSP-1500-24 is the 24V output model of this series: rated current 56.4A, rated power 1353.6W, typical efficiency 85%.
Features
- AC input active surge current limiting
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in constant current limiting circuit
- Built-in remote ON-OFF control
- Built-in remote sense function
- 3 years warranty
Specifications
PSP-1500-24Specifications from the official datasheet (2011-08-18 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 56.4A
- CURRENT RANGE
- 0 ~ 56.4A
- RATED POWER
- 1353.6W
- PEAK LOADNote.4
- 1500W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 20 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1500ms, 50ms/230VAC at full load
- HOLD UP TIME (Typ.)
- 24ms/230VAC at full load
INPUT
- VOLTAGE RANGE
- 176 ~ 264VAC 248 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.96/230VAC at full load
- EFFICIENCY (Typ.)
- 85%
- AC CURRENT (Typ.)
- 8.4A/230VAC
- INRUSH CURRENT (Typ.)
- 80A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 115 ~ 140% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- 95℃(TSW1) detect on the heatsink of PFC MOSFET 90℃(TSW2) detect the winding of output choke Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- REMOTE CONTROL
- RC+/RC-: 0 ~ 0.8V=power on ; 4 ~ 10V=power off sink current <30mA
ENVIRONMENT
- WORKING TEMP.

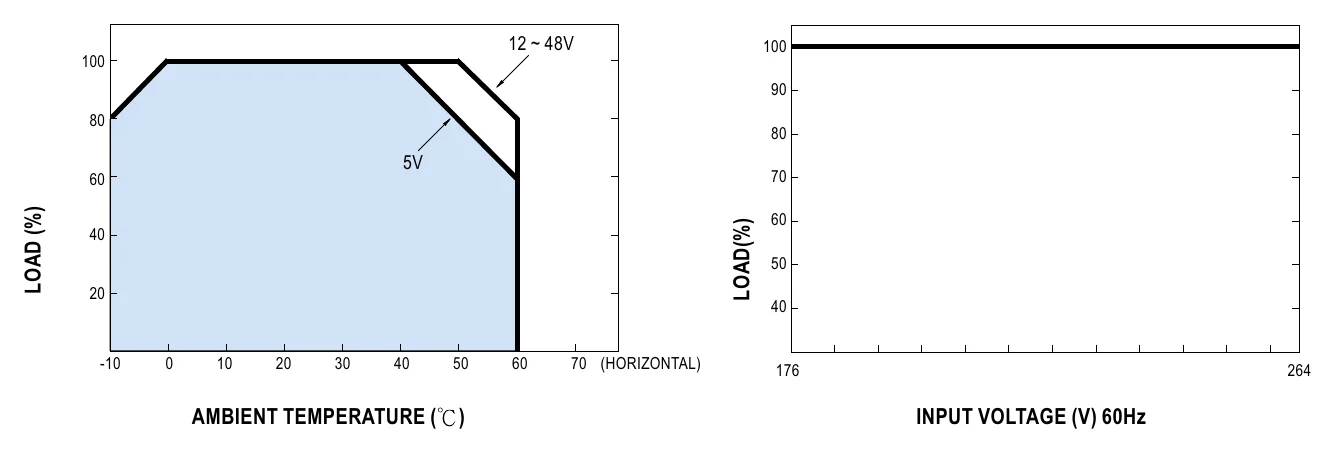

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- Design refer to UL60950-1, TUV EN60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
- EMC EMISSION
- Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 43.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

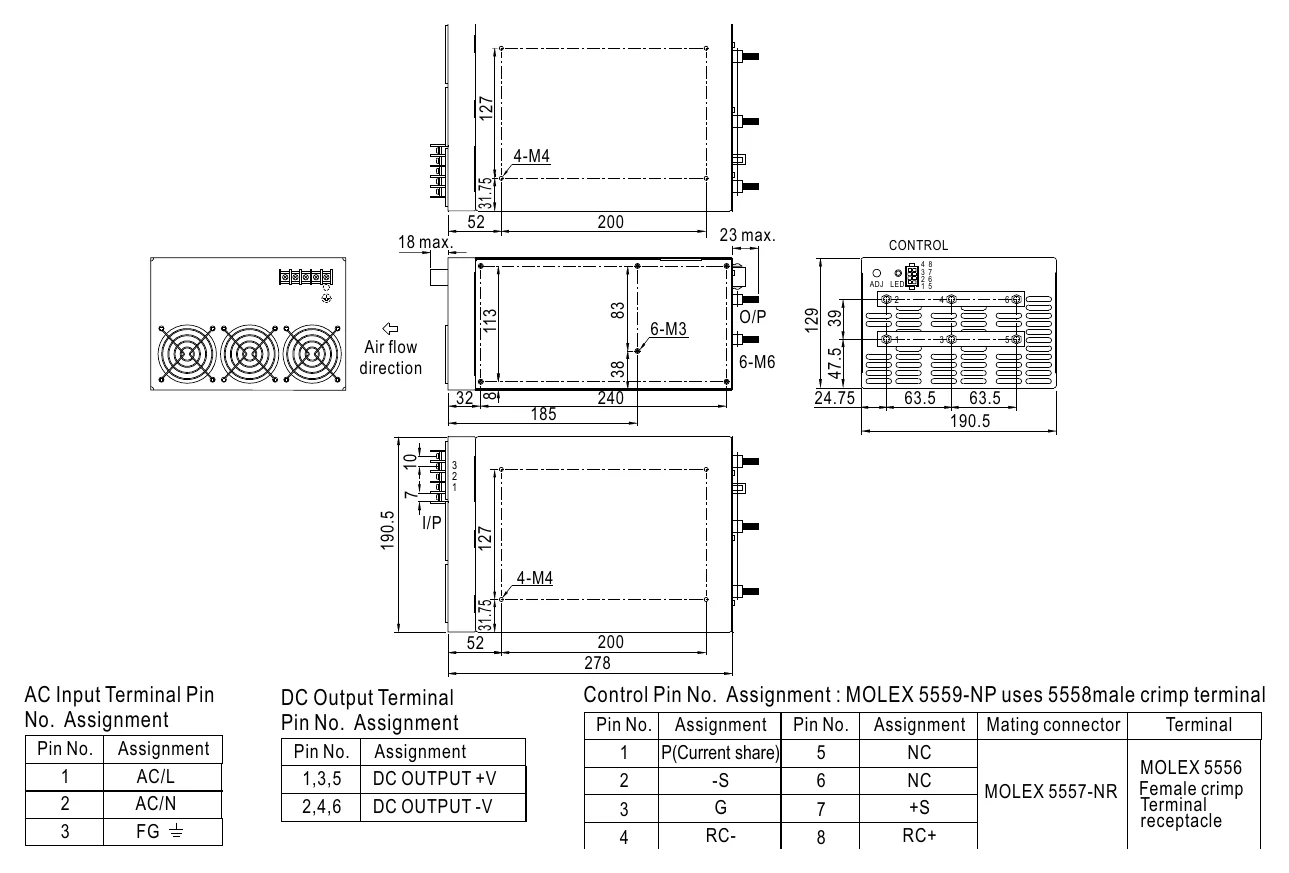

- 278*129*190.5mm (L*W*H)
- PACKING
- 7.4Kg; 2pcs/15.5Kg/1.28CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 10% Duty cycle maximum within every 30 seconds(max.). Average output power should not exceed the rated power.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
