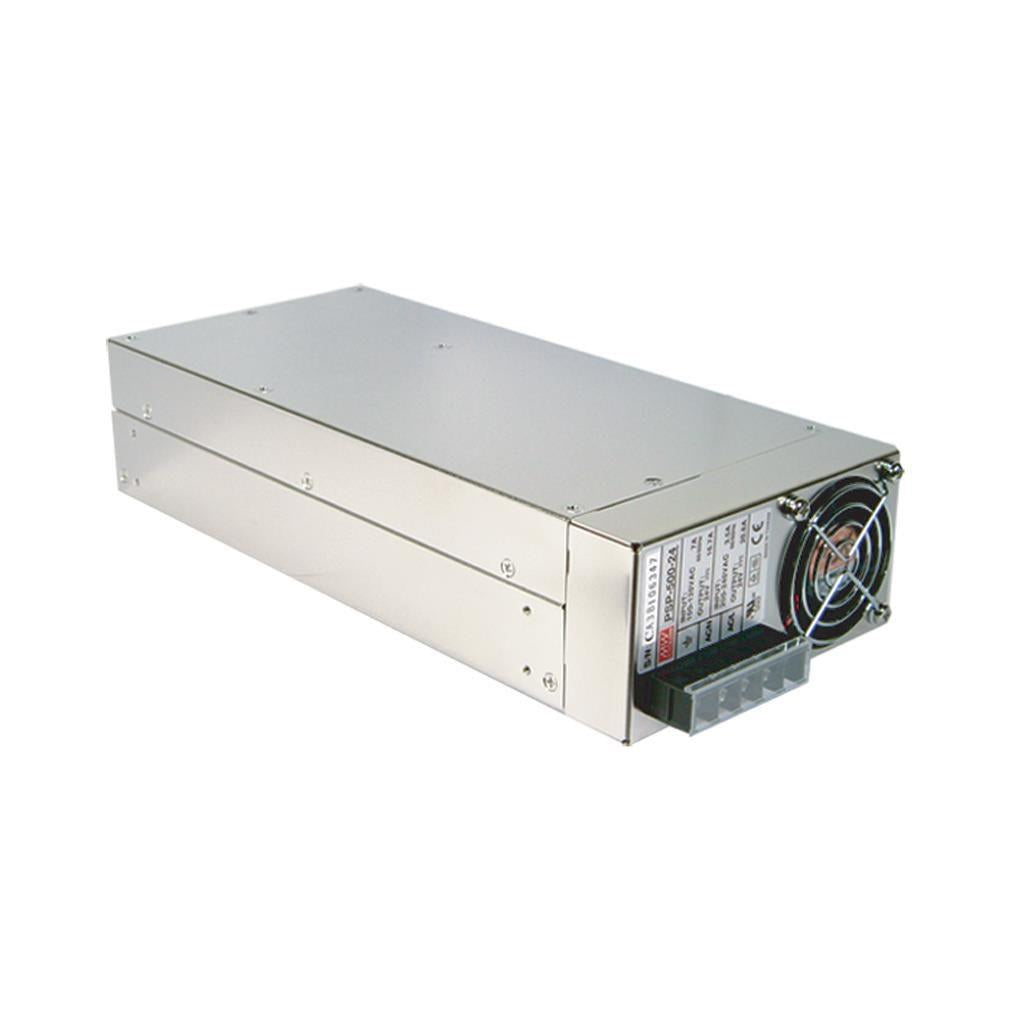

Mean Well PSP-500-24 Power Supply 500W 24V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Built-in remote sense function and ON/OFF control |
| Current sharing up to 2400W (3+1) |
| With DC OK signal output |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~140% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V) |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
| Connection | 7+8P / 9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 170x120x93 |
| Case No. | 910A |
| Packing | 8pcs / 15.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating499.2 Watt
-
Output Voltage24 Volt
-
Rated Current20.8 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length27.8 cm
-
Width12.7 cm
-
Height6.35 cm
-
Weight2.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PSP-500 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well PSP-500-27 Power Supply 500W 27V | 499.5W | 27V | 18.5A | View |
| Mean Well PSP-500-15 Power Supply 500W 15V | 495W | 15V | 33A | View |
| Mean Well PSP-500-13.5 Power Supply 500W 13.5V | 499.5W | 13.5V | 37A | View |
{
