Can I use the PT-6503 for a 5V industrial controller with higher current demand?

The PT-6503 provides a 5V constant voltage output rated at 6A, with total power rated at 61.8W. That makes it a stronger fit for 5V control hardware or logic-heavy industrial assemblies than the 3A models in the same series.

Is the PT-6503 suitable for embedded or IT hardware that needs multiple 5V rails plus 12V?

Its product configuration is 5V, 5V, and 12V, and the listed main 5V output is 6A. With a 61.8W rating, it is appropriate for systems built around 5V power distribution with an additional 12V rail in the same supply family.

Can the PT-6503 power a denser automation assembly than the PT-45 models?

Compared with the 45W siblings, the PT-6503 is rated at 61.8W and 5V 6A. Its larger 127.0 x 76.0 x 42.0 mm body and 0.28 kg weight reflect that higher-capacity class.

Is the PT-6503 designed for outdoor installations?

The specified operating temperature range is -10°C to +60°C, but no IP rating is listed in the provided specs. It is therefore better matched to indoor equipment or protected enclosures rather than exposed outdoor conditions.

How does the PT-6503 compare with the rest of the PT series group?

The sibling lineup includes PT-4503 at 45.2W and 5V 4A, PT-45A at 40.5W and 5V 3A, PT-45B at 42.6W and 5V 3A, PT-45C at 43.5W and 5V 3A, PT-65A at 60W and 5V 5.5A, PT-65B at 63.5W and 5V 5.5A, PT-65C at 65W and 5V 5.5A, and PT-65D at 68W and 5V 4A. PT-6503 is rated at 61.8W with a 5V 6A output, giving it the highest listed 5V current among these siblings.

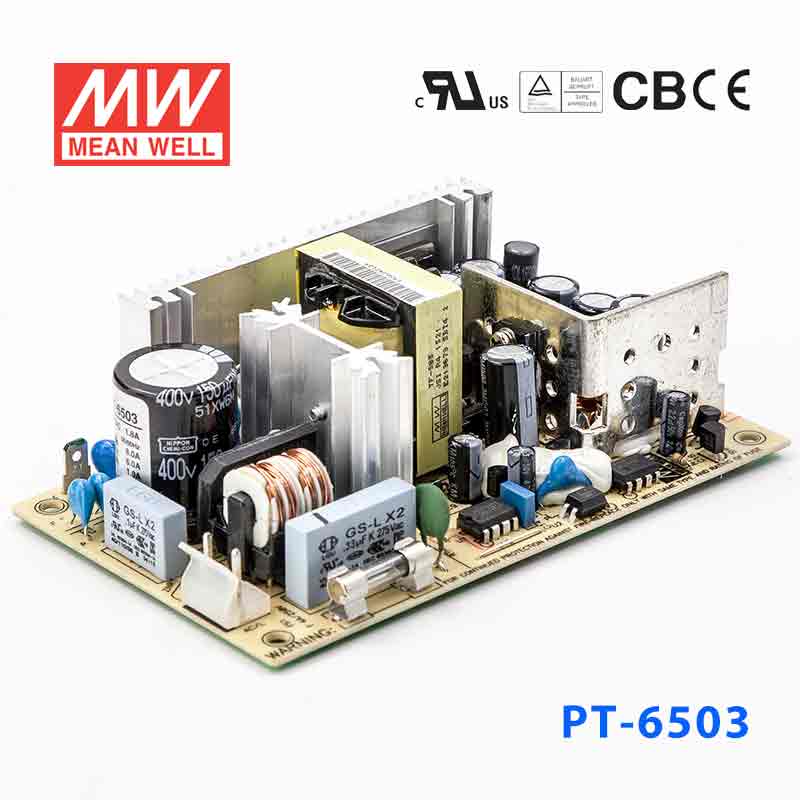

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well PT-6503 Power Supply 65W 5V 5V 12V 6A

low leakage current < 0.5mAsmall and compact

SKU:

PT-6503

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

<1mA / 240VAC

Key Features

✓Universal AC input / Full range
✓Protections: Short circuit/ Overload/ Over voltage
✓Cooling by free air convection
✓100% full load burn-in test
✓Fixed switching frequency at 65KHz
✓2 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well PT-65D Power Supply 65W 5V 12V 24V 4A	68W	5V	4A	View
Mean Well PT-65C Power Supply 65W 5V 15V -15V 5.5A	65W	5V	5.5A	View
Mean Well PT-65B Power Supply 65W 5V 12V -12V 5.5A	63.5W	5V	5.5A	View
Mean Well PT-65A Power Supply 65W 5V 12V -5V 5.5A	60W	5V	5.5A	View
Mean Well PT-45C Power Supply 45W 5V 15V -15V 3A	43.5W	5V	3A	View
Mean Well PT-45B Power Supply 45W 5V 12V -12V 3A	42.6W	5V	3A	View
Mean Well PT-45A Power Supply 45W 5V 12V -5V 3A	40.5W	5V	3A	View
Mean Well PT-4503 Power Supply 45W 5V 5V 12V 4A	45.2W	5V	4A	View
