Mean Well

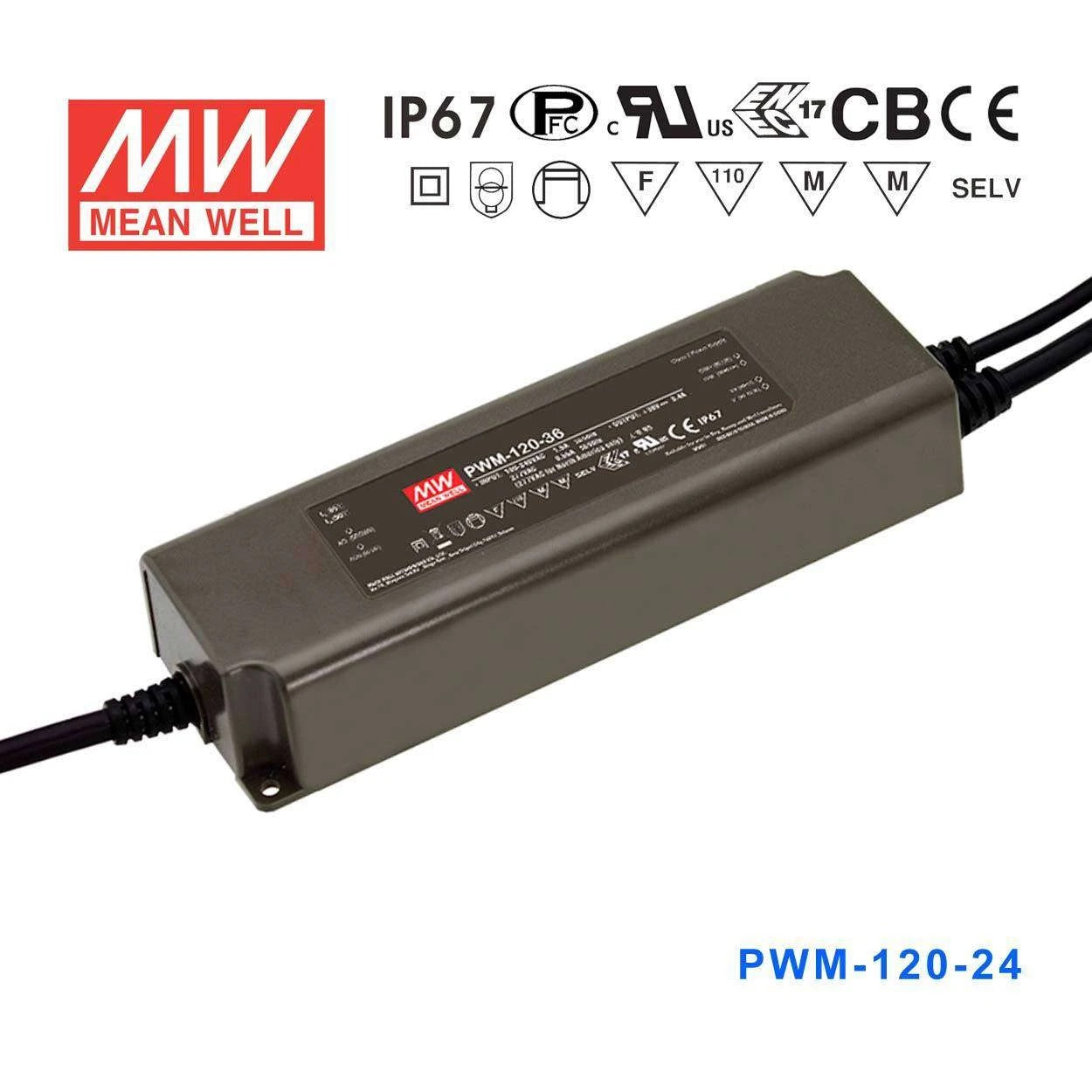

Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable

PWM style output, fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
PWM-120-24
Please for Pricing
|

Description

Features

Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 90.5%
No load power consumption <0.5W
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Built-in 3 in 1 dimming (dim-to-off);DALI
Suitable for dry, damp and wet location
Suitable for LED strip lighting
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 60A at 230VAC
Overload protection 108%~120% hiccup mode, auto-recovery
Over voltage protection Shut down o/p voltage, re-power on to recover
Over temp. protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm) 191x63x 37.5
Packing 15pcs / 15.6kg

Specifications
  • Brand
    Mean Well
  • Series
    PWM Series
  • Power Rating
    120 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    19.1 cm
  • Width
    6.3 cm
  • Height
    3.75 cm
  • Weight
    0.97 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PWM-120-24 to power 24V LED strip lighting in an outdoor illuminated sign?

Yes. The PWM-120-24 is IP67 rated, making it suitable for outdoor sign cabinets exposed to rain and humidity. It delivers 24V at up to 5A (120W) and operates across a wide input range of 90-305VAC, supporting global voltage standards.

What dimming interfaces does the PWM-120-24 support?

The PWM-120-24 includes built-in 3-in-1 dimming, accepting PWM signal, 0-10V analog, and resistance dimming inputs. This allows compatibility with the most common 24V dimmer controllers without requiring an additional interface adapter.

How many meters of 24V LED strip can the PWM-120-24 power?

The driver provides up to 120W at 24V. For a 20W/m strip, that supports up to 6 meters (120 ÷ 20); for a 14.4W/m strip, approximately 8.3 meters (120 ÷ 14.4). Always check your strip's rated power per meter and leave a 20% safety margin.

Is the PWM-120-24 suitable for use in refrigerated display cases or cold outdoor environments?

Yes. The operating temperature range of -40°C to +90°C means the PWM-120-24 can operate in refrigerated display cases and cold outdoor climates without derating its 120W output.

Can the PWM-120-24 power 24V LED strips in a covered outdoor pergola or building facade?

Yes. Its IP67 rating provides protection against water jets and temporary immersion, making it suitable for covered outdoor installations such as pergola lighting or building facade accent lighting. The Class II design also allows use without a protective earth connection.

How does the PWM-120-24 compare to the PWM-120-12 for LED strip applications?

Both are 120W IP67 drivers with built-in 3-in-1 dimming. The PWM-120-24 outputs 24V at 5A, suited to 24V LED strips which typically allow longer runs before voltage drop becomes significant. The PWM-120-12 outputs 12V at 10A, suited to 12V strips; for equal wattage loads, 24V strips can run roughly twice the length of 12V strips at the same current.

Can I use the PWM-120-24 for cove lighting in a commercial space with 0-10V dimmer controls?

Yes. The built-in 3-in-1 dimming interface accepts 0-10V signals, making the PWM-120-24 directly compatible with 0-10V dimmer controls commonly found in commercial lighting panels. It can drive 24V LED strips used in cove and indirect lighting installations.

{ "id":8429129826603, "variants" :[{ "context":"default", "variant_id": 45655826235691, "sku":"PWM-120-24", "inventory_qty" : 15, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

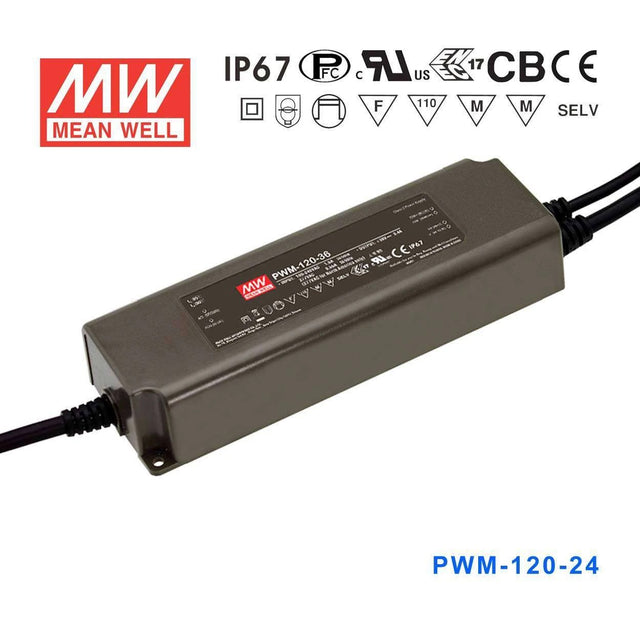

Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable
