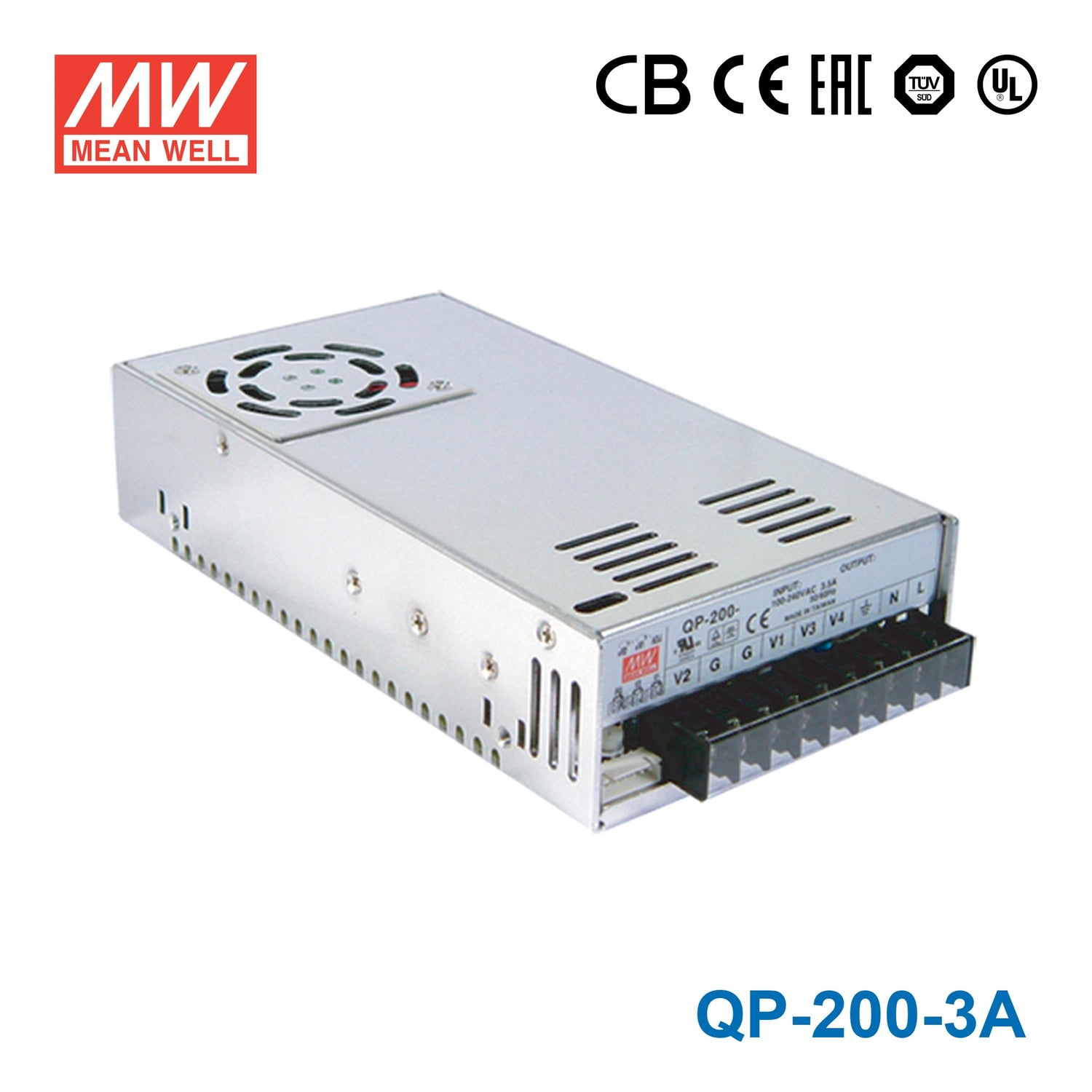

Mean Well QP-200-3A Power Supply 200W 5V 3.3V 12V -5V 15A

built-in active PFCPF>0.95quad output

SKU QP-200-3A

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by QP-320-3D2

Available to order

Overview

QP-200-3A is the 5V 3.3V 12V -5V output model of this series: rated current 15A 15A 6A 0.7A, rated power 200W, typical efficiency 72%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
CH1,2 can be adjustable from -5~+10%
With power good and fail signal output(Optional)
Built-in remote sense function for CH1,2
100% full load burn-in test
CH4 can set to positive after consult us before delivery(Optional)
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

QP-200-3ASpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3 CH4
DC VOLTAGE: 5V 3.3V 12V -5V
RATED CURRENT: 15A 15A 6A 0.7A
CURRENT RANGE: 3 ~ 20A 0 ~ 20A 0.5 ~ 8A 0 ~ 1A
RATED POWER: 200W
PEAK CURRENT^Note.4: 20A 20A 8A 1A
RIPPLE & NOISE (max.)^Note.2: 100mVp-p 100mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE: CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V
VOLTAGE TOLERANCE^Note.3: ±3.0% ±3.0% +8,-10% ±6.0%
LINE REGULATION: ±1.0% ±1.0% ±2.0% ±1.0%
LOAD REGULATION: ±2.0% ±2.0% ±6.0% ±2.0%
SETUP, RISE TIME: 800ms, 50ms at full load
HOLD UP TIME (Typ.): 24ms at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 72%
AC CURRENT (Typ.): 3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

POWER GOOD / POWER FAIL(OPTIONAL): 10ms/1ms

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ± 0.03%/℃ (0~50℃ )
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 1456.9K hrs min. Telcordia SR-332 (Bellcore) ; 226.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*50mm (L*W*H)
PACKING: 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

QP-200-3A Mechanical Specification — Mechanical Specification

QP-200-3A Derating Curve — Derating Curve

Downloads

Certificates6

Mean Well QP-200 TUV Certificate PDF Download

Mean Well QP-200 CB(UL) Certificate PDF Download

Mean Well QP-200 CB(TUV) Certificate PDF Download

Mean Well QP-200 EMC Certificate PDF Download

Mean Well QP-200 CE-DEC Certificate PDF Download

Mean Well QP-200 UK-dec Certificate PDF Download

Test reports1

Mean Well QP-200-3A Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the QP-200-3A for PLC or industrial control electronics that need 5V and 3.3V logic rails?

Yes, this quad-output supply is well matched to control electronics that combine 5V and 3.3V logic with additional auxiliary rails. It delivers 5V at 15A, includes 3.3V, 12V, and -5V outputs, and is rated for 200W total.

Is the QP-200-3A suitable for powering embedded computing and interface boards in one chassis?

It can be a good fit when an embedded system needs several regulated constant-voltage outputs from one AC-fed supply. The 90-264VAC input range, 200W rating, and 5V 15A main rail make it suitable for fixed multi-board equipment rather than a single-output load.

Would this model work for industrial test equipment that combines digital and low-voltage support rails?

Yes, the output mix of 5V, 3.3V, 12V, and -5V is aligned with electronic test, measurement, and interface assemblies that use both logic and support rails. Its quad-output design and 200W capacity are more relevant to mixed-voltage equipment than to a basic 5V-only application.

Can the QP-200-3A be used outdoors or in unprotected ambient conditions?

The provided specifications do not include an IP rating, so outdoor or washdown use is not established by this data. The listed operating temperature range is -10C to +60C, which defines the ambient range it is specified for.

How does the QP-200-3A compare with other QP 200 series options?

In the 200 group shown here, QP-200-3A is 200W with 5V and 15A, QP-200-3B is 203.4W, QP-200-3C is 203.4W, QP-200-3D is 203.9W with 5V and 10A, QP-200-3E is 203.4W, QP-200D is 203.4W with 5V and 15A, and QP-200F is 202.5W with 5V and 15A. The wider family also includes 100W and 150 class models, 316W models QP-320D and QP-320F with 5V and 20A, and 375W to 378W 5V and 24V models.
