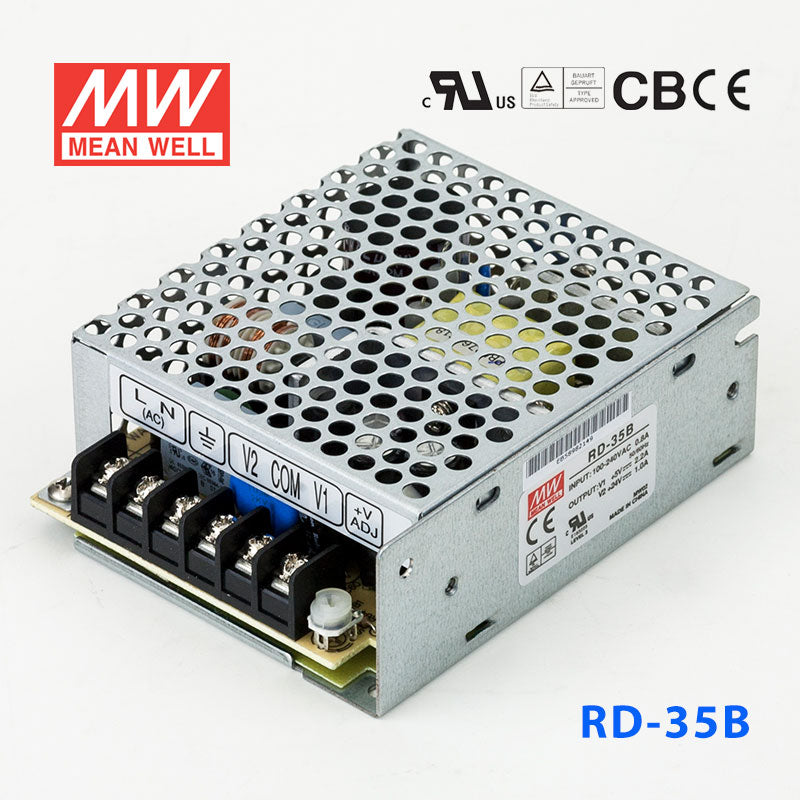

Mean Well RD-35B Power Supply 35W 5V 24V
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 99x 82x 36 |
| Case No. | 932A |
| Packing | 45pcs /14.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRD Series
-
Power Rating35 Watt
-
Output Voltage5 Volt
-
Rated Current2.2 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length9.9 cm
-
Width8.2 cm
-
Height3.6 cm
-
Weight0.3 kg
