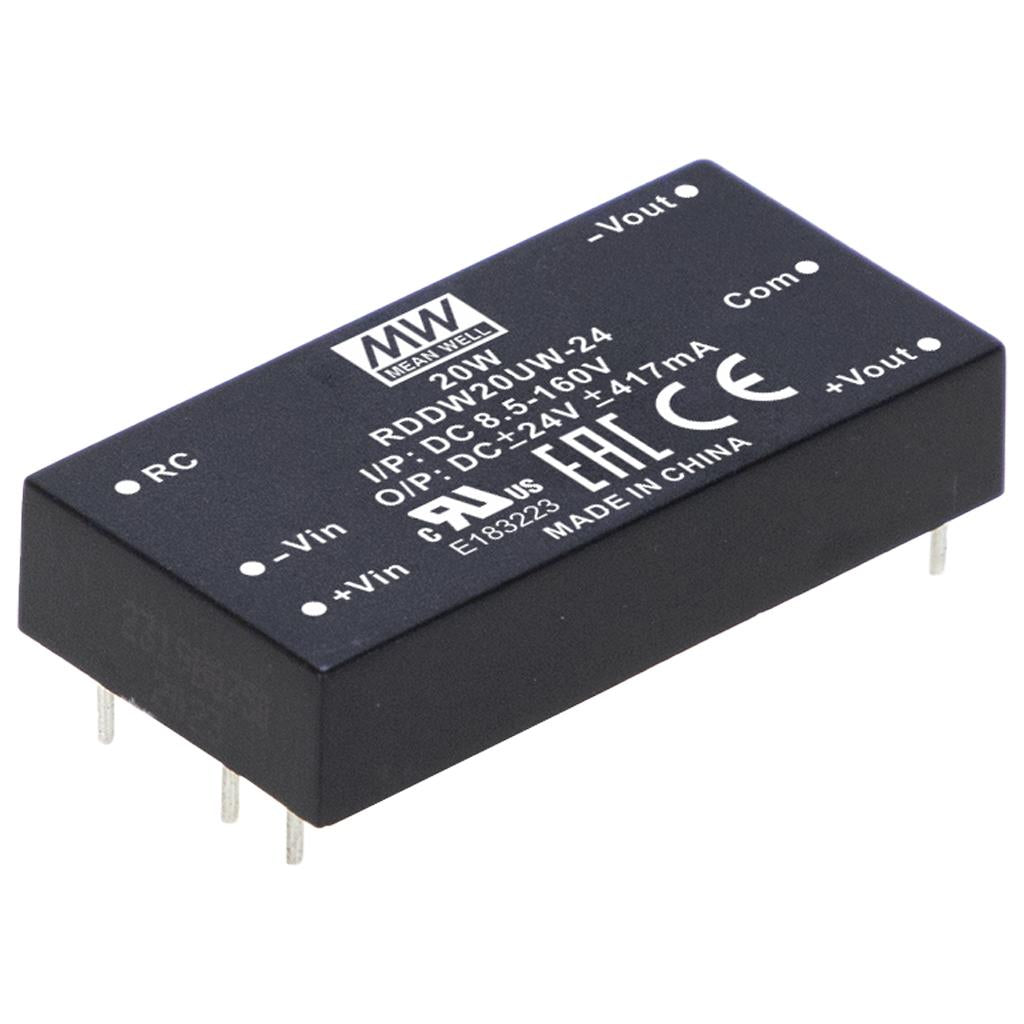

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well RDDW20UW-24 Ultra-wide input DC/DC LED Driver 20W 24 and -24V - Heavy Duty, Dual Output 417mA

miniature sizeeconomicalwithstand 5G vibration and 70°C operationdual output

SKU:

RDDW20UW-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RDDW20UW is a 20W Mean Well power converter (input range: 8.5~160Vdc).

Key Features

✓ Input voltage range: 8.5~160Vdc
✓ 3KVAC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage / Under voltage
✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
✓ Remote ON/OFF control
✓ Safety approvals: UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the RDDW20UW-24 in a compact industrial control enclosure that needs positive and negative rails?

It can fit compact control or interface circuits that need dual output, because this model provides 24V and -24V in a 50.8 × 25.4 × 10.2 mm package. The 20W rating and 0.42A output current make it more suitable for lower-power control electronics than for larger loads.

Is the RDDW20UW-24 suitable for embedded or instrumentation circuits that need isolated dual-output power?

This model is aimed at low-power dual-rail applications where 24V and -24V are required from a single 20W converter. Its dual output and miniature size support embedded, signal-conditioning, or instrumentation designs that need compact power conversion.

Can this 24V dual-output converter be used for LED-related control hardware rather than high-power lighting loads?

Yes, it is a constant-voltage 24V unit with a 20W power rating and 0.42A output current, so it fits lower-power LED control sections better than large lighting loads. The dual-output format is more aligned with supporting electronics than with single-rail high-wattage fixtures.

Is the RDDW20UW-24 a good fit for harsh temperature or vibration environments?

It is specified for operation from -40°C to +95°C and lists 5G vibration resistance, which supports demanding industrial or mobile equipment conditions. That helps when the installation environment is more severe than a standard room-temperature enclosure.

How does the RDDW20UW-24 compare with the other RDDW20UW models?

Within this series, the RDDW20UW-12 is rated at 20W, 12V, 0.83A, the RDDW20UW-15 is 20W, 15V, 0.67A, and the RDDW20UW-24 is 20W, 24V, 0.42A. All three are 20W models, so the main differences are output voltage and output current.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well RDDW20UW-15 Ultra-wide input DC/DC LED Driver 20W 15 and -15V - Heavy Duty, Dual Output 667mA	20W	15V	0.66A	Indoor	View
Mean Well RDDW20UW-12 Ultra-wide input DC/DC LED Driver 20W 12 and -12V - Heavy Duty, Dual Output 833mA	20W	12V	0.83A	Indoor	View
