Can I use the RPS-120-15 for a 15V medical monitor or diagnostic device?

Yes, if the device requires a constant 15V DC supply and draws no more than 8A or 84W. This model is medical safety approved and is designed as a constant-voltage power supply for equipment in that electrical range.

Is this power supply suitable for a 15V industrial control panel or HMI?

It can be a fit for 15V industrial control electronics, HMI hardware, or panel accessories that stay within 8A output current and 84W total load. The wide 80-264VAC input also helps when the equipment may be used across different AC mains ranges.

Can the RPS-120-15 power embedded systems or automation electronics that need stable 15V DC?

Yes, it is intended for constant-voltage output at 15V and can support embedded or automation equipment up to 8A. For electronics that need a regulated DC rail rather than constant current, the 15V constant-voltage design is the relevant match.

Is the RPS-120-15 appropriate for indoor or outdoor use?

This unit is best treated as an indoor power supply or one used inside a protected enclosure. The specs give an operating temperature range of -30°C to +70°C, but no IP rating is listed, so it should not be assumed suitable for direct outdoor exposure.

How does the RPS-120-15 compare with the other RPS-120 output versions?

Within the RPS-120 group, the standard models are 12V 10A 84W, 15V 8A 84W, 24V 5A 84W, 27V 4.5A 85W, and 48V 2.5A 84W. The RPS-120-15 is the 15V 8A 84W version, while the RPS-120-15-C keeps the same 15V, 8A, and 84W electrical rating in a different 103.4 × 62.0 × 40.0 mm, 0.24 kg package instead of 101.6 × 50.8 × 29.0 mm and 0.15 kg.

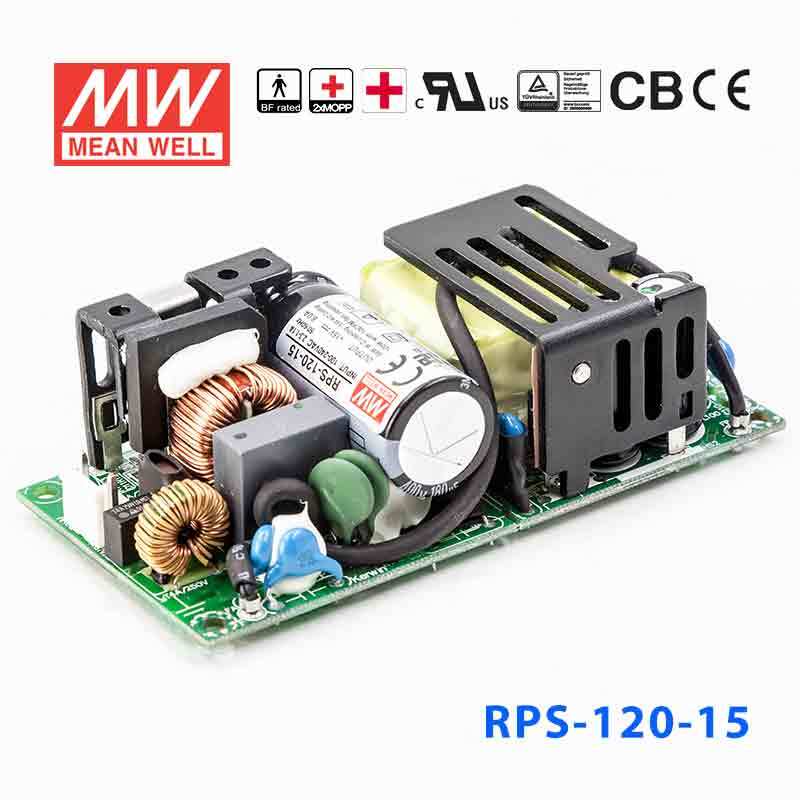

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well RPS-120-15 Green Power Supply W 15V 8A - Medical Power Supply

4" x 2" compact sizemedical safety approvedno load power consumption < 0.3Wextremely low leakage current

SKU:

RPS-120-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-120 is a 120W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 80~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Safety approvals: ISOLATION RESISTANCE IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
✓ 3 years warranty
