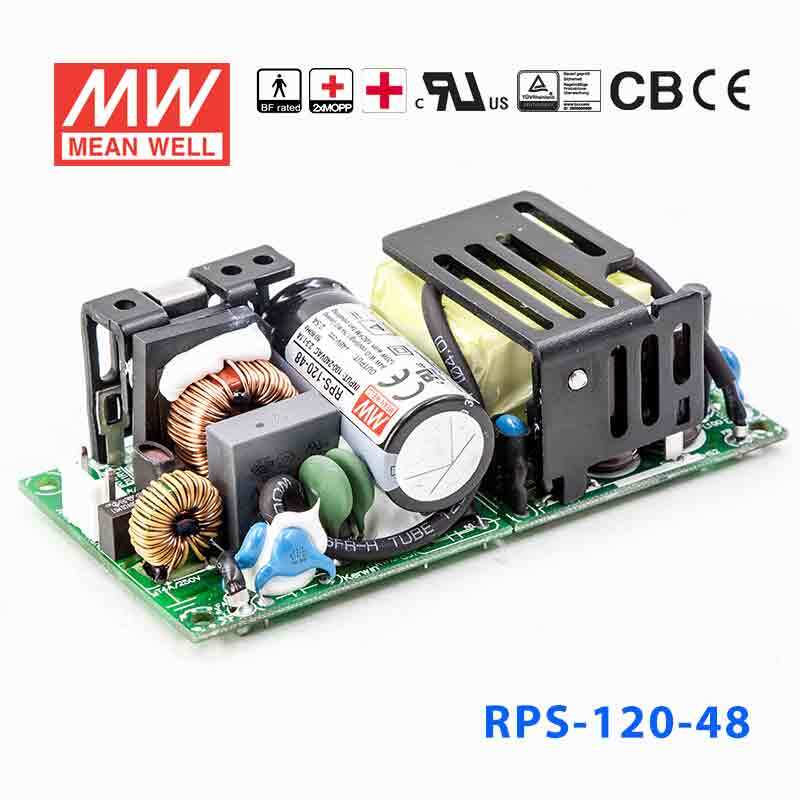

Mean Well RPS-120-48 Green Power Supply 120W 48V 2.5A - Medical Power Supply

4" x 2" compact sizemedical safety approvedno load power consumption < 0.3Wextremely low leakage current

SKU RPS-120-48

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RPS-120-48 is the 48V output model of this series: typical efficiency 91%.

RPS-120 is a 120W highly reliable green PCB type medical power supply with a high power density on a 4" by 2" footprint. It accepts 80~264VAC input and offers various models with the output voltages between 12V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.3W. RPS-120 is able to be used for both ClassⅠ(with FG) or ClassⅡ(no FG) system design. The extremely low leakage current is less than 190μA. In addition, it conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment.

Features

4"*2" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
84W convection, 120W force air
EMI Class B for both ClassⅠ(with FG) & Class Ⅱ(no FG) configuration
No load power consumption<0.3W
Extremely low leakage current
12V/0.5A fan supply
Protections: Short circuit / Overload / Over voltage / Over temperature
Operating altitude up to 4000 meters
3 years warranty

Specifications

RPS-120-48Specifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE: 48V
CURRENT 10CFM: 2.5A
CURRENT Convection: 1.75A
RATED POWER 10CFM: 120W
RATED POWER Convection: 84W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~50.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 2.1A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT(max.)^Note.5: Earth leakage current < 190μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 115~150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52.8 ~ 62.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

FAN SUPPLY: 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM)

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 4000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION RESISTANCE: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035,BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 3732.9K hrs min. Telcordia SR-332 (Bellcore) ; 653.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): PCB:101.6*50.8*29mm or 4" * 2" *1.141" inch ; Enclosed type:103.4*62*40mm or 4.07" * 2.44" *1.57" inch
PACKING: PCB:0.15Kg; 72pcs/11.8Kg/0.84CUFT ; Enclosed type:0.24Kg; 60pcs/15.4Kg/1.06CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-120-48 Block Diagram — Block Diagram

RPS-120-48 Derating Curve — Derating Curve

RPS-120-48 Mechanical Specification — Mechanical Specification

RPS-120-48 AC Input Connector (CN1) : JST B3P-VH or equivalent — AC Input Connector (CN1) : JST B3P-VH or equivalent

RPS-120-48 Installation Manual — Installation Manual

Typical applications

Oral irrigator
Hemodialysis machine
Medical monitors
Sleep apnea devices
Pumps machine

Downloads

Certificates7

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-120-TUV Certificate PDF Download

Mean Well RPS-120-CB Certificate PDF Download

Mean Well RPS-120-EMC Certificate PDF Download

Mean Well RPS-120-CE-dec Certificate PDF Download

Mean Well RPS-120-UK-dec Certificate PDF Download

Test reports1

Mean Well RPS-120-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-120-48 for a 48V telecom or network device?

Yes, if the equipment needs a constant 48V DC output and draws no more than 1.75A by convection, or 2.5A with a 10CFM fan. Its 84W convection / 120W fan-cooled rating and 80-264VAC input range make it suitable for 48V equipment powered from common AC mains.

Is this power supply suitable for 48V industrial control or monitoring equipment?

It can be used for industrial or monitoring equipment that specifically requires 48V constant voltage. The main sizing check is that the load stays within 1.75A/84W under convection cooling, or 2.5A/120W with a 10CFM fan.

Can the RPS-120-48 power compact embedded or communication hardware?

It is a compact option for embedded or communications hardware needing 48V DC at up to 1.75A by convection or 2.5A with a 10CFM fan. The small 101.6 × 50.8 × 29.0 mm form factor and 0.15 kg weight help in space-sensitive equipment designs.

Is the RPS-120-48 a fit for medical-grade 48V equipment?

The unit is described as medical safety approved and features extremely low leakage current. That makes it relevant for medical equipment requiring 48V constant voltage, provided the load is within 1.75A/84W by convection or 2.5A/120W with a 10CFM fan.

Can I use the RPS-120-48 outside or in a cold equipment room?

The specified operating range is -30°C to +70°C (with output derating per the derating curve), so it covers cold and warm operating conditions within that band. No IP rating is provided in the specs, so outdoor suitability is not confirmed by this product data.

What are the main output options around the RPS-120-48 in the same series?

The RPS-120 outputs are 12V (7A convection / 10A with a 10CFM fan), 15V (5.6A / 8A), 24V (3.5A / 5A), 27V (3.15A / 4.5A) and 48V (1.75A / 2.5A), rated 84W by convection and 120W with the fan (85W / 121.5W for 27V). Each voltage comes as a PCB type (e.g. RPS-120-48, 101.6 × 50.8 × 29.0 mm) and an enclosed -C type (e.g. RPS-120-48-C, 103.4 × 62.0 × 40.0 mm) with the same electrical rating.
