Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

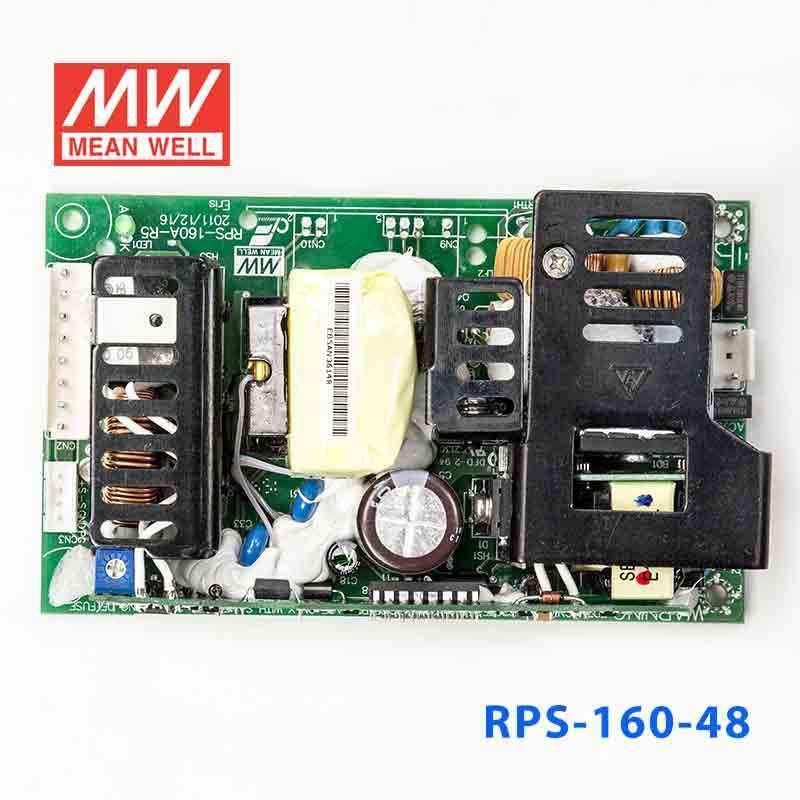

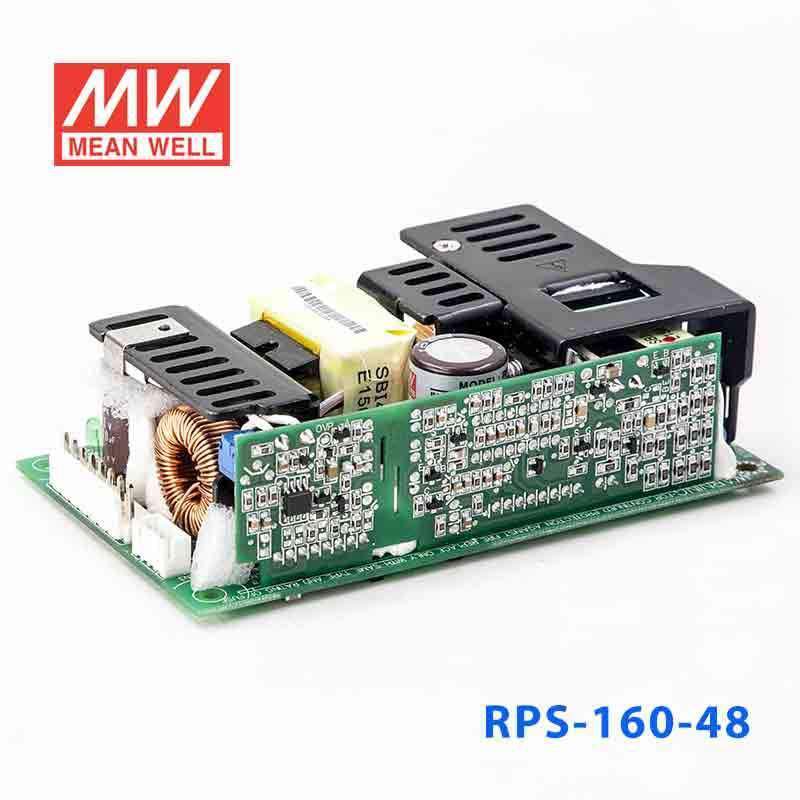

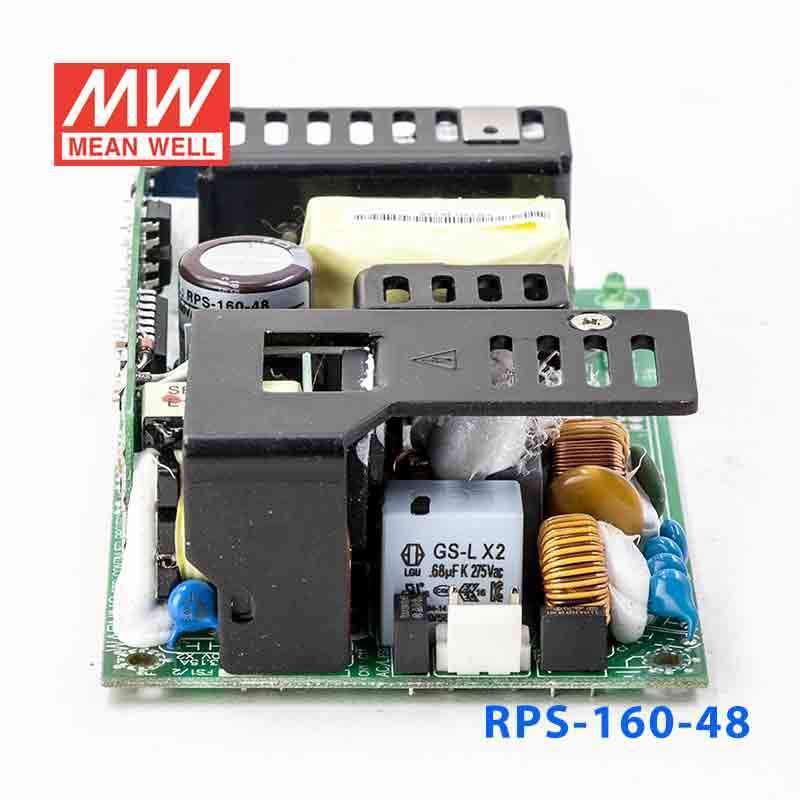

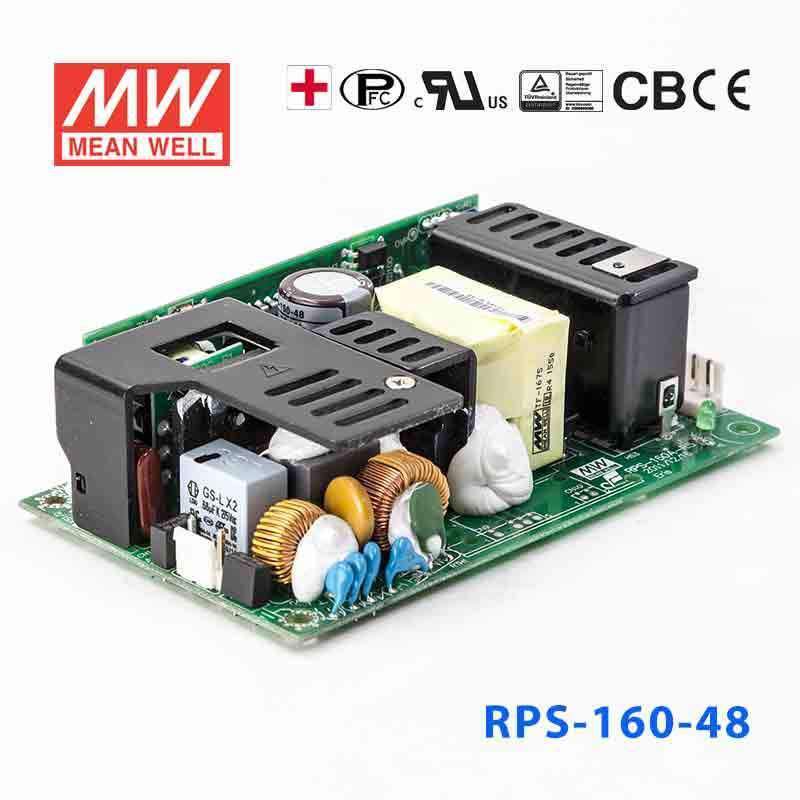

Mean Well RPS-160-48 Green Power Supply 161W 48V 2.3A - Medical Power Supply

5" x 3" compact sizemedical safety approvedno load power consumption < 0.5W

SKU RPS-160-48

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RPS-160-48 is the 48V output model of this series: typical efficiency 88%.

RPS-160 is a 160W highly reliable green PCB type medical power supply with a high power density on a 5" by 3" footprint. It accepts 90~264VAC input and offers various models with the output voltages between 5V and 48V. The working efficiency is up to 88% and the extremely low no load power consumption is down below 0.5W. RPS-160 is able to be used for ClassⅠ(with FG) system design. The extremely low leakage current is less than 200μ A. In addition, it conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment.

Features

5"* 3" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
110W convection, 160W force air
EMI class B for class Ⅰ configuration
No load power consumption under 0.5W by PS-ON control (G model)
5Vdc standby output, Power Good, Power Fail ; Remote sense for 5~15V
Protections: Short circuit / Overload / Over voltage / Over temperature
Operating altitude up to 3000 meters
3 years warranty

Specifications

RPS-160-48Specifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT (20.5CFM): 3.25A
CURRENT Convection: 0 ~ 2.3A
CURRENT 20.5CFM: 0 ~ 3.25A
RATED POWER Convection^Note.2: 113.4W
RATED POWER 20.5CFM^Note.3: 161W
RIPPLE & NOISE (max.)^Note.4: 150mVp-p
VOLTAGE ADJ. RANGE(main output): 43.2 ~ 52.8V
VOLTAGE TOLERANCE^Note.5: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1800ms, 30ms/230VAC 3500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 20ms/115VAC 25ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 2A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 200μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: TSW1: Shut down o/p voltage, recovers automatically after temperature goes down TSW2: Shut down o/p voltage, re-power on to recover

FUNCTION

5V STANDBY (G model): 5Vsb : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; Tolerance ± 2%, ripple : 50mVp-p(max.)
PS-ON INPUT SIGNAL (G model): Power on: PS-ON = "Hi" or " > 2 ~ 5V" ; Power off: PS-ON = "Low" or " < 0 ~ 0.5V"
POWER GOOD / POWER FAIL: 500ms>PG>10ms PF>1ms
REMOTE SENSE: 5 ~ 15V

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 3000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 10}: BS EN/EN55035, BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 2082.3K hrs min. Telcordia SR-332 (Bellcore) ; 234.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 127*76.2*34.6mm or 5" * 3" *1.36" inch
PACKING: 0.33Kg; 36pcs/12.9Kg/0.96CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. The rated power includes 5Vsb @ 0.6A.
3. The rated power includes 5Vsb @ 0.8A.
4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
5. Tolerance : includes set up tolerance, line regulation and load regulation.
6. Derating may be needed under low input voltages. Please check the derating curve for more details.
7. Touch current was measured from primary input to DC output.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. HS1,HS2 & HS3 can not be shorted.
10. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-160-48 Block Diagram — Block Diagram

RPS-160-48 Derating Curve — Derating Curve

RPS-160-48 Mechanical Specification — Mechanical Specification

Typical applications

Oral irrigator
Hemodialysis machine
Medical monitors
Sleep apnea devices
Pumps machine

Downloads

Certificates4

EMC Certificate (RPS(G)-160)(EN) PDF Download

UL Certificate (RPS(G)-160)(EN) PDF Download

CB Certificate (RPS(G)-160)(EN) PDF Download

TUV Certificate (RPS(G)-160)(EN) PDF Download

Test reports1

Test Report (RPS-160-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-160-48 for a 48V industrial control or automation system?

Yes, this model is a constant-voltage 48V supply rated for 2.3A and 113.4W, which fits 48V industrial control loads that need a stable DC bus. It is better suited to protected equipment inside industrial or automation enclosures than to exposed field use because no IP rating is listed.

Is the RPS-160-48 suitable for 48V embedded or telecom-style electronics?

It can be a fit for 48V embedded and communications equipment that operates within a 2.3A load limit. The wide 90-264VAC input also helps when the same product may be used across different AC mains environments.

Can this power supply be used in medical electronic equipment?

Yes, this model is a medical power supply with 2xMOPP isolation, approved to IEC/EN 60601-1 and ANSI/AAMI ES60601-1. It is suitable for BF-rated patient contact medical systems, such as monitors and dialysis machines.

Would the RPS-160-48 work for a 48V lab, test, or instrumentation system?

It is appropriate for 48V instrumentation or bench equipment that needs constant-voltage output up to 2.3A. The compact 127.0 x 76.2 x 34.6 mm form factor can also help where internal space is limited.

Can the RPS-160-48 be used outdoors or in harsh environments?

The operating temperature range is -20°C to +70°C, so the temperature spec covers a broad indoor operating range. However, no IP rating is listed, so it should be treated as a protected indoor power supply rather than an exposed outdoor unit.
