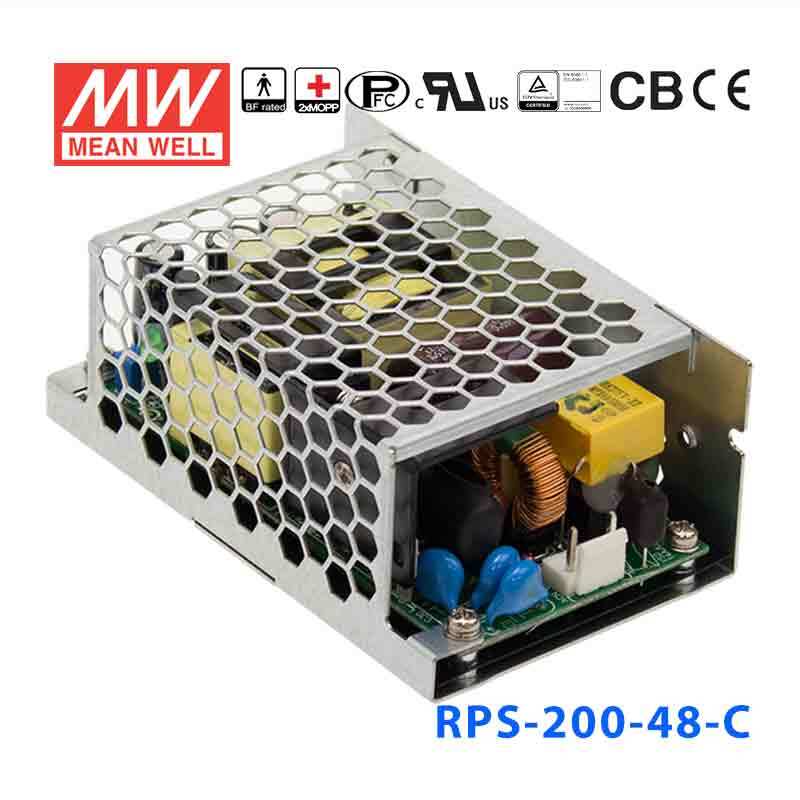

Mean Well RPS-200-48-C Green Power Supply 201.6W 48V 3A - Medical Power Supply

5" x 3" compact sizemedical safety approvedextreme low leakage current

SKU RPS-200-48-C

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RPS-200-48-C is the 48V output model of this series: typical efficiency 95%.

RPS-200 is a 200W highly reliable green PCB type medical power supply with a high power density (21.9W/in³) on the 4″ by 2″ footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 95% and the extremely low no load power consumption is down below 0.5W. RPS-200 is able to be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system design. The extremely low leakage current is less than 180μ A. In addition, it conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

4"×2" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
140W convection, 200W force air
EMI Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ)
No load power consumption<0.5W
Extremely low leakage current
12V/0.5A fan supply
Protections: Short circuit / Overload / Over voltage / Over temperature
Lifetime > 65K hours
Operating altitude up to 5000 meters
3 years warranty

Specifications

RPS-200-48-CSpecifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE: 48V
CURRENT 10CFM: 4.2A
CURRENT Convection: 3A
RATED POWER 10CFM: 201.6W
RATED POWER Convection: 144W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~50.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 700ms, 30ms/230VAC 700ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 2A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT(max.)^Note.5: Earth leakage current < 180μA/264VAC , Touch current < 40μA/264VAC

PROTECTION

OVERLOAD: 110 ~ 140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52.8 ~ 62.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

FAN SUPPLY: 12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM)

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION RESISTANCE: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class A (for Class II);Class B (for Class I)
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----; BS EN/EN55035, BS EN/EN60601-1-2
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class A (for Class II);Class B (for Class I)
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3	-----; BS EN/EN55035, BS EN/EN60601-1-2

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 2669.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): PCB:101.6*50.8*29mm or 4″*2″*1.14″inch ; Enclosed type:103.4*62*40mm or 4.07″*2.44″*1.57″inch
PACKING: PCB:0.19Kg; 72pcs/14.7Kg/0.84CUFT ; Enclosed type:0.3Kg; 60pcs/19Kg/1.06CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-200-48-C Derating Curve — Derating Curve

RPS-200-48-C Mechanical Specification — Mechanical Specification

RPS-200-48-C Mechanical Specification (2) — Mechanical Specification (2)

RPS-200-48-C RPS-200-C (Enclosed Type) — RPS-200-C (Enclosed Type)

Typical applications

Downloads

Certificates7

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-200-TUV Certificate PDF Download

Mean Well RPS-200-CB Certificate PDF Download

Mean Well RPS-200-EMC Certificate PDF Download

Mean Well RPS-200-200C-CE-dec Certificate PDF Download

Mean Well RPS-200-200C-UK-dec Certificate PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-200-48-C for a 48V embedded computer or edge device?

Yes, if the equipment needs constant 48V DC and the total load stays within 3A and 144W with convection cooling, or 4.2A and 201.6W with a 10CFM fan. Its wide 80-264VAC input also makes it practical for systems deployed across different AC input conditions.

Is the RPS-200-48-C a fit for 48V access control or building automation hardware?

It can be used for 48V building or control hardware that requires constant-voltage output and does not exceed 3A convection-cooled (4.2A with a 10CFM fan). The key selection points are the 48V output, the 144W convection / 201.6W fan-cooled rating, and the physical size of 103.4 x 62.0 x 40.0 mm.

Can this model power a 48V medical monitoring or diagnostic device?

Yes, this model is specified as medical safety approved and includes extreme low leakage current, which is relevant for medical electronics using a 48V rail. The connected device still needs to stay within the unit's output limits of 3A/144W convection-cooled or 4.2A/201.6W with a 10CFM fan.

What is the difference between the RPS-200-48-C and the other RPS-200 voltage options?

The RPS-200 family's convection ratings are 12V at 11.7A and 140.4W, 15V at 9.4A and 141W, 24V at 5.9A and 141.6W, 27V at 5.3A and 143.1W, and 48V at 3A and 144W, rising to about 200W with a 10CFM fan. The RPS-200-48-C has the same rated output as the RPS-200-48, in a 103.4 x 62.0 x 40.0 mm, 0.3 kg enclosed package intended for Class I (with FG) systems and with a more restrictive convection derating curve.

Is the RPS-200-48-C rated for outdoor use?

The published operating range is -30°C to +70°C with derating at higher ambient temperatures per the derating curve, so it supports demanding indoor equipment environments. No IP rating is listed in the provided specs, so outdoor exposure should not be assumed unless the end enclosure provides the needed protection.
