Can I use the RPS-30-48 for a 48V PLC, relay, or industrial control circuit?

Yes, if the control device needs a constant 48V supply and draws no more than 0.62A or 30W. That makes it appropriate for low-current 48V industrial control loads rather than higher-current 48V systems.

Is this a good fit for 48V telecom or network equipment with light DC demand?

It can fit 48V telecom or network hardware that runs from a constant 48V input and stays within 0.62A. The available output is 30W, so it is intended for lighter 48V loads, not equipment that needs multi-amp 48V capacity.

Can the RPS-30-48 power a small embedded or instrumentation device that uses 48V DC?

Yes, for embedded, monitoring, or instrumentation hardware designed for 48V constant voltage and drawing up to 0.62A. The wide 80-264VAC input also makes it suitable where the AC source may vary across standard mains ranges.

Can I use this model where the equipment sees low or high ambient temperatures?

The specified operating temperature range is -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided, so the specs do not define resistance to dust, rain, or hose-down exposure.

How does the RPS-30-48 compare with the other RPS-30 versions?

The RPS-30 family includes RPS-30-3.3 at 19.8W, 3.3V, 6A; RPS-30-5 at 30W, 5V, 6A; RPS-30-7.5 at 30W, 7.5V, 4A; RPS-30-12 at 30W, 12V, 2.5A; RPS-30-15 at 30W, 15V, 2A; and RPS-30-24 at 30W, 24V, 1.25A. The RPS-30-48 is the highest-voltage option in that set at 30W, 48V, and 0.62A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

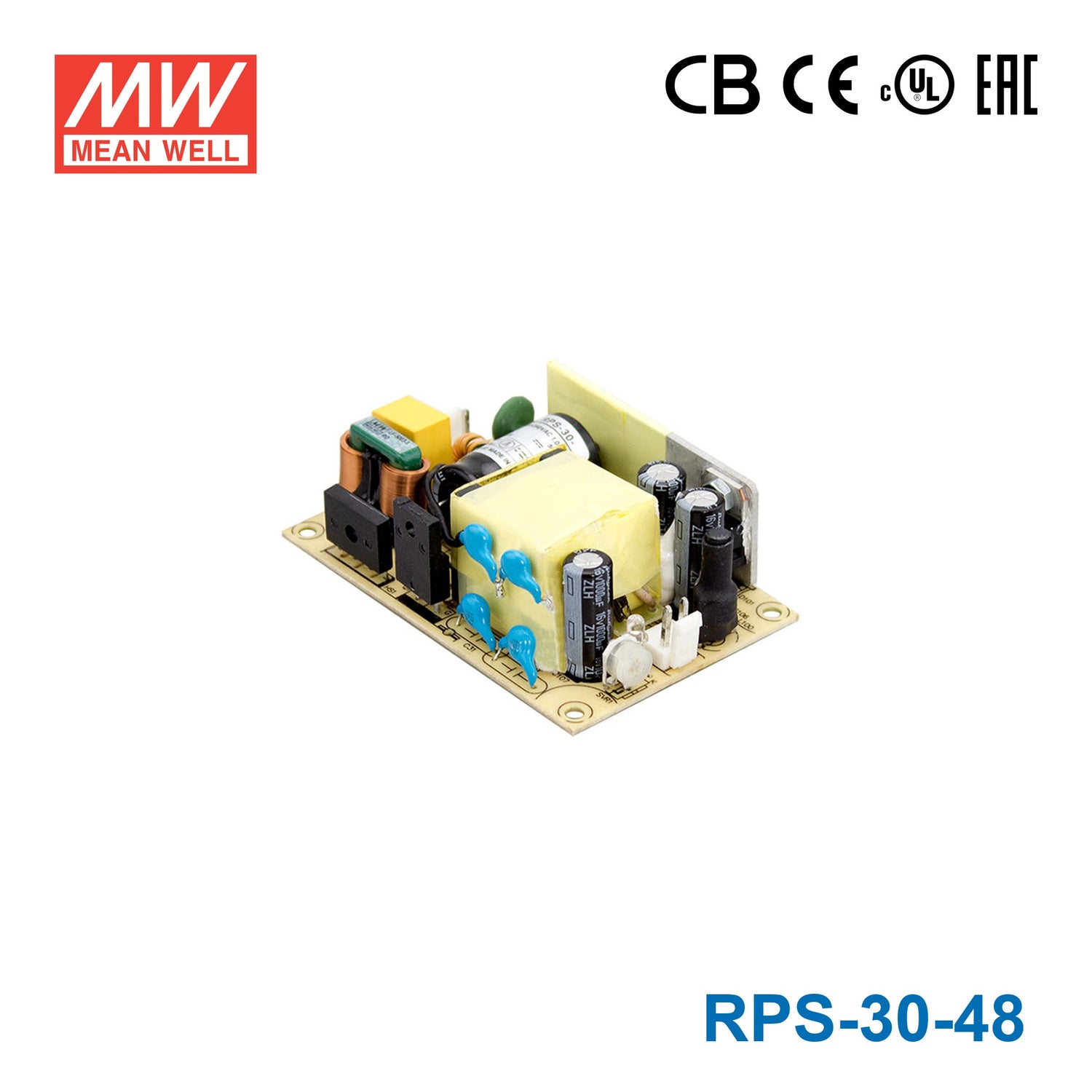

Mean Well RPS-30-48 Green Power Supply W 48V 0.625A - Medical Power Supply

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

RPS-30-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-30 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).

Key Features

✓ Input voltage range: 80~264VAC
✓ Cooling by free air convection — no minimum load required
✓ Wide operating temperature: -40~+85°C
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14 - Edition 3
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8431087878443, "variants" :[{ "context":"default", "variant_id": 45665097285931, "sku":"RPS-30-48", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 80~264VAC

✓ Cooling by free air convection — no minimum load required

✓ Wide operating temperature: -40~+85°C

✓ Protections: Short circuit / Overload / Over voltage

✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14 - Edition 3

✓ 3 years warranty
