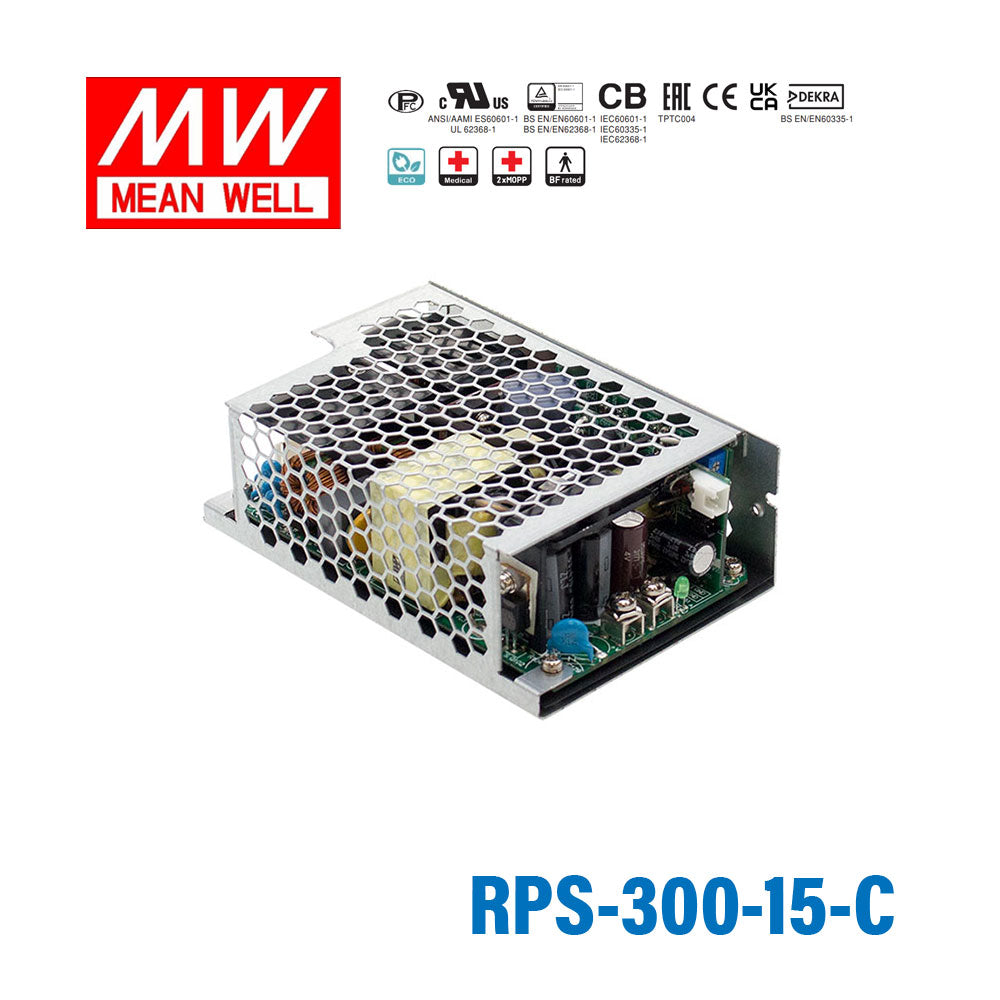

Mean Well RPS-300-15-C Green Power Supply W 15V 13.33A - Medical Po...
Please Login for Pricing
Description
Description
The RPS-300-15 is a 300W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating200 Watt
-
Output Voltage15 Volt
-
Rated Current13.33 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length13 cm
-
Width8.6 cm
-
Height4.3 cm
-
Weight0.56 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-300-15-C in a 15V industrial controller or analyzer?
Yes, when the equipment requires a constant 15V output and draws no more than 13.33A or 200W. That makes it appropriate for higher-power 15V control, measurement, or embedded systems that need a regulated DC source.
Is this model suitable for 15V medical or diagnostic equipment power?
It is listed as a medical power supply and includes medical safety approval with extreme low leakage current. If the device power requirement is 15V constant voltage within 13.33A and 200W, the published specs align with that application class.
Can the RPS-300-15-C power a 15V automation panel with several DC devices?
It can if the total 15V load remains within 13.33A and 200W. The 90-264VAC input range also suits panels or equipment platforms that may see different AC input conditions.
How does the RPS-300-15-C handle temperature and location conditions?
The specified operating range is -30°C to +70°C, so the temperature rating is broad for indoor equipment environments. No IP rating is provided in the listed specs, so these specifications do not confirm suitability for direct outdoor exposure or wet environments.
How is the RPS-300-15-C different from other RPS-300 output options?
Across the RPS-300 group, the available outputs are 12V at 16.67A and 200W, 15V at 13.33A and 200W, 24V at 8.33A and 200W, 27V at 7.4A and 200W, and 48V at 4.17A and 200.2W. This -C version shares the 15V, 13.33A, and 200W rating, and its listed dimensions are 130.0 × 86.0 × 43.0 mm with a 0.563 kg weight.
