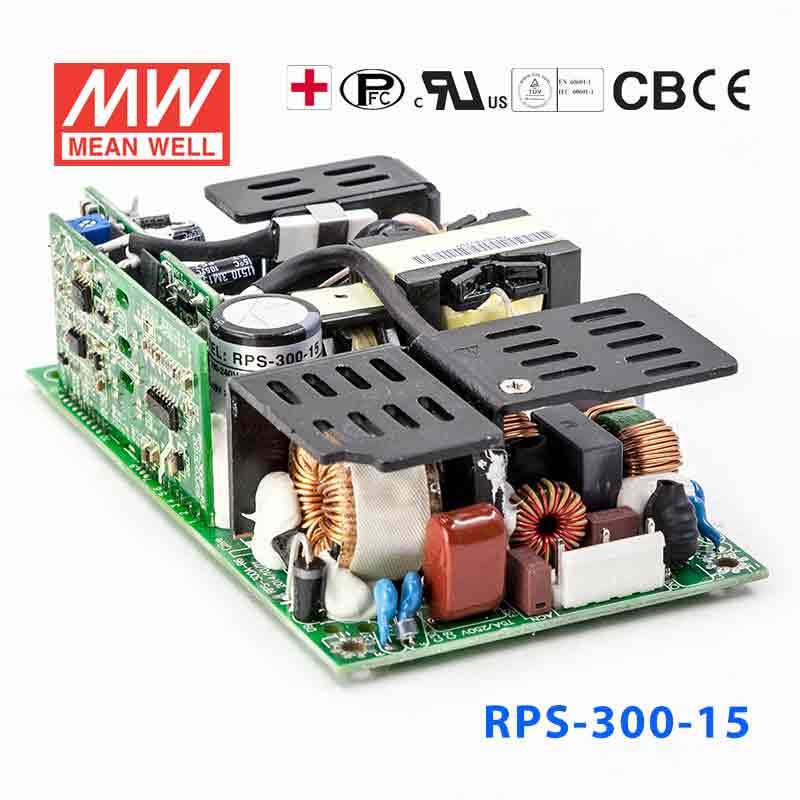

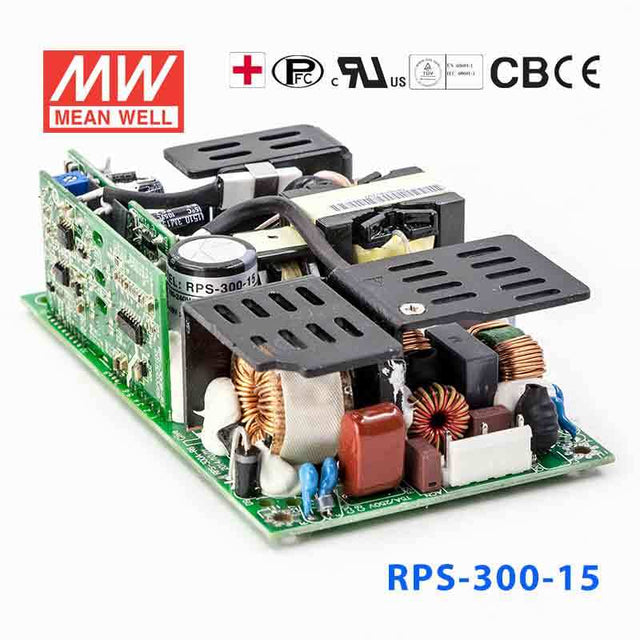

Mean Well RPS-300-15 Green Power Supply W 15V 13.33A - Medical Powe...
Please Login for Pricing
Description
Description
The RPS-300 is a 300W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating200 Watt
-
Output Voltage15 Volt
-
Rated Current13.33 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.7 cm
-
Width7.62 cm
-
Height3.5 cm
-
Weight0.37 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-300-15 for a 15V automation or instrumentation load?
Yes, if the equipment requires constant 15V DC and the total demand stays within 13.33A and 200W. That fits many industrial instruments, embedded assemblies, and control subsystems built around a 15V bus.
Is the RPS-300-15 a good fit for 15V medical electronics?
It is specified as a medical power supply and includes medical safety approval plus extremely low leakage current. For medical or lab equipment that needs a 15V constant-voltage source up to 13.33A and 200W, the electrical rating matches that use case.
Can this model support a 15V bench test, monitoring, or embedded control platform?
It can support those types of systems when their required DC bus is 15V and the combined load remains at or below 13.33A and 200W. Its 90-264VAC input range is also useful for equipment that may be used on different AC supply ranges.
Is the RPS-300-15 meant for outdoor use?
The unit is rated for operation from -30°C to +70°C, which covers a wide temperature range. However, no IP rating is shown in the listed specifications, so these specs support temperature suitability only and do not confirm exposed outdoor or wet-location use.
What are the main output differences across the RPS-300 family?
The RPS-300 series includes 12V at 16.67A and 200W, 15V at 13.33A and 200W, 24V at 8.33A and 200W, 27V at 7.4A and 200W, and 48V at 4.17A and 200.2W. This model is the 15V non-C version with a 127.0 × 76.2 × 35.0 mm size and 0.37 kg weight.
