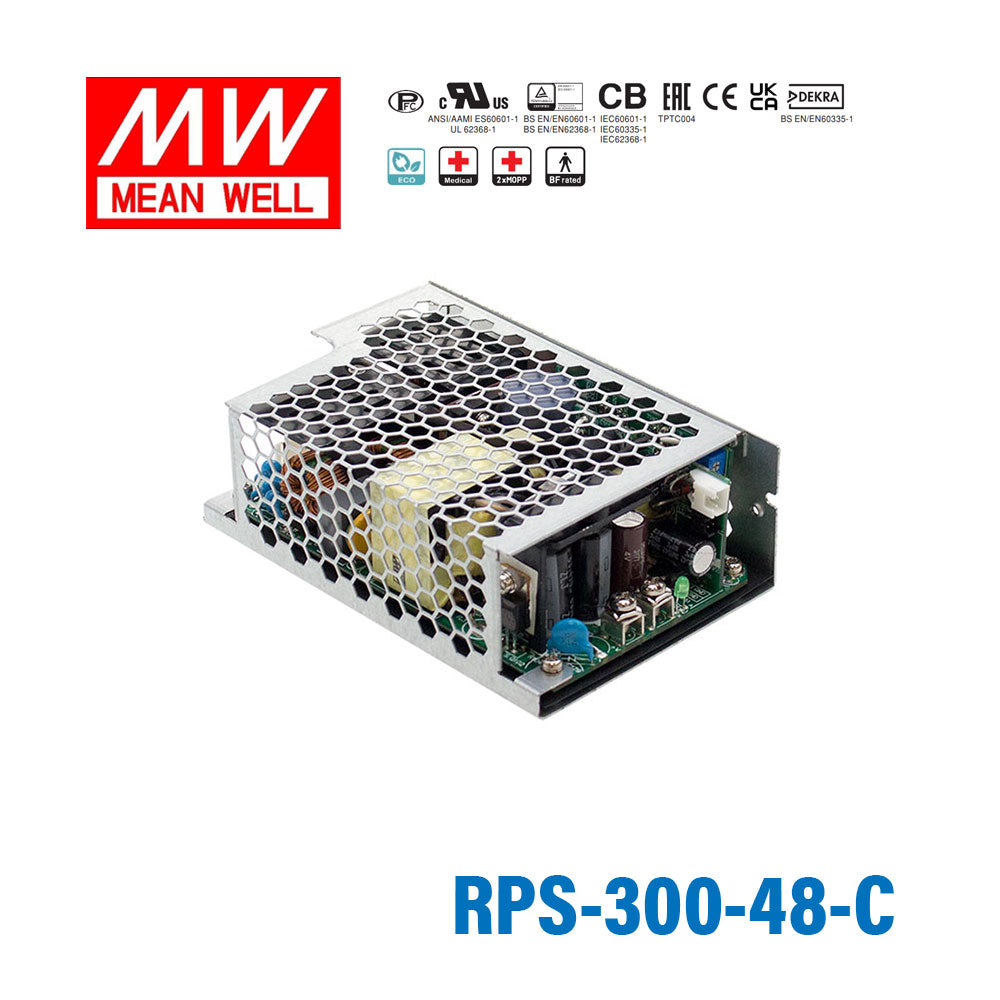

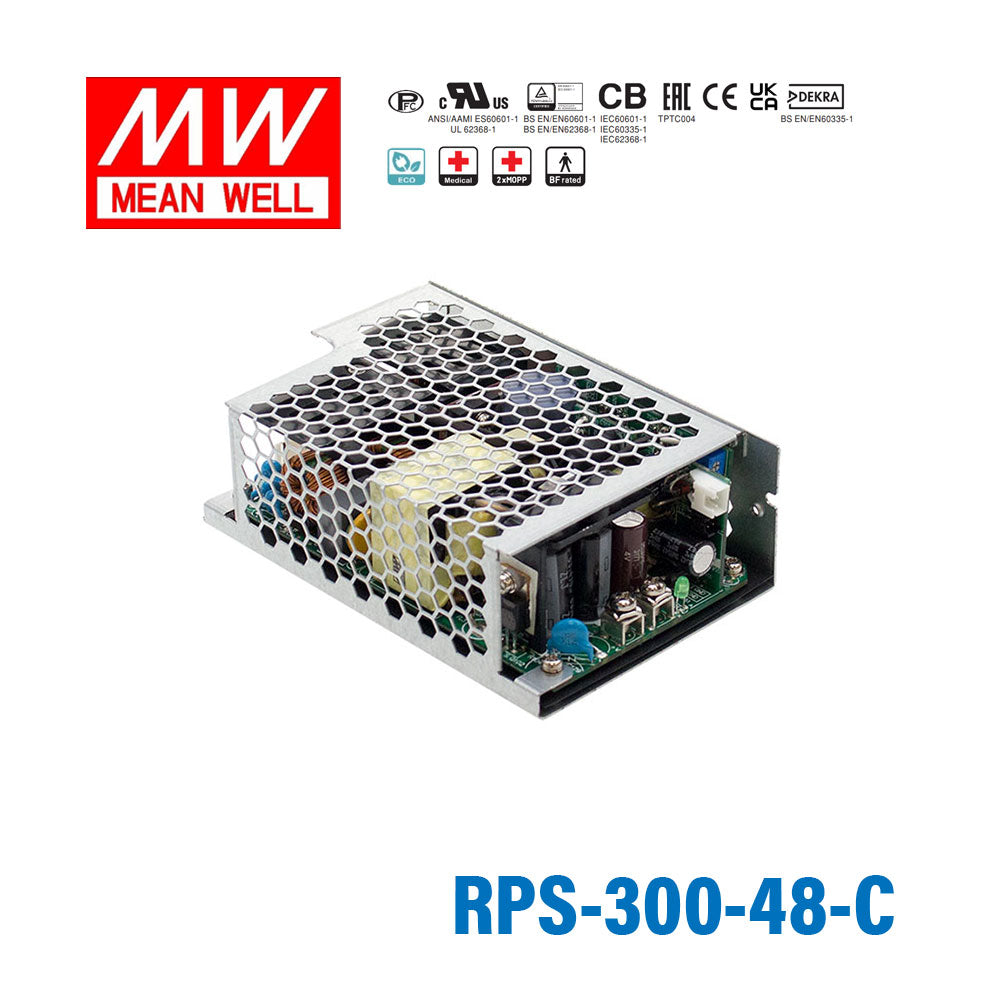

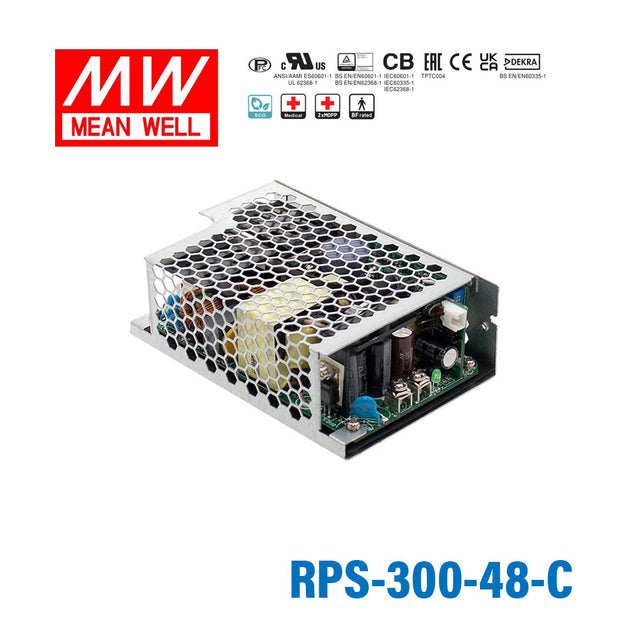

Mean Well RPS-300-48-C Green Power Supply 300W 48V 4.17A - Medical Power Supply

5" x 3" compact sizemedical safety approvedextreme low leakage current

SKU RPS-300-48-C

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RPS-300-48-C is the 48V output model of this series: typical efficiency 93%.

RPS-300 is a 300W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 90~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 93% and the extremely low no load power consumption is down below 0.5W. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment. RPS-300 series also offers the enclosed style model (RPS-300-C).

Features

5"×3" compact size
ANSI/AAMI ES60601-1, IEC/BS EN/EN 60601-1 (2 x MOPP) and IEC/EN/UL 62368-1 approved
Suitable for BF application with appropriate system consideration
200W convection, 300W force air
No load power consumption<0.5W by PS-ON control
Extremely low leakage current
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
Protections: Short circuit / Overload / Over voltage / Over temperature
Typical Lifetime > 40K hours
3 years warranty

Specifications

RPS-300-48-CSpecifications from the official datasheet (2026-07-14 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT (20.5CFM): 6.25A
CURRENT Convection: 0 ~ 4.17A
CURRENT 20.5CFM: 0 ~ 6.25A
RATED POWER Convection: 200.2W
RATED POWER 20.5CFM: 300W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE (main output ): 45.6 ~ 50.4V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 2500ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 13ms/230VAC/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT(max.)^Note.5: PCB Type: Earth leakage current <150μA / 264VAC, Touch current <70μA/264VAC Enclosed Type: Earth leakage current <200μA / 264VAC, Touch current <70μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52 ~ 59.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down Protection type : (TSW2)Shut down o/p voltage, re-power on to recover

FUNCTION

5V STANDBY: 5Vsb : 5V@0.6A without fan, 1A with fan 20.5CFM ; tolerance ± 2%, ripple : 150mVp-p(max.)
FAN SUPPLY: 12V@0.5A for driving a fan ; Tolerance -15% ~ +10% at main output 20% rated current (20.5CFM)
PS-ON INPUT SIGNAL: Power on: PS-ON = "Hi" or " > 2 ~ 5V" ; Power off: PS-ON = "Low" or " < 0 ~ 0.5V"
POWER GOOD / POWER FAIL: 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1ms before Vo below 90% of rated value

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 4000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, IEC 62368-1 , TUV BS EN/ EN 60601-1:2006+A1+A12+A2,BS EN/EN 62368-1 ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, UL 62368-1 IEC 60335-1:2010+A1+A2, Dekra BS EN/ EN 60335-1:2012+A11+A13A+A1+A14+A2+A15 EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: PCB type: 2853.1K hrs min. Telcordia SR-332 (Bellcore) ; 160.0K hrs min. MIL-HDBK-217F (25℃) Enclosed type: 1487.9K hrs min. Telcordia SR-332 (Bellcore) ; 163.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): PCB type:127*76.2*35mm or 5"*3"*1.37"inch Enclosed type:130*86*43mm or 5.11"*3.39"*1.69"inch
PACKING: PCB type:0.37Kg; 36pcs/14.3Kg/0.96CUFT Enclosed type:0.563Kg; 24pcs/14.5Kg/0.77CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. All the ClassⅠ(with FG) EMC tests are executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-300-48-C Block Diagram — Block Diagram

RPS-300-48-C Derating Curve — Derating Curve

RPS-300-48-C Mechanical Specification — Mechanical Specification

RPS-300-48-C ◎ RPS-300-C (Enclosed type) — ◎ RPS-300-C (Enclosed type)

RPS-300-48-C Illustration (page 6) — Illustration (page 6)

RPS-300-48-C AC Input Connector (CN1) : JST B5P-VH or equivalent — AC Input Connector (CN1) : JST B5P-VH or equivalent

RPS-300-48-C DC Output Connector (CN2,CN3) — DC Output Connector (CN2,CN3)

Typical applications

Downloads

Certificates8

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-300-RPS-300-C-TUV Certificate PDF Download

Mean Well RPS-300(C)-Dekra seal Certificate PDF Download

Mean Well RPS-300-300-C-CB Certificate PDF Download

Mean Well RPS-300-EMC Certificate PDF Download

Mean Well RPS-300-CE-dec Certificate PDF Download

Mean Well RPS-300-UK-dec Certificate PDF Download

Test reports1

Mean Well RPS-300-48-C Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the RPS-300-48-C power a 48V medical device or lab instrument?

Yes, if the device requires a constant 48V DC source and remains within 4.17A and 200.2W (convection). This model is listed as a medical power supply and includes medical safety approval (IEC 60601-1 / ANSI/AAMI ES60601-1, 2xMOPP) with touch current below 70μA.

Is the RPS-300-48-C a good fit for 48V industrial monitoring or control equipment?

It can be used for 48V industrial monitoring or control equipment that needs constant-voltage output up to 4.17A. The wide 90-264VAC input helps when the same design is used in different AC input environments.

Can I use this for an OEM assembly built around a 48V DC bus?

Yes, provided the OEM assembly is specified for 48V constant voltage and does not exceed 200.2W total load. The unit's dimensions are 130.0 x 86.0 x 43.0 mm, so physical fit should be checked against the enclosure design.

Will the RPS-300-48-C support a 48V automation subsystem in a broad indoor temperature range?

It is rated to operate from -30°C to +70°C (with load derating per the derating curve), which supports a broad published temperature range for protected equipment environments. The 48V load must still stay within the 4.17A and 200.2W output limit.

How does the RPS-300-48-C compare with other 48V RPS models?

This sheet covers only the RPS-300 series, so other RPS families cannot be compared here. In this series, 48V comes as the PCB-type RPS-300-48 and this enclosed RPS-300-48-C, both rated 4.17A and 200.2W by convection and 6.25A and 300W with an external 20.5CFM fan.

Can the RPS-300-48-C be used outside or in exposed industrial areas?

No IP rating is shown in the provided specs, so exposed outdoor use is not supported by the published data. The operating temperature range is -30°C to +70°C, but temperature range alone does not indicate weather resistance.
