Can I use the RPS-45-24 for a small 24V PLC, relay, or automation load?

Yes, it is a constant voltage 24V supply rated for 1.9A and 45.6W. It fits compact 24V automation electronics as long as the total demand stays within 1.9A and 45.6W.

Is the RPS-45-24 suitable for 24V industrial sensors or monitoring electronics?

It can be used for 24V industrial or monitoring electronics that need a steady constant voltage source. The available output is 24V at up to 1.9A, with a total power ceiling of 45.6W.

Can this model power a low-power 24V embedded or control subsystem?

Yes, for low-power 24V subsystems that do not exceed 1.9A or 45.6W. Its constant voltage output makes it suitable where the downstream equipment is designed for 24V input.

Is the RPS-45-24 appropriate for a medical or diagnostic device that requires 24V input?

Yes, this unit is listed as a medical power supply and includes medical safety approval with extremely low leakage current. The device still needs to operate from a constant 24V source and remain within 1.9A and 45.6W.

Can the RPS-45-24 be used outside or in unconditioned spaces?

The specified operating temperature is -30°C to +70°C, so it covers a broad temperature range. No IP rating is shown in the provided specs, so the data does not confirm outdoor or wet-location suitability.

How does the RPS-45-24 compare with the other RPS-45 versions?

The RPS-45 series includes 3.3V 8A 26.4W, 5V 8A 40W, 7.5V 5.4A 40.5W, 12V 3.8A 45.6W, 15V 3A 45W, 24V 1.9A 45.6W, and 48V 0.94A 45.1W models. The RPS-45-24 is the 24V option in that set, rated for 1.9A and 45.6W.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

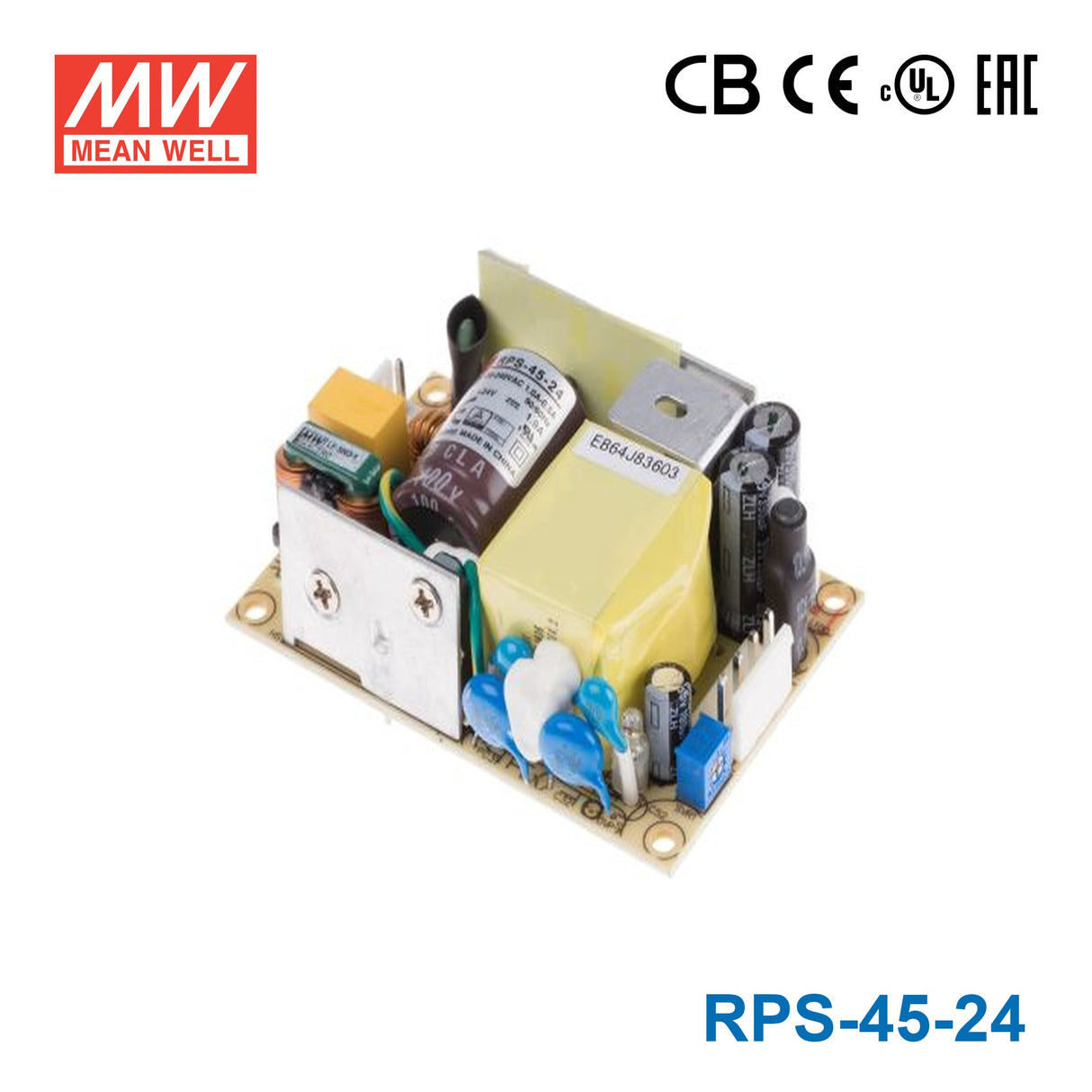

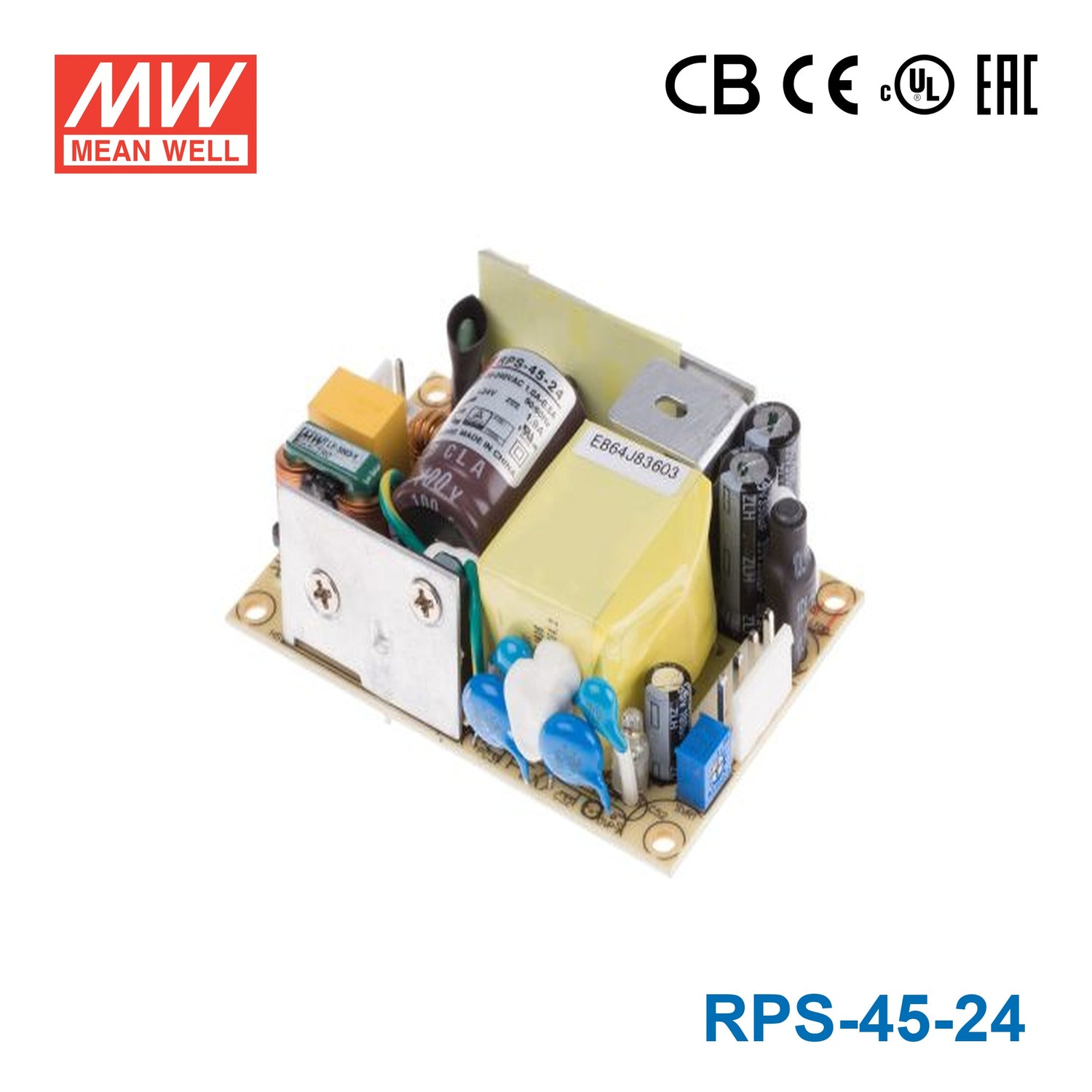

Mean Well RPS-45-24 Green Power Supply W 24V 1.9A - Medical Power Supply

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

RPS-45-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-45 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).

Key Features

✓ Input voltage range: 80~264VAC
✓ Cooling by free air convection — no minimum load required
✓ Wide operating temperature: -40~+85°C
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14- Edition 3
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8431121301803, "variants" :[{ "context":"default", "variant_id": 45665296548139, "sku":"RPS-45-24", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 80~264VAC

✓ Cooling by free air convection — no minimum load required

✓ Wide operating temperature: -40~+85°C

✓ Protections: Short circuit / Overload / Over voltage

✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14- Edition 3

✓ 3 years warranty
