Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

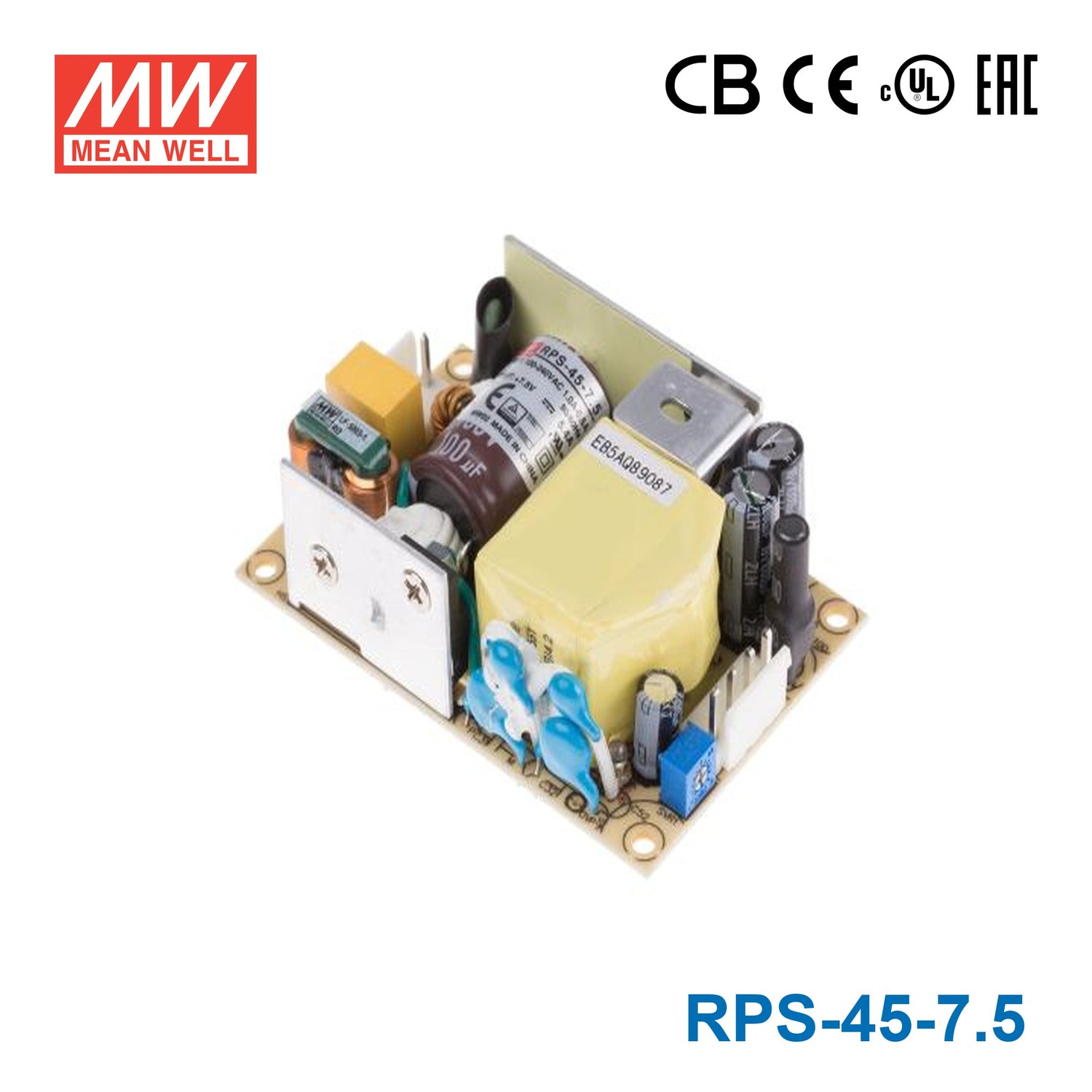

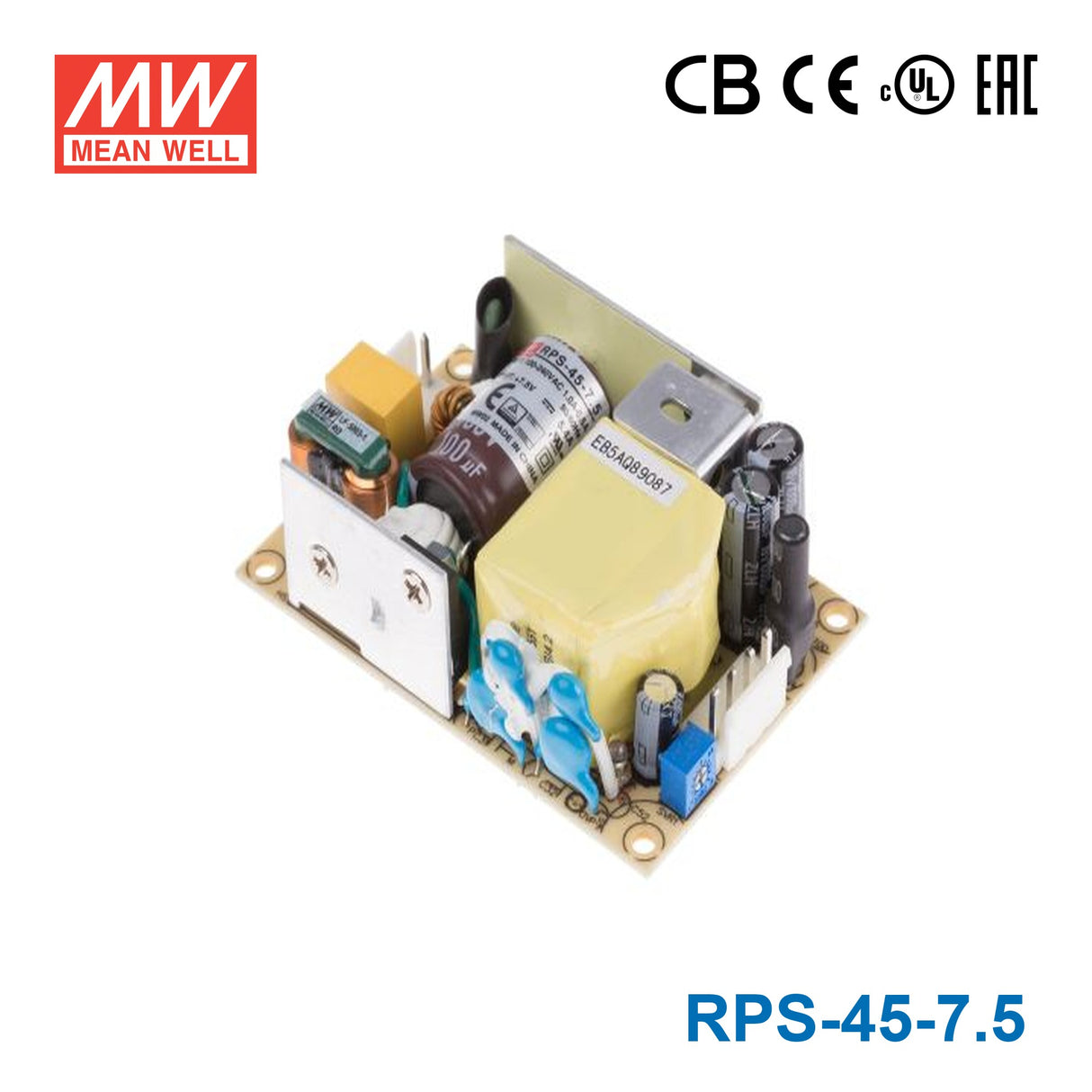

Mean Well RPS-45-7.5 Green Power Supply W 7.5V 5.4A - Medical Power Supply

Q: Can I use the RPS-45-7.5 for 7.5V embedded or industrial electronics?

Yes, this model supplies constant-voltage 7.5V output up to 5.4A, with 40.5W total power available. It fits 7.5V electronics and control hardware that stay within those output limits.

Q: Is the RPS-45-7.5 suitable for a 7.5V HMI, controller, or instrumentation board inside equipment?

It can be used where the equipment specifically requires a regulated 7.5V rail and needs no more than 5.4A. The 40.5W rating is the key sizing limit for the total connected load.

Q: Can this 7.5V power supply be used in compact medical or laboratory devices?

Yes, for internal 7.5V loads within 5.4A and 40.5W. This unit is medical safety approved and features extremely low leakage current, which is useful in medical and lab equipment design.

Q: Is the RPS-45-7.5 a practical choice for small automation enclosures?

It is well suited when both size and output match the project, since the unit measures 76.2 x 50.8 x 24.0 mm and weighs 0.11 kg. The electrical output is fixed at 7.5V constant voltage up to 5.4A.

Q: How does the RPS-45-7.5 compare with the other RPS-45 versions?

In the RPS-45 family, the sibling models are 3.3V at 26.4W and 8A, 5V at 40W and 8A, 12V at 45.6W and 3.8A, 15V at 45W and 3A, 24V at 45.6W and 1.9A, and 48V at 45.1W and 0.94A. The RPS-45-7.5 version is rated at 40.5W with a 7.5V, 5.4A output.

Q: Can the RPS-45-7.5 handle cold or hot environments, and is it suitable for outdoor exposure?

The specified operating temperature range is -30C to +70C, which supports use in a wide range of indoor equipment conditions. No IP rating is listed, so it should be used in protected indoor or enclosed environments rather than exposed outdoor locations.

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

RPS-45-7.5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-45 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).

Key Features

✓ Input voltage range: 80~264VAC
✓ Cooling by free air convection — no minimum load required
✓ Wide operating temperature: -40~+85°C
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14- Edition 3
✓ 3 years warranty

Frequently Asked Questions

Can I use the RPS-45-7.5 for 7.5V embedded or industrial electronics?

Yes, this model supplies constant-voltage 7.5V output up to 5.4A, with 40.5W total power available. It fits 7.5V electronics and control hardware that stay within those output limits.

Is the RPS-45-7.5 suitable for a 7.5V HMI, controller, or instrumentation board inside equipment?

It can be used where the equipment specifically requires a regulated 7.5V rail and needs no more than 5.4A. The 40.5W rating is the key sizing limit for the total connected load.

Can this 7.5V power supply be used in compact medical or laboratory devices?

Yes, for internal 7.5V loads within 5.4A and 40.5W. This unit is medical safety approved and features extremely low leakage current, which is useful in medical and lab equipment design.

Is the RPS-45-7.5 a practical choice for small automation enclosures?

It is well suited when both size and output match the project, since the unit measures 76.2 x 50.8 x 24.0 mm and weighs 0.11 kg. The electrical output is fixed at 7.5V constant voltage up to 5.4A.

How does the RPS-45-7.5 compare with the other RPS-45 versions?

In the RPS-45 family, the sibling models are 3.3V at 26.4W and 8A, 5V at 40W and 8A, 12V at 45.6W and 3.8A, 15V at 45W and 3A, 24V at 45.6W and 1.9A, and 48V at 45.1W and 0.94A. The RPS-45-7.5 version is rated at 40.5W with a 7.5V, 5.4A output.

Can the RPS-45-7.5 handle cold or hot environments, and is it suitable for outdoor exposure?

The specified operating temperature range is -30C to +70C, which supports use in a wide range of indoor equipment conditions. No IP rating is listed, so it should be used in protected indoor or enclosed environments rather than exposed outdoor locations.
