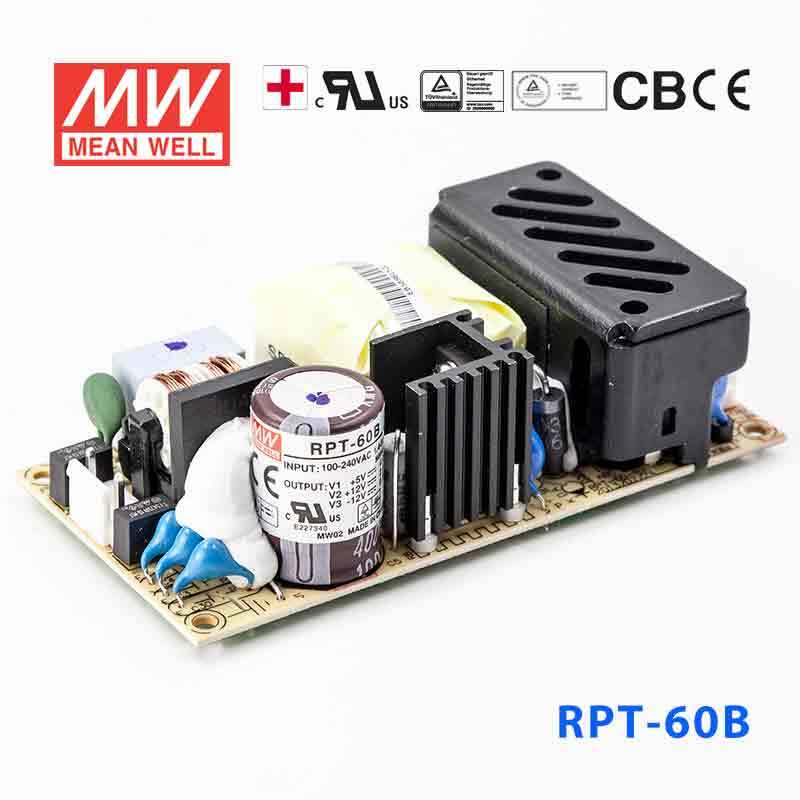

Mean Well RPT-60B Power Supply 60W 5V 12V -12V
Please Login for Pricing
Description
Description
Features
| 4"x2" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| Cooling by free air convection |
| EMI Class B for class I configuration |
| Extremely low leakage current |
| Protections: Short circuit/ Overload/ Over voltage |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start 60A/230VAC |
| Leakage current | <150 μA/264VAC |
| Overload protection | 115 ~ 150% rated output power |
| Over-voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 300ms, 15ms, 70ms |
| Withstand voltage | I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC |
| Working temperature | -20~+65°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL62368-1,TUV BS EN/EN62368-1,IEC62368-1,IEC60601-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 6 Pin JST B6P-VH |
| Dimension (LxWxH) | 101.6x50.8x29 |
| Packing | 96pcs / 15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.9 cm
-
Weight0.15 kg
