Over 15 years experience of providing support of MEAN WELL Power Supplies
Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Rai...
Please Login for Pricing
Description
Description

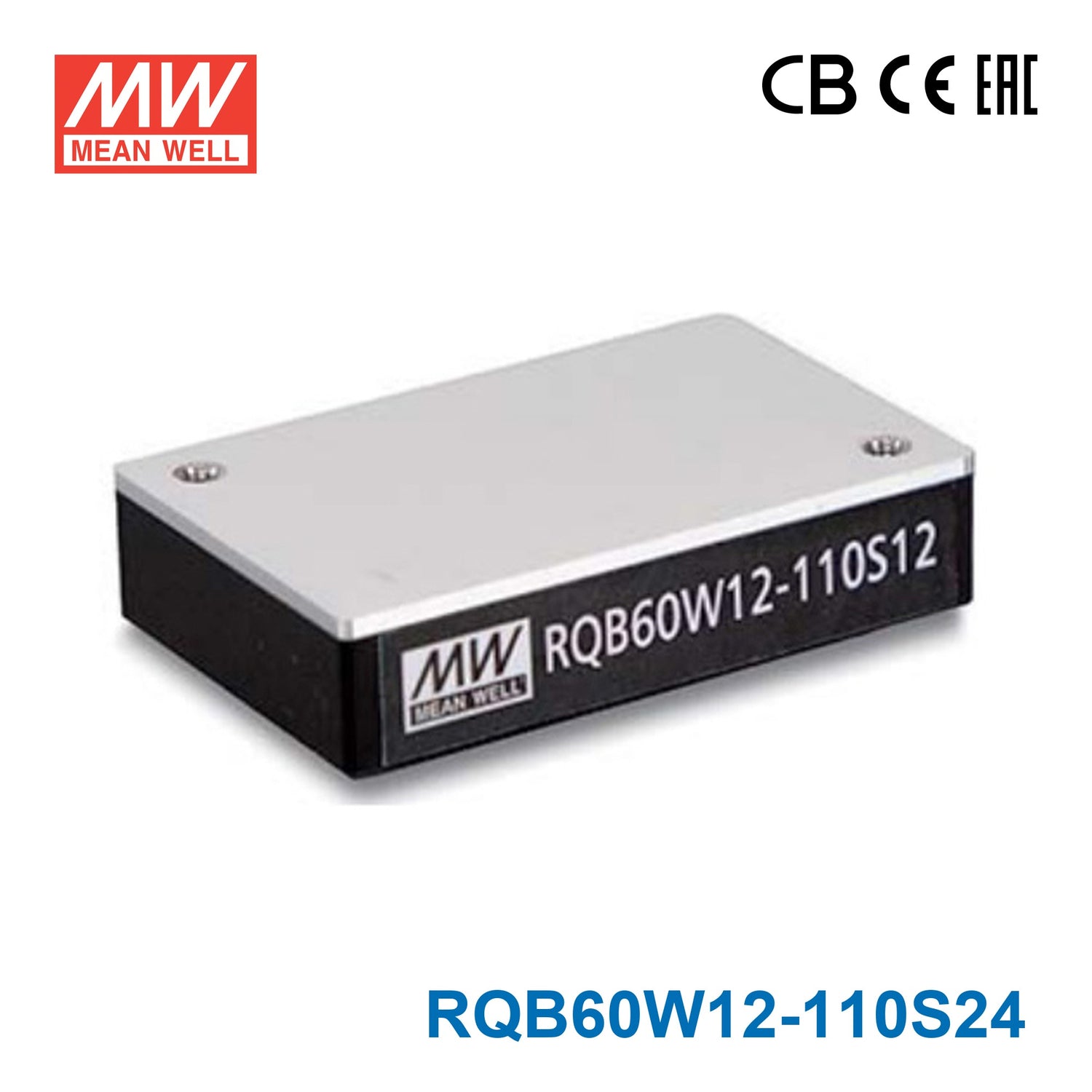

The RQB60W12 is a 60W Mean Well power converter (input range: 14~160Vdc).
Key Features
- ✓ Input voltage range: 14~160Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1, UL62368-1, EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRQB60W12 Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage14V~160V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length5.79 cm
-
Width3.68 cm
-
Height1.27 cm
-
Weight0.07 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RQB60W12 Series Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Railway DC-DC Converter, 60W, 5V output 1.111A | 60W | 54V | 1.11A | Indoor | View |
| Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Railway DC-DC Converter, 60W, 5V output 1.25A | 60W | 48V | 1.25A | Indoor | View |
| Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Railway DC-DC Converter, 60W, 5V output 5A | 60W | 12V | 5A | Indoor | View |
| Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Railway DC-DC Converter, 60W, 5V output 10A | 60W | 5V | 10A | Indoor | View |
{
