Can I use the RSD-100C-5 to power a 5V embedded controller from a 36V or 48V DC source?

Yes, this converter accepts 33.6~62.4V input and provides a constant-voltage 5V output. With up to 20A and 100W available, it suits 5V embedded controllers, industrial computing devices, and logic systems that operate within that load level.

Is the RSD-100C-5 a good choice for generating 5V power inside telecom or automation cabinets?

Yes, a nominal 48V DC source fits inside the 33.6~62.4V input range. The converter steps that down to 5V constant voltage with up to 20A and 100W for 5V electronics used in control, communications, or monitoring equipment.

Can this model support 5V control electronics in vibration-prone industrial equipment?

The features list includes 5G vibration resistance, which makes it relevant for equipment that sees mechanical stress. It is intended for 5V constant-voltage loads up to 20A and 100W from a 33.6~62.4V input supply.

Will the RSD-100C-5 handle cold or hot industrial environments?

Its rated operating range is -40°C to +85°C, and the features list includes 70°C operation. No IP rating is stated in the provided data, so environmental protection against water or dust would need to come from the enclosure rather than the converter itself.

What is the difference between the RSD-100C-5 and other 100W RSD-100 variants?

The 5V versions in the RSD-100 family are RSD-100B-5, RSD-100C-5, and RSD-100D-5, each rated at 100W and 20A. Related 12V models are 100.8W and 8.4A, and related 24V models are 100.8W and 4.2A; the C version is the member of the 33.6~62.4V input group.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

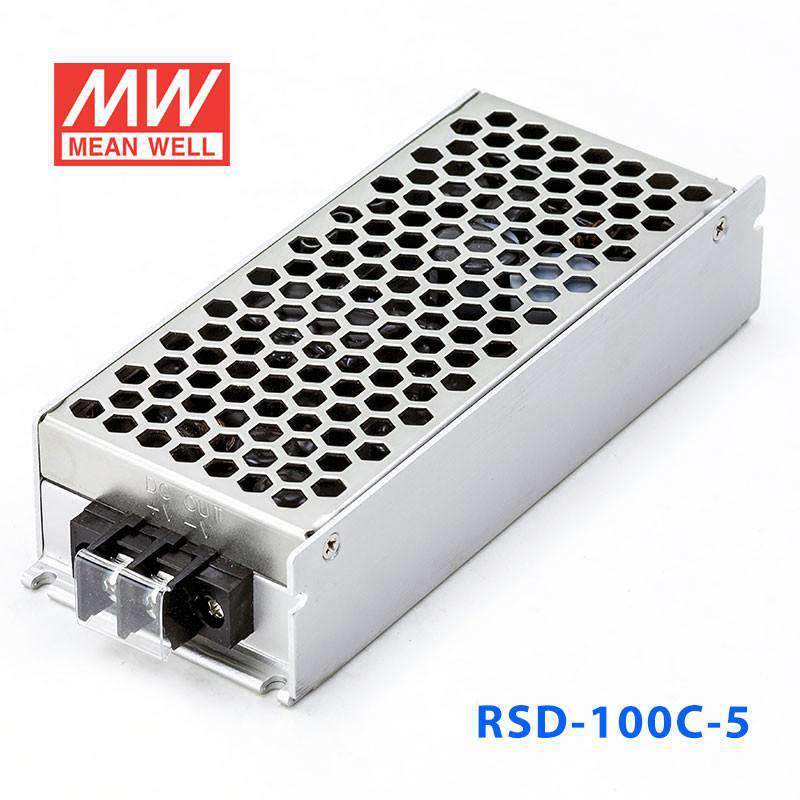

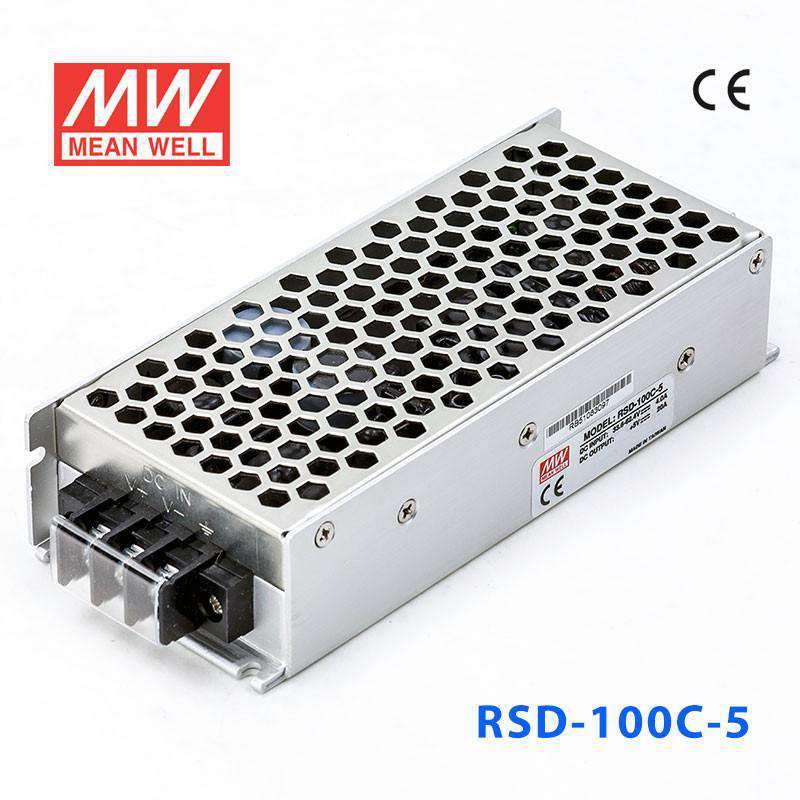

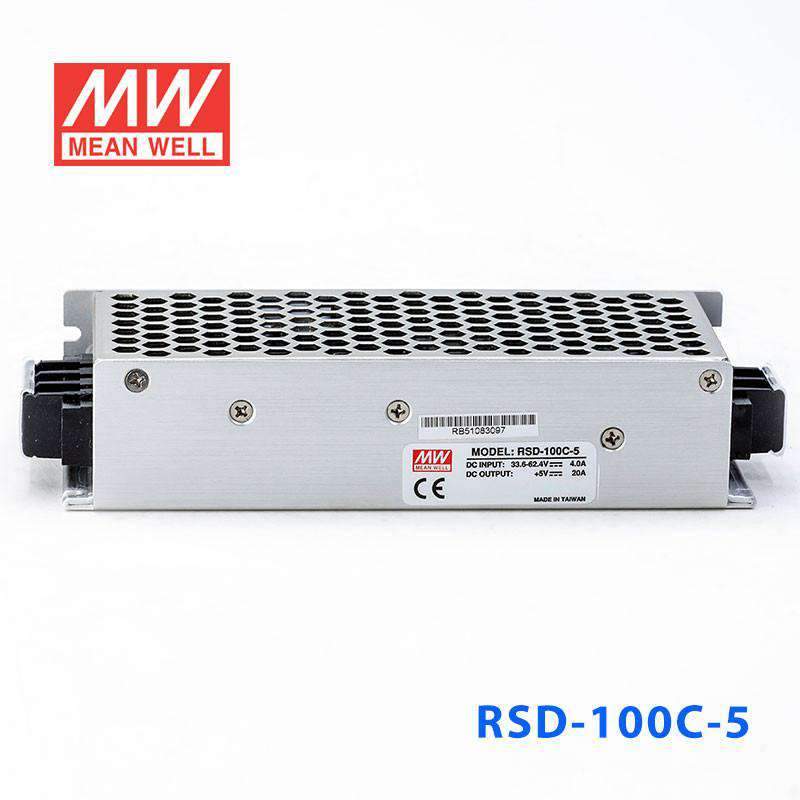

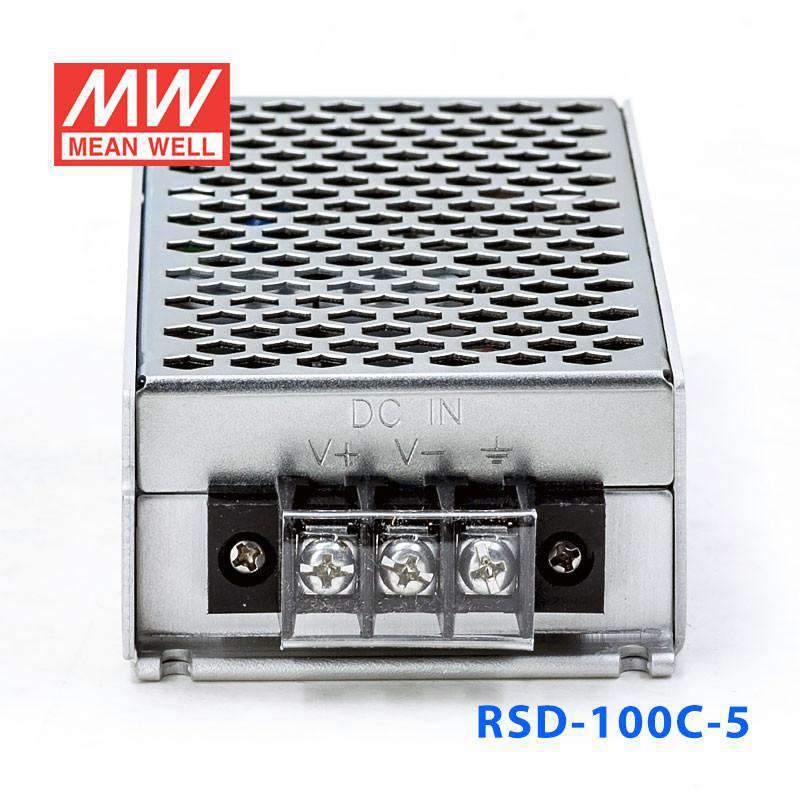

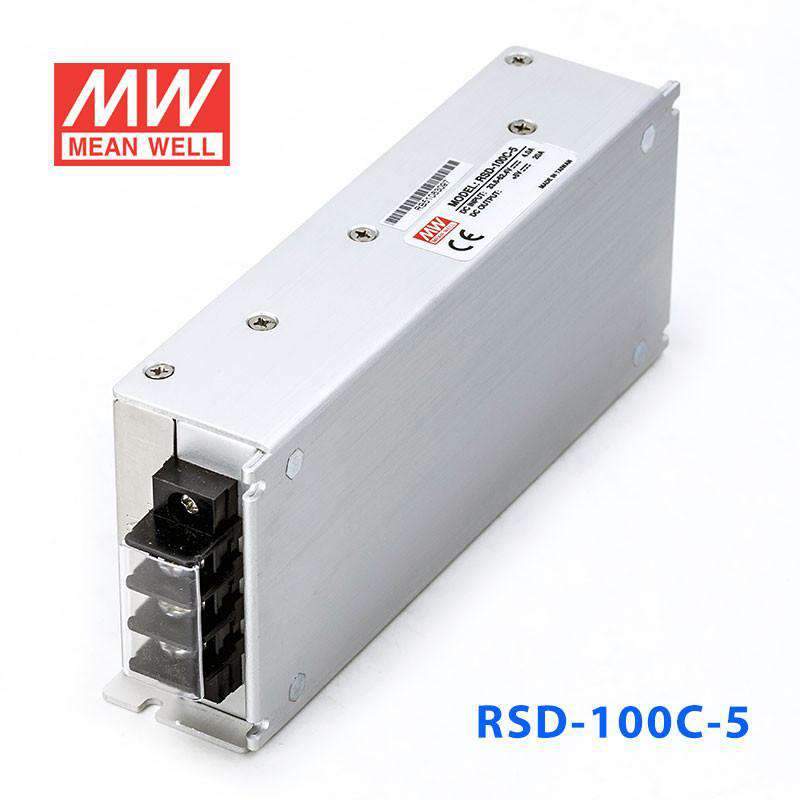

Mean Well RSD-100C-5 DC-DC Converter - 100W - 33.6~62.4V in 5V out 20A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU:

RSD-100C-5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RSD-100C is a 100W Mean Well power converter (input range: 16.8~31.2VDC).

Key Features

✓ Input voltage range: 16.8~31.2VDC
✓ 4KVDC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8442662125867, "variants" :[{ "context":"default", "variant_id": 45712072442155, "sku":"RSD-100C-5", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 16.8~31.2VDC

✓ 4KVDC reinforced I/O isolation

✓ Cooling by free air convection

✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity

✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level

✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004

✓ 3 years warranty
