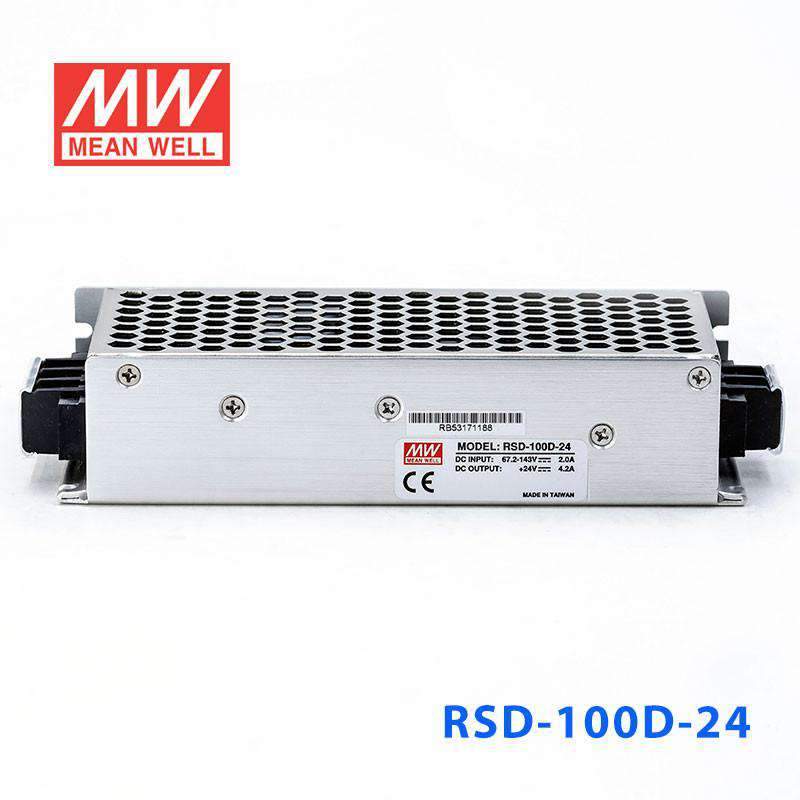

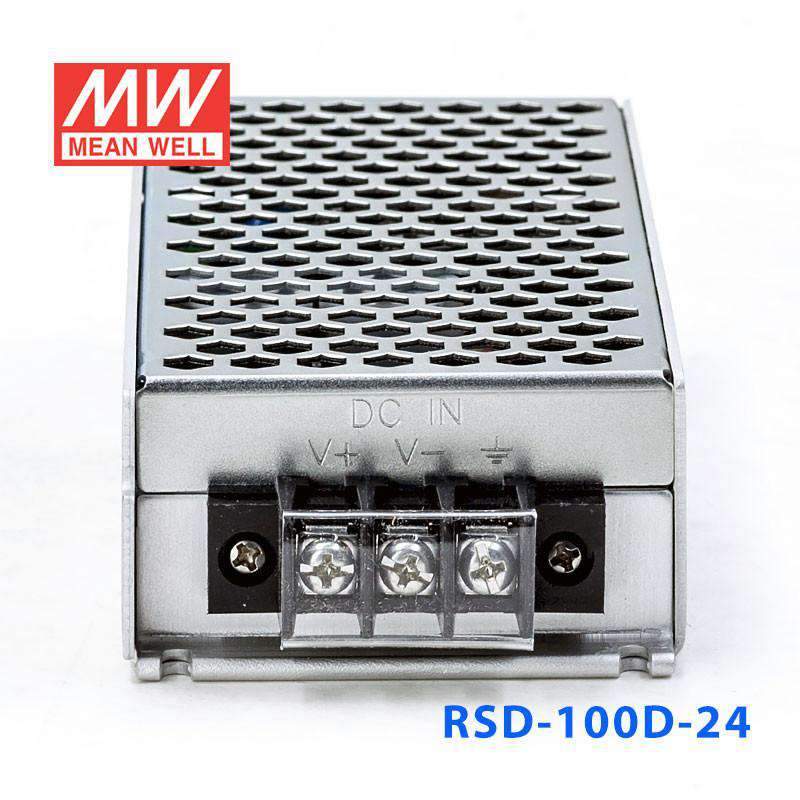

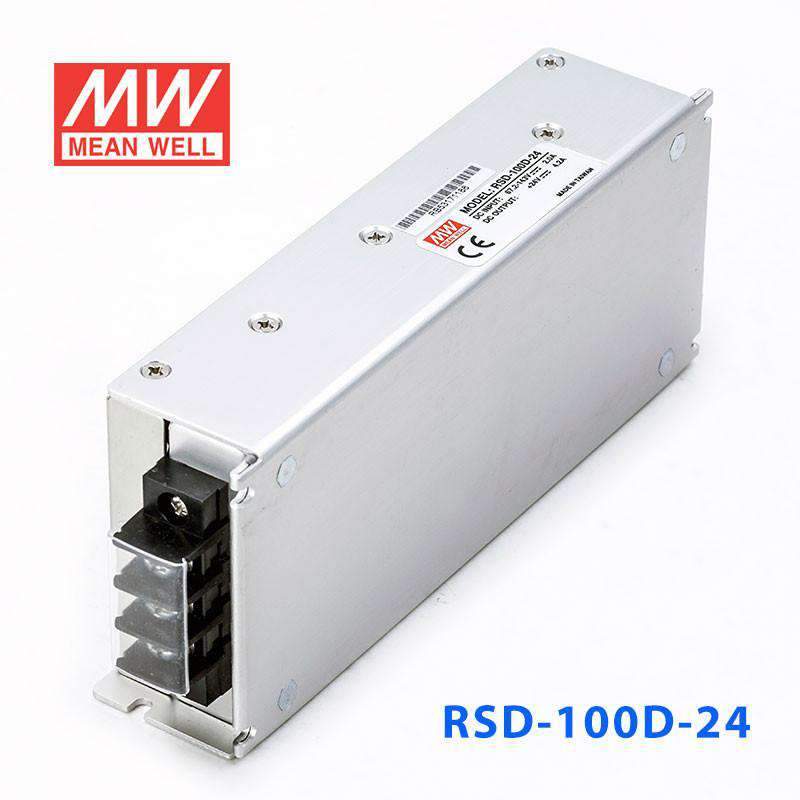

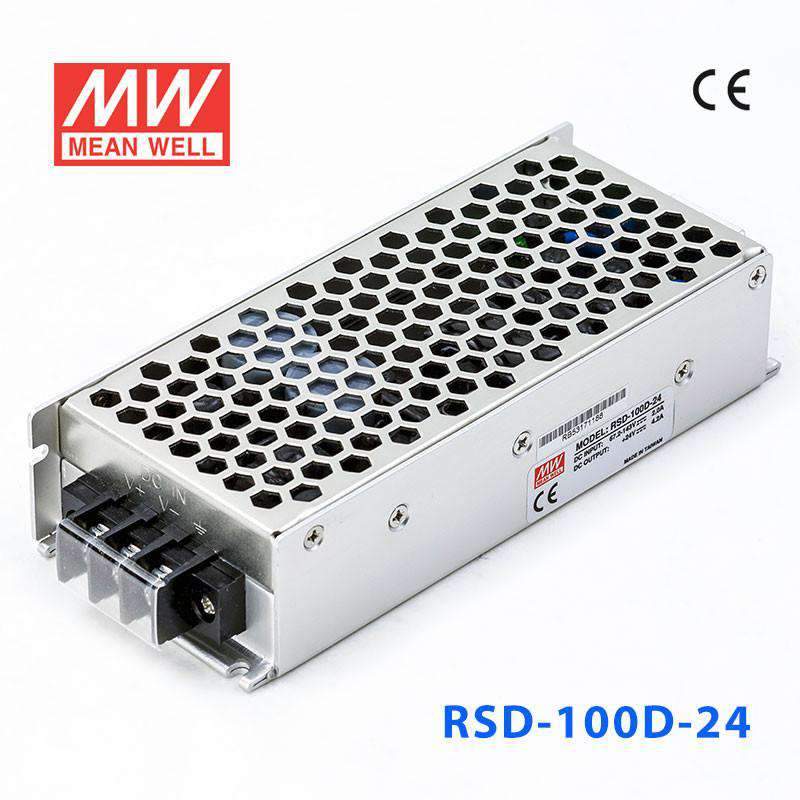

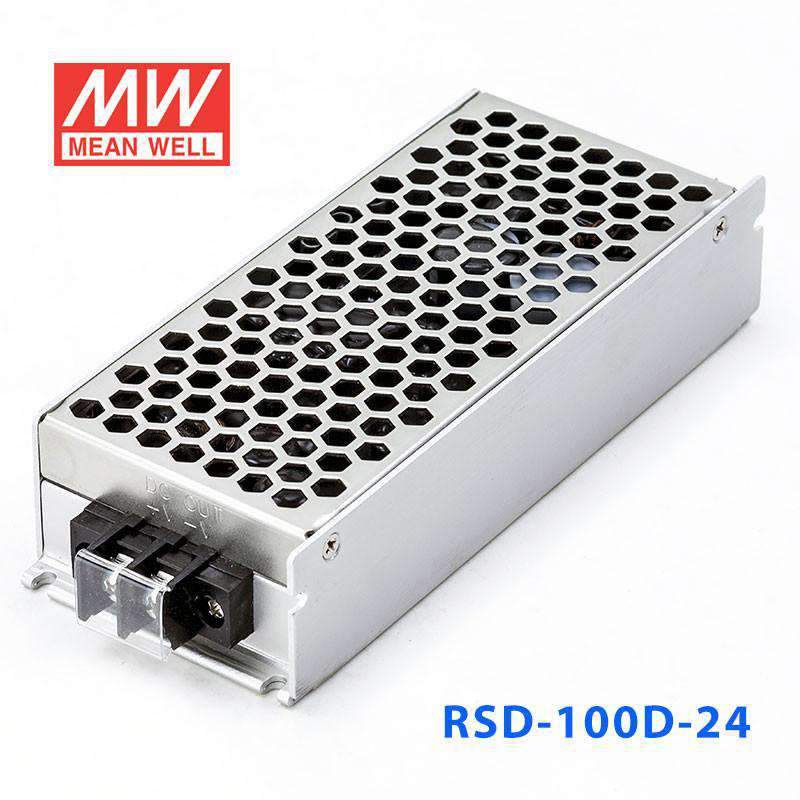

Mean Well RSD-100D-24 DC-DC Converter - 100.8W - 67.2~143V in 24V o...
Log in to see priceOverview
RSD-100D-24 is the 24V output model of this series: rated current 4.2A, rated power 100.8W, typical efficiency 90%.
Features
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 4.2A
- CURRENT RANGE
- 0 ~ 4.2A
- RATED POWER
- 100.8W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- Please refer to page 3 Hold up Time( Load de-rating curve )
INPUT
- VOLTAGE RANGE CONTINUOUS
- 67.2 ~ 143VDC
- VOLTAGE RANGE 1 SEC.
- 57.6 ~ 154VDC
- EFFICIENCY (Typ.)
- 90%
- DC CURRENT (Typ.)
- 1.2A/110V
- INRUSH CURRENT (Typ.)
- 30A/110VDC
- INTERRUPTION OF VOLTAGE SUPPLY
- EN50155:2021-Comply with S1 level
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
- WORKING HUMIDITY
- 5 ~ 95% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
- OPERATING ALTITUDE
- 5000 meters
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
- RAILWAY STANDARD
- BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC ; BS EN/EN45545-2 for fire protection
OTHERS
- MTBF
- 2446.2K hrs min. Telcordia SR-332 (Bellcore) ; 254.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 161*68*36mm (L*W*H)
- PACKING
- 0.563Kg; 24pcs/14.5Kg/0.91CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-100-5 / -12)
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RSD-100D-24 to power a 24V industrial controller or HMI?
Yes, if the controller or HMI needs a constant 24V supply and draws no more than 4.2A. This converter is rated for 100.8W total output, so it fits lower-power 24V industrial control loads within that limit.
Is the RSD-100D-24 suitable for 24V embedded or automation electronics inside a vehicle or mobile equipment cabinet?
It can fit 24V embedded and automation loads that need constant voltage and stay within 4.2A and 100.8W. The specs also list 5G vibration with IEC61373 shock and vibration compliance, which is relevant for equipment exposed to movement or mechanical vibration.
Can this converter run a 24V sensor, relay, or control subsystem from a higher-voltage DC source?
It is intended for applications that need 24V output from a 67.2~143V input range. As long as the connected 24V subsystem stays within the 4.2A output current and 100.8W power rating, it matches that type of control-duty use.
Is the RSD-100D-24 appropriate for outdoor or harsh-temperature use?
It operates from -40°C to +55°C without derating, and up to +70°C at 60% load by free air convection or at full load when mounted on an external base plate (EN50155 TX class). However, no IP rating is listed in the provided specs, so outdoor or washdown suitability is not established by this product data alone.
How does the RSD-100D-24 compare with other RSD 100W-class outputs?
Within the listed 100W-class siblings, the 5V versions are 100W at 20A, the 12V versions are 100.8W at 8.4A, and the 24V versions are 100.8W at 4.2A. In the D group specifically, RSD-100D-5 is 100W 5V 20A, RSD-100D-12 is 100.8W 12V 8.4A, and RSD-100D-24 is 100.8W 24V 4.2A.
