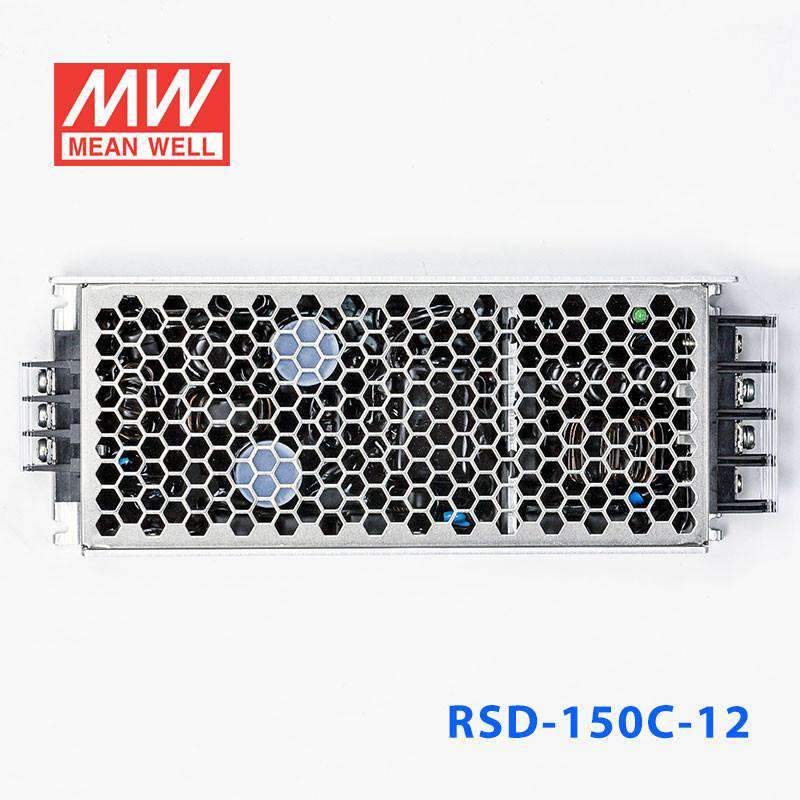

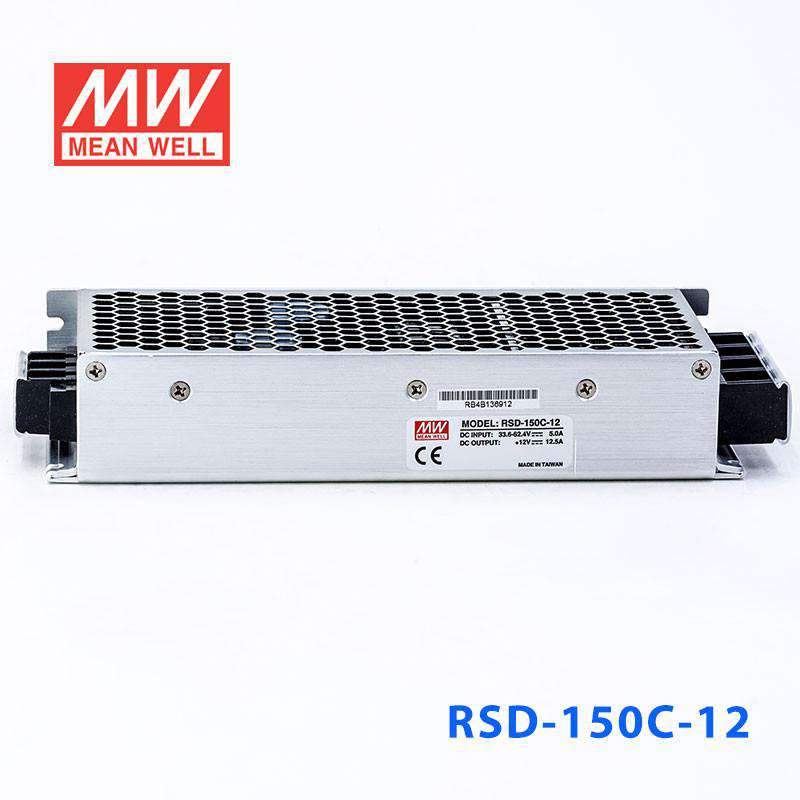

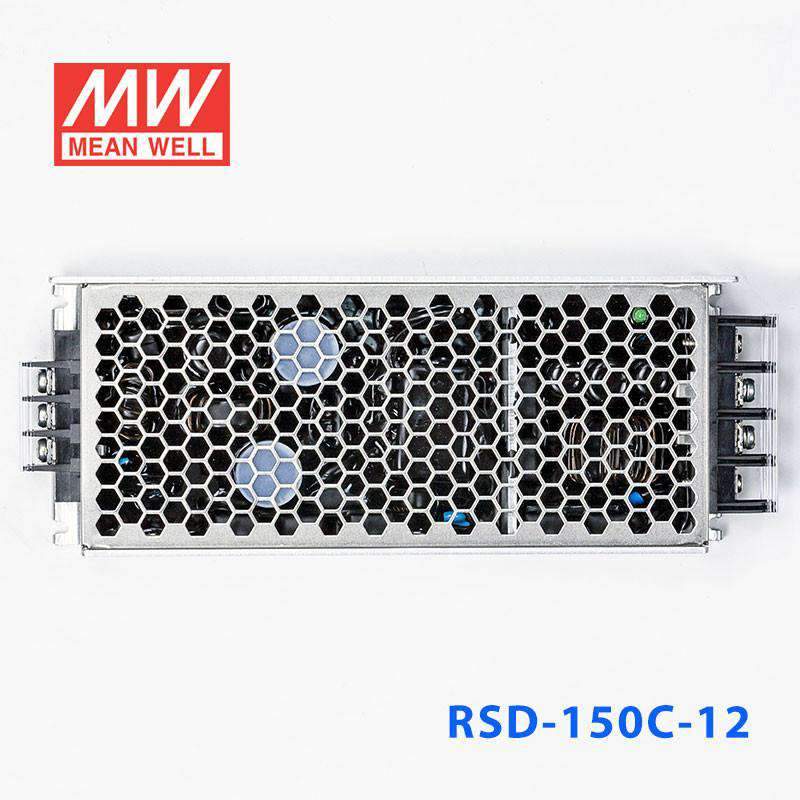

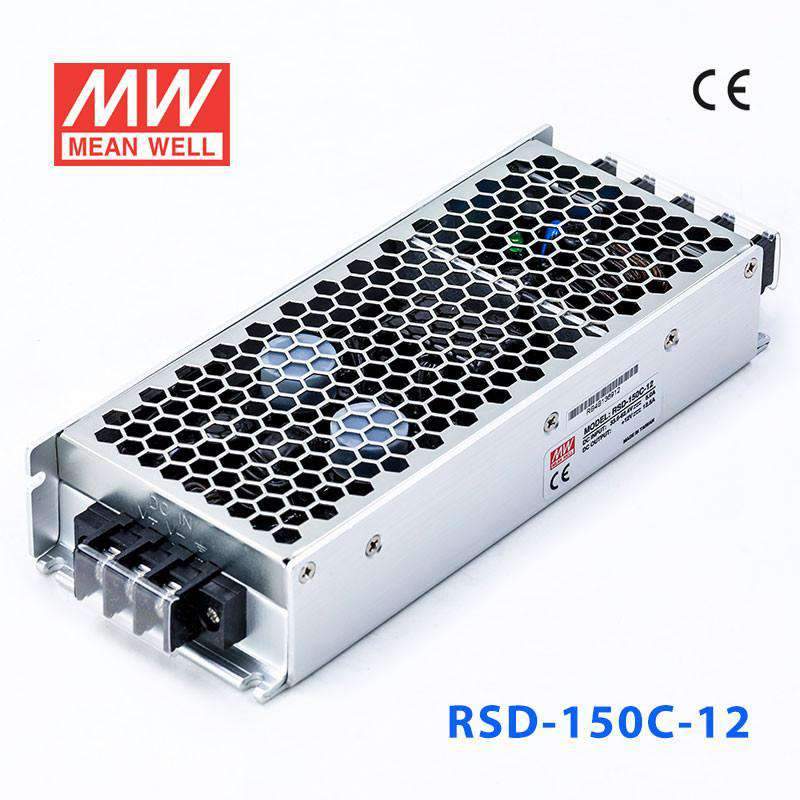

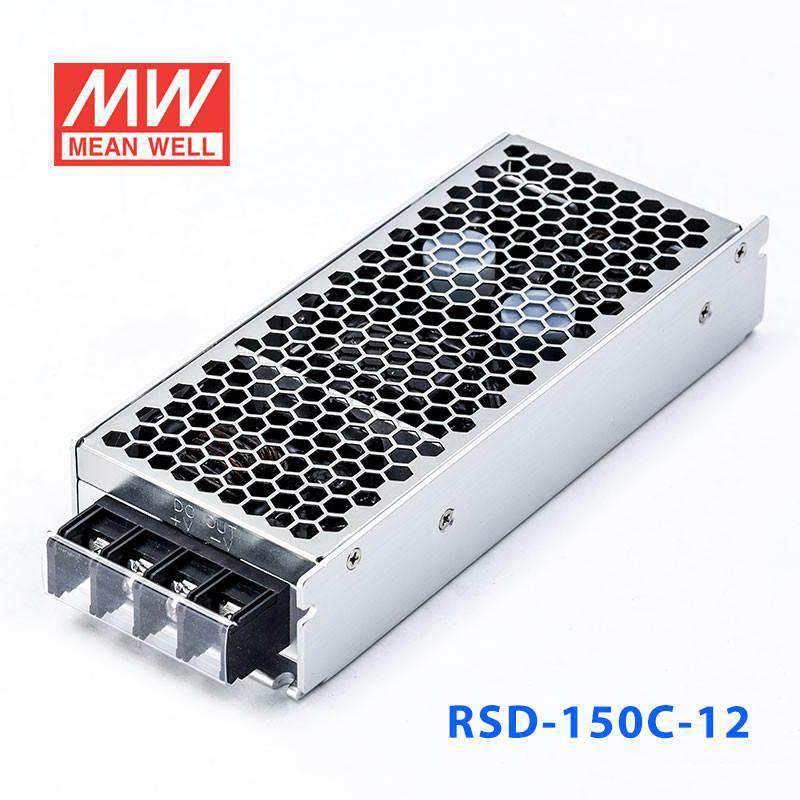

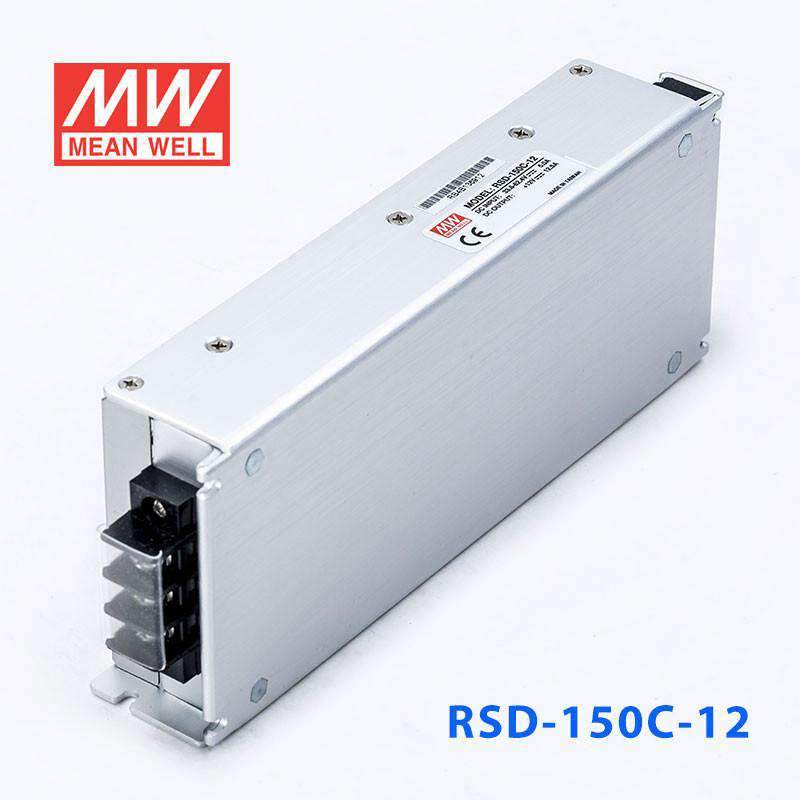

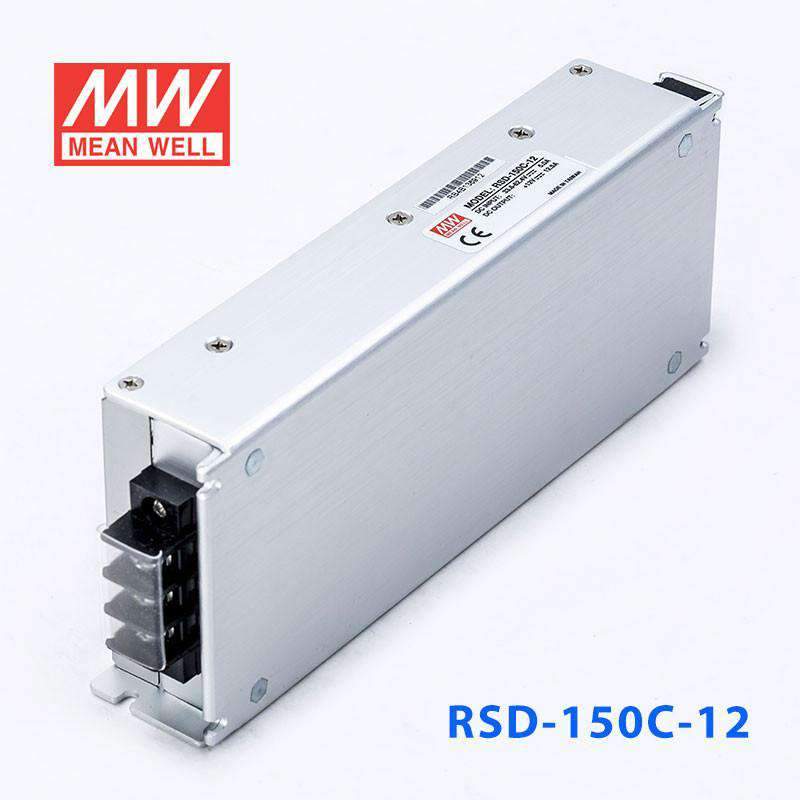

Mean Well RSD-150C-12 DC-DC Converter - 150W - 33.6~62.4V in 12V out 12.5A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RSD-150C-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RSD-150C-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 92%.

Features

Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 36mm
All using 105℃ long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

RSD-150C-12Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 12.5A
CURRENT RANGE: 0 ~ 12.5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 50ms at full load
HOLD UP TIME (Typ.): Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS: 33.6 ~ 62.4VDC
VOLTAGE RANGE 1 SEC.: 28.8 ~ 67.2VDC
EFFICIENCY (Typ.): 92%
DC CURRENT (Typ.): 3.6A/48V
INRUSH CURRENT (Typ.): 45A/48VDC
INTERRUPTION OF VOLTAGE SUPPLY: EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ± 0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE: 5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD: BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection

OTHERS

MTBF: 2405.1K hrs min. Telcordia SR-332 (Bellcore) ; 223.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 189*77*36mm (L*W*H)
PACKING: 0.8Kg; 15pcs/13Kg/0.75CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-150-5/-12)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-150C-12 Mechanical Specification — Mechanical Specification

RSD-150C-12 Block Diagram — Block Diagram

RSD-150C-12 Input Under-Voltage Protection — Input Under-Voltage Protection

RSD-150C-12 Efficiency vs Load & Vin Curve — Efficiency vs Load & Vin Curve

RSD-150C-12 Overload Protection — Overload Protection

RSD-150C-12 Immunity to Environmental Conditions — Immunity to Environmental Conditions

Downloads

Certificates1

EMC Certificate(RSD-150)(EN) PDF Download

Test reports1

Test Report(RSD-150C-12)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RSD-150C-12 to power a 12V industrial control cabinet from a 33.6 to 62.4V source?

Yes, this model is a constant voltage DC-DC converter with a 12V output and up to 12.5A output current. That makes it suitable for 12V control electronics that need regulated 12V power within its 150W listed power rating and 33.6 to 62.4V input range.

Is the RSD-150C-12 a fit for 12V mobile or embedded equipment running on a 33.6 to 62.4V DC bus?

It can fit embedded or mobile systems that need a regulated 12V rail and draw up to 12.5A. Its compact 189.0 x 77.0 x 36.0 mm size, 0.8 kg weight, and 5G vibration resistance are relevant where space and mechanical stress matter.

Can this converter support 12V industrial networking or monitoring devices from a higher-voltage DC system?

It is intended for converting a 33.6 to 62.4V input to a constant 12V output. With 12.5A available, it is appropriate for grouped 12V networking, monitoring, or automation loads that stay within the unit's rated output.

Is the RSD-150C-12 suitable for outdoor or harsh-environment enclosures?

It has an operating temperature range of -40°C to +55°C (no derating) and is specified to withstand 5G vibration, so it is designed for demanding conditions. No IP rating is listed, so it is better suited to protected enclosures than direct outdoor exposure.

How does the RSD-150C-12 compare with the other RSD-150C output options?

Within the RSD-150C group shown here, the 5V version is the RSD-150C-5 at 150W, 5V, and 30A, while the 24V version is the RSD-150C-24 at 151.2W, 24V, and 6.3A. This RSD-150C-12 is listed at 150W, 12V, and 12.5A, so the main differences are the output voltage, current, and listed power.
