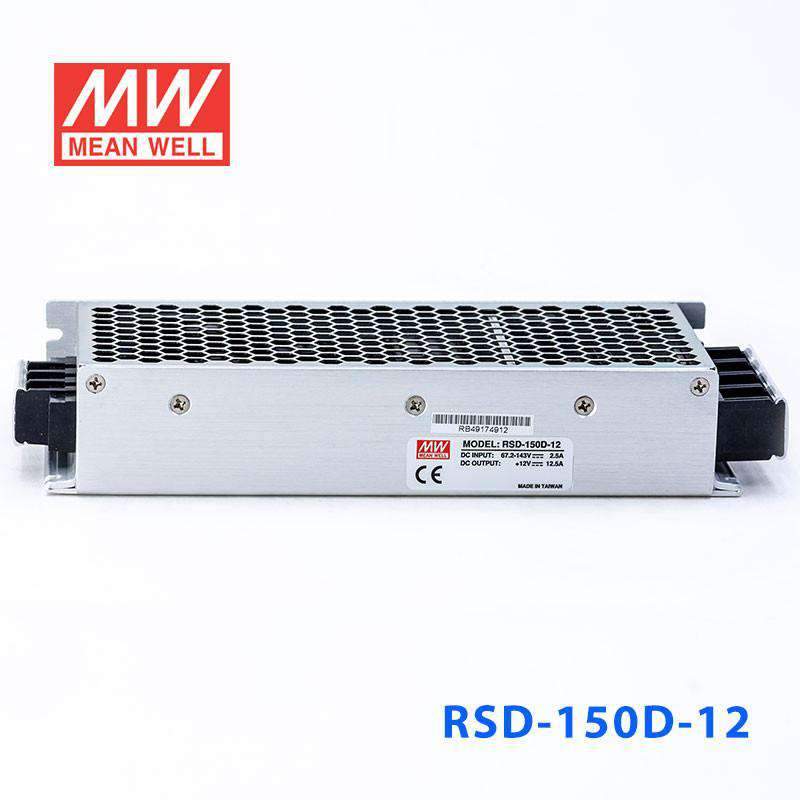

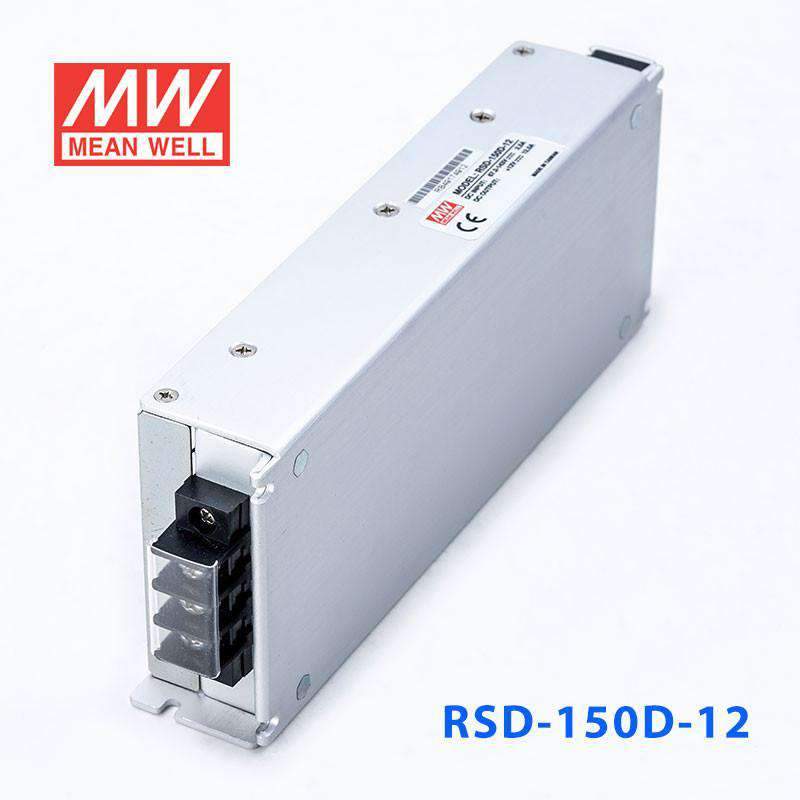

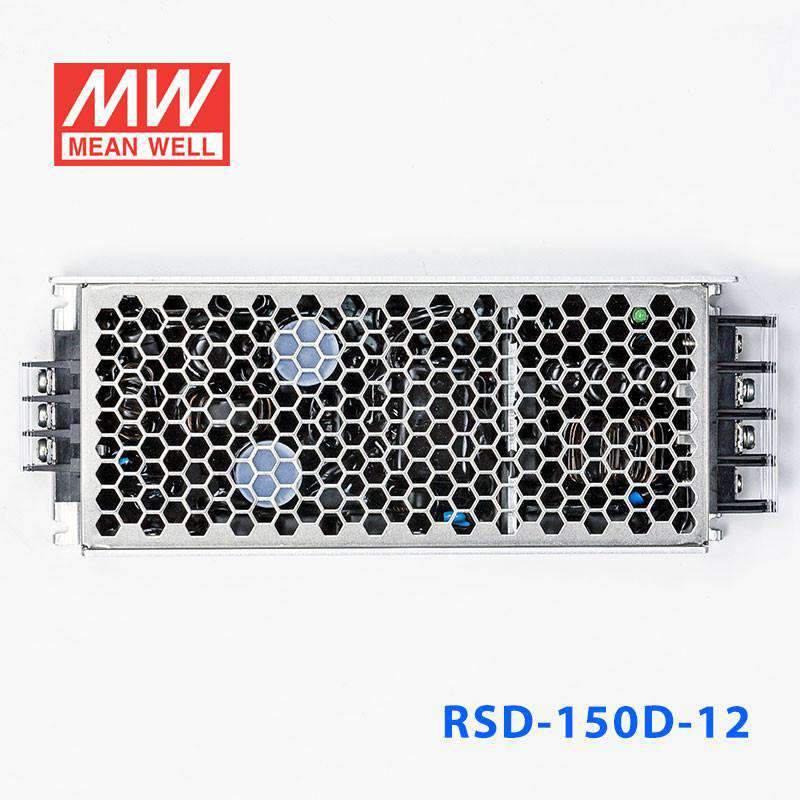

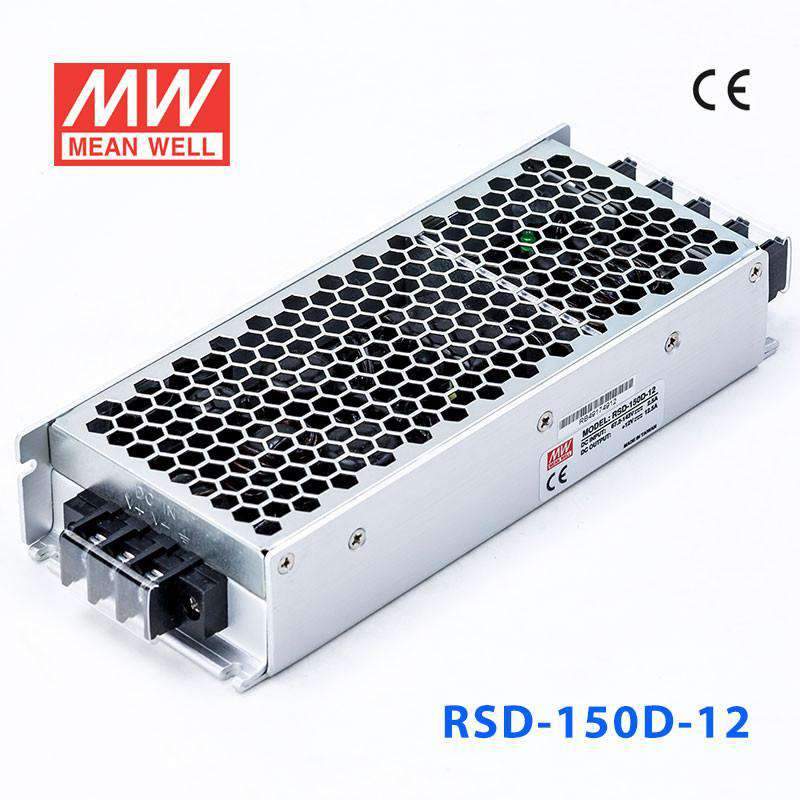

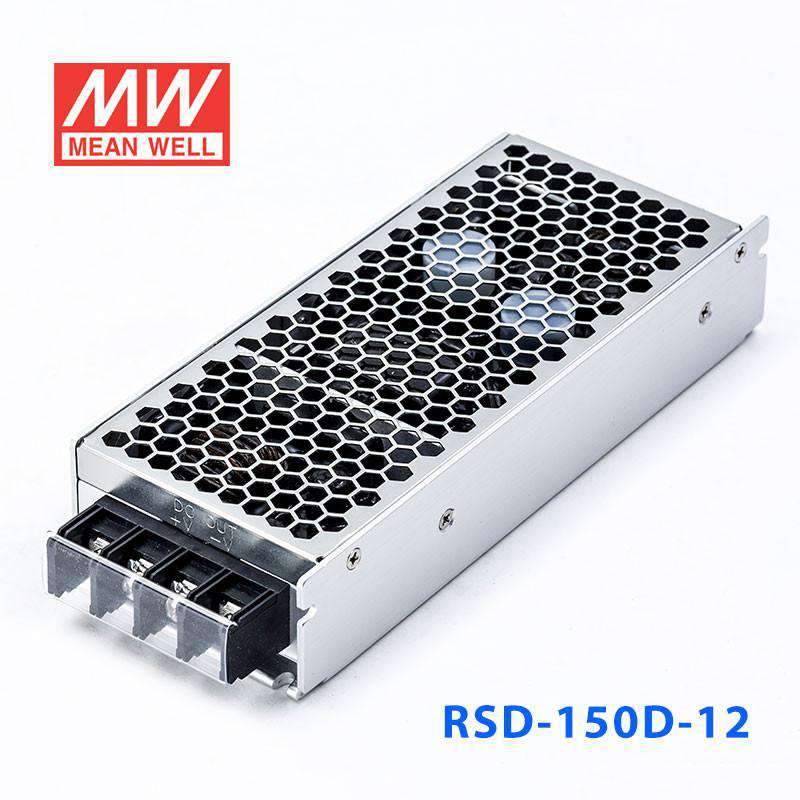

Mean Well RSD-150D-12 DC-DC Converter - 150W - 67.2~143V in 12V out...
Log in to see priceOverview
RSD-150D-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 92%.
Features
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 12.5A
- CURRENT RANGE
- 0 ~ 12.5A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- Please refer to page 3 Hold up Time( Load de-rating curve )
INPUT
- VOLTAGE RANGE CONTINUOUS
- 67.2 ~ 143VDC
- VOLTAGE RANGE 1 SEC.
- 57.6 ~ 154VDC
- EFFICIENCY (Typ.)
- 92%
- DC CURRENT (Typ.)
- 1.5A/110V
- INRUSH CURRENT (Typ.)
- 45A/110VDC
- INTERRUPTION OF VOLTAGE SUPPLY
- EN50155:2021-Comply with S1 level
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
- WORKING HUMIDITY
- 5 ~ 95% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
- OPERATING ALTITUDE
- 5000 meters
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
- RAILWAY STANDARD
- BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection
OTHERS
- MTBF
- 2405.1K hrs min. Telcordia SR-332 (Bellcore) ; 223.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 189*77*36mm (L*W*H)
- PACKING
- 0.8Kg; 15pcs/13Kg/0.75CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-150-5/-12)
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RSD-150D-12 to step down a 67.2 to 143V DC source for 12V industrial controls?
Yes, this model converts a 67.2 to 143V input to a constant 12V output. With up to 12.5A output current and a 150W rating, it suits 12V control, monitoring, and automation loads that need regulated 12V from a higher-voltage DC bus.
Is the RSD-150D-12 suitable for transportation, battery, or other high-voltage DC systems that need 12V output?
It is designed for a higher input range than the C-series, with 67.2 to 143V input capability and a 12V constant voltage output. That makes it relevant when the available DC source is above the 33.6 to 62.4V range but the downstream equipment still needs 12V at up to 12.5A.
Can this converter power 12V edge devices or industrial communication equipment from a high-voltage DC rail?
It can, provided the source stays within 67.2 to 143V and the 12V load stays within 12.5A and 150W. The compact 189.0 x 77.0 x 36.0 mm form factor also helps where enclosure space is limited.
Is the RSD-150D-12 meant for outdoor use or protected enclosure use?
The operating temperature range is -40°C to +55°C (no derating), extending to +70°C at 60% load by free air convection. The product is specified to withstand 5G vibration. No IP rating is shown, so it is better suited to protected cabinets or enclosed systems than direct outdoor exposure.
What is the difference between the RSD-150D-12 and the other RSD-150D models?
In the RSD-150D family shown here, the 24V version is the RSD-150D-24 at 151.2W, 24V, and 6.3A, while the 5V version is the RSD-150D-5 at 150W, 5V, and 30A. The RSD-150D-12 is 150W, 12V, and 12.5A, so the main selection point is the required output voltage and current.
