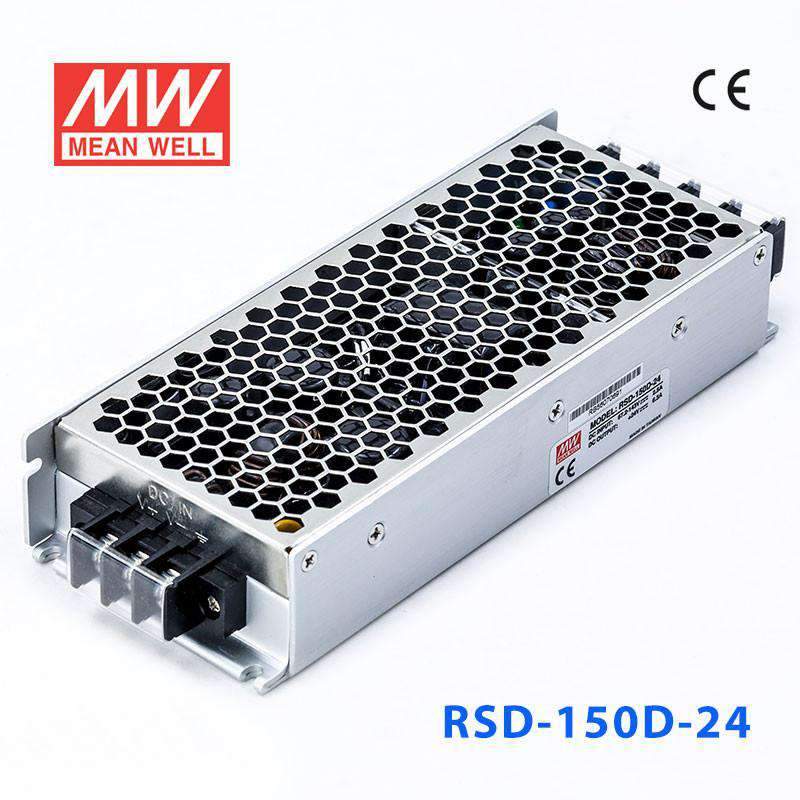

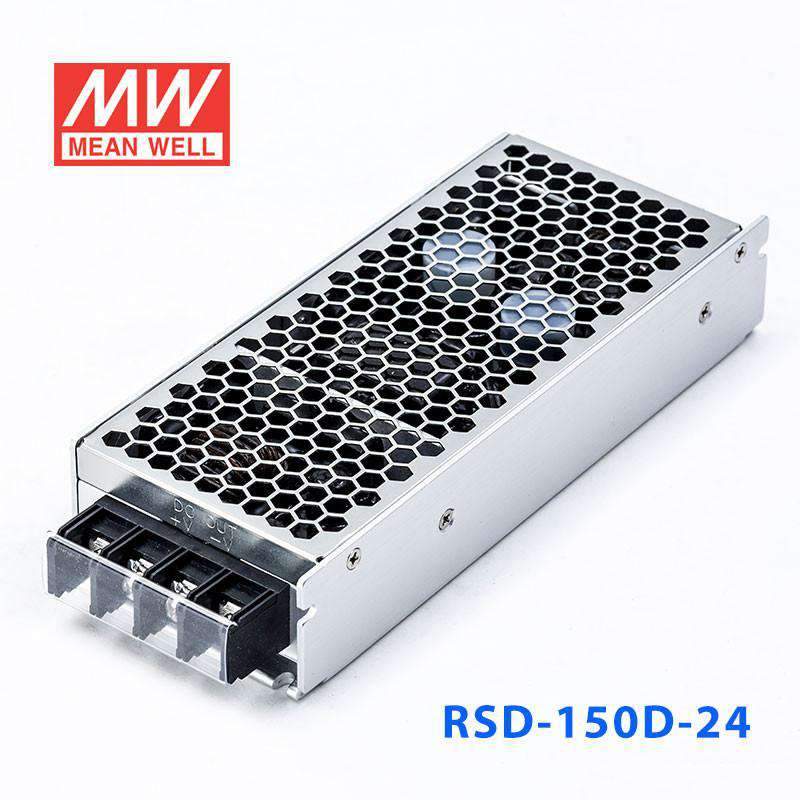

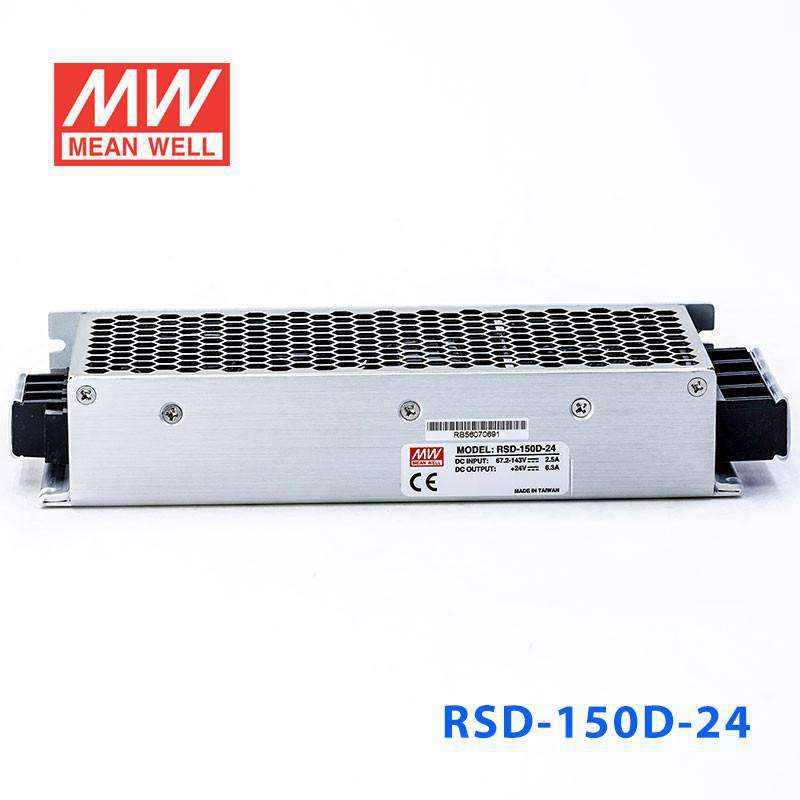

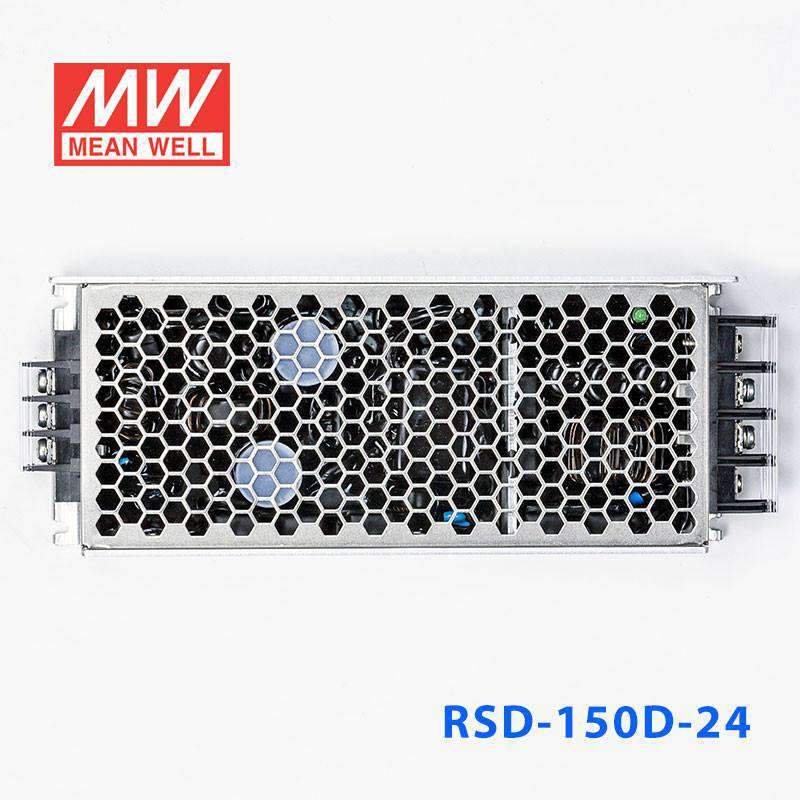

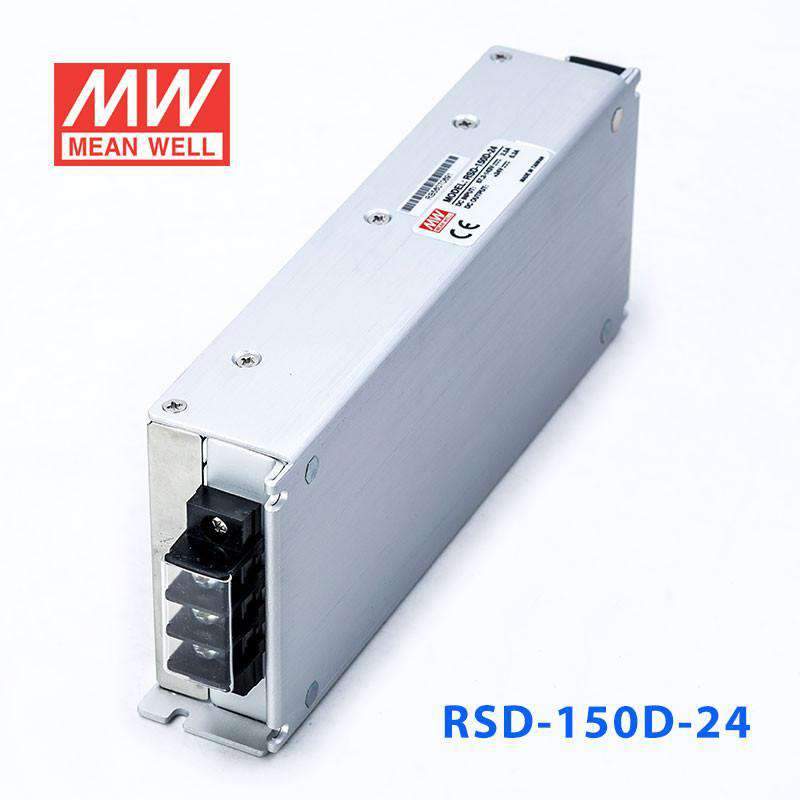

Mean Well RSD-150D-24 DC-DC Converter - 151.2W - 67.2~143V in 24V out 6.3A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RSD-150D-24

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

RSD-150D-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 91%.

Features

Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 36mm
All using 105℃ long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

RSD-150D-24Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 50ms at full load
HOLD UP TIME (Typ.): Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS: 67.2 ~ 143VDC
VOLTAGE RANGE 1 SEC.: 57.6 ~ 154VDC
EFFICIENCY (Typ.): 91%
DC CURRENT (Typ.): 1.5A/110V
INRUSH CURRENT (Typ.): 45A/110VDC
INTERRUPTION OF VOLTAGE SUPPLY: EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ± 0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE: 5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD: BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection

OTHERS

MTBF: 2405.1K hrs min. Telcordia SR-332 (Bellcore) ; 223.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 189*77*36mm (L*W*H)
PACKING: 0.8Kg; 15pcs/13Kg/0.75CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-150-5/-12)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-150D-24 Mechanical Specification — Mechanical Specification

RSD-150D-24 Block Diagram — Block Diagram

RSD-150D-24 Input Under-Voltage Protection — Input Under-Voltage Protection

RSD-150D-24 Efficiency vs Load & Vin Curve — Efficiency vs Load & Vin Curve

RSD-150D-24 Overload Protection — Overload Protection

RSD-150D-24 Immunity to Environmental Conditions — Immunity to Environmental Conditions

Downloads

Certificates1

EMC Certificate(RSD-150)(EN) PDF Download

Test reports1

Test Report(RSD-150D-24)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RSD-150D-24 for 24V PLC or industrial I/O systems on a 67.2 to 143V DC source?

Yes, it provides a constant 24V output from a 67.2 to 143V input range. With 6.3A output current and a 151.2W rating, it fits regulated 24V automation loads within that power range.

Is the RSD-150D-24 appropriate for 24V monitoring, control, or communications hardware on higher-voltage DC buses?

It is intended for applications where the source voltage is in the 67.2 to 143V range but the equipment needs a stable 24V output. The 24V constant voltage design and 6.3A capacity make it relevant for many industrial electronics and control subsystems.

Can this model be used in compact mobile or vehicle-based 24V control assemblies?

It can be a fit where the input voltage matches 67.2 to 143V and the load requires 24V at up to 6.3A. The 189.0 x 77.0 x 36.0 mm dimensions, 0.8 kg weight, and 5G vibration specification are useful in space-constrained equipment exposed to motion.

How well does the RSD-150D-24 handle temperature extremes or exposed conditions?

The unit is rated for -40°C to +55°C operation with no derating, and up to +70°C at 60% load by free air convection. Because no IP rating is listed, it is best used in protected enclosures rather than directly exposed outdoor locations.

How does the RSD-150D-24 compare with the 5V and 12V versions in the same family?

The RSD-150D-24 is rated at 151.2W with a 24V output and 6.3A output current. In the same RSD-150D range, the RSD-150D-12 is 150W, 12V, and 12.5A, while the RSD-150D-5 is 150W, 5V, and 30A.
