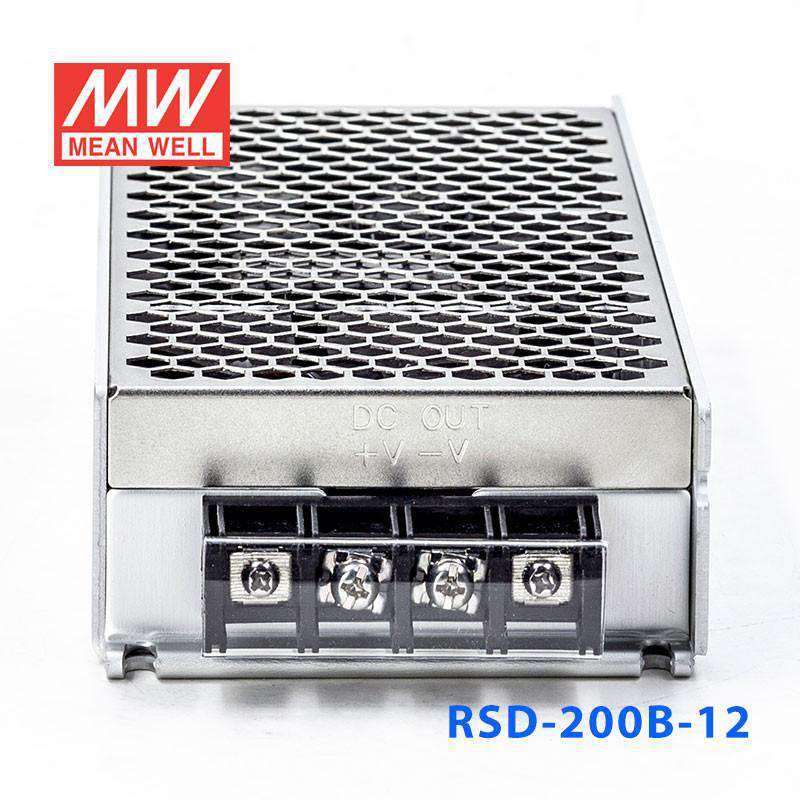

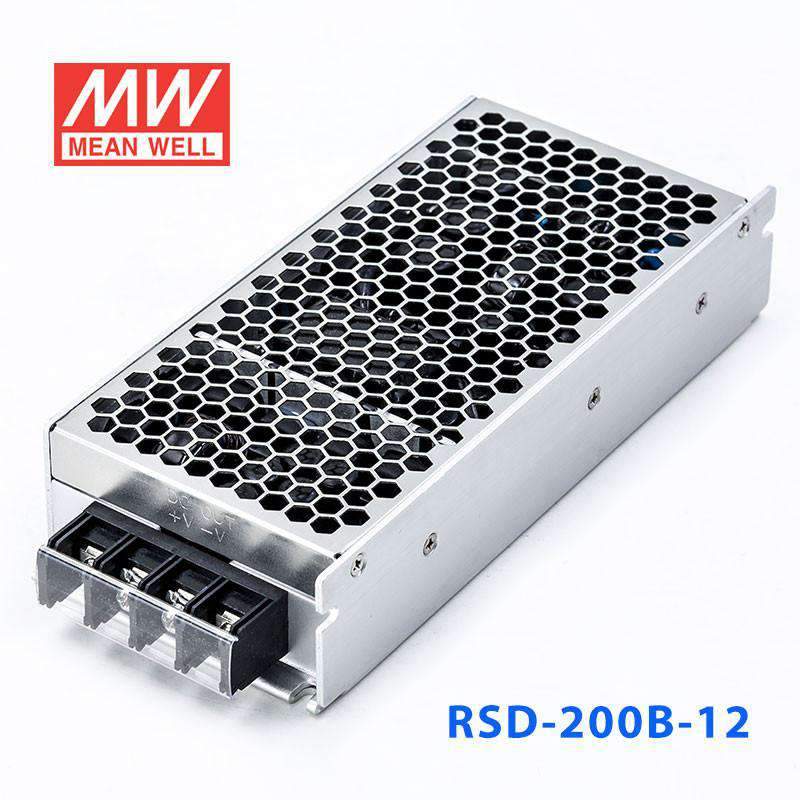

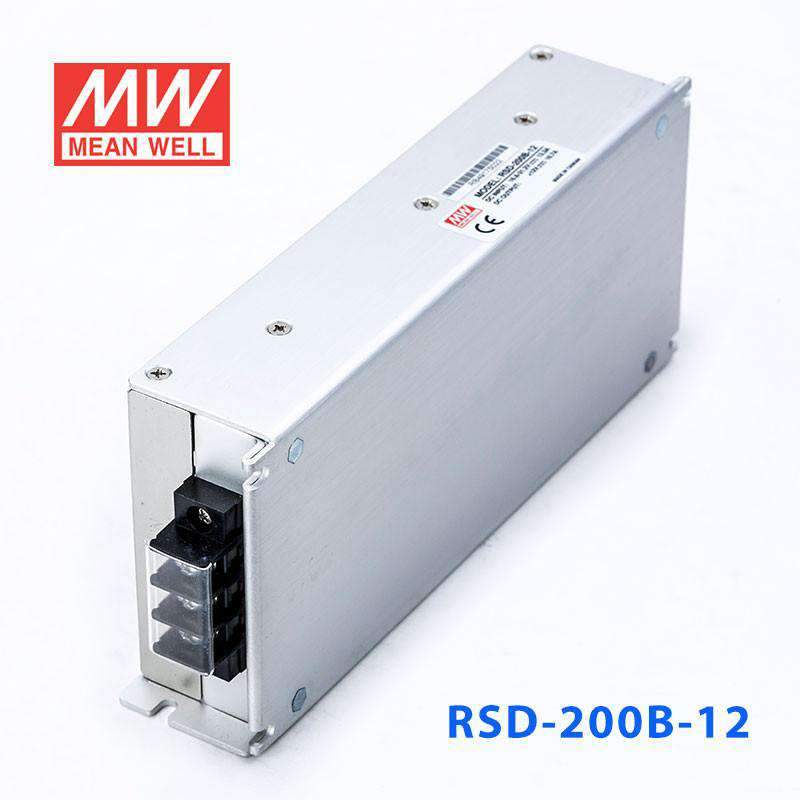

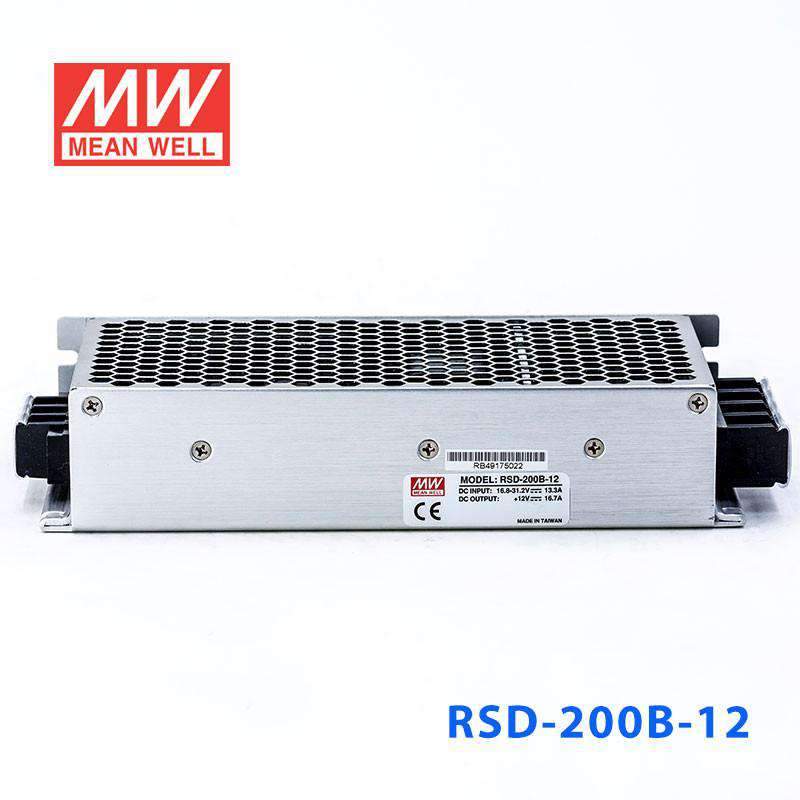

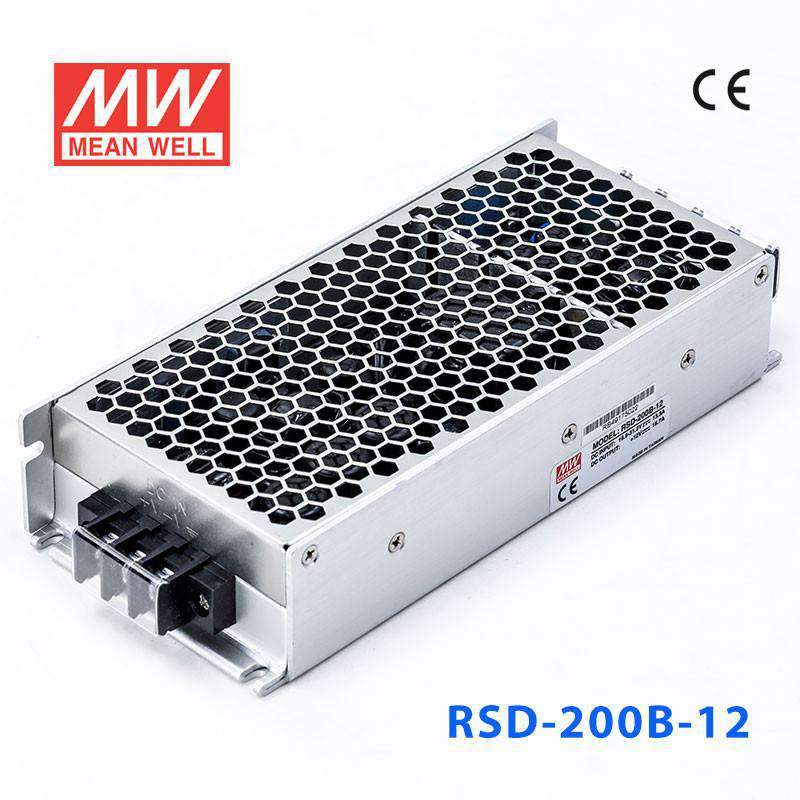

Mean Well RSD-200B-12 DC-DC Converter - 200.4W - 16.8~31.2V in 12V out 16.7A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation
SKU RSD-200B-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

RSD-200B-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 89%.

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 40mm
  • All using 105℃ long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

RSD-200B-12Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
16.7A
CURRENT RANGE
0 ~ 16.7A
RATED POWER
200.4W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS
16.8 ~ 31.2VDC
VOLTAGE RANGE 1 SEC.
14.4 ~ 33.6VDC
EFFICIENCY (Typ.)
89%
DC CURRENT (Typ.)
9.6A/24V
INRUSH CURRENT (Typ.)
45A/24VDC
INTERRUPTION OF VOLTAGE SUPPLY
EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY
5 ~ 95% RH non-condensing
STORAGE TEMP.
-40 ~ +85℃
TEMP. COEFFICIENT
± 0.03%/℃ (0 ~ 50℃ )
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE
5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL 62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD
BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC ;BS EN/EN45545-2 for fire protection

OTHERS

MTBF
2125.5K hrs min. Telcordia SR-332 (Bellcore) ; 218.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
191*86*40mm (L*W*H)
PACKING
0.94Kg; 12pcs/12.3Kg/0.73CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-200-12)
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-200B-12 Mechanical Specification
Mechanical Specification
RSD-200B-12 Block Diagram
Block Diagram
RSD-200B-12 Input Under-Voltage Protection
Input Under-Voltage Protection
RSD-200B-12 Hold-up Time
Hold-up Time
RSD-200B-12 Efficiency vs Load & Vin Curve
Efficiency vs Load & Vin Curve
RSD-200B-12 Overload Protection
Overload Protection
RSD-200B-12 LOAD(%)
LOAD(%)
RSD-200B-12 R S D - 2 0 0 series
R S D - 2 0 0 series
RSD-200B-12 EN45545-2 Fire Test Conditions
EN45545-2 Fire Test Conditions

Downloads

FAQ

Can I use the RSD-200B-12 to run a 12V industrial control panel from a low-voltage DC source?

Yes, this converter provides a constant 12V output at up to 16.7A with a 200.4W rating. Its continuous input range is 16.8 to 31.2VDC, which suits systems that need regulated 12V power from a source in that range.

Is the RSD-200B-12 suitable for 12V embedded computers or communication devices in vehicles and equipment?

It can be a fit for 12V embedded or communication equipment when the load stays within 16.7A and 200.4W. The operating temperature range of -40°C to +55°C (no derating) and the stated 5G vibration resistance make it appropriate for harsher mobile or industrial conditions.

Can this model power 12V automation accessories and control hardware from a 24V battery system?

It is designed for input from 16.8 to 31.2VDC and outputs regulated 12V, so it matches applications that derive 12V control power from nominal 24V systems within that input range. The available output is up to 16.7A, giving more headroom than lower-power 12V converters.

Is the RSD-200B-12 appropriate for centralized 12V power distribution inside an industrial cabinet?

It can support centralized 12V distribution when the connected load remains within 200.4W and 16.7A. Its compact dimensions of 191.0 × 86.0 × 40.0 mm also help when cabinet space is limited.

How does the RSD-200B-12 compare with the other RSD-200B output versions?

In the RSD-200B family, the RSD-200B-12 is 200.4W at 12V and 16.7A, the RSD-200B-24 is 201.6W at 24V and 8.4A, and the RSD-200B-48 is 201.6W at 48V and 4.2A. They share the same series platform, but the output voltage and current are different for each version.

Can the RSD-200B-12 be used outdoors or in exposed industrial areas?

The working temperature specification of -40°C to +55°C (no derating) supports use in cold and hot industrial environments. However, no IP rating is listed in the provided specs, so direct outdoor exposure should only be considered when the surrounding enclosure provides the required protection.
