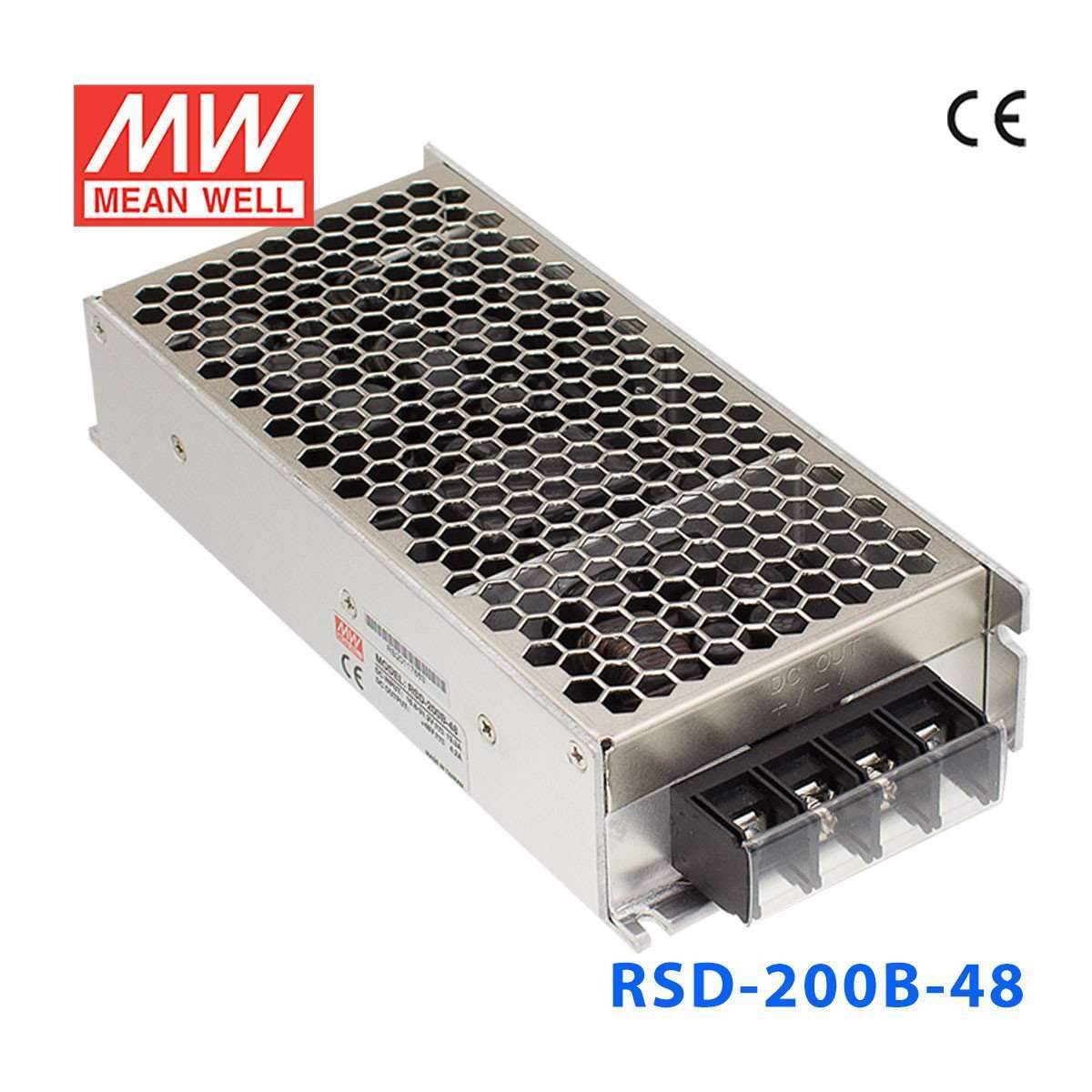

Mean Well RSD-200B-48 DC-DC Converter - 201.6W - 16.8~31.2V in 48V ...
Log in to see priceOverview
RSD-200B-48 is the 48V output model of this series: rated current 4.2A, rated power 201.6W, typical efficiency 89%.
Features
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 40mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 4.2A
- CURRENT RANGE
- 0 ~ 4.2A
- RATED POWER
- 201.6W
- RIPPLE & NOISE (max.)Note.2
- 180mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- Please refer to page 3 Hold up Time( Load de-rating curve )
INPUT
- VOLTAGE RANGE CONTINUOUS
- 16.8 ~ 31.2VDC
- VOLTAGE RANGE 1 SEC.
- 14.4 ~ 33.6VDC
- EFFICIENCY (Typ.)
- 89%
- DC CURRENT (Typ.)
- 9.6A/24V
- INRUSH CURRENT (Typ.)
- 45A/24VDC
- INTERRUPTION OF VOLTAGE SUPPLY
- EN50155:2021-Comply with S1 level
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
- WORKING HUMIDITY
- 5 ~ 95% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
- OPERATING ALTITUDE
- 5000 meters
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL 62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
- RAILWAY STANDARD
- BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC ;BS EN/EN45545-2 for fire protection
OTHERS
- MTBF
- 2125.5K hrs min. Telcordia SR-332 (Bellcore) ; 218.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 191*86*40mm (L*W*H)
- PACKING
- 0.94Kg; 12pcs/12.3Kg/0.73CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-200-12)
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RSD-200B-48 to power 48V telecom or networking equipment from a low-voltage DC source?
Yes, this model is built for a constant 48V output and can deliver up to 4.2A with a 201.6W rating. Its 16.8 to 31.2VDC continuous input range makes it suitable where a lower-voltage source must be converted to a regulated 48V rail.
Is the RSD-200B-48 suitable for 48V industrial communication devices or edge networking hardware?
It can be used for 48V communication and networking loads that stay within 4.2A and 201.6W. That makes it a practical option for systems needing stable 48V power from a source in the 16.8 to 31.2VDC range.
Can this converter support 48V control equipment in mobile or vibration-prone industrial applications?
It is intended for harsh-duty use, with an operating temperature range of -40°C to +55°C (no derating) and a feature note for withstanding 5G vibration. Those specs support use with 48V control electronics in industrial vehicles or mobile equipment when the load is within 4.2A.
Is the RSD-200B-48 a fit for compact 48V subsystems inside machinery enclosures?
It can be a fit where 48V output is needed up to 4.2A and the available source is 16.8 to 31.2VDC. Its size of 191 × 86 × 40 mm helps in machinery enclosures where power density and space both matter.
How does the RSD-200B-48 compare with the 12V and 24V versions in the same family?
In the RSD-200B series, the 12V model is 200.4W at 16.7A, the 24V model is 201.6W at 8.4A, and the 48V model is 201.6W at 4.2A. They are differentiated by output voltage and corresponding current capacity rather than by major changes in series form factor.
Can the RSD-200B-48 be used in outdoor or temperature-variable environments?
The published operating temperature range is -40°C to +55°C (no derating), extending to +70°C at 60% load by free air convection. No IP rating is listed in the provided specs, so direct exposure to rain, washdown, or dust should be managed by the enclosure rather than assumed from the converter alone.
