Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

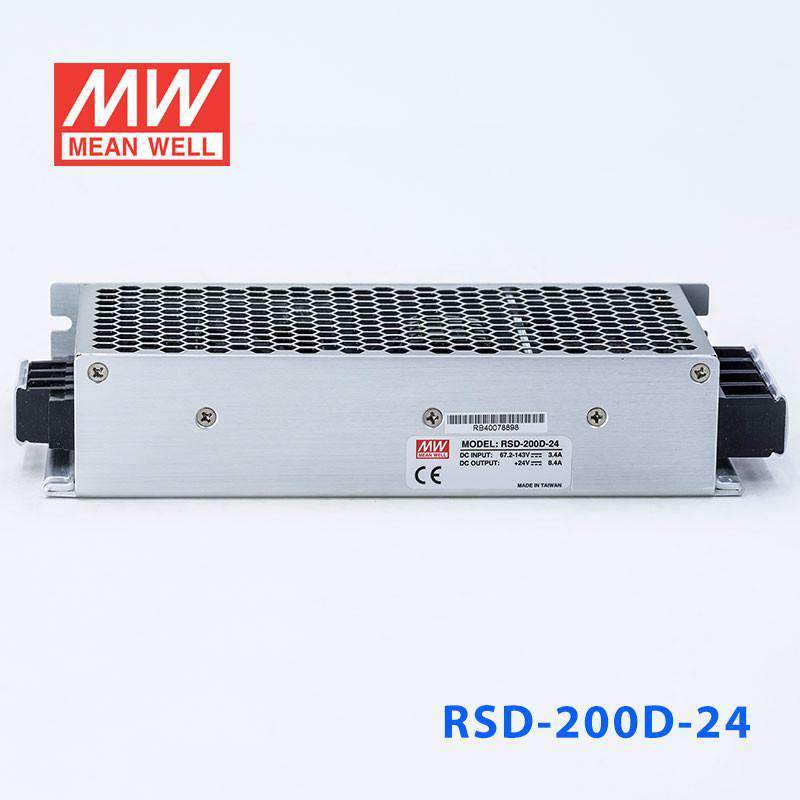

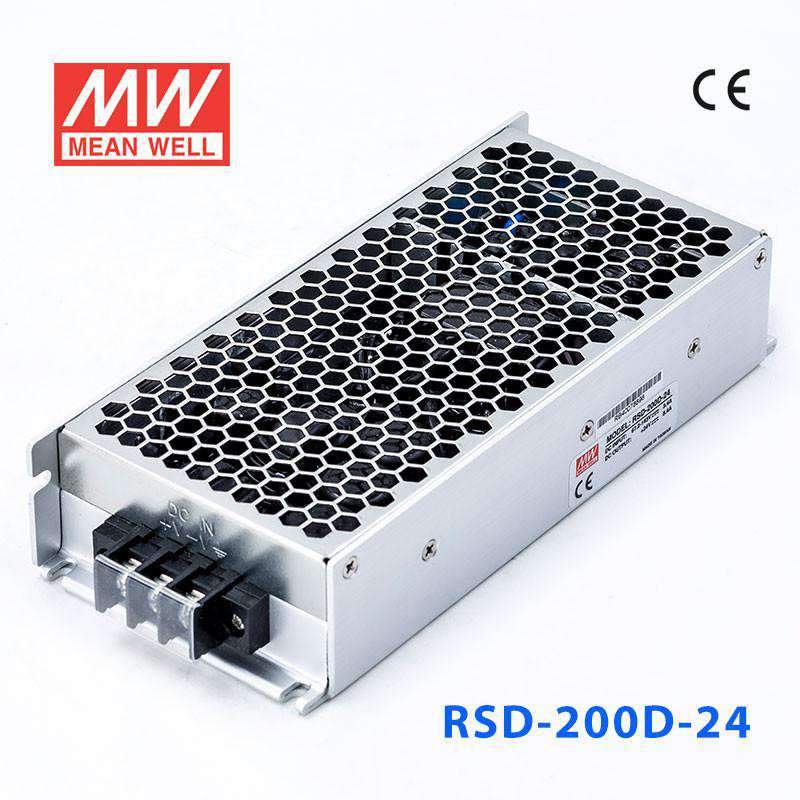

Mean Well RSD-200D-24 DC-DC Converter - 201.6W - 67.2~143V in 24V out 8.4A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RSD-200D-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RSD-200D-24 is the 24V output model of this series: rated current 8.4A, rated power 201.6W, typical efficiency 91%.

Features

Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 40mm
All using 105℃ long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

RSD-200D-24Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 8.4A
CURRENT RANGE: 0 ~ 8.4A
RATED POWER: 201.6W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 50ms at full load
HOLD UP TIME (Typ.): Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS: 67.2 ~ 143VDC
VOLTAGE RANGE 1 SEC.: 57.6 ~ 154VDC
EFFICIENCY (Typ.): 91%
DC CURRENT (Typ.): 2.1A/110V
INRUSH CURRENT (Typ.): 45A/110VDC
INTERRUPTION OF VOLTAGE SUPPLY: EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ± 0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE: 5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL 62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD: BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC ;BS EN/EN45545-2 for fire protection

OTHERS

MTBF: 2125.5K hrs min. Telcordia SR-332 (Bellcore) ; 218.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*86*40mm (L*W*H)
PACKING: 0.94Kg; 12pcs/12.3Kg/0.73CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-200-12)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-200D-24 Mechanical Specification — Mechanical Specification

RSD-200D-24 Block Diagram — Block Diagram

RSD-200D-24 Input Under-Voltage Protection — Input Under-Voltage Protection

RSD-200D-24 Efficiency vs Load & Vin Curve — Efficiency vs Load & Vin Curve

RSD-200D-24 Overload Protection — Overload Protection

RSD-200D-24 R S D - 2 0 0 series — R S D - 2 0 0 series

RSD-200D-24 EN45545-2 Fire Test Conditions — EN45545-2 Fire Test Conditions

Downloads

Certificates1

EMC Certificate(RSD-200)(EN) PDF Download

Test reports1

Test Report(RSD-200D-24)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RSD-200D-24 for 24V industrial control panels powered from a 67.2~143V DC source?

Yes, this converter provides constant 24V output and is rated for 201.6W with 8.4A available. It fits 24V industrial control applications when the source is within 67.2~143V and the connected load stays within 8.4A.

Is the RSD-200D-24 suitable for 24V automation systems on higher-voltage DC buses?

It is designed for that kind of use, since it converts a 67.2~143V input range down to regulated 24V output. The 201.6W rating makes it appropriate for 24V automation electronics, I/O hardware, and control devices that need more than a small auxiliary supply.

Would the RSD-200D-24 work for 24V HMI, industrial PC, or gateway loads?

It can support 24V HMI, gateway, and embedded control hardware as long as the combined draw does not exceed 8.4A at 24V. The constant-voltage output is the key match for equipment that expects a stable 24V DC input.

Can this model be used in rolling stock, mobile automation, or battery-backed control systems?

It is suited to higher-vibration or mobile environments because the features list 5G vibration resistance. Its 191.0 × 86.0 × 40.0 mm housing and 0.94 kg weight also make it easier to place where space is limited.

How does the RSD-200D-24 compare with the other RSD-200D output options?

The RSD-200D-12 is 200.4W at 12V and 16.7A, the RSD-200D-24 is 201.6W at 24V and 8.4A, and the RSD-200D-48 is 201.6W at 48V and 4.2A. They are close in overall power, but each version trades current for a different output voltage.

Can the RSD-200D-24 handle harsh indoor temperatures or exposed outdoor use?

Its operating temperature range is -40°C to +55°C with no derating, extending to +70°C at 60% load by free air convection. No IP rating appears in the provided specs, so direct weather exposure should not be assumed unless the converter is installed inside a suitable enclosure.
