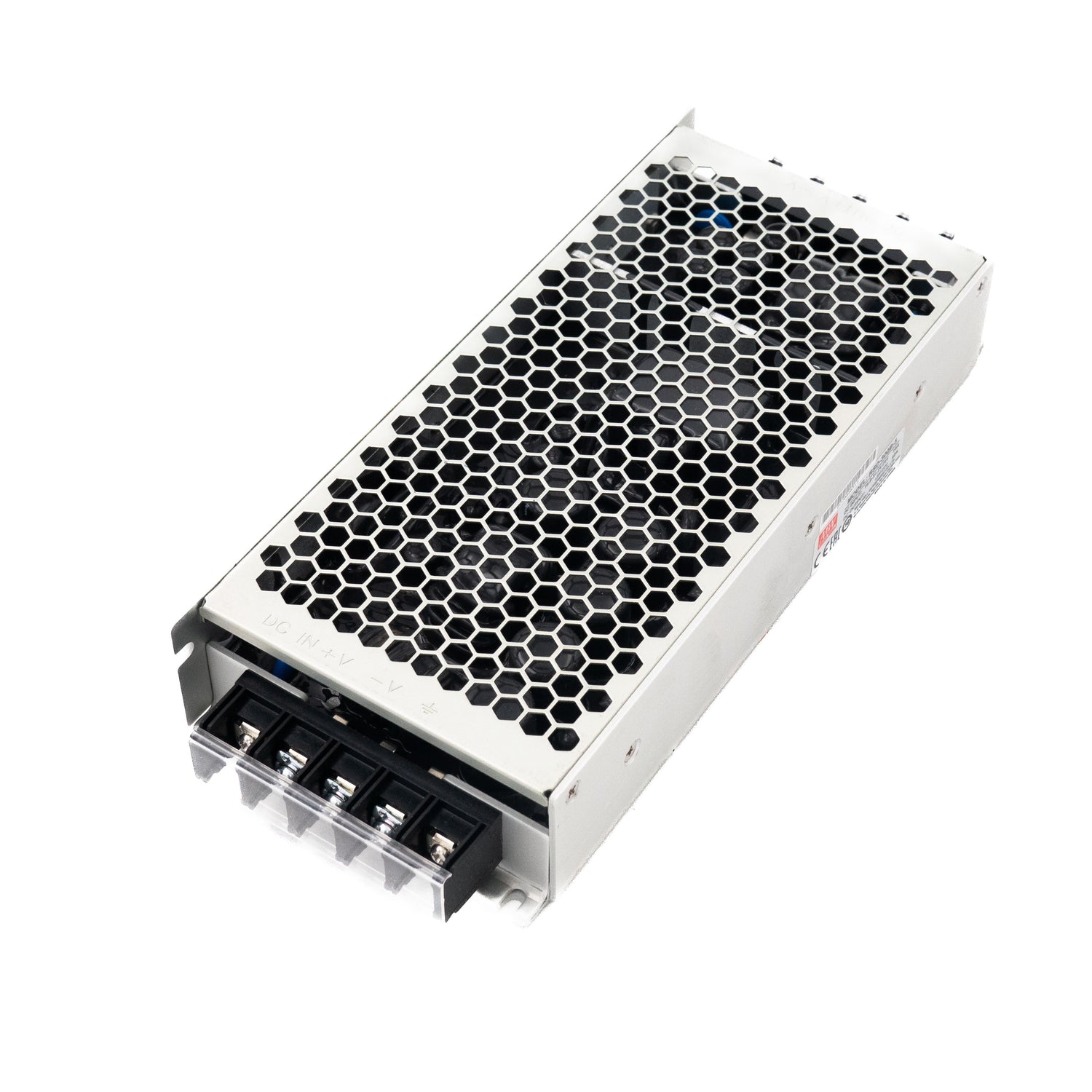

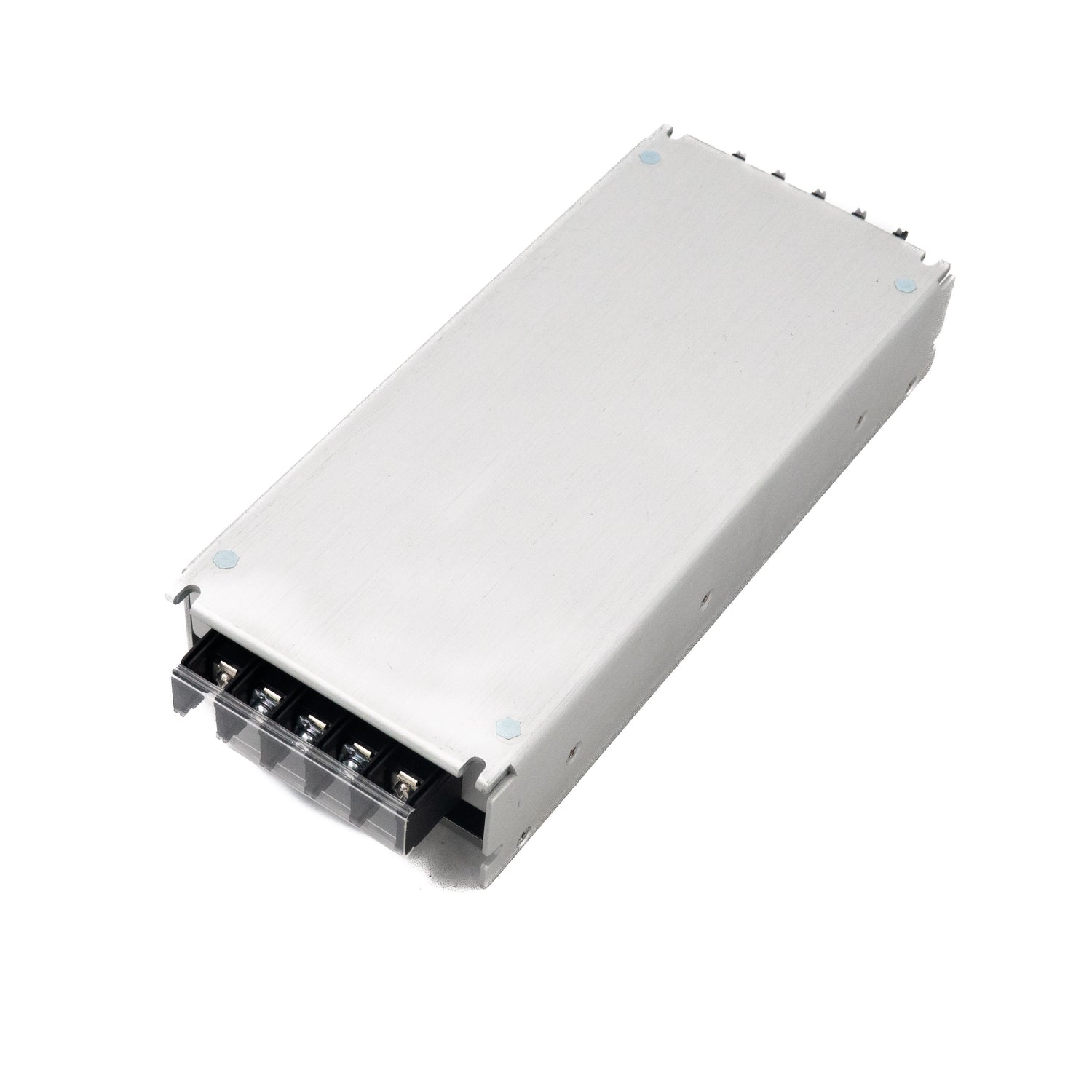

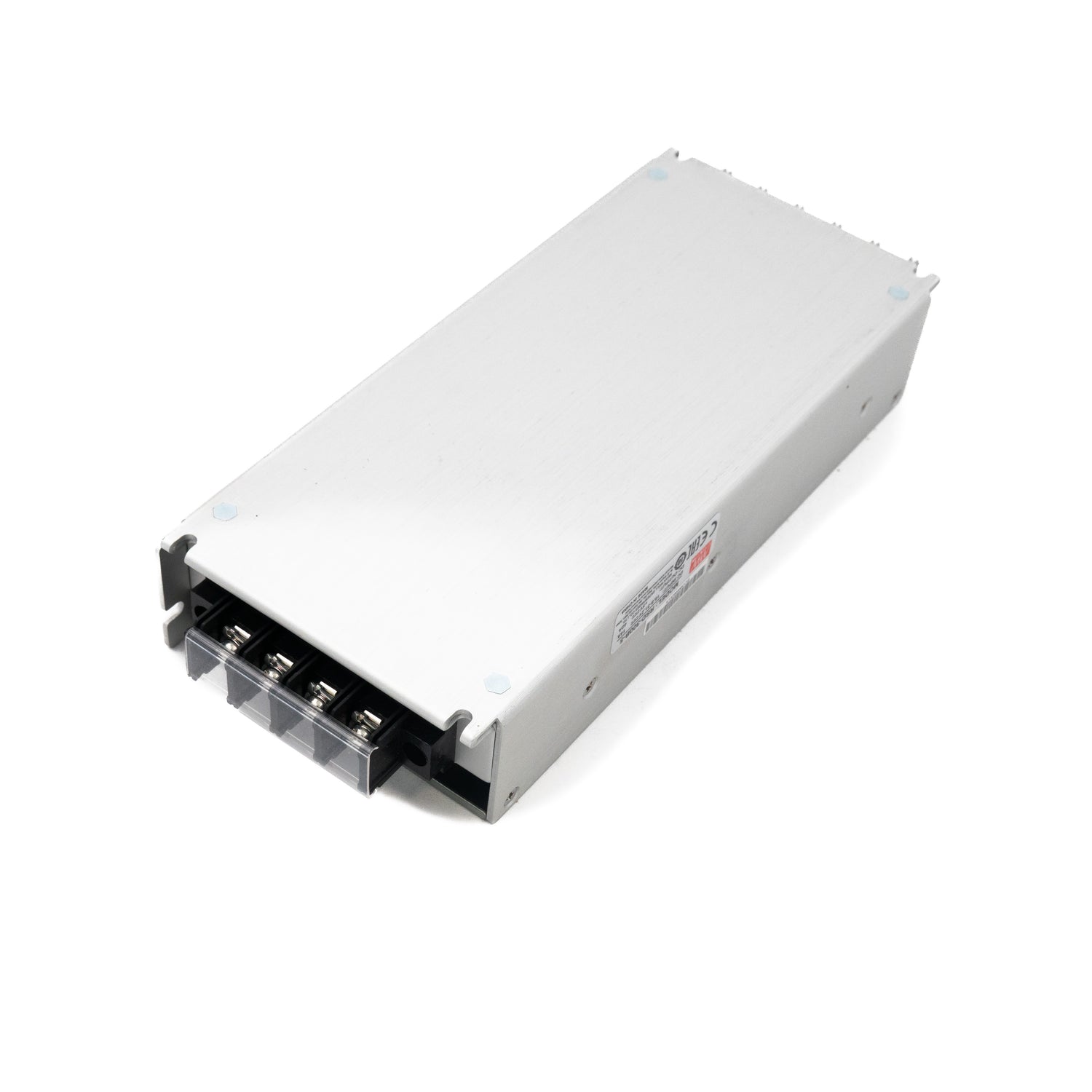

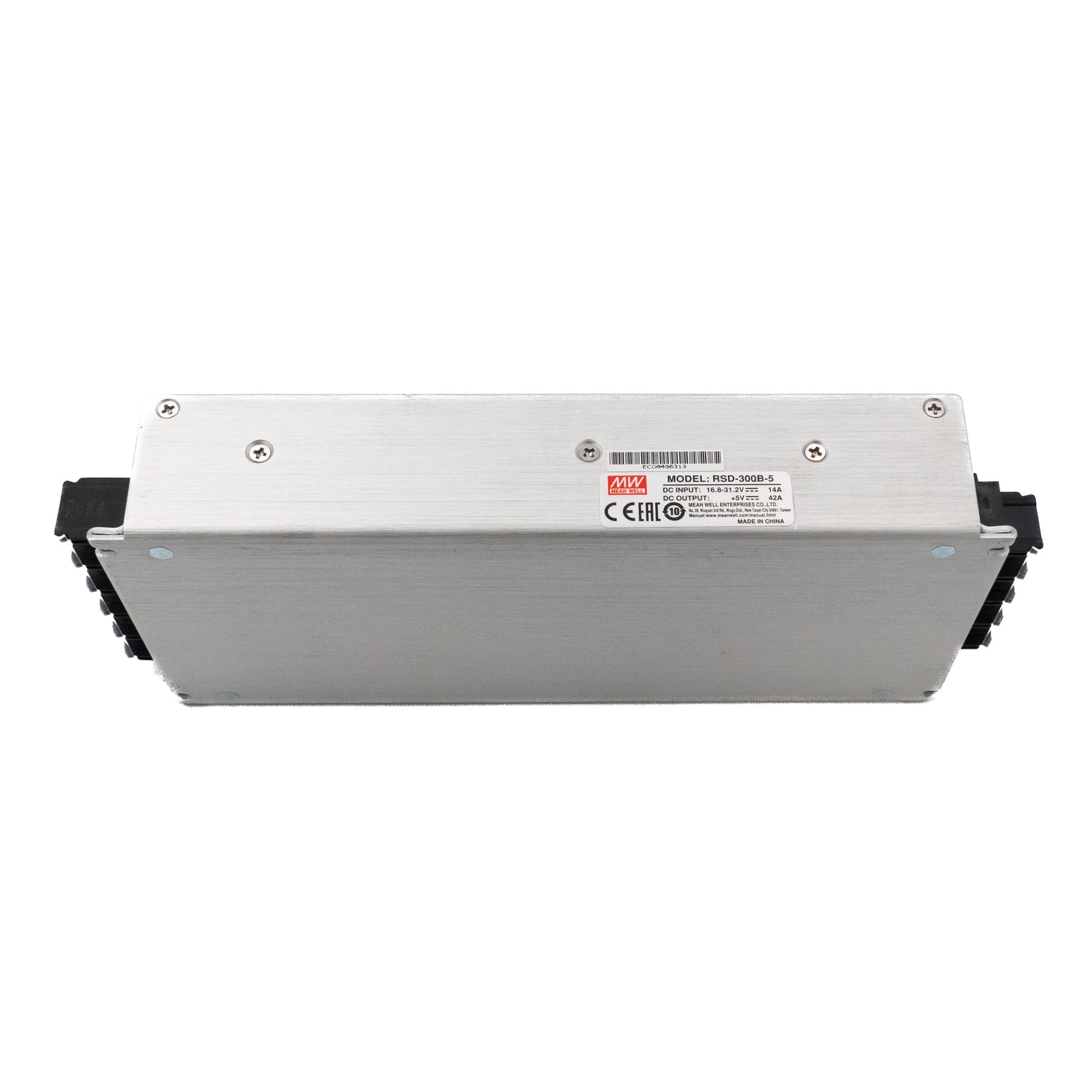

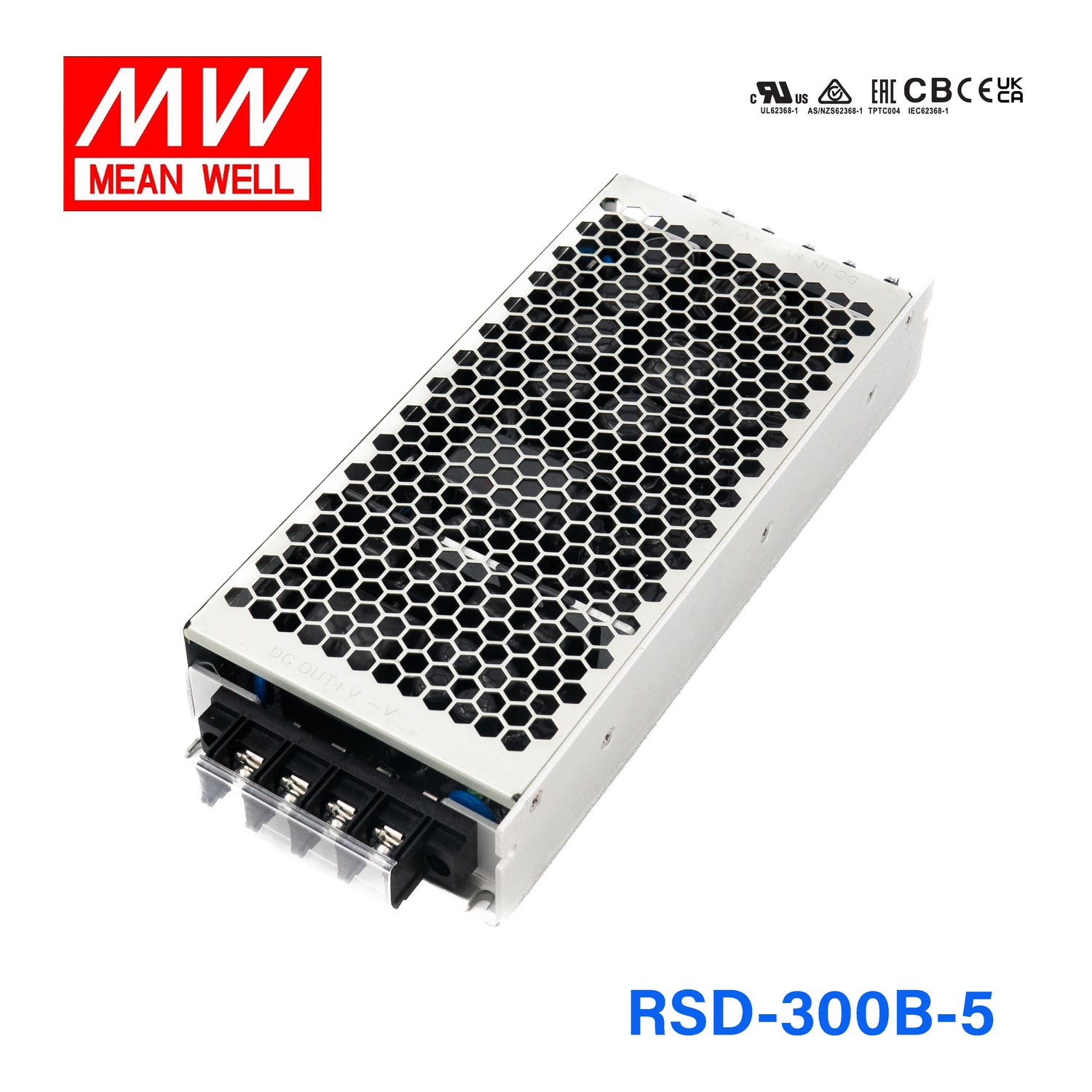

Mean Well RSD-300B-5 DC-DC Converter - 200.4W - 16.8~31.2V in 5V out 42A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation
SKU RSD-300B-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

RSD-300B-5 is the 5V output model of this series: rated current 42A, rated power 210W, typical efficiency 89%.

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 40mm
  • All using 105℃ long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

RSD-300B-5Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
42A
CURRENT RANGE
0 ~ 42A
RATED POWER
210W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
Please refer to page 5,6 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS
16.8 ~ 31.2VDC
VOLTAGE RANGE 1 SEC.
14.4 ~ 33.6VDC
EFFICIENCY (Typ.)
89%
DC CURRENT (Typ.)
9.7A/24V
INRUSH CURRENT (Typ.)
45A/24VDC
INTERRUPTION OF VOLTAGE SUPPLY
EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY
5 ~ 95% RH non-condensing
STORAGE TEMP.
-40 ~ +85℃
TEMP. COEFFICIENT
± 0.03%/℃ (0 ~ 55℃ )
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE
5000 meters

SAFETY & EMC (Note 5)

SAFETY STANDARDS
IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD
BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection

OTHERS

MTBF
1850.1K hrs min. Telcordia SR-332 (Bellcore) ; 130.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
216*96.5*40mm (L*W*H)
PACKING
1.19Kg ; 12pcs/15.3Kg/0.97CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-300-5 / -12)
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-300B-5 Mechanical Specification
Mechanical Specification
RSD-300B-5 Block Diagram
Block Diagram
RSD-300B-5 Input Under-Voltage Protection
Input Under-Voltage Protection
RSD-300B-5 Hold-up Time
Hold-up Time
RSD-300B-5 Efficiency vs Load & Vin Curve
Efficiency vs Load & Vin Curve
RSD-300B-5 RSD-300E-5
RSD-300E-5
RSD-300B-5 RSD-300E-48
RSD-300E-48
RSD-300B-5 Parallel and Series Connection
Parallel and Series Connection
RSD-300B-5 supplier if you have this kind of application.
supplier if you have this kind of application.
RSD-300B-5 supplier if you have this kind of application. (2)
supplier if you have this kind of application. (2)
RSD-300B-5 Overload Protection
Overload Protection
RSD-300B-5 Derating Curve
Derating Curve
RSD-300B-5 R S D - 3 0 0 series
R S D - 3 0 0 series
RSD-300B-5 R S D - 3 0 0 series (2)
R S D - 3 0 0 series (2)
RSD-300B-5 LOAD(%)
LOAD(%)
RSD-300B-5 Immunity to Environmental Conditions
Immunity to Environmental Conditions

Downloads

FAQ

Can I use the RSD-300B-5 for 5V embedded computers and industrial controller boards?

Yes, it provides a constant-voltage 5V output for equipment that requires a regulated 5V rail. It can deliver up to 42A and 210W from a 16.8~31.2V input source.

Is this a good fit for high-current 5V logic, gateway, or edge-computing loads?

It is suited to 5V loads that need more current than smaller converters can provide, up to 42A and 210W. That makes it relevant for dense 5V embedded or processing hardware on DC-powered systems.

Can the RSD-300B-5 support multiple 5V modules in one industrial system?

Yes, if the total 5V demand of all modules stays within 42A and 210W. The constant-voltage output is intended for grouped 5V electronics that share the same regulated supply requirement.

Is this converter appropriate for mobile or vibration-prone embedded equipment?

It can fit mobile embedded applications that need 5V output and remain within 42A and 210W. The specs list 5G vibration resistance and operation at -40C to +55C full load, up to +70C at 60% load or at full load with an external base plate.

Can this model be used in outdoor or unsealed environments?

The operating range is -40C to +55C at full load, up to +70C at 60% load by free-air convection, or +70C at full load with an external base plate; -40C to +85C is the storage range. No IP rating is listed in the provided specs, so the environmental sealing level is not defined here.
