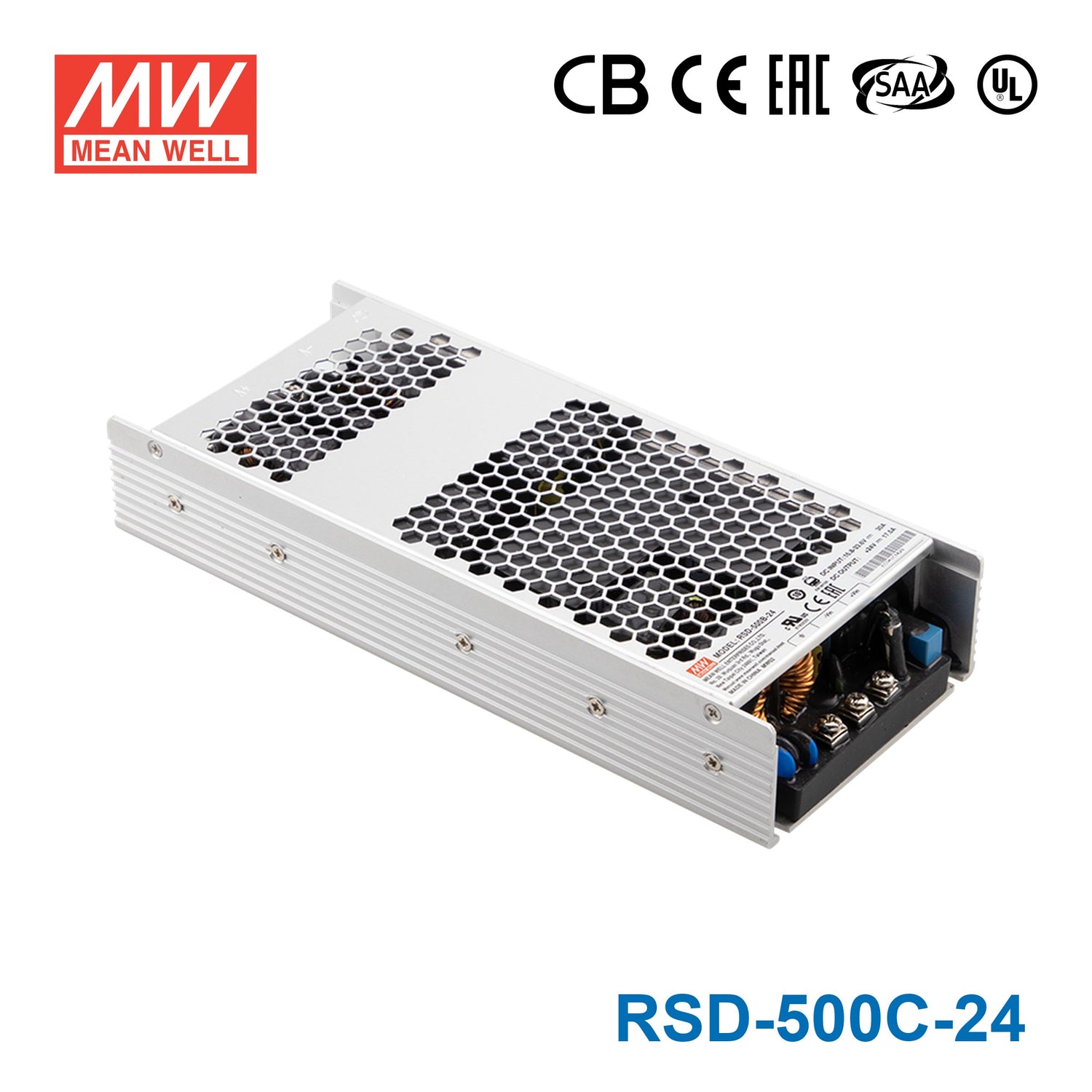

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well RSD-500C-24 DC-DC Converter - 460.8W 33.6-67.2V DC in 48V out 19.2A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU:

RSD-500C-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RSD-500C is a 500W Mean Well power converter (input range: 16.8~33.6Vdc, operating temperature: -40~+80℃).

Key Features

✓ Input voltage range: 16.8~33.6Vdc
✓ DC output voltage adjustable ±10%
✓ 4KVdc reinforced I/O isolation
✓ Wide operating temperature: -40~+80℃
✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the RSD-500C-24 for 24V automation and control systems fed from a 33.6-67.2V DC bus?

Yes. The RSD-500C-24 is a constant-voltage DC-DC converter with a 33.6-67.2V DC input range and a regulated 24V output. Its 460.8W rating and 19.2A output current suit higher-load 24V automation equipment within those limits.

Is this model suitable for 24V industrial networking or embedded equipment with higher current draw?

It can be a fit for 24V embedded or industrial electronic loads that need constant-voltage output and remain within 19.2A and 460.8W. Compared with lower-power 24V models in the series, it provides more available current for heavier DC loads. The compact 237.0 × 100.0 × 41.0 mm package can also be useful in dense equipment layouts.

Can the RSD-500C-24 be used in battery-backed 24V control cabinets or mobile equipment?

Yes, if the source is within 33.6-67.2V DC and the 24V load stays within 460.8W and 19.2A. The feature set includes 5G vibration resistance, which is relevant for mobile or vibration-prone equipment. It is designed for constant-voltage 24V output rather than variable-output applications.

Is the RSD-500C-24 appropriate for harsh-temperature or outdoor environments?

The converter is rated for -40°C to +80°C operation, and the feature list includes 70°C operation. That supports use where ambient temperatures vary widely. No IP rating is listed, so the published specs do not confirm suitability for direct outdoor exposure.

How does the RSD-500C-24 compare with the other 24V models in the RSD 500 series?

The 24V models in the 500 series are RSD-500B-24 at 420W, 24V, and 17.5A, RSD-500C-24 at 460.8W, 24V, and 19.2A, and RSD-500D-24 at 499.2W, 24V, and 20.8A. All are 24V constant-voltage models, but their power and output current ratings increase across those three versions. That is the main spec-level difference in the sibling set.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well RSD-500C-48 DC-DC Converter - 460.8W 33.6-67.2V DC in 48V out 9.6A	460.8W	48V	9.6A	Indoor	View
Mean Well RSD-500C-12 DC-DC Converter - 420W 33.6-67.2V DC in 12V out 35A	420W	12V	35A	Indoor	View
