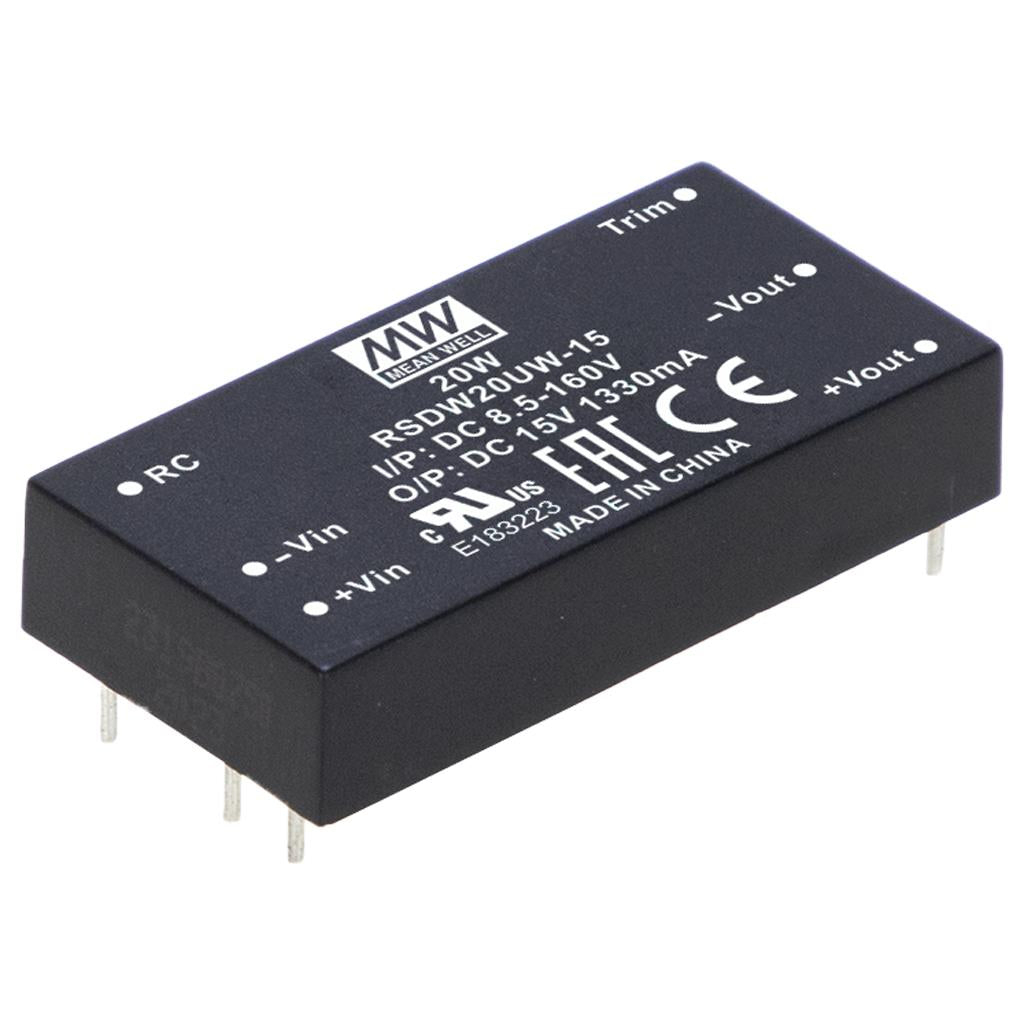

Mean Well RSDW20UW-15 Ultra-wide input DC/DC LED Driver 20W 15V - Heavy Duty 1.33A

compliance with EN50155 and EN45545 railway standards2:1 or 4:1 wide input rangeisolation 4000VDC1U low profilehalf encapsulated

SKU RSDW20UW-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RSDW20UW-15 is the 15V output model of this series: rated power 20W, typical efficiency 89%.

RSDW20UW and RDDW20UW series are 20W module type DC-DC reliable railway converter with 2"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+95℃, 3KVAC I/P-O/P isolation voltage, meet EN50155 with external circuits, continuous-mode short circuit protection, etc. The models account for 8.5~160VDC 18:1 ultra-wide input range, and various output voltage, 5V/12V/15V for single output and ±12V/±15V/±24V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Features

Compliance with railway standard EN50155
DIP 2"x1" package with standard pinout
18:1(8.5~160Vdc) ultra-wide input range
Wide operating temperature range -40 ~ +95℃
No minimum load required
Full encapsulated
Protections: Short circuit (Continuous) / Overload / Over Voltage / Input under voltage
3KVAC I/O isolation
Operating altitude up to 5000 meters (Note.5)
Remote ON/OFF control
3 years warranty

Specifications

RSDW20UW-15Specifications from the official datasheet (2024-11-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V,24V,48V,72V,96V,110V (8.5 ~ 160V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 312mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 1330mA
EFFICIENCY (Typ.): 89%
CAPACITOR LOAD (MAX.)^{* For each output}: 2200μF

INPUT

VOLTAGE RANGE: 8.5 ~ 160Vdc
SURGE VOLTAGE (100ms max.): 200Vdc
FILTER: Pi type
PROTECTION: 4A fast acting fuse

OUTPUT

VOLTAGE ACCURACY: ±1.0%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.3%, Dual output models:±1%
CROSS REGULATION: ±5% @ 25%~100% load
SWITCHING FREQUENCY (Typ.): 200KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): -20% ~ +15% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 180% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 9Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 8Vdc

FUNCTION

REMOTE CONTROL: Power ON: >4.0~160Vdc or open circuit Power OFF: <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max. (+110℃ thermal shutdown)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 95℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.5: 5000 meters

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 20pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN50121-3-2 Class A/B with external components
Radiated BS EN/EN50121-3-2 N/A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, ±6KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 80~1000MHz, 20V/m
EFT/Bursts BS EN/EN61000-4-4 Level 3, On power input port,±2KV external input capacitor required
Surge BS EN/EN61000-4-5 Level 4, Line to earth, ±4KV Line to Line, ±2KV
Conducted BS EN/EN61000-4-6 Level 3, 0.15~80MHz, 10V
RAILWAY STANDARD: EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC

Parameter	Standard	Test Level
Conducted	BS EN/EN50121-3-2	Class A/B with external components
Radiated	BS EN/EN50121-3-2	N/A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, ±6KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 80~1000MHz, 20V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 3, On power input port,±2KV external input capacitor required
Surge	BS EN/EN61000-4-5	Level 4, Line to earth, ±4KV Line to Line, ±2KV
Conducted	BS EN/EN61000-4-6	Level 3, 0.15~80MHz, 10V

OTHERS

MTBF: 1570Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 50.8*25.4*10.2mm (2*1*0.4 inch)
CASE MATERIAL: Black coated copper with Non-Conductive Base
PACKING: 35g ; 12pcs/per tube, 300pcs/25 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(72Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The ambient temperature derating of 3.5℃/1000m for operating altitude higher than 2000m(6500ft).
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

RSDW20UW-15 Illustration (page 4) — Illustration (page 4)

RSDW20UW-15 Table 1 – The typical value of Rtrim-up — Table 1 – The typical value of Rtrim-up

RSDW20UW-15 Table 2 – The typical value of Rtrim-down — Table 2 – The typical value of Rtrim-down

RSDW20UW-15 Mechanical Specification — Mechanical Specification

RSDW20UW-15 EMC Suggestion Circuit — EMC Suggestion Circuit

Typical applications

Bus, tram, metro or railway system
Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Downloads

Certificates5

Mean Well RSDW20UW-RDDW20UW-EMC(50155) Certificate PDF Download

Mean Well RSDW20UW-RDDW20UW-CE-dec Certificate PDF Download

Mean Well RSDW20UW-RDDW20UW-EMC (55032) Certificate PDF Download

Mean Well RSDW20UW-RDDW20UW-LVD Certificate PDF Download

Mean Well RSDW20UW-RDDW20UW-UK-dec Certificate PDF Download

FAQ

Can I use the RSDW20UW-15 for 15V LED modules in rail or transit equipment?

Yes, this model is a 15V constant-voltage DC/DC converter rated for 20W and 1.33A. Its features list compliance with EN50155 railway standards, along with 3KVAC isolation and an 8.5~160VDC ultra-wide input range, which makes it suitable for rail-related 15V lighting applications that fit within those electrical limits.

Is this a good fit for compact embedded or industrial control assemblies that need 15V power?

It can fit compact 15V embedded or industrial assemblies when the load stays within 20W and 1.33A. The 2"x1" low-profile, fully encapsulated construction and 50.8 x 25.4 x 10.2 mm size support use where board space and height are limited.

Can the RSDW20UW-15 power 15V inspection or machine-status lighting in automation equipment?

It is suitable for 15V constant-voltage lighting loads up to 20W total. The wide operating temperature range of -40C to +95C also supports use in industrial equipment that sees large ambient temperature swings.

Is the RSDW20UW-15 suitable for outdoor or washdown environments?

The provided specifications list an operating temperature range of -40C to +95C, but they do not include an IP rating. Because the construction is described as fully encapsulated, it is better suited to protected equipment spaces unless the overall system enclosure provides the needed environmental protection.

How does the RSDW20UW-15 compare with the other RSDW20UW models?

Within the listed siblings, the RSDW20UW-05 is 20W at 5V and 4A, the RSDW20UW-12 is 20W at 12V and 1.67A, and the RSDW20UW-15 is 20W at 15V and 1.33A. The main difference is the output voltage and corresponding output current, while all three are in the same 20W family.
