Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

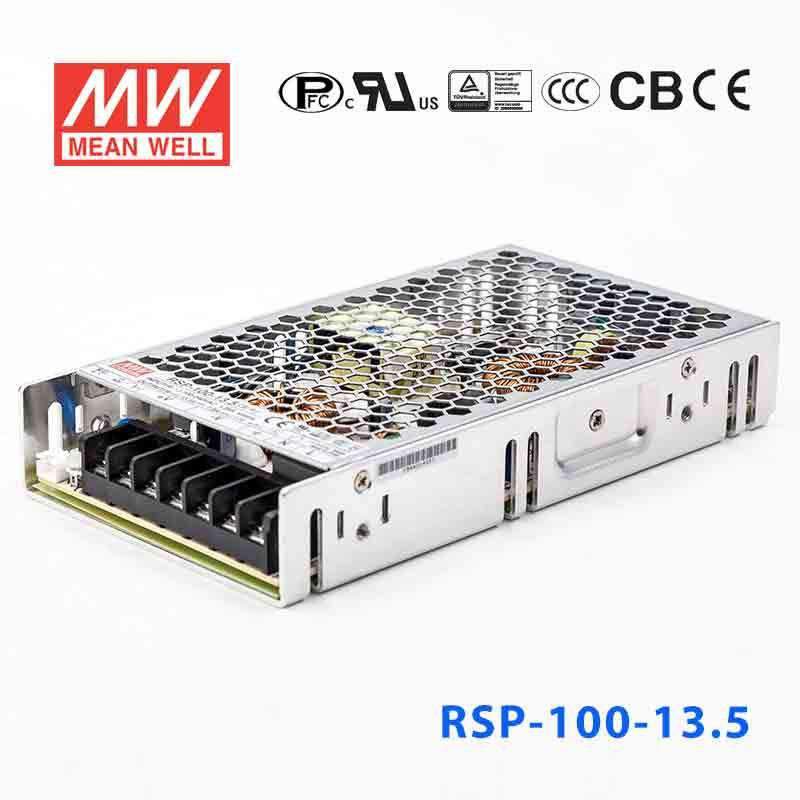

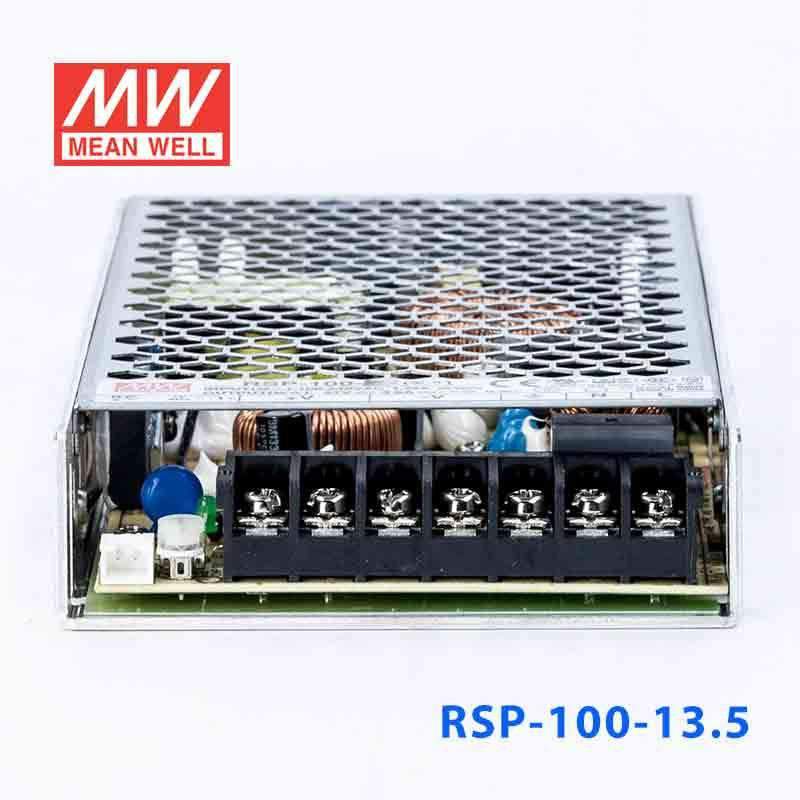

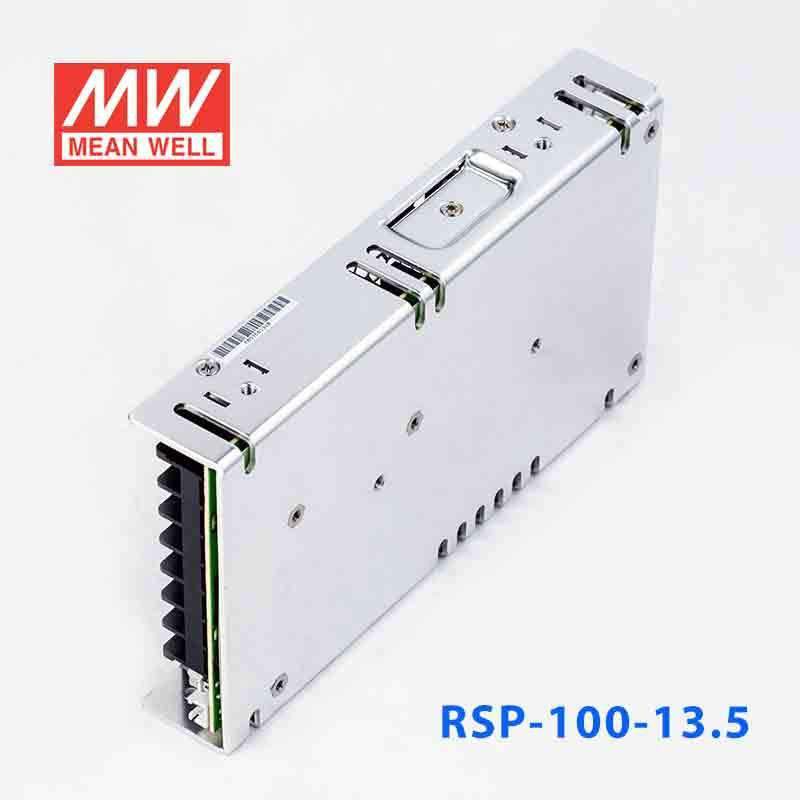

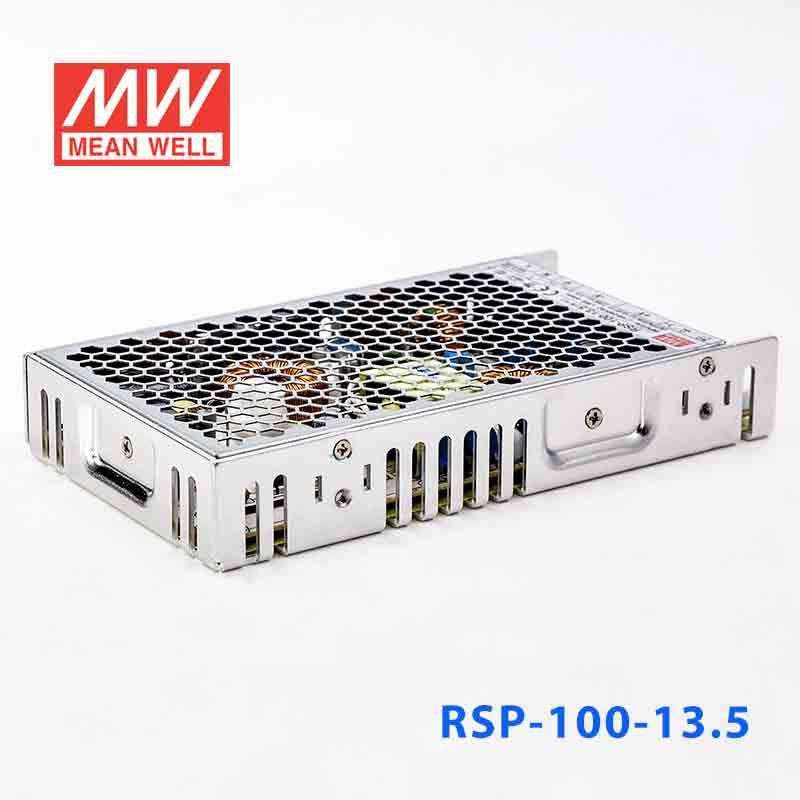

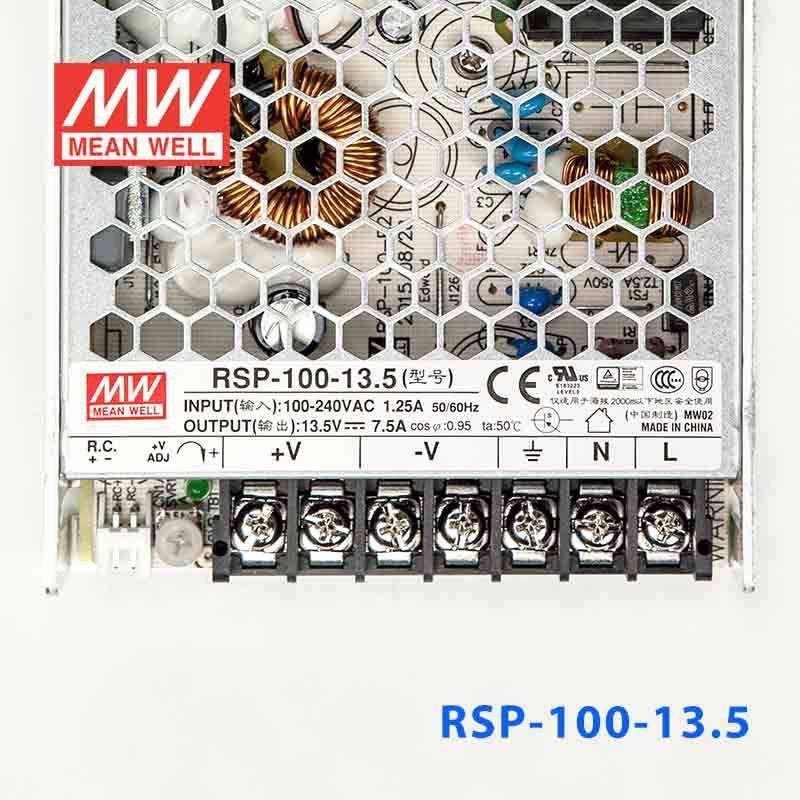

Mean Well RSP-100-13.5 Power Supply 100W 13.5V 7.5A

1U low profile with active PFChigh efficiency

SKU RSP-100-13.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

RSP-100-13.5

RSP-75-13.5 75W 13.5V Backorder

RSP-100-13.5 100W 13.5V Backorder

RSP-150-13.5 150W 13.5V Low stock

RSP-200-13.5 200W 13.5V Backorder

RSP-320-13.5 320W 13.5V Backorder

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage / Over temperature
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Frequently Asked Questions

What applications is the RSP-100-13.5 designed for?

The RSP-100-13.5 provides 13.5V at 7.5A (101.25W) and is suited for applications that require a nominal 13.5V DC bus, such as battery charger front-ends for 12V lead-acid systems, telecom auxiliary circuits, and certain embedded control boards. Its 85–264VAC input range allows use on any standard AC supply.

How does the RSP-100-13.5 compare to the RSP-100-12 and RSP-100-15?

The RSP-100-12 outputs 12V at 8.5A (102W), the RSP-100-13.5 outputs 13.5V at 7.5A (101.25W), and the RSP-100-15 outputs 15V at 6.7A (100.5W). All three share the same 179.0 × 99.0 × 30.0 mm form factor, 85–264VAC input, and -30°C to +70°C operating range. The RSP-100-13.5 is the only model at 13.5V in this wattage class.

Is the RSP-100-13.5 safe for use in temperature-controlled environments from -30°C?

Yes. The RSP-100-13.5 is rated to operate from -30°C to +70°C, making it suitable for cold-storage control systems, outdoor enclosures with supplemental heating, and northern-climate industrial panels. As the unit has no IP rating, it should be placed in a dust- and moisture-protected enclosure.

Can the RSP-100-13.5 share a rack space with other 1U power supplies?

At 179.0 × 99.0 × 30.0 mm and 0.52 kg, the RSP-100-13.5 occupies a standard 1U rack height. It can be mounted alongside other 1U equipment in standard 19-inch cabinets, provided adequate spacing for cooling airflow is maintained.

Which certifications does the RSP-100-13.5 carry for international deployment?

The RSP-100-13.5 is certified under BSMI, CB, CCC, CE, EAC, TÜV, and UL. These marks cover Taiwan, international CB scheme, China, European Union, Eurasian Economic Union, Germany/TÜV, and North America, supporting global product approvals.
