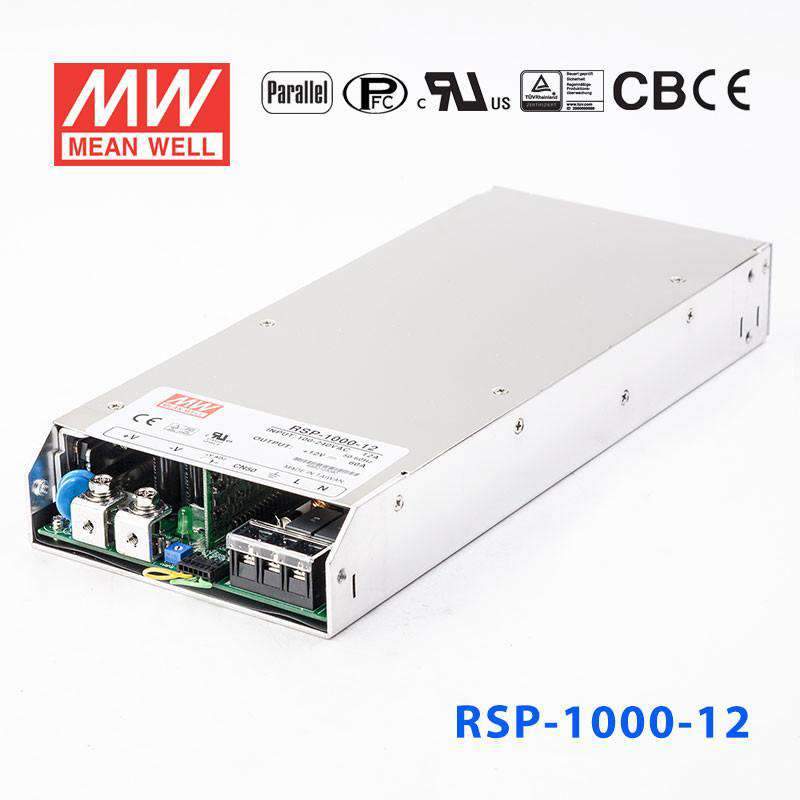

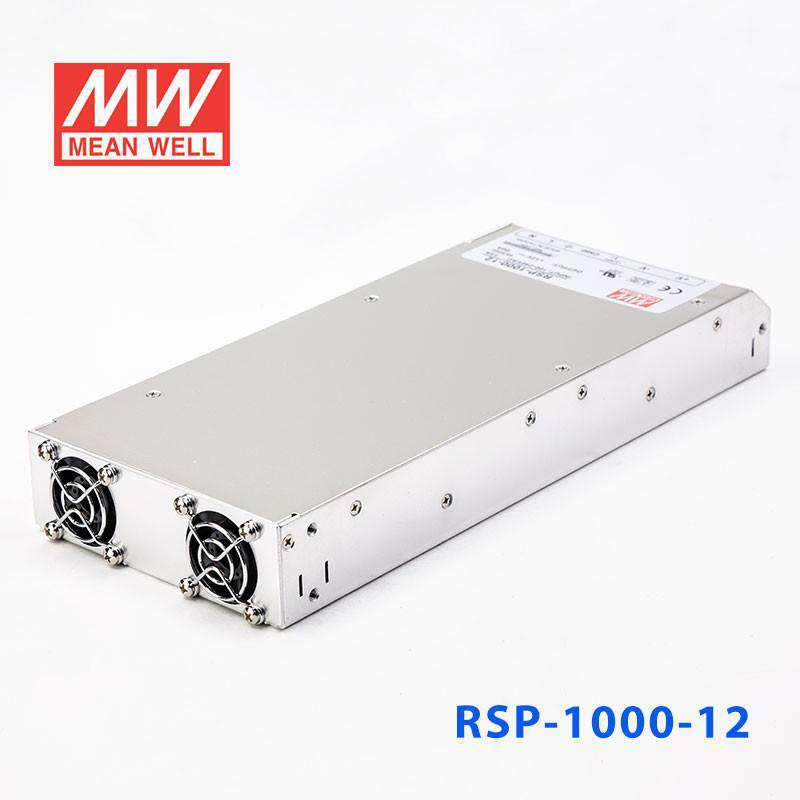

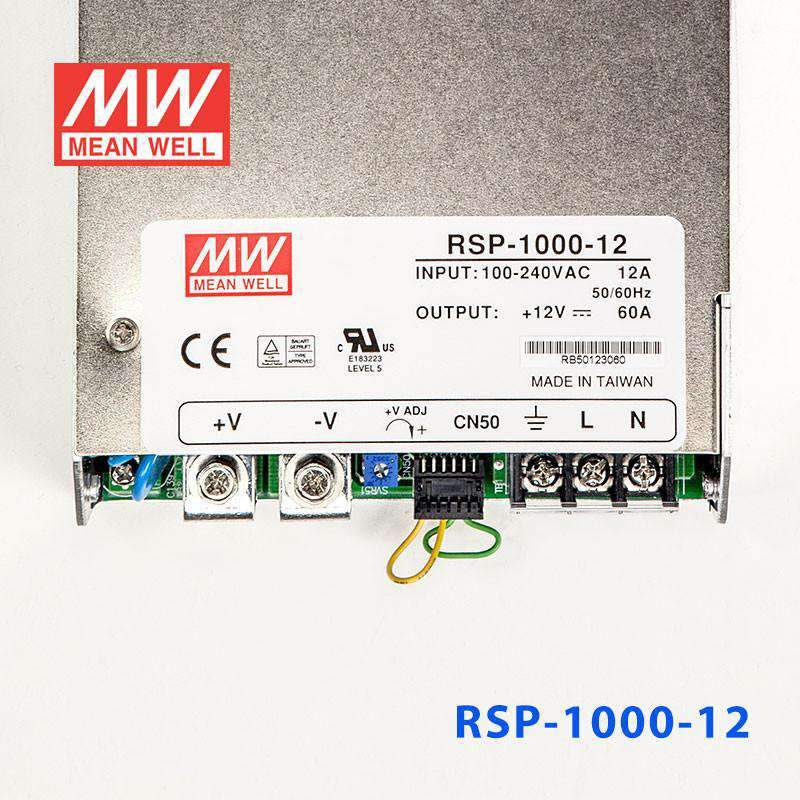

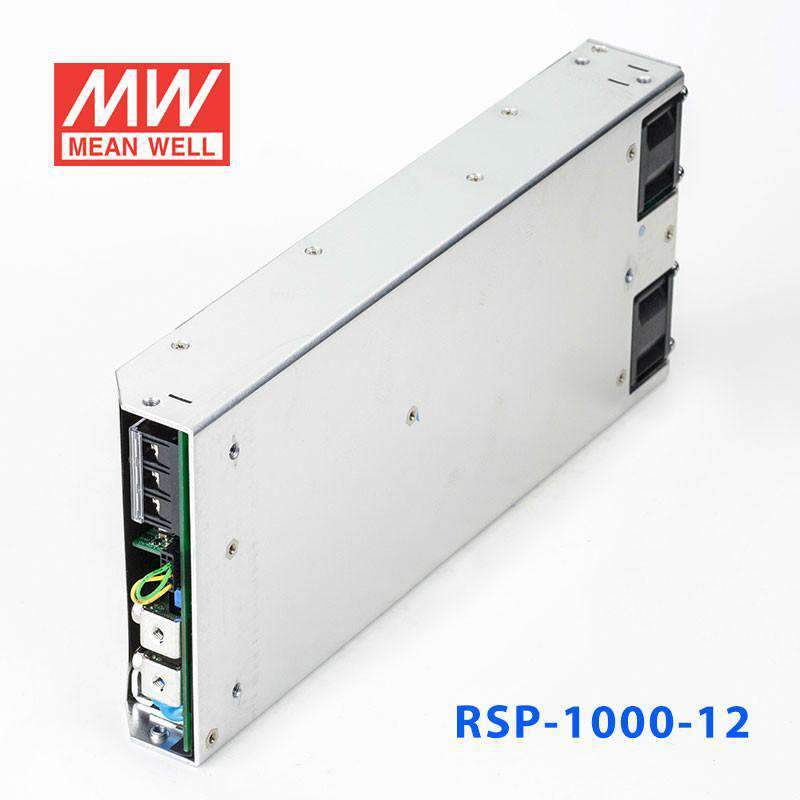

Mean Well RSP-1000-12 Power Supply 720W 12V - Best Prices!

The RSP-1000 is a 720W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+60°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 12V
✓ Rated output current: 60A
✓ Operating temperature: -20~+60°C
✓ Active PFC — meets international energy efficiency standards
✓ Safety certifications: BSMI, CB, CCC, CE, EAC, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What high-power industrial applications is the RSP-1000-12 suited for?

The RSP-1000-12 delivers 12V at 60A (720W) and is designed for high-current 12V DC bus applications including industrial machine control systems, multi-axis motion controllers, large relay panels, and centralized 12V distribution in automation cells. The 90–264VAC input supports worldwide single-phase supply.

What does the active current sharing (3+1) feature mean for the RSP-1000-12?

Active current sharing (3+1) means up to three RSP-1000-12 units can operate in parallel to triple the output current to 180A while a fourth unit can serve as a hot standby for N+1 redundancy. This allows the system to sustain 60A per operating unit with automatic load balancing, improving both capacity and reliability.

How does the RSP-1000-12 compare to the other RSP-1000 voltage variants?

The RSP-1000 series is available in five voltage options: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). All share the same 295.0 × 127.0 × 41.0 mm form factor, 90–264VAC input, -20°C to +60°C operating range, and 5-year warranty. The 12V variant provides the highest current at 60A.

What is the operating temperature range of the RSP-1000-12 and how does it affect deployment?

The RSP-1000-12 operates from -20°C to +60°C ambient. Note that the upper limit is +60°C rather than the +70°C found in smaller RSP-100/150/200 models. In higher ambient environments, ensure the enclosure provides adequate cooling to keep ambient at or below +60°C for this unit.

Does the RSP-1000-12 include active PFC and how efficient is it?

Yes. The RSP-1000-12 includes built-in active PFC and achieves up to 91% efficiency. This means at full 720W output, input losses are approximately 79W, reducing heat dissipation and lowering operating costs compared to lower-efficiency supplies at this power level.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-1000-24 Power Supply 960W 24V 40A	960W	24V	40A	View
