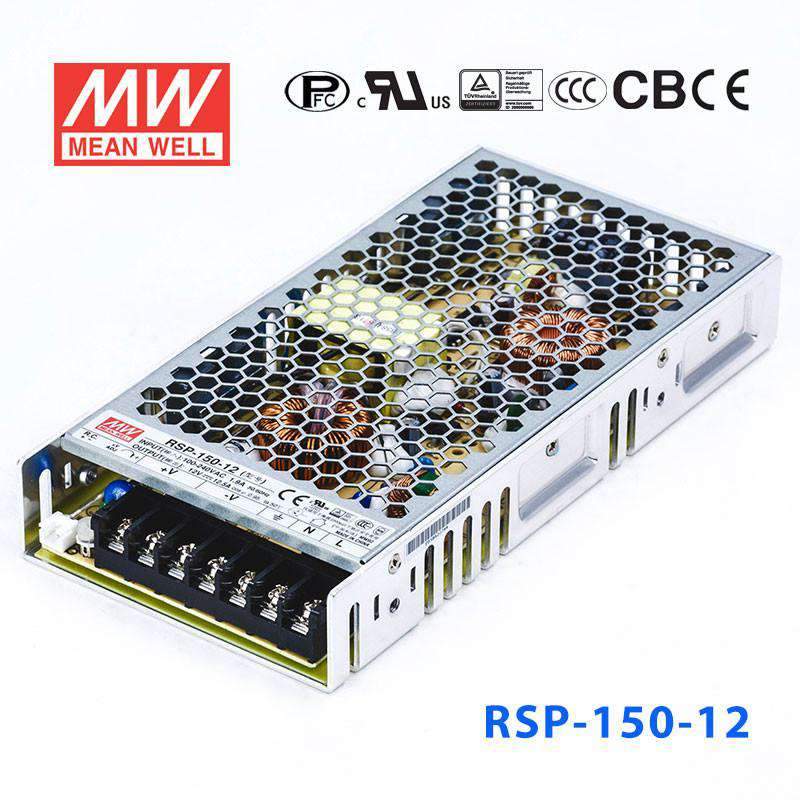

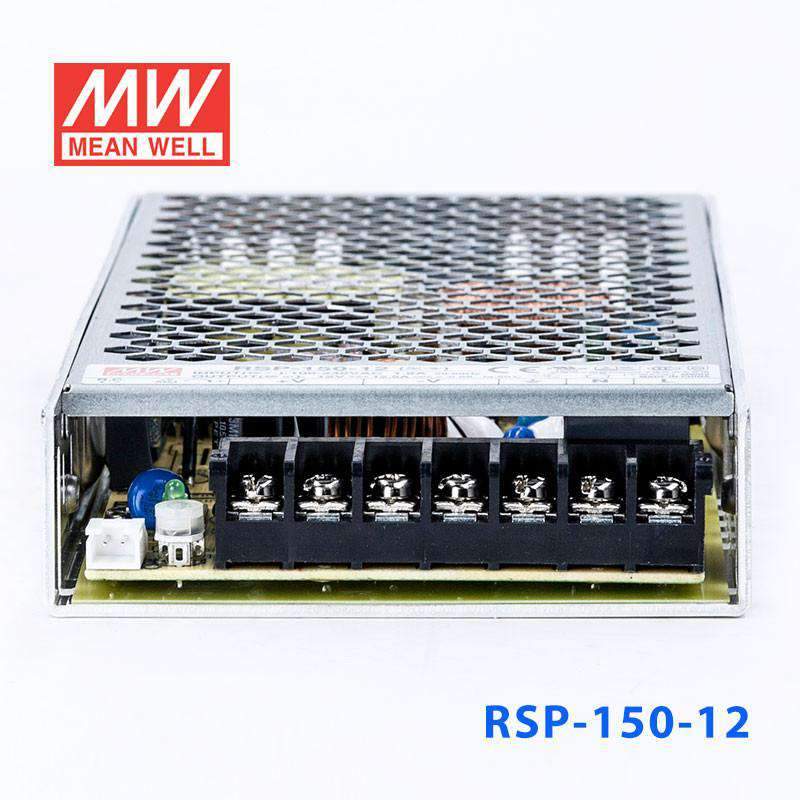

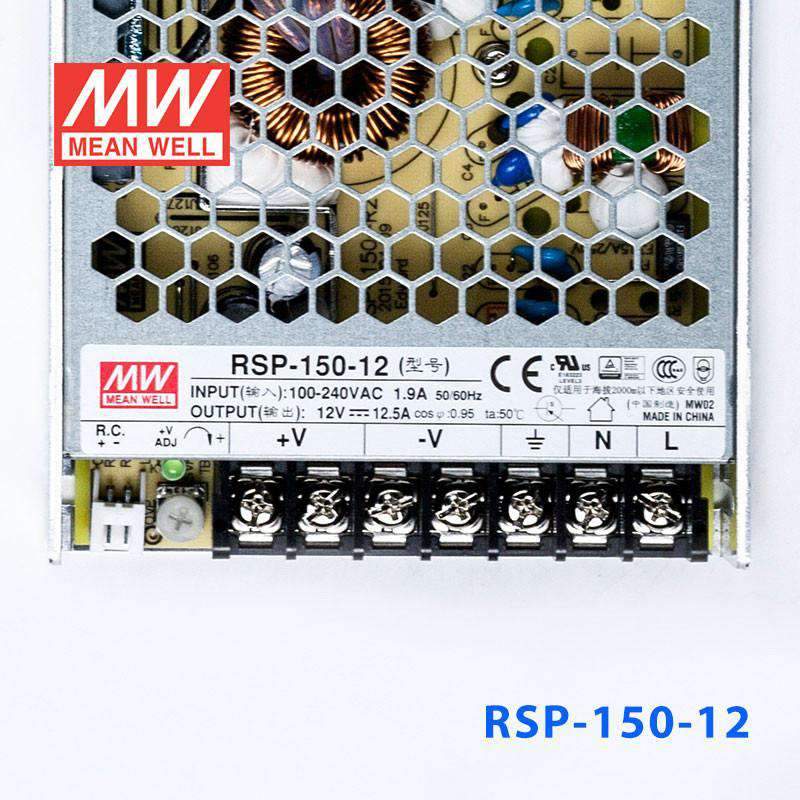

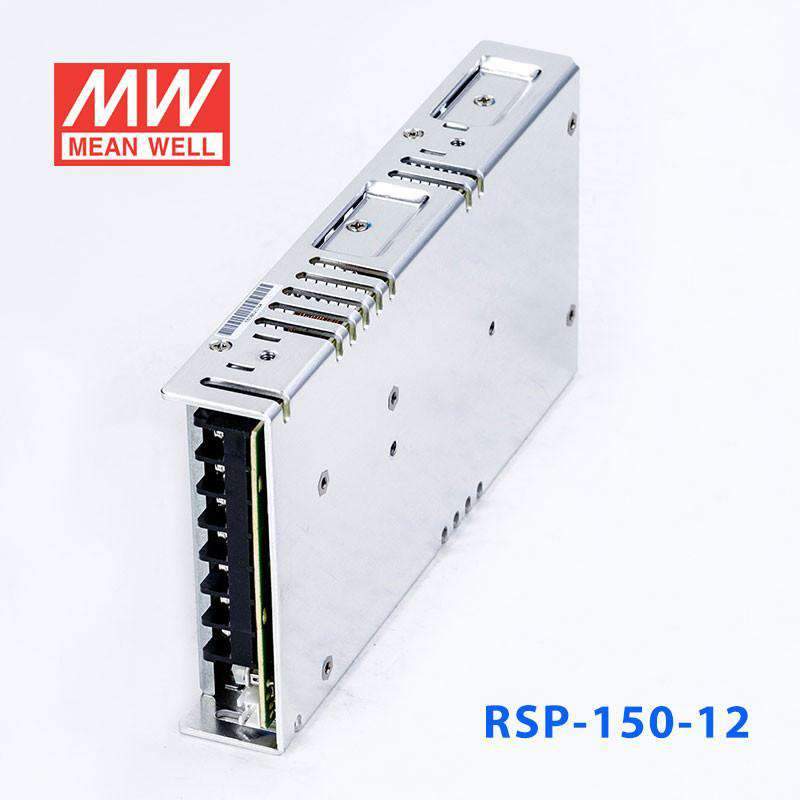

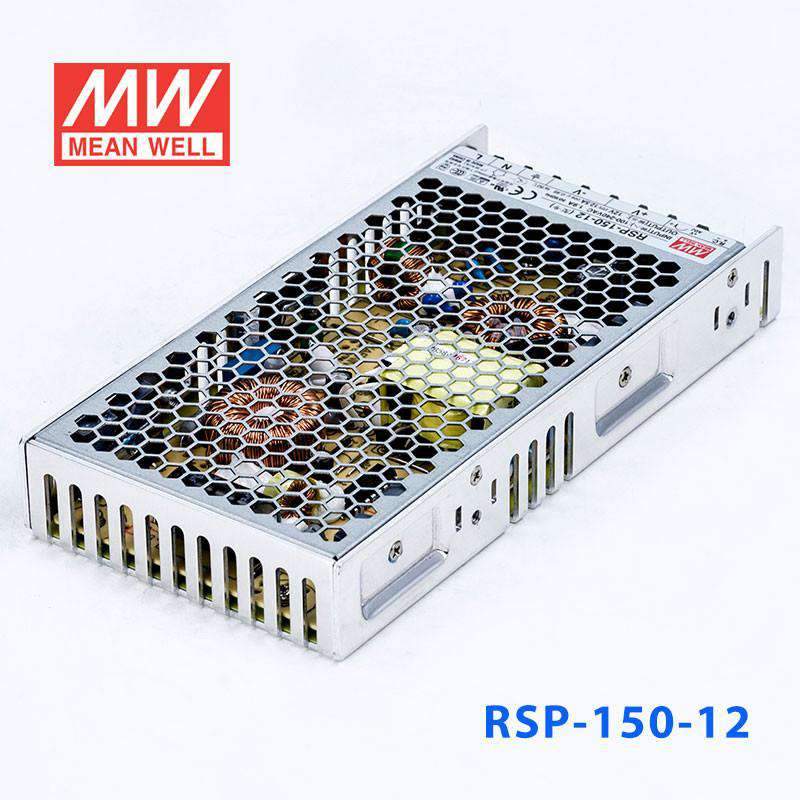

Mean Well RSP-150-12 Power Supply 150W 12V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Built-in constant current limiting circuit |
| Protections:Short circuit/ Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| 1U low profile 30mm |
| Remote ON-OFF control |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 45A at 230VAC |
| Overload protection | 105%~135% Constant current limiting, auto-recovery |
| Over temperature protection | Shut down o/p voltage, re-power on to recover |
| Setup, rise, hold up time | 600ms,30ms,16ms at full load |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70ºC(refer to output derating curve) |
| Safety standards | UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Connection | 7P/9.5mm pitch terminal block |
| Dimension (LxWxH) (mm) | 199x99x 30mm |
| Packing | 24pcs / 15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.9 cm
-
Height3 cm
-
Weight0.6 kg
