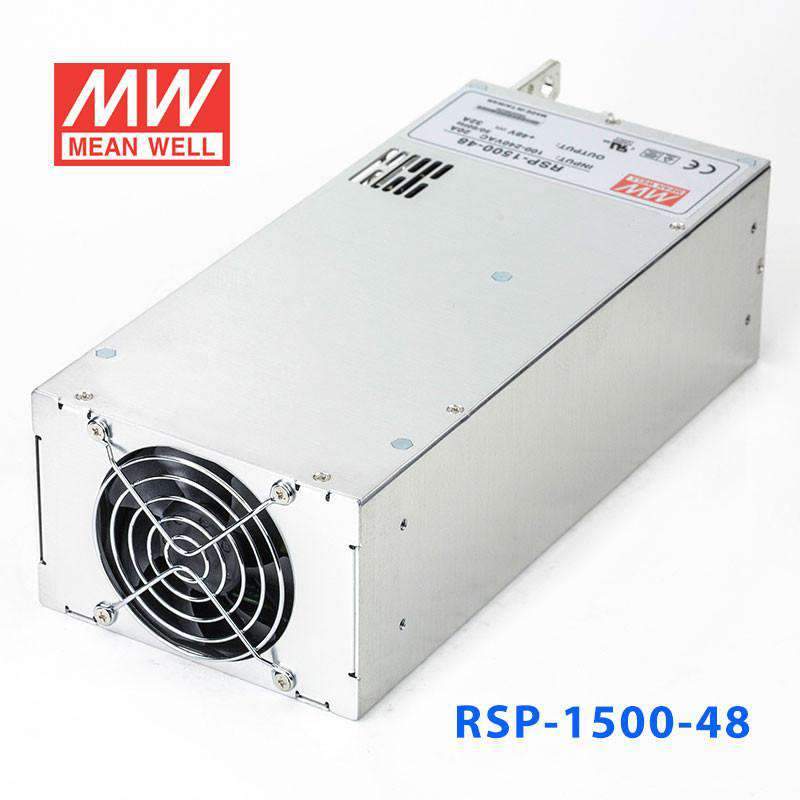

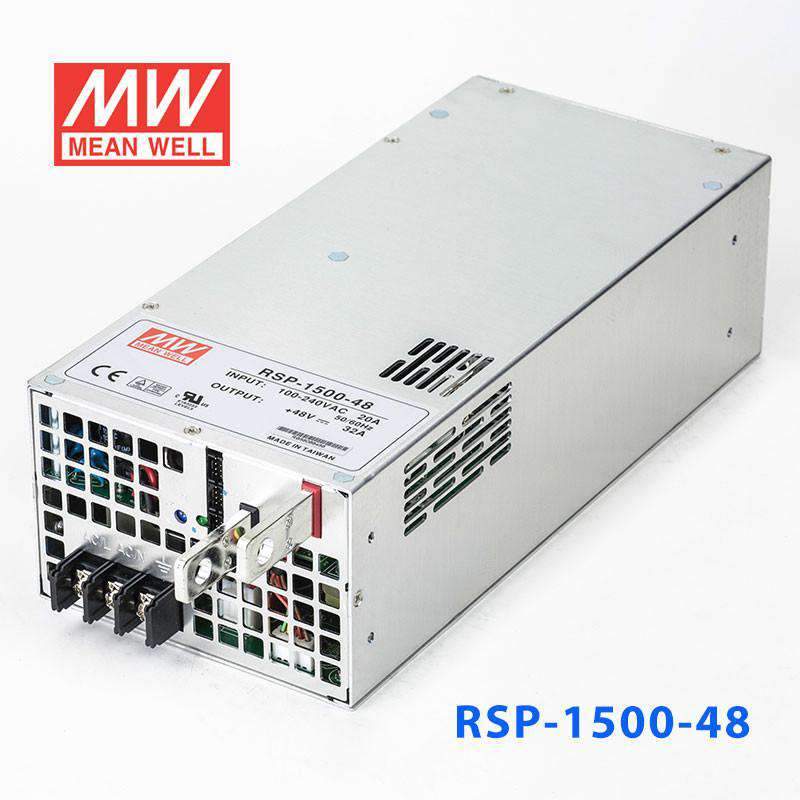

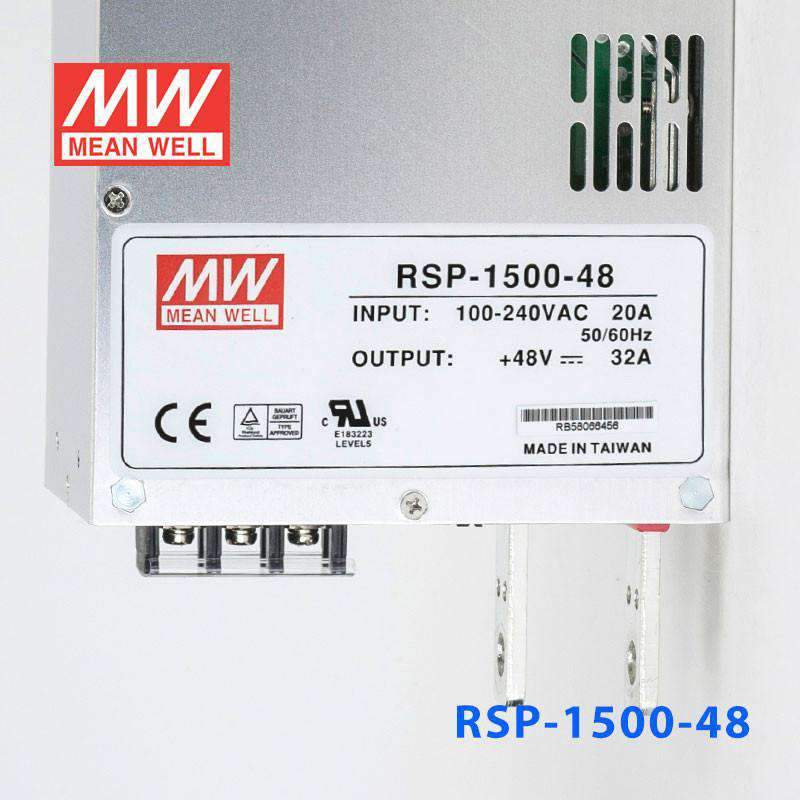

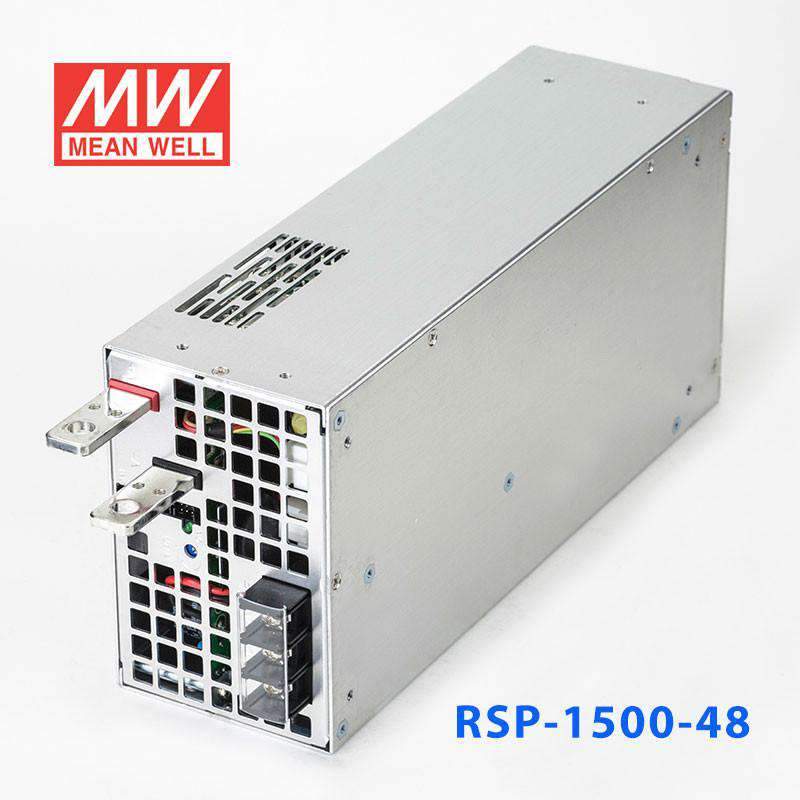

Mean Well RSP-1500-48 Power Supply 1536W 48V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | -30%~+10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover |
| Over voltage protection Range | 115%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |

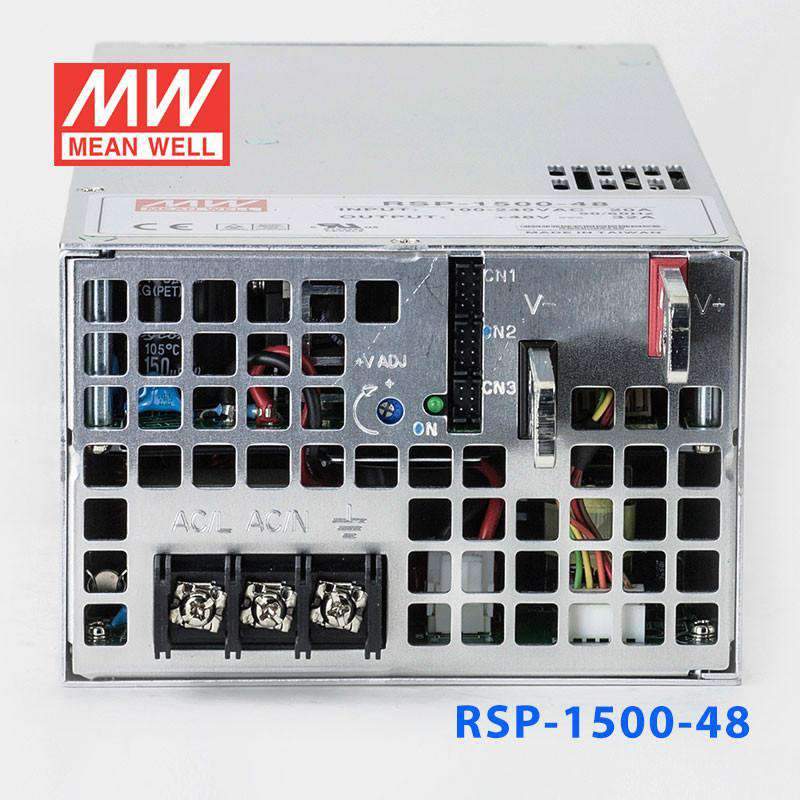

| Connection Input | 3P/13mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 278x127x83.5 |
| Case No. | 943A |
| Packing | 3.0kg; 4pcs / 13kg / 1.19CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1536 Watt
-
Output Voltage48 Volt
-
Rated Current32 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length27.8 cm
-
Width12.7 cm
-
Height8.35 cm
-
Weight3 kg
